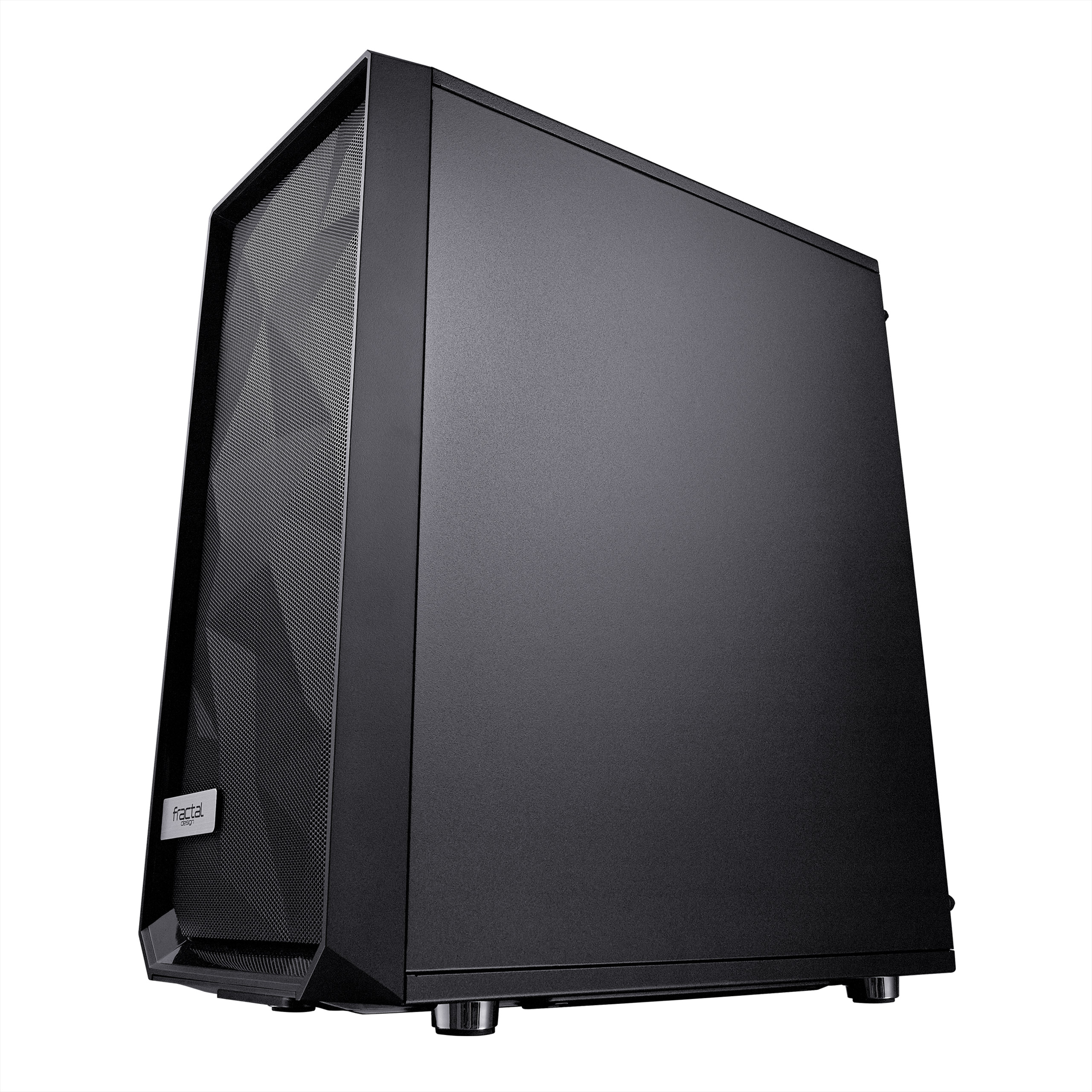

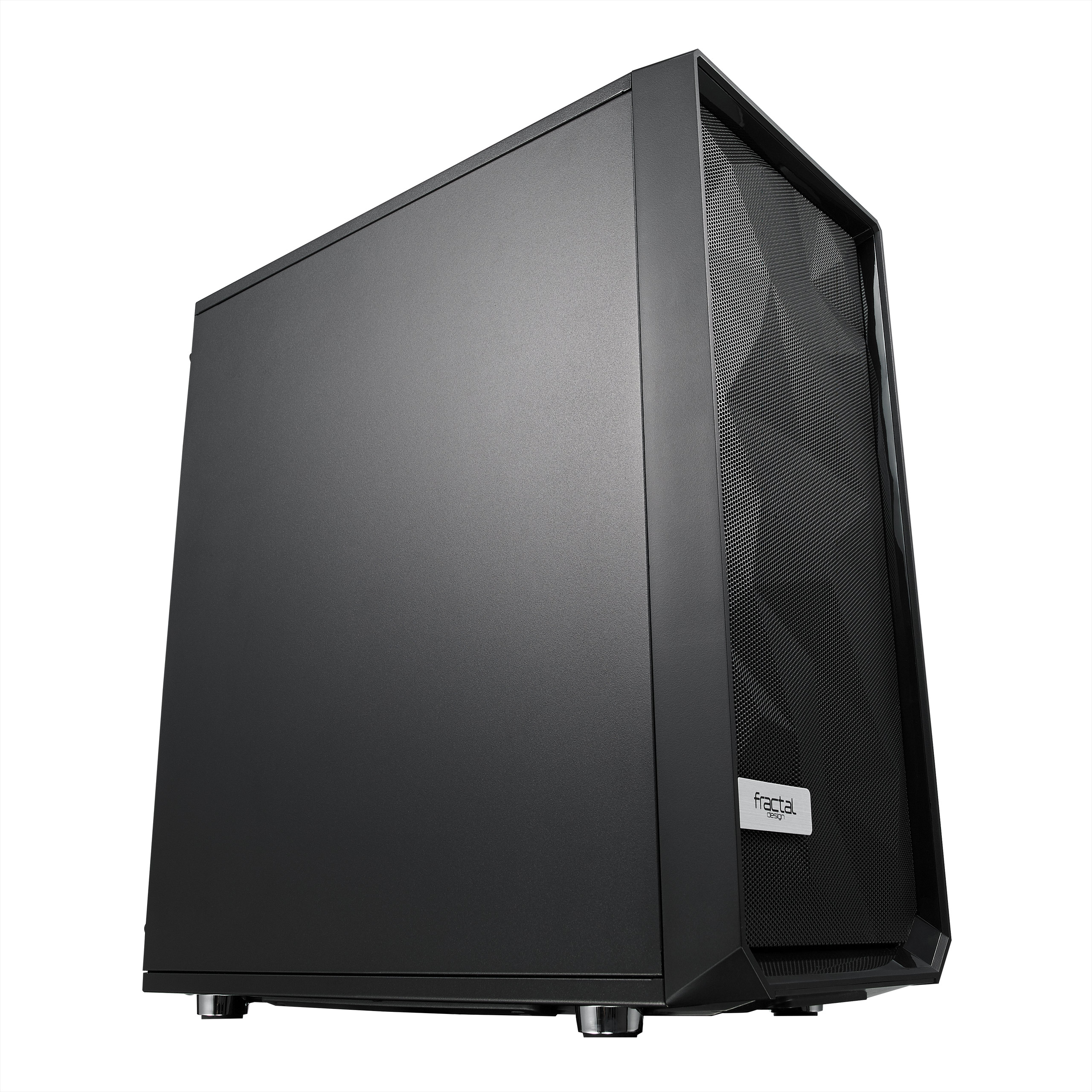

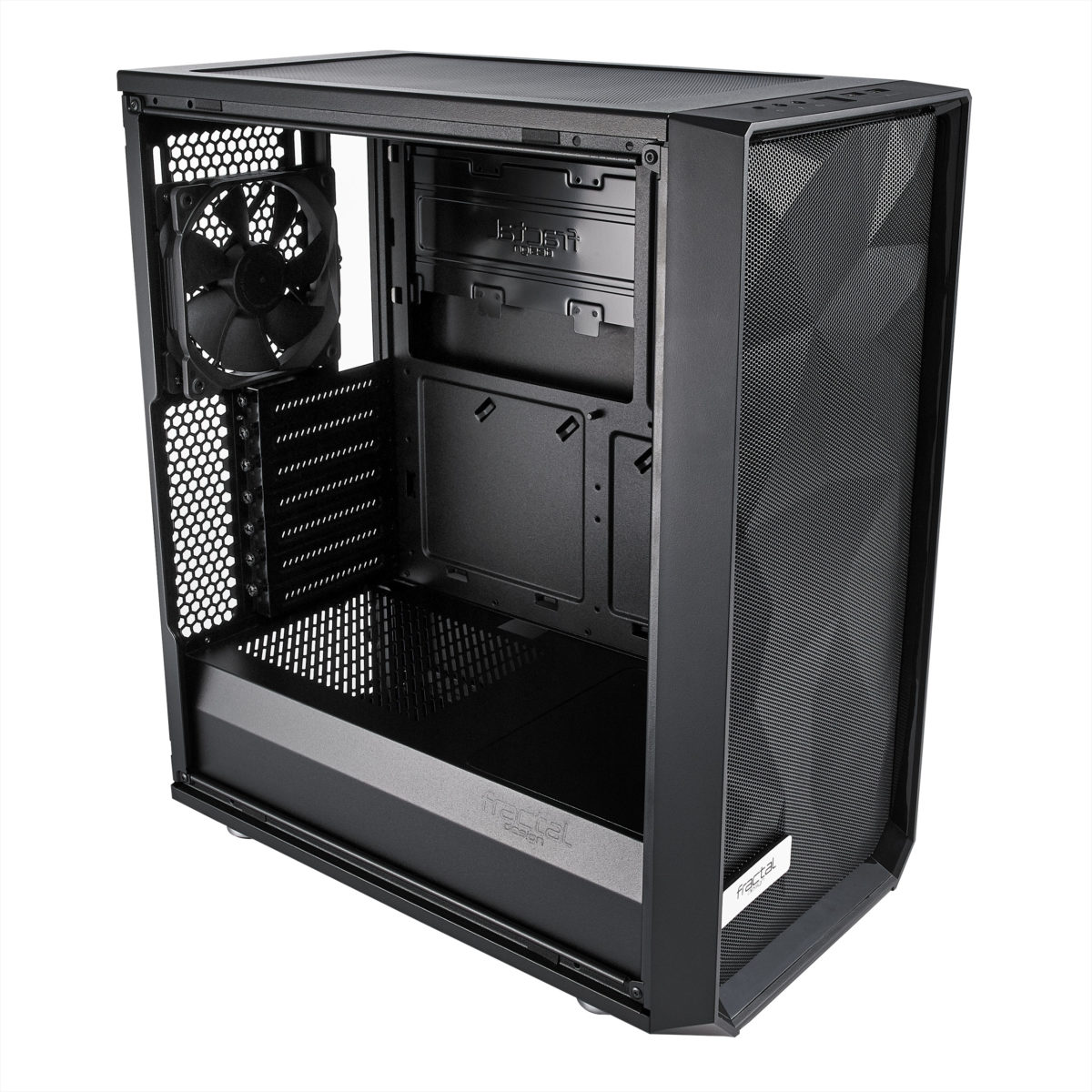

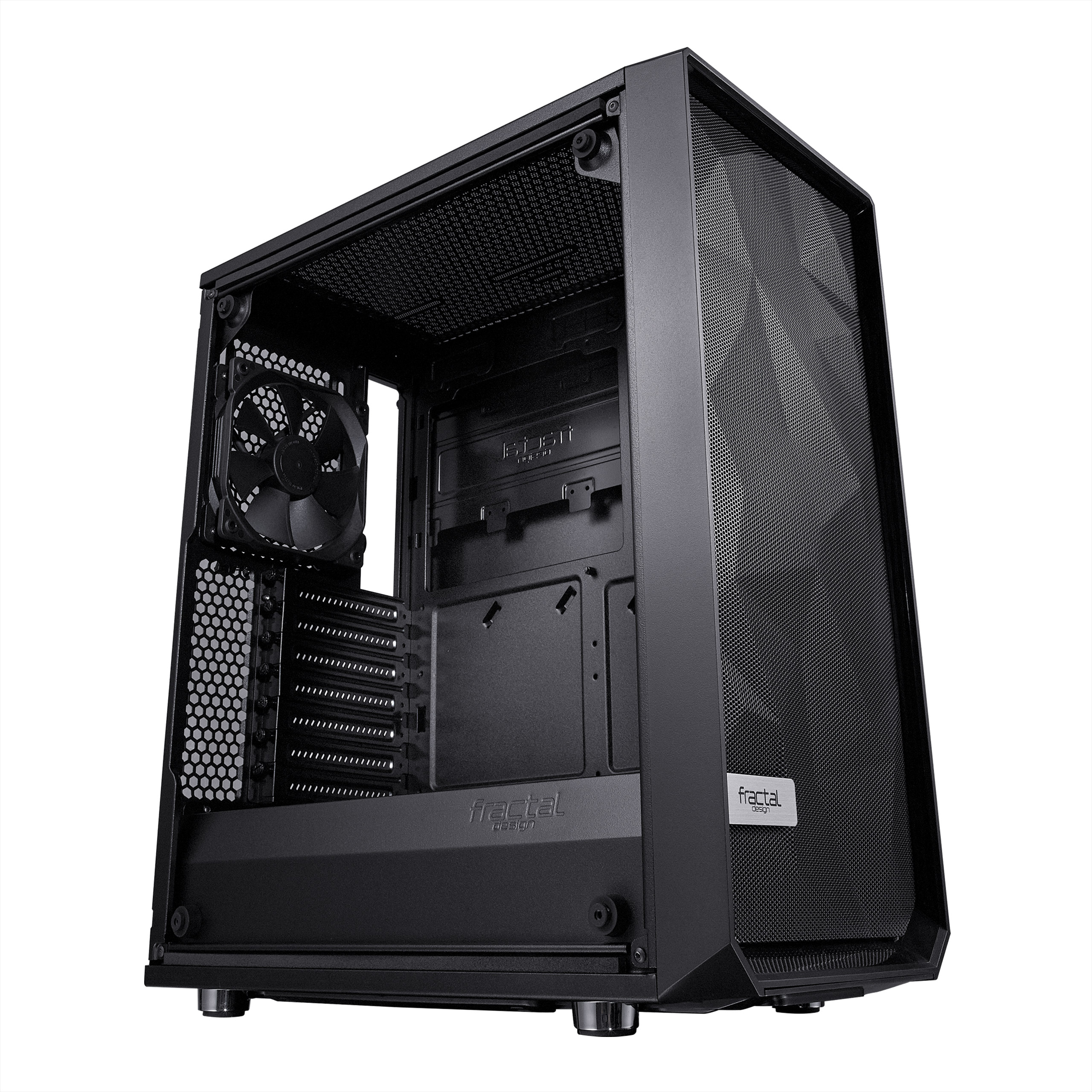

Meshify C

在Fractal Design的所有产品中，Meshify是最大胆和前卫的，提供了出色的散热性能和全新的外观。Meshify C 拥有黑色钻石般的棱角，使其在所有提供高散热性能的机箱中，成为了独树一帜的存在。

  • 流线型的高度气流设计
  • 简洁的中塔机箱设计，可以比同型的机箱拥有更多空间与效能
  • 全新設计的黑钻石雕刻面前面板，提高通风量

Variation

查看规格
寻找经销商

流线型的高度气流设计

  • 全新設计的黑钻石雕刻面前面板，提高通风量

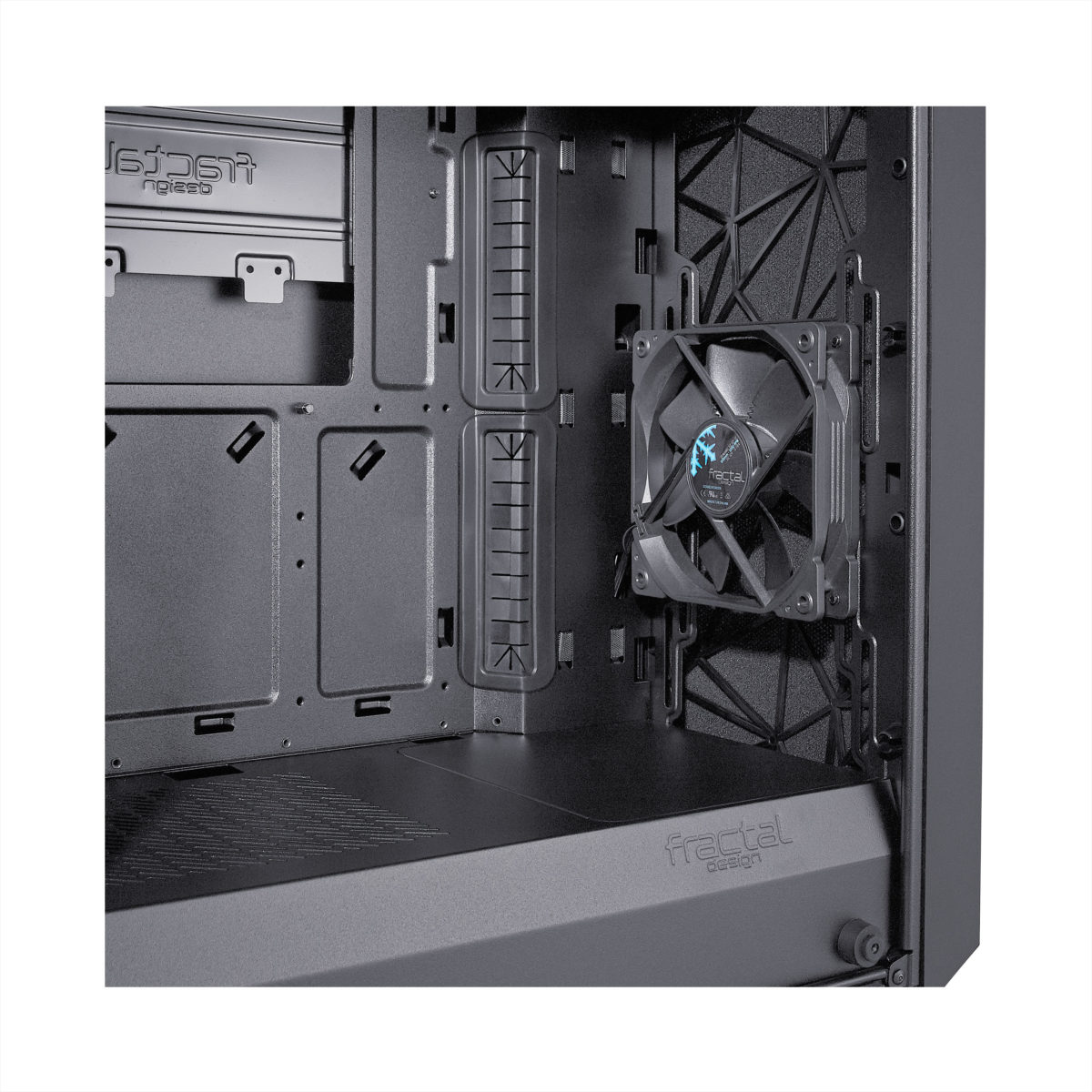

  • 预装两把Fractal Design Dynamic X2 GP-12 120 mm风扇，输送最佳气流及低噪音

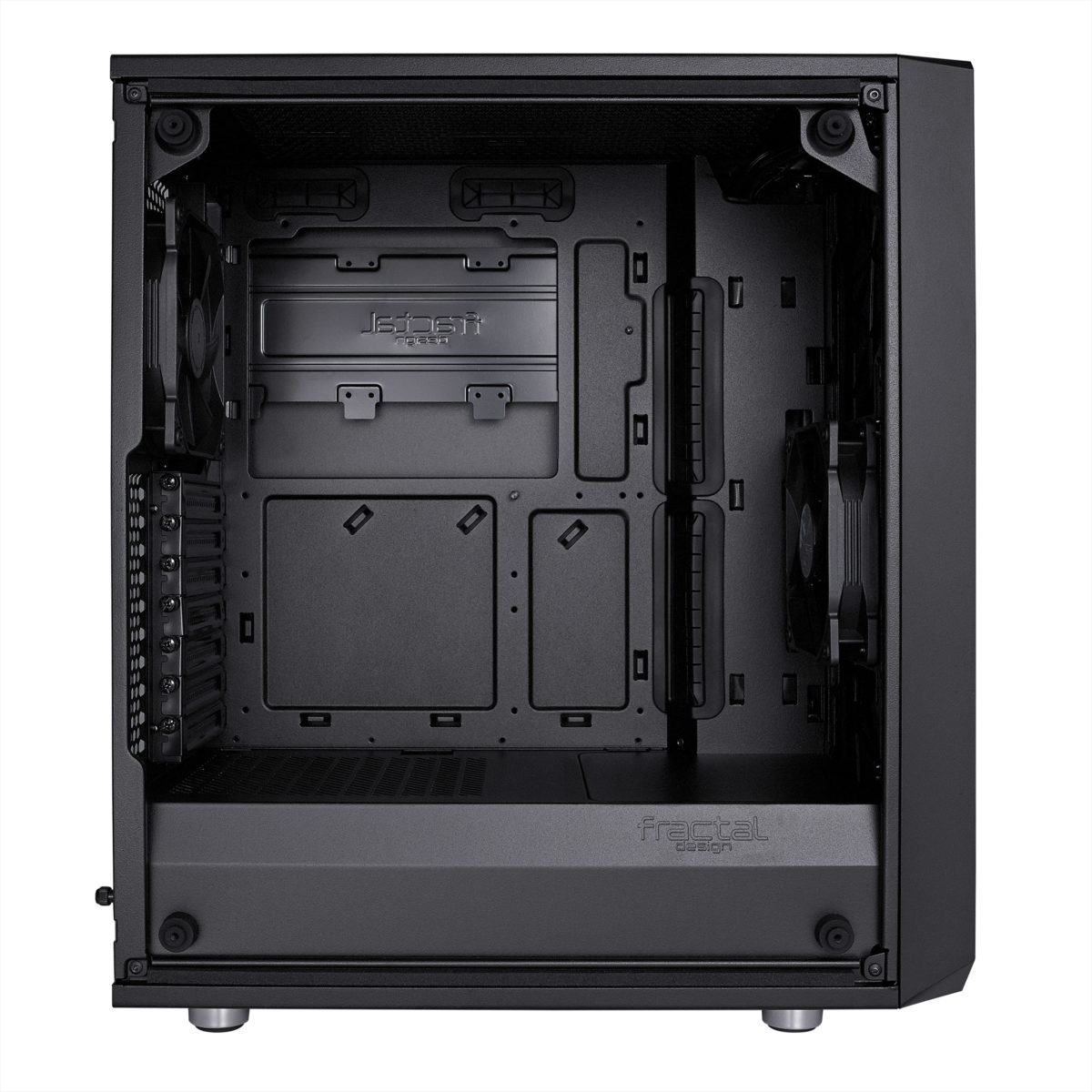

  • 新式的内部布局，在前进气口和后排气口之间形成了一条畅通无阻的气流通道

  • 在前侧、顶部和底部均设有防尘网，而底部防尘网为前端抽取式设计

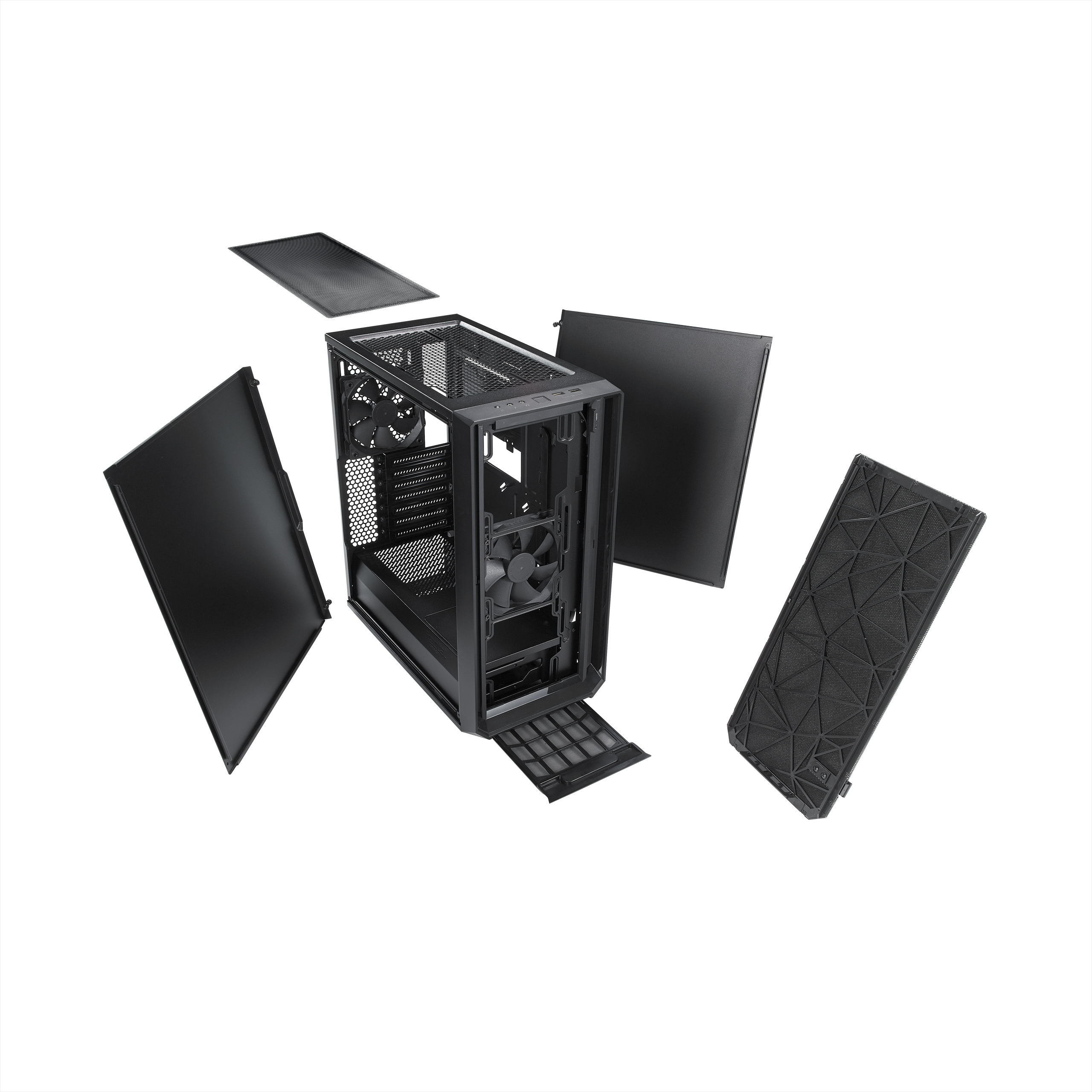

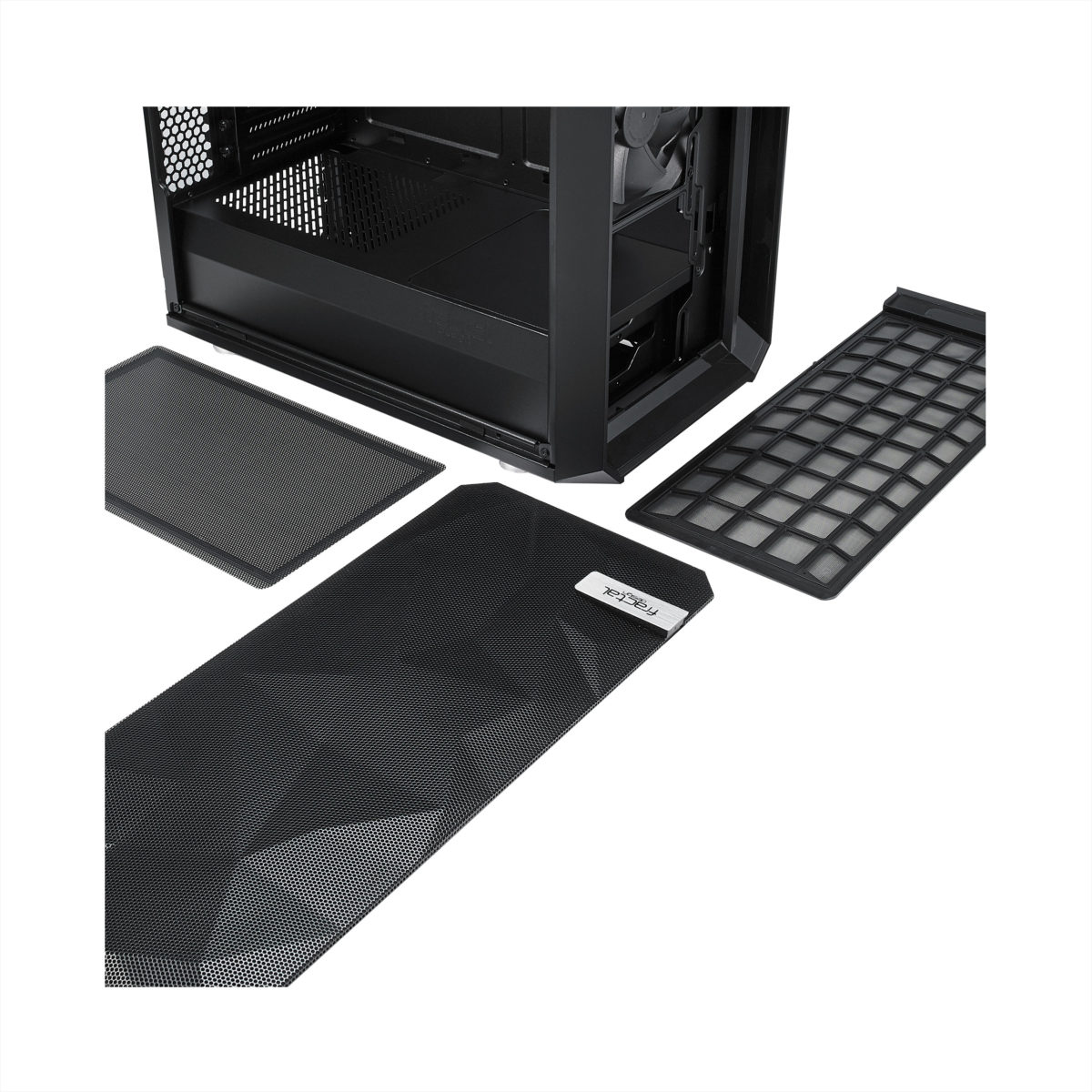

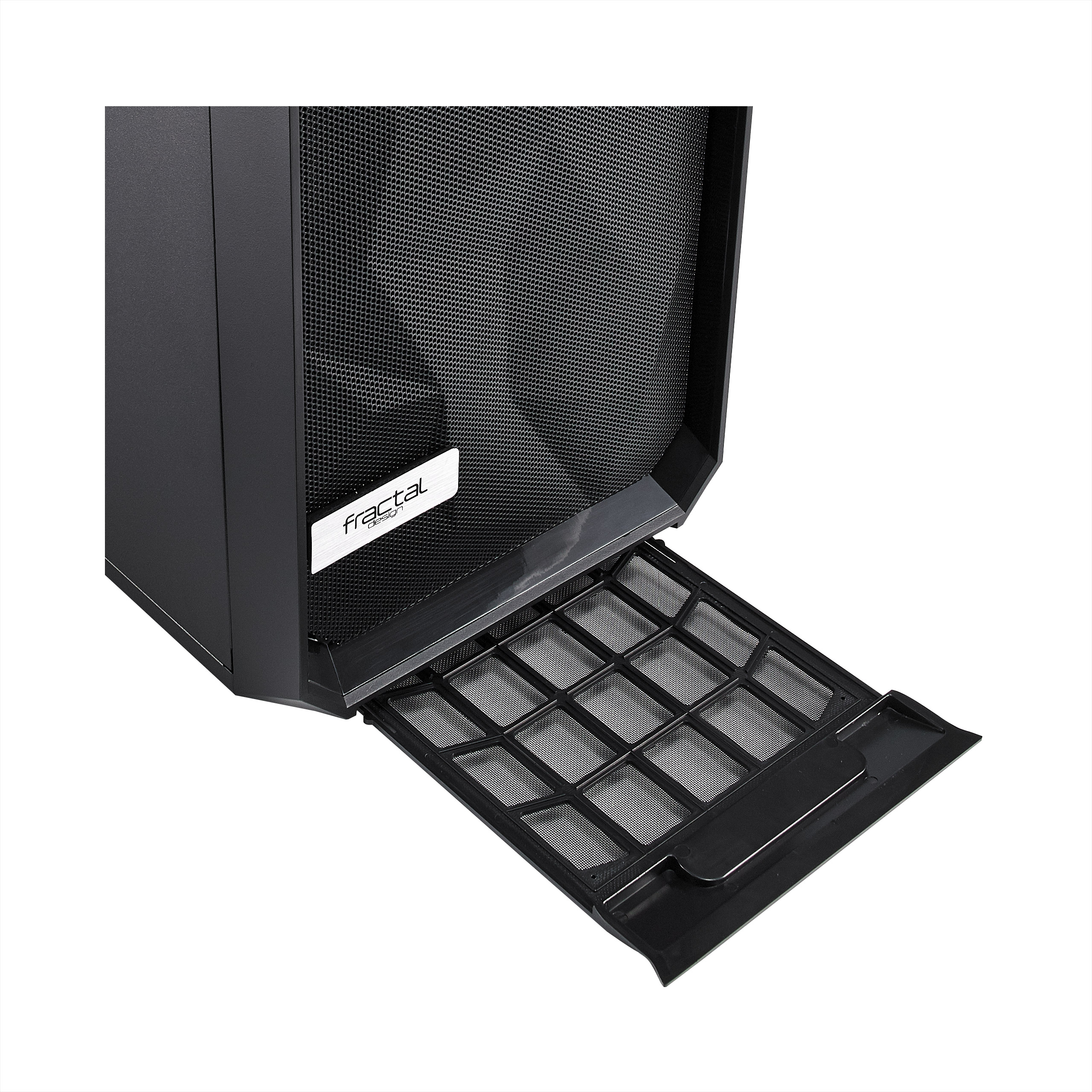

方便清理的过滤器

在前侧、顶部和底部均设有防尘网，而底部防尘网为前端抽取式设计

全新設计

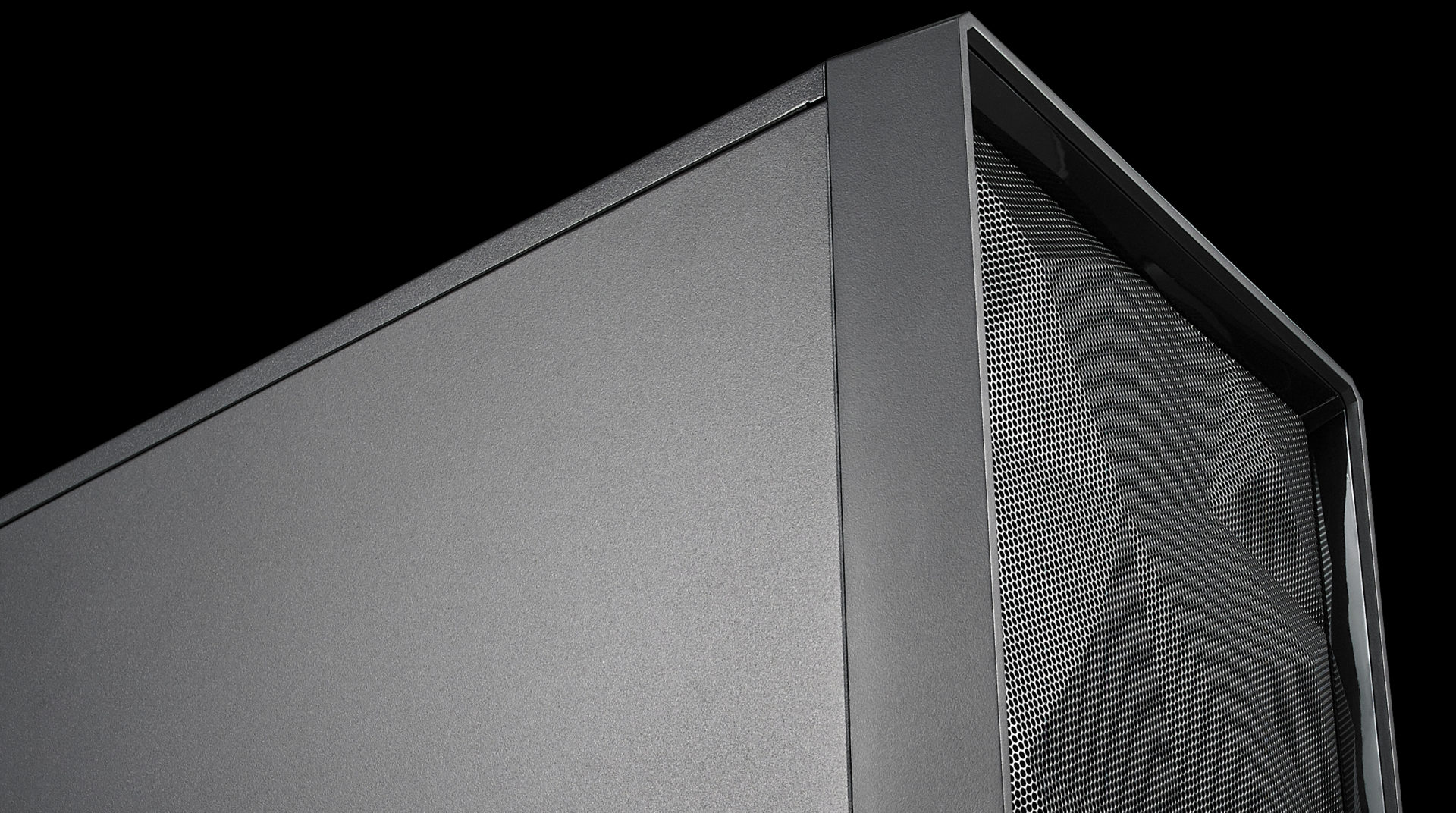

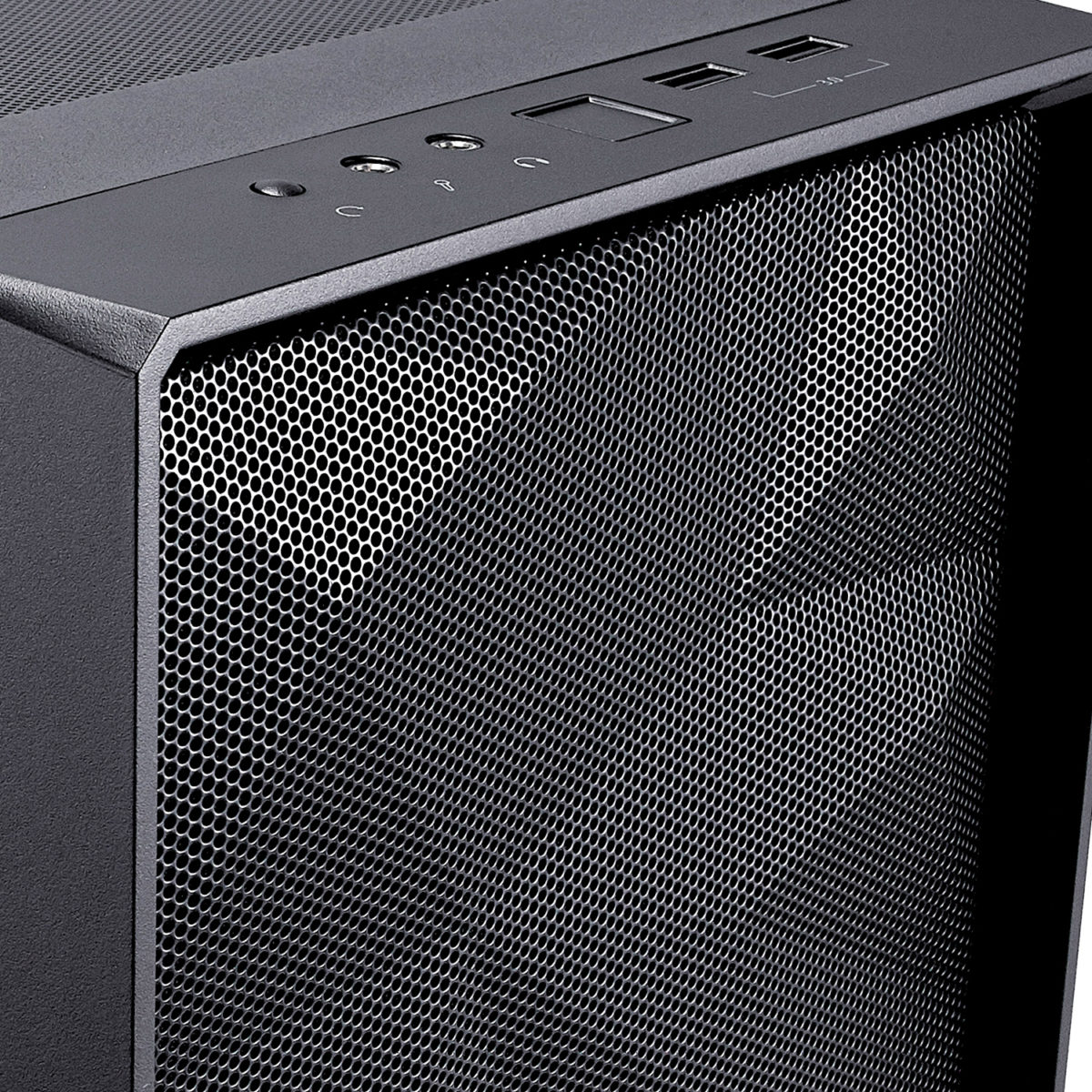

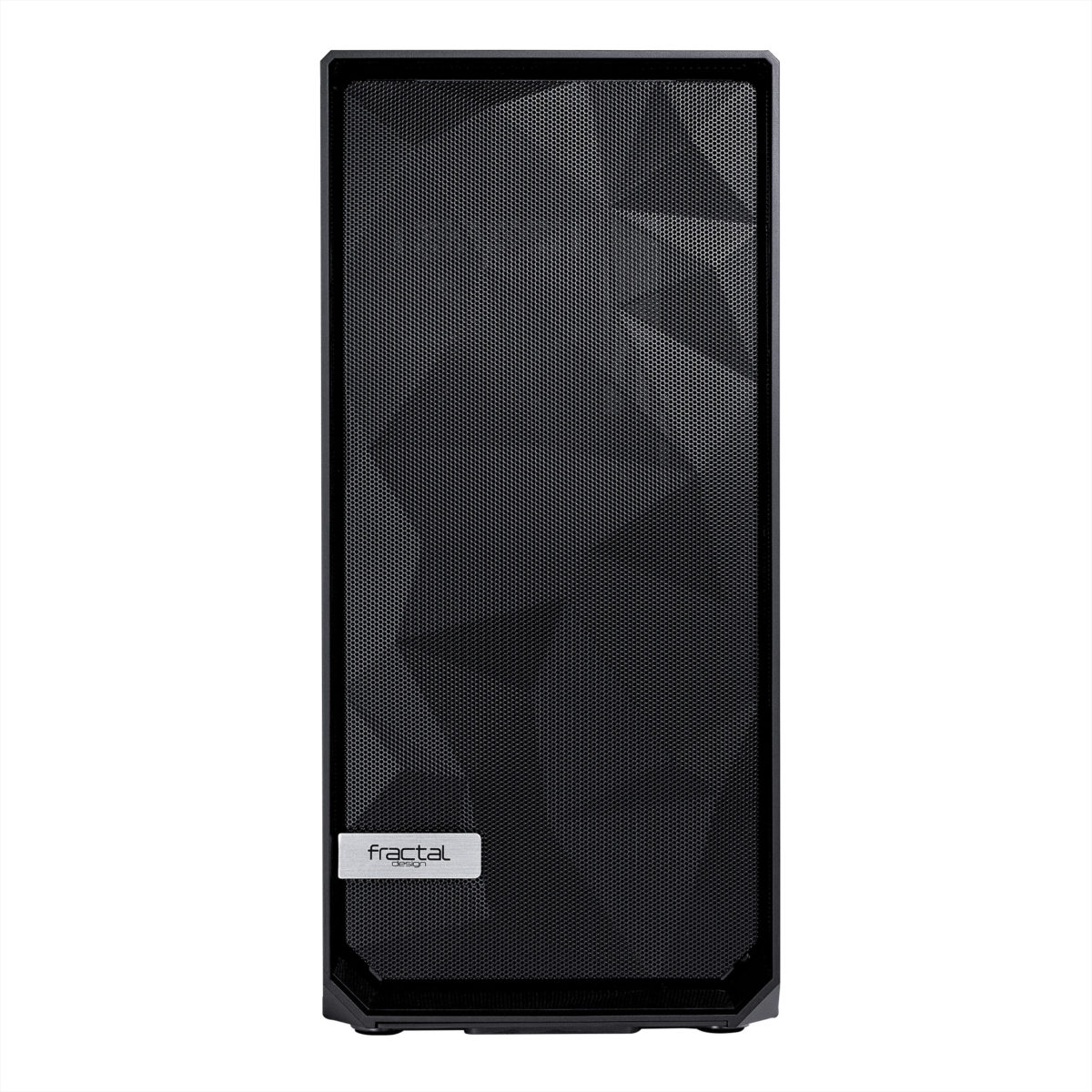

全新設计的黑钻石雕刻面前面板

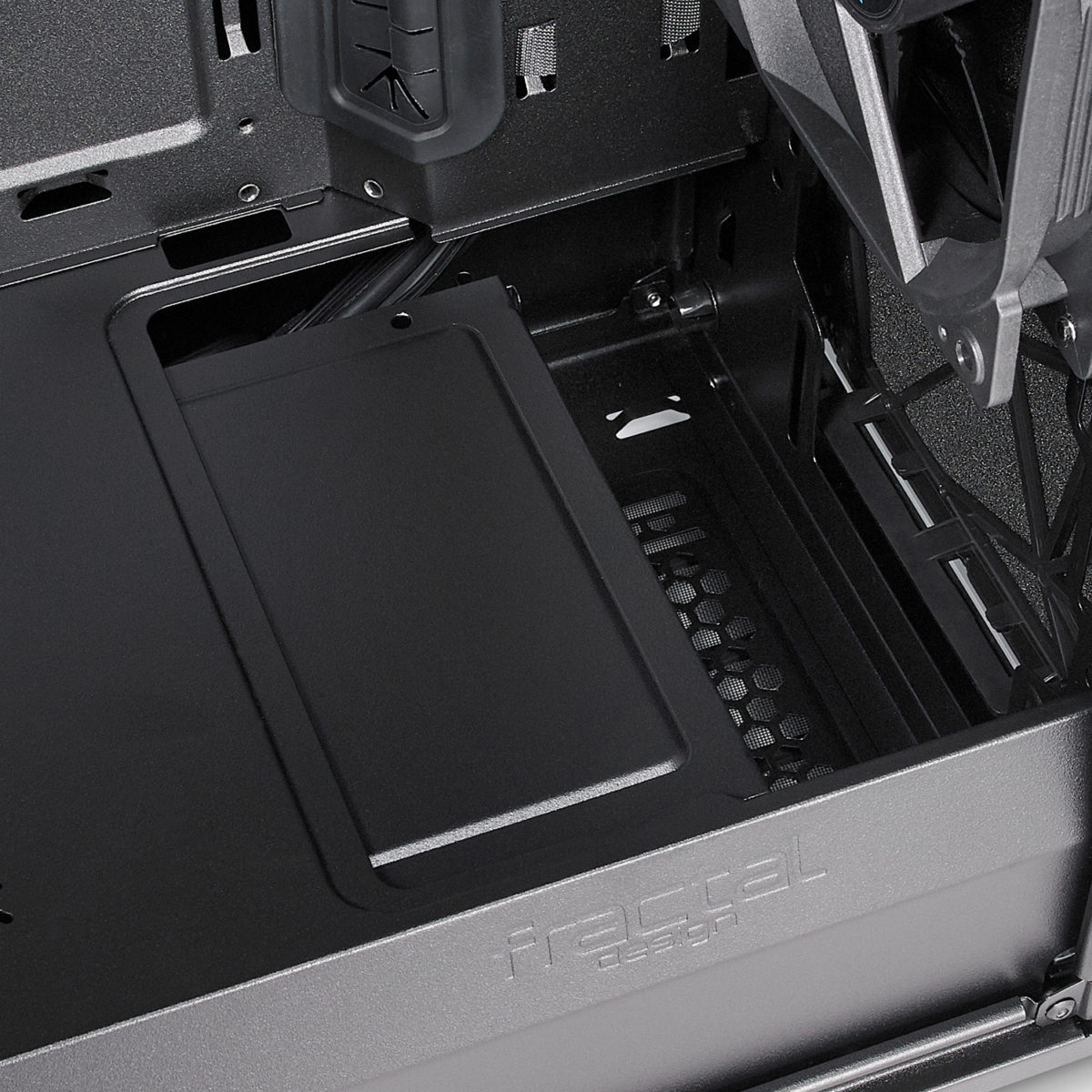

硬盘安装位

灵活的存储选项，可容纳多达5个硬盘架

Open to suggestions

  • 灵活的存储选项，可容纳多达5个硬盘架

  • 坚固的钢化硬盘架，标配减震的橡胶底座，以确保硬盘能平稳、安静运行

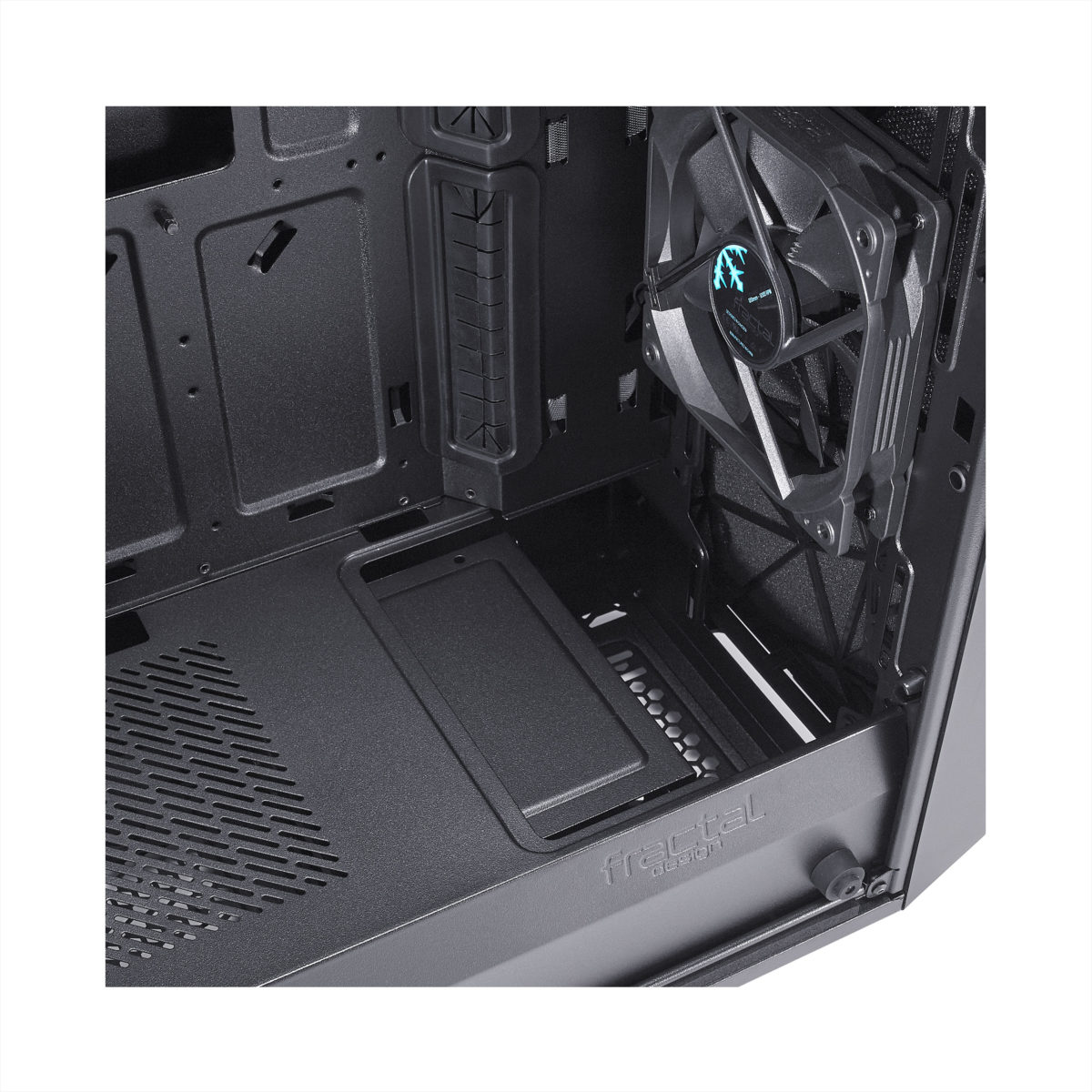

  • 全长电源罩，方便线路管理，使气流畅通无阻

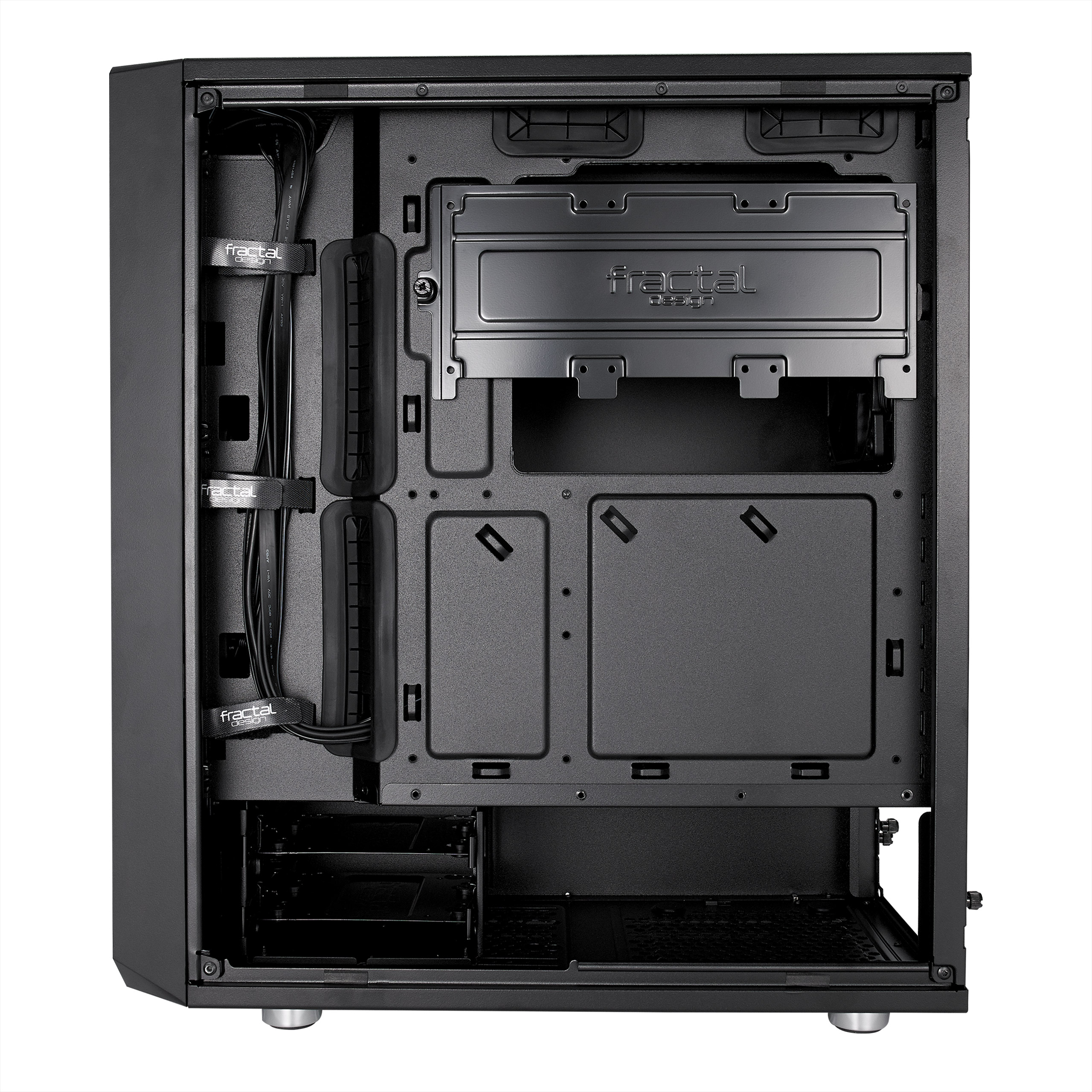

  • 主板后留有35 mm空间，并装有硅胶线套，便于整理布线

  • 3个2.5吋专用SSD硬盘位

Room for flexibility

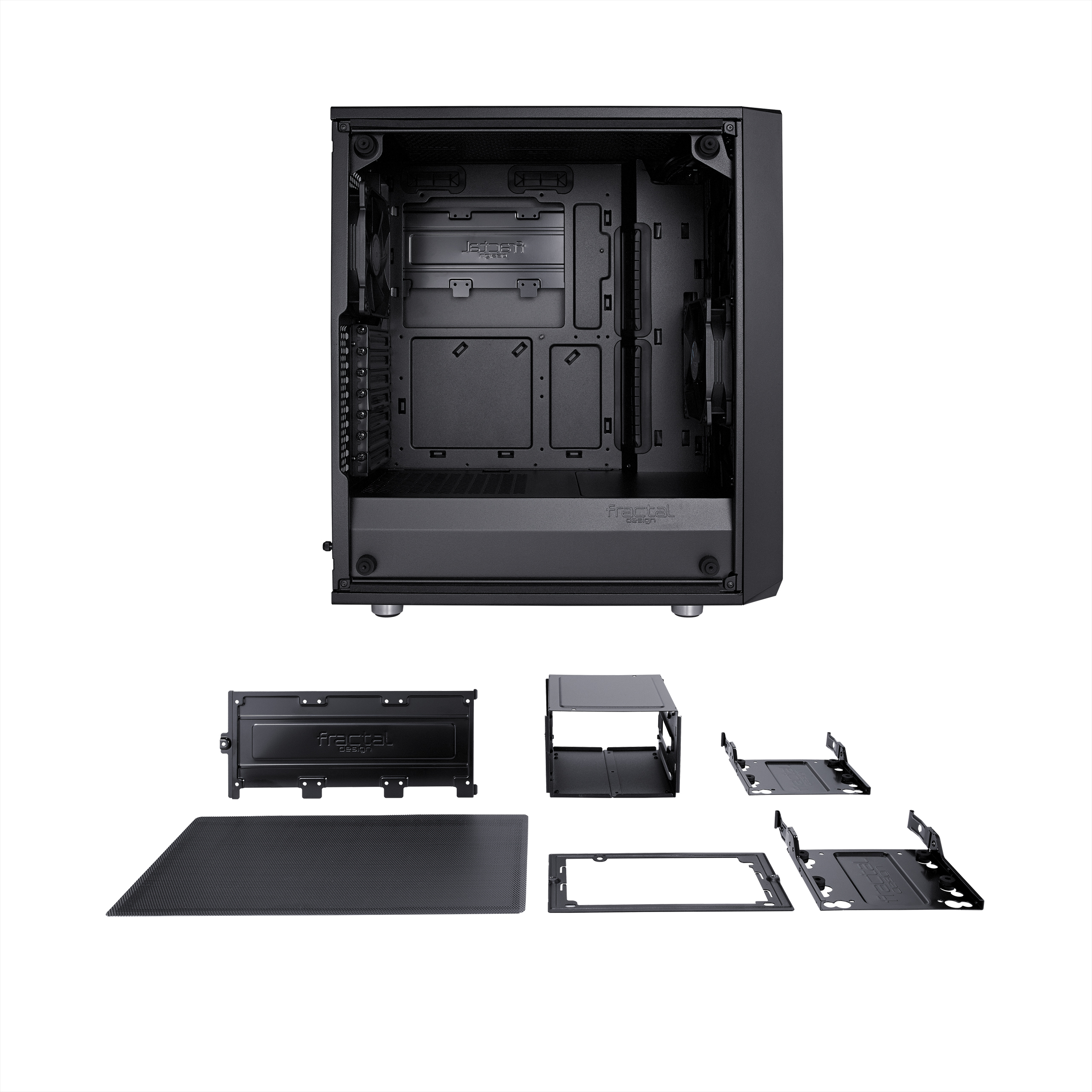

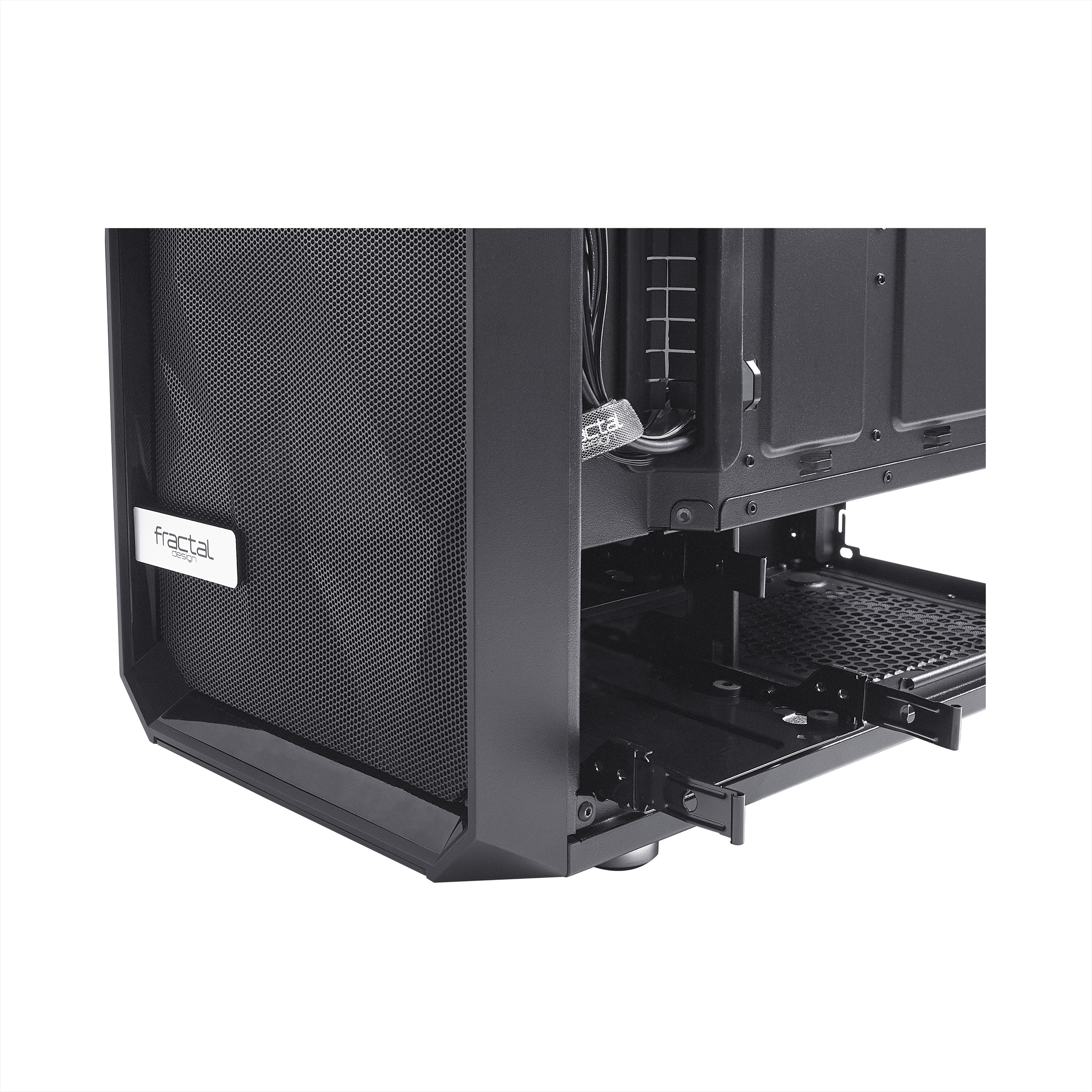

Conceal up to five storage devices with an adjustable and removable drive cage beneath the PSU shroud plus dedicated SSD mounts behind the motherboard tray.

  • 坚固的钢化硬盘架，标配减震的橡胶底座，以确保硬盘能平稳、安静运行

  • 灵活的存储选项，可容纳多达5个硬盘架

  • 简洁的中塔机箱设计，可以比同型的机箱拥有更多空间与效能

Improved air cooling

Seven total fan positions allow for extensive air cooling. Two Fractal Design Dynamic X2 GP-12 fans come preinstalled for maximum airflow, minimal noise and 100,000 hour life expectancy.

  • Whatever your liquid cooling ambitions may be, Meshify C can make it happen with support for radiators up to 360 mm in the front and 240 mm up top

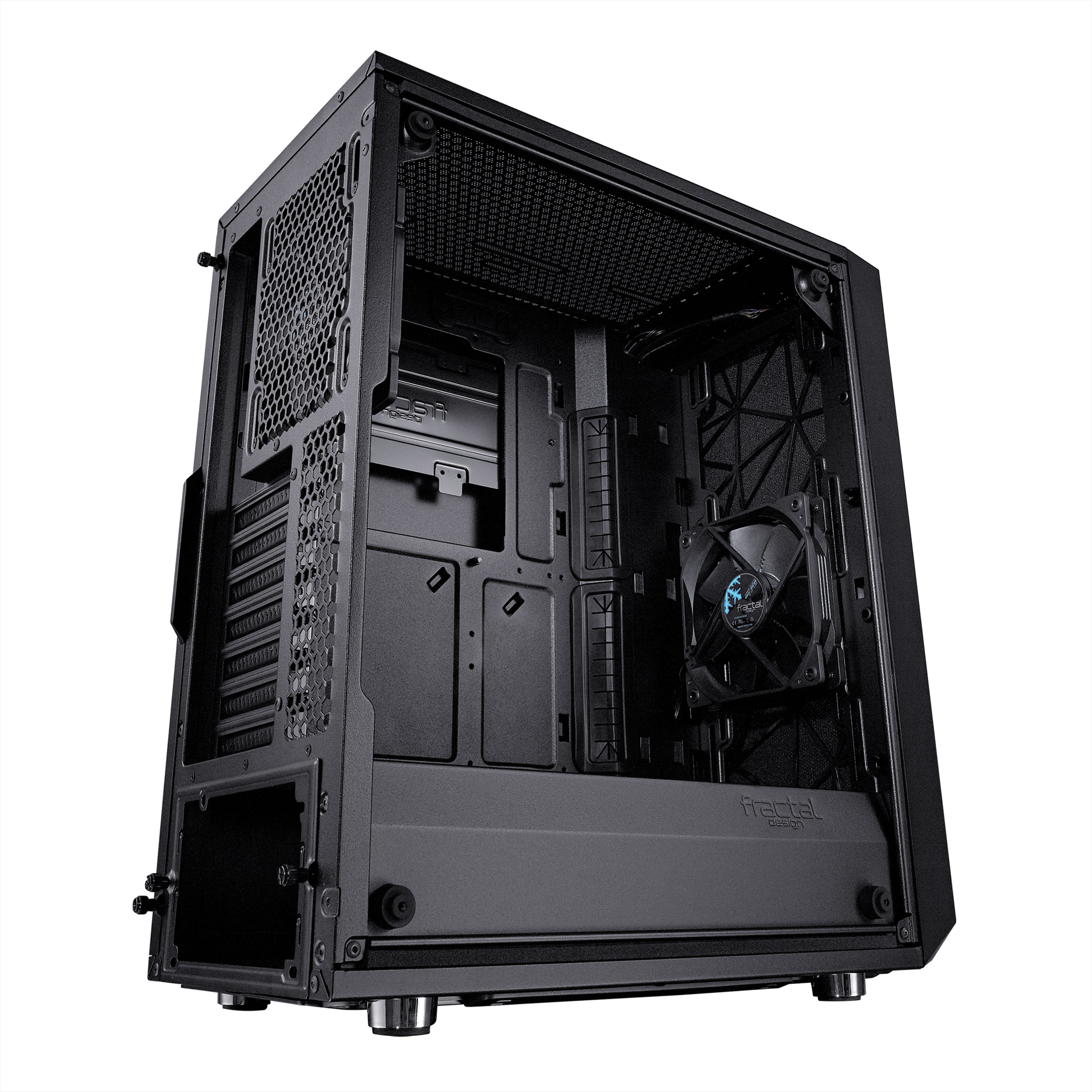

  • Open interior layout creates an unobstructed airflow path from front intake to rear exhaust

  • Even the largest enthusiast-class GPUs leave plenty of room for thick triple-fan rads in the front. The adjustable drive cage can be moved or removed to fit even the lengthiest heavy-duty PSUs

"The Meshify C provides glass-sided-case buyers good quality and enhanced liquid cooling support at a comparatively average price."
Tomshardware.com 阅读更多
The Fractal Design Meshify C manages to deliver the same excellent construction quality we have come to expect from the company's Define line-up. Sturdy materials coupled with excellent engineering and a functional approach mean the Meshify C is worthy of being a part of the family."
Techpowerup.com 阅读更多
"You can do a pretty awesome build in this case and the best part about it is unlike many new cases we’ve seen this case has proper ventilation, especially in the front mesh section of the case."
Thinkcomputers.org 阅读更多
"The Meshify C is a solid entry into a fairly crowded market. An all-black design coupled with tempered glass certainly isn't enough on its own to make a case stand out these days, and Fractal has played it rather safe with the internal design as well. Still, it's an approach that works well, as we've been unable to find any major flaws."
Bit-tech.net 阅读更多

Specifications

  • 3.5" or 2.5" Drive capacity
    2
  • Dedicated 2.5" drive capacity
    3
  • Expansion slots
    7

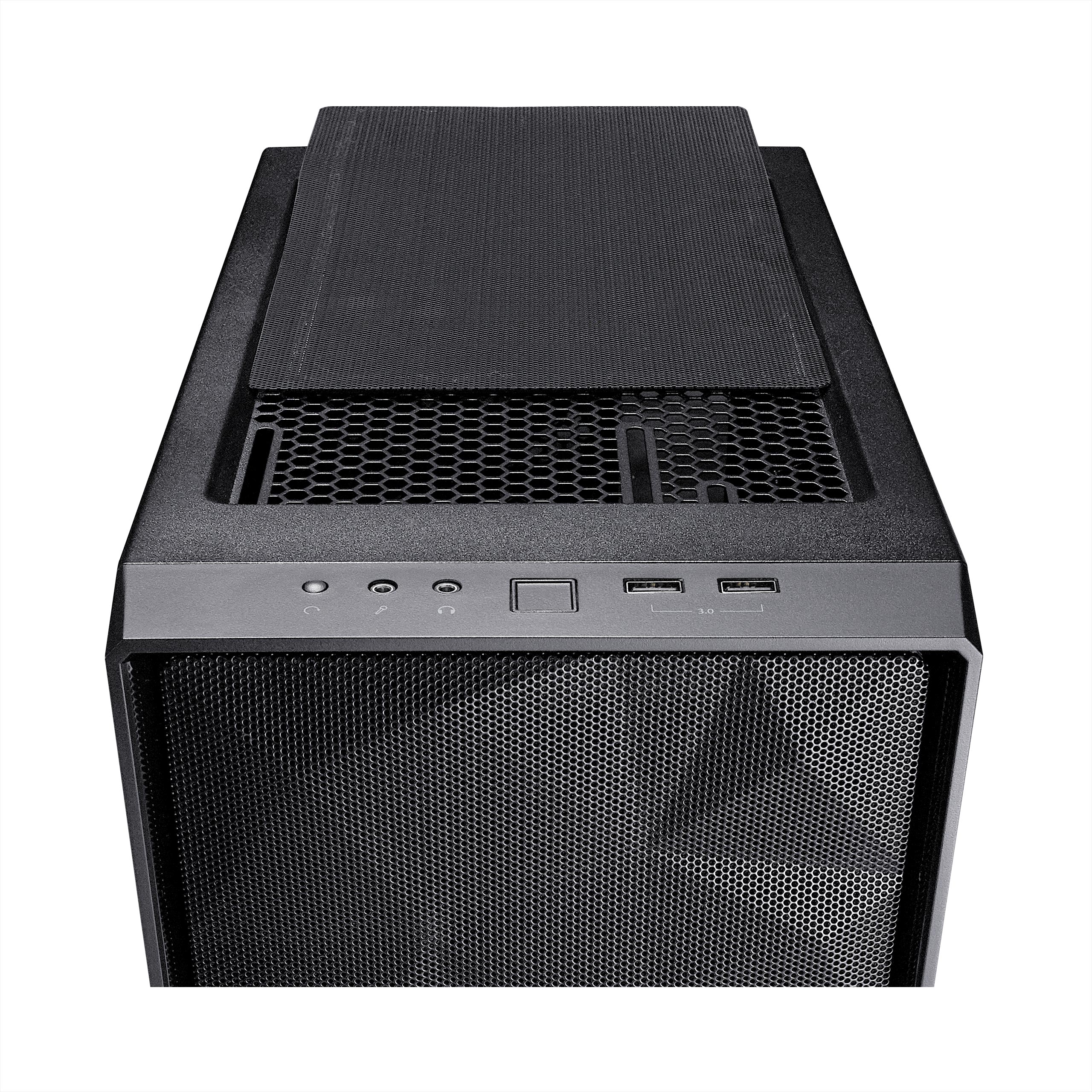

  • Front ports
    2x USB 3.0, Audio I/O, Power button, Reset button
  • Total fan mounts
    7
  • Front fan
    3x 120 mm or 2x 140 mm (1x Dynamic X2 GP-12 included)
  • Top fan
    2x 120/140 mm

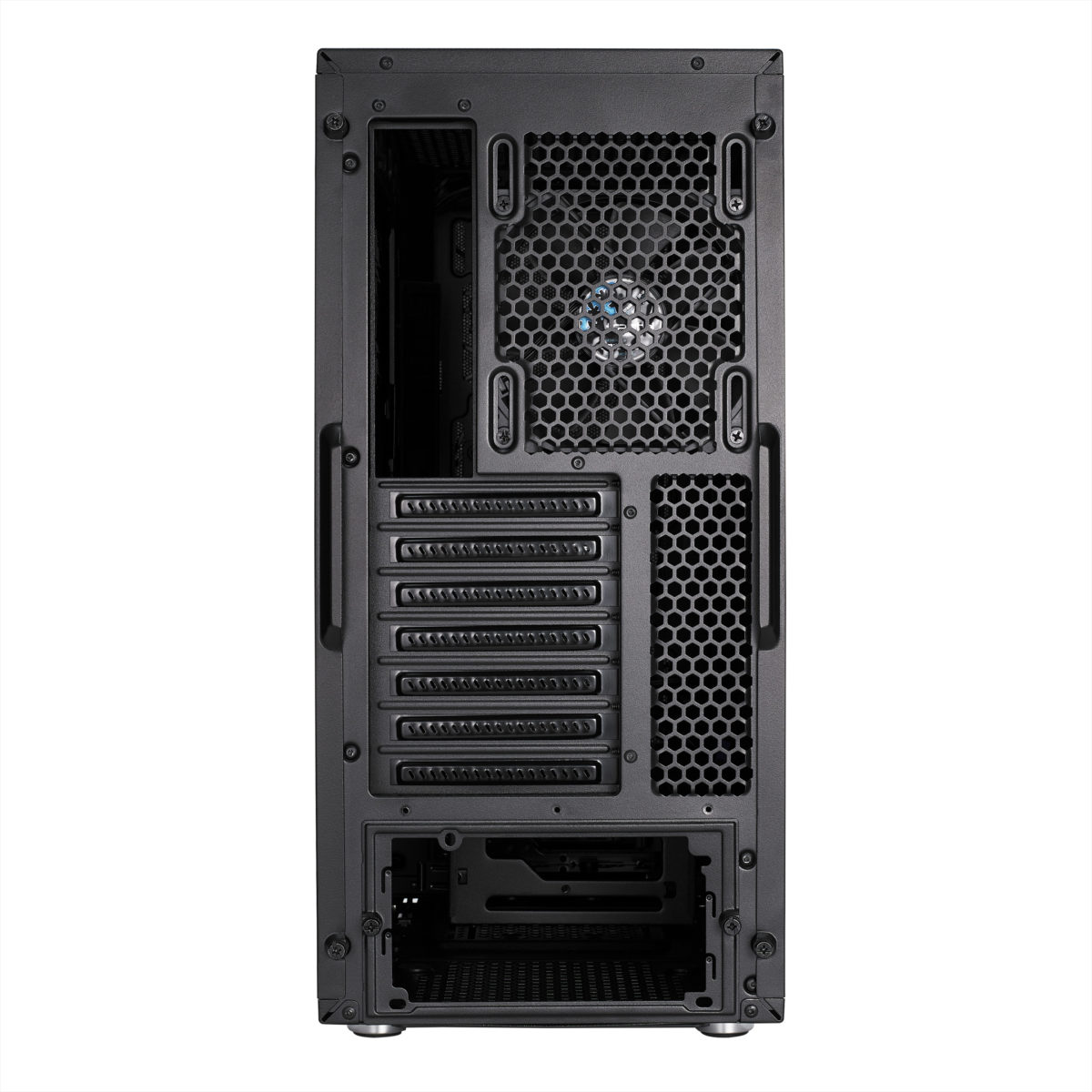

  • Rear fan
    1x 120 mm (1x Dynamic X2 GP-12 included)
  • Bottom fan
    1x 120 mm
  • Dust filters
    Bottom fan + PSU, Front fans, Top fans
  • Cable routing grommets
    Yes
  • Fixed velcro straps
    Yes
  • Captive thumbscrews
    Both side panels, SSD brackets
  • Left side panel
    Steel
  • Right side panel
    Steel

Compatibility

  • Power supply type
    ATX
  • Motherboard compatibility
    ATX, mATX, ITX
  • Front radiator
    120/240/360 mm, 140/280 mm
  • Top radiator
    120/240 mm (max component height on motherboard 40 mm)
  • Rear radiator
    120 mm (max width 125 mm)
  • PSU max length
    175 mm
  • GPU max length
    315 mm with front fan mounted
  • CPU cooler max height
    170 mm
  • Cable routing space
    15-35 mm

Dimensions

  • Case dimensions (LxWxH)
    395 x 212 x 440 mm
  • Case dimensions - with feet/protrusions/screws
    413 x 217 x 453 mm
  • Net weight
    6.16 kg
  • Package dimensions (LxWxH)
    542 x 298 x 493 mm
  • Package weight
    7.52 kg
  • Volume
    36.5 liters

Other

  • Package contents
    Meshify C computer case, User manual, Accessory box, Top filter
  • EAN
    7340172700081
  • UPC
    84327610081
  • Product code
    FD-CA-MESH-C-BKO
