Define S 大侧透

Define S系列机箱的内部布局新颖现代，避免了光驱槽束缚，更着重于顺畅流动的散热系统，更完善了对水冷散热系统的高度支持。

  • 特殊的高密度抗噪材料，搭配独家的 ModuVent™风扇孔盖以及精巧设计的Dynamic系列风扇，Define S系列机箱在静音运行方面已达到最顶尖的水平。

Variation

寻找经销商

Specifications

  • 3.5" HDD/2.5" SSD positions
    3
  • 2.5" dedicated SSD unit positions
    2 (fits SSDs up to 17 mm thick)
  • Expansion slots
    7

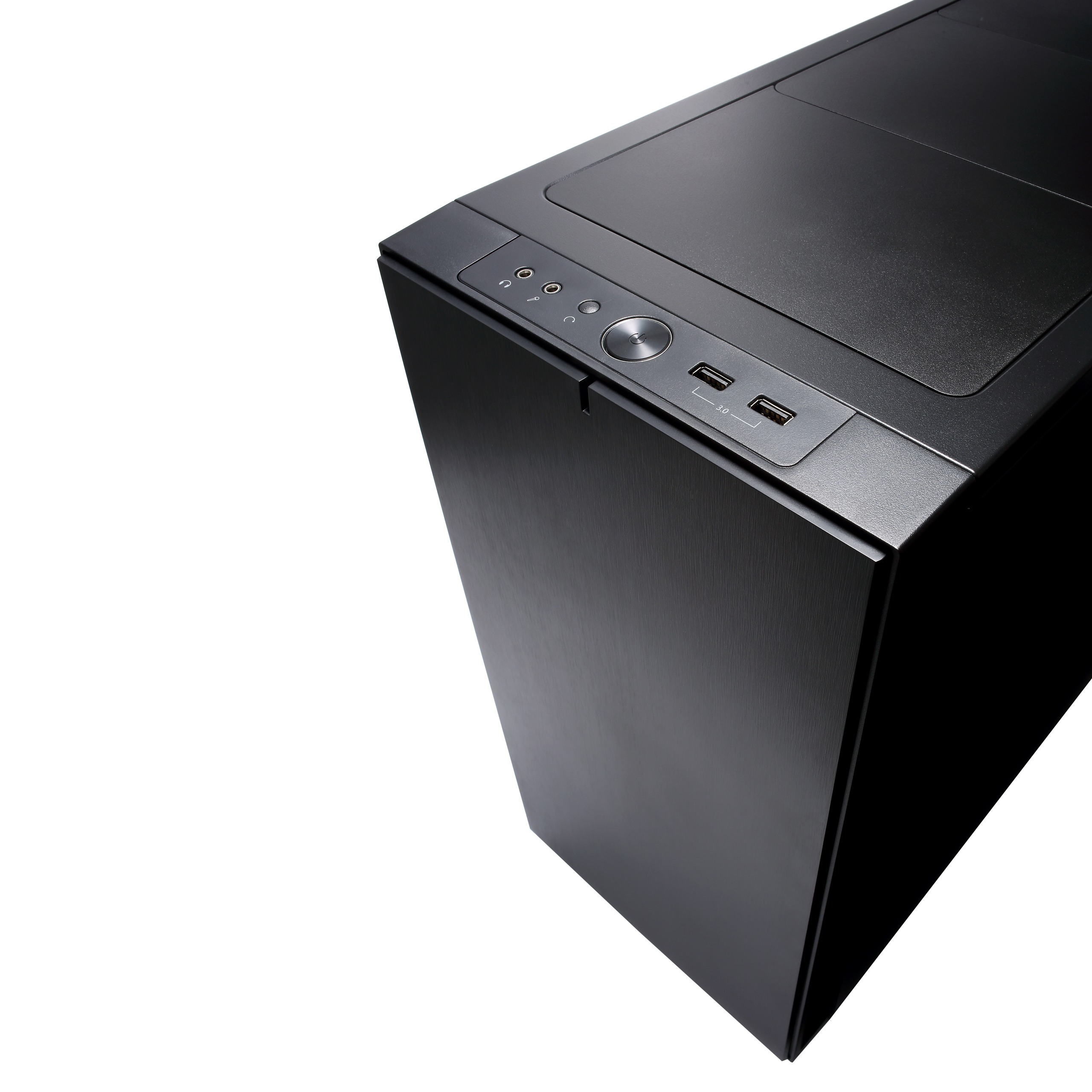

  • Front ports
    2x USB 3.0, Audio in/out, Power button with LED (blue), HDD activity LED (blue), Reset button
  • Total fan mounts
    8

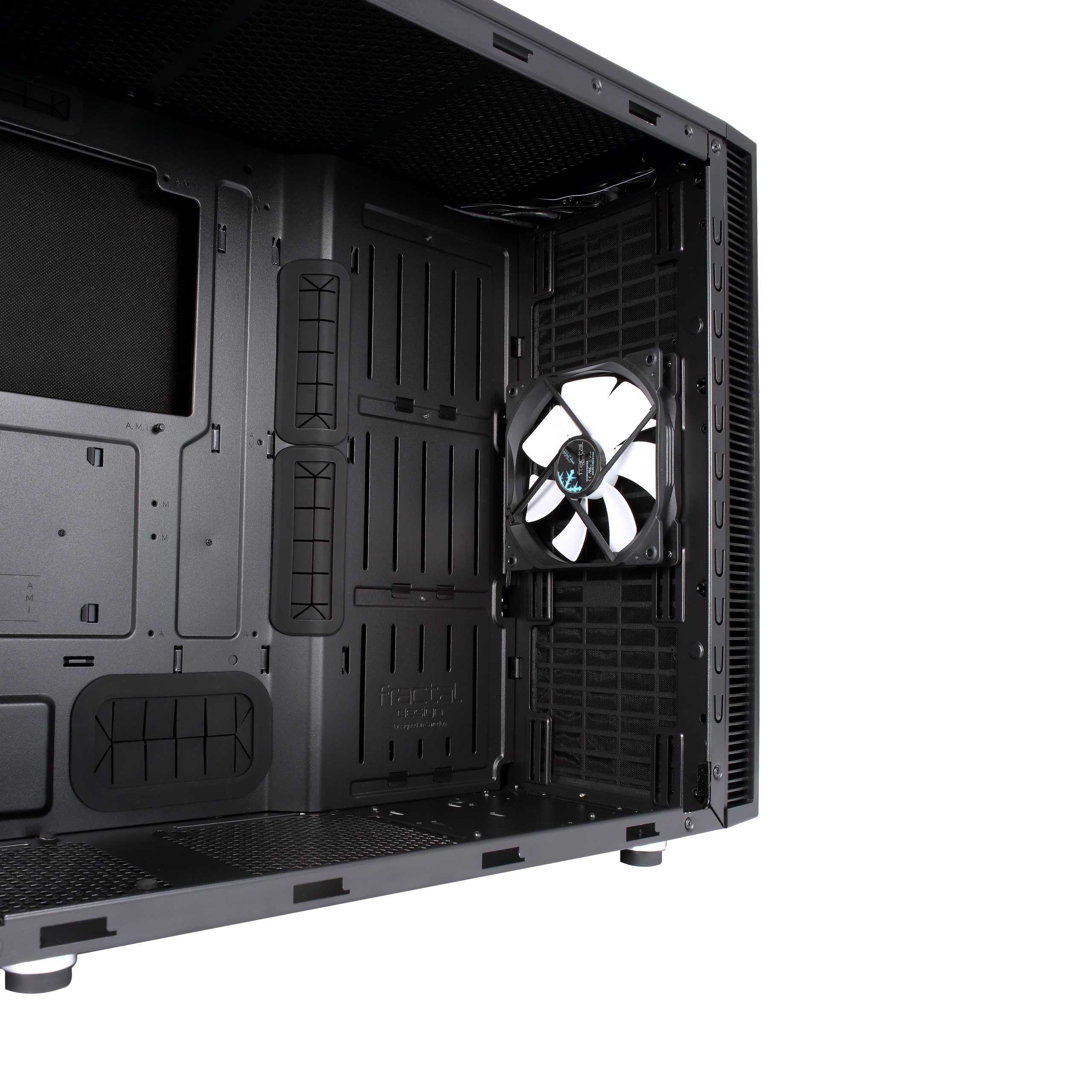

  • Front fan
    3x 120/140 mm (included is 1 Fractal Design Dynamic GP-14 fan, 1,000 RPM speed)

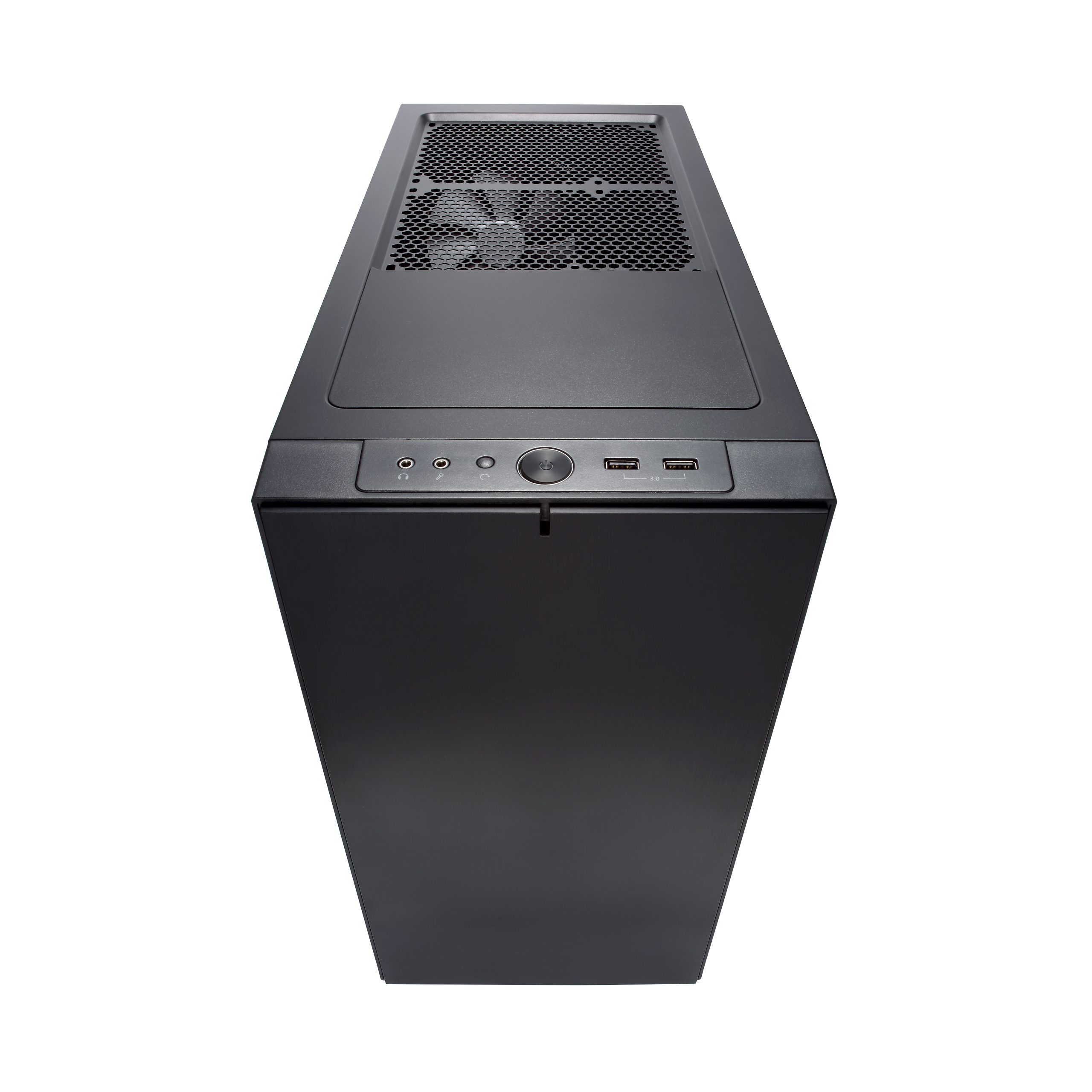

  • Top fan
    3x 120/140 mm or 1x 180 mm with 165 mm hole spacing

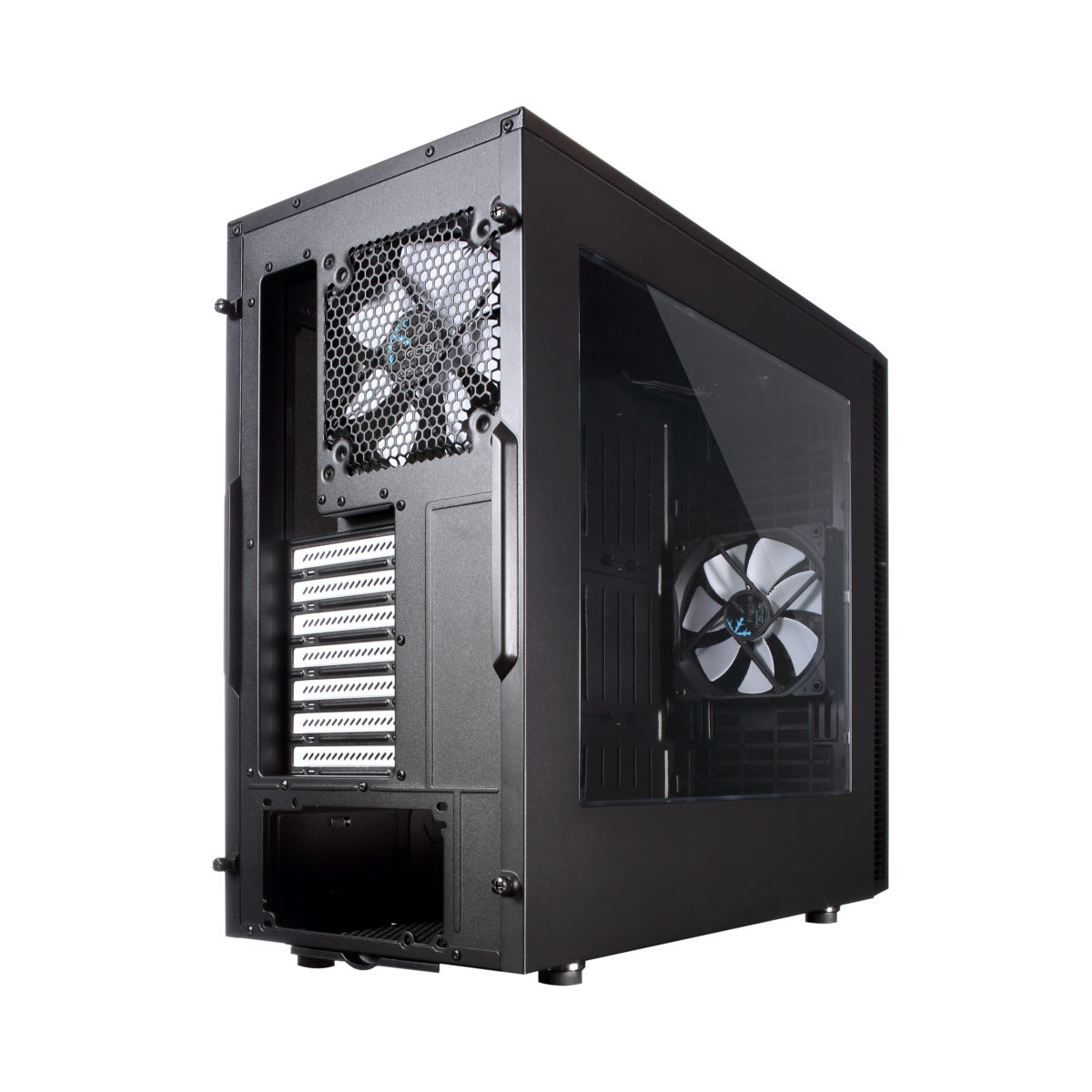

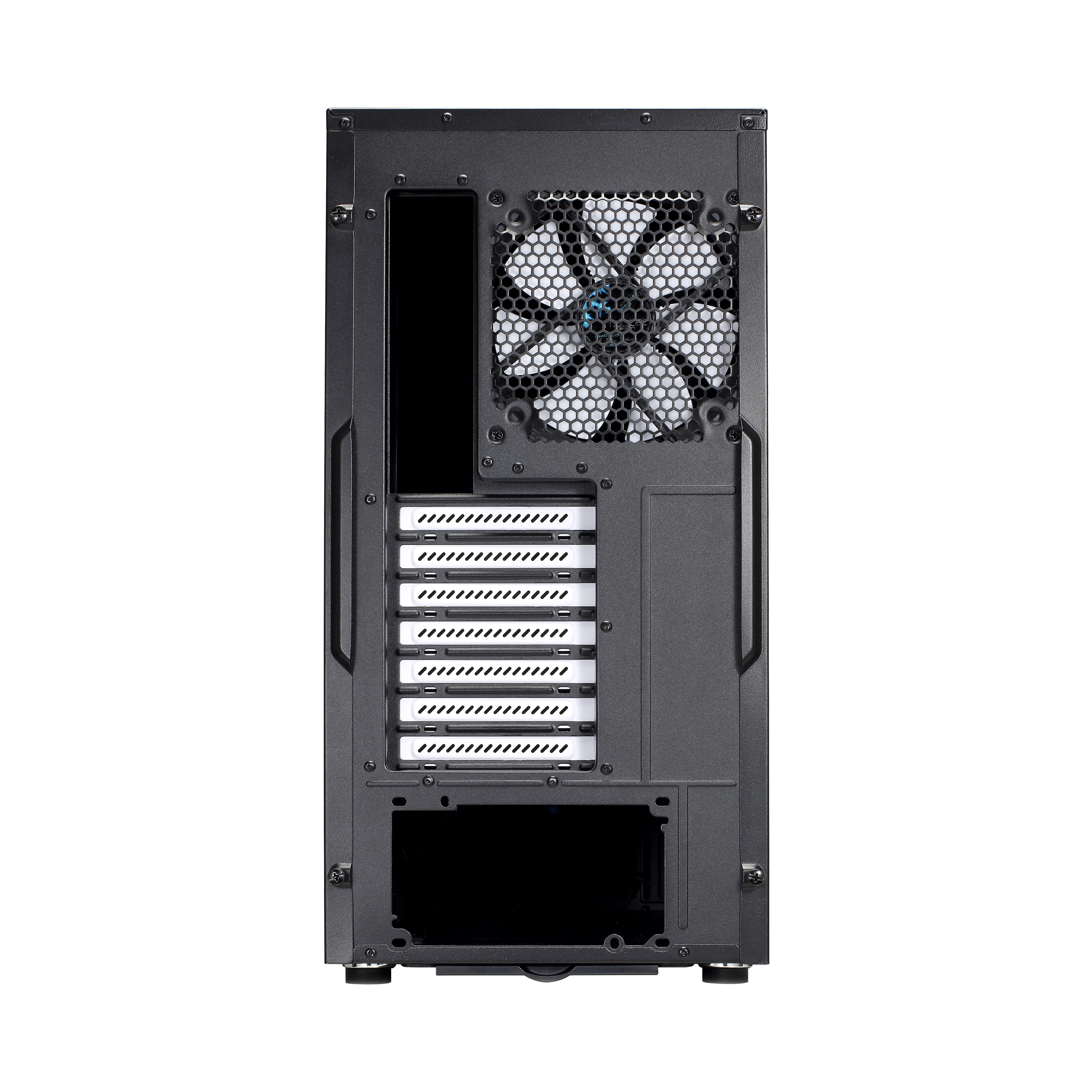

  • Rear fan
    1x 120/140 mm (included is 1 Fractal Design Dynamic GP-14 fan, 1,000 RPM speed)
  • Bottom fan
    1x 120/140 mm
  • Dust filters
    Front fans, Bottom fans
  • Cable routing grommets
    Yes
  • Fixed velcro straps
    Yes
  • Captive thumbscrews
    Both side panels

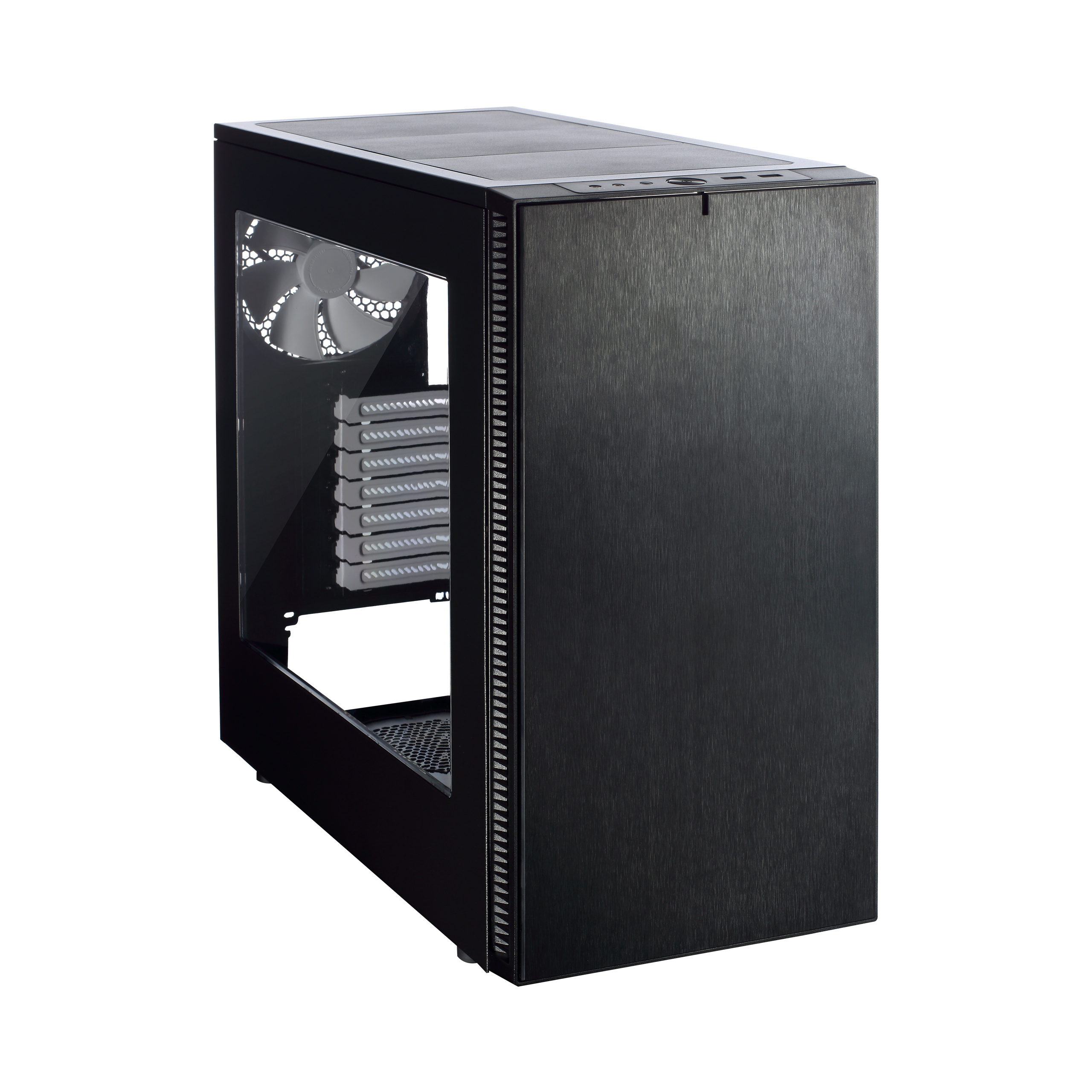

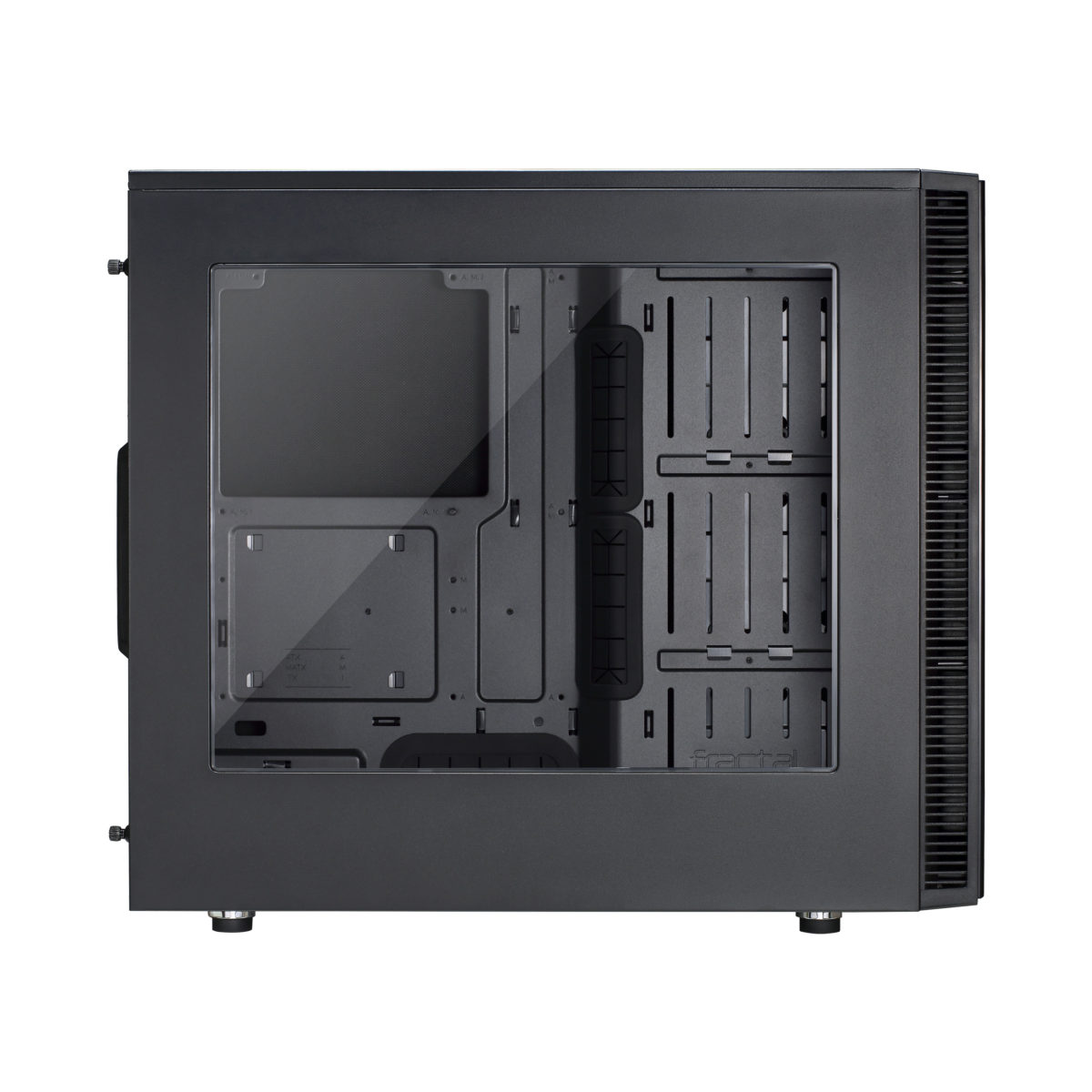

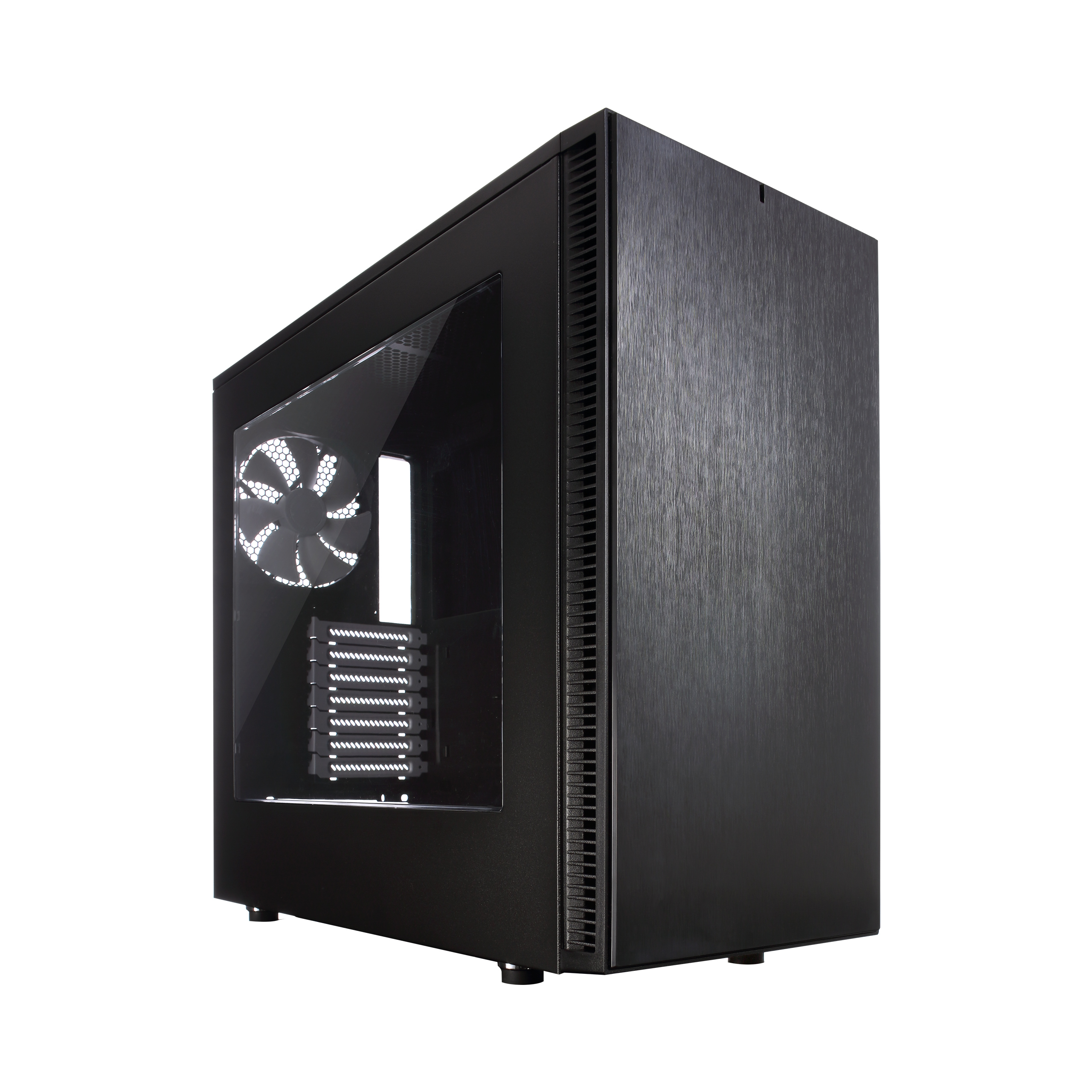

  • Left side panel
    Clear transparent window
  • Right side panel
    Industrial sound-dampened steel

Compatibility

  • Power supply type
    ATX
  • Motherboard compatibility
    ATX, Micro ATX, Mini ITX
  • Front radiator
    360, 280, 240, 140 or 120 mm
  • Top radiator
    420, 360, 280, 240, 140 or 120 mm (a thickness limitation of 55 mm for both radiator + fan applies on 420, 280 and 140 mm radiators)
  • Rear radiator
    120/140 mm
  • Bottom radiator
    120 mm radiator (Use of radiators in the bottom position limits the PSU length to 165 mm)
  • PSU max length
    180/170 mm with a bottom 120/140 mm fan installed or 300 mm when not using any bottom fan
  • GPU max length
    425 mm with front fans installed, without compromising HDD capacity or 450 mm without front fans installed directly in line with the GPU
  • CPU cooler max height
    180 mm
  • Cable routing space
    20 - 40 mm

Dimensions

  • Case dimensions (WxHxD)
    233 x 451 x 520 mm
  • Case dimensions - with feet/screws/protrusions
    233 x 465 x 533 mm
  • Net weight
    8.5 kg
  • Package dimensions (WxHxD)
    322 x 615 x 535 mm
  • Package weight
    10.2 kg

Other

  • Package contents
    Define S computer case, User manual, Accessory box
  • EAN
    7350041083450
  • UPC
    817301013451
  • Product code
    FD-CA-DEF-S-BK-W
  • Additional information
    Available for System Integrators

主要特征

  • 采用高密度抗噪材料，最优化电脑静音运行设计，支持最理想的空气散热和水冷散热装置

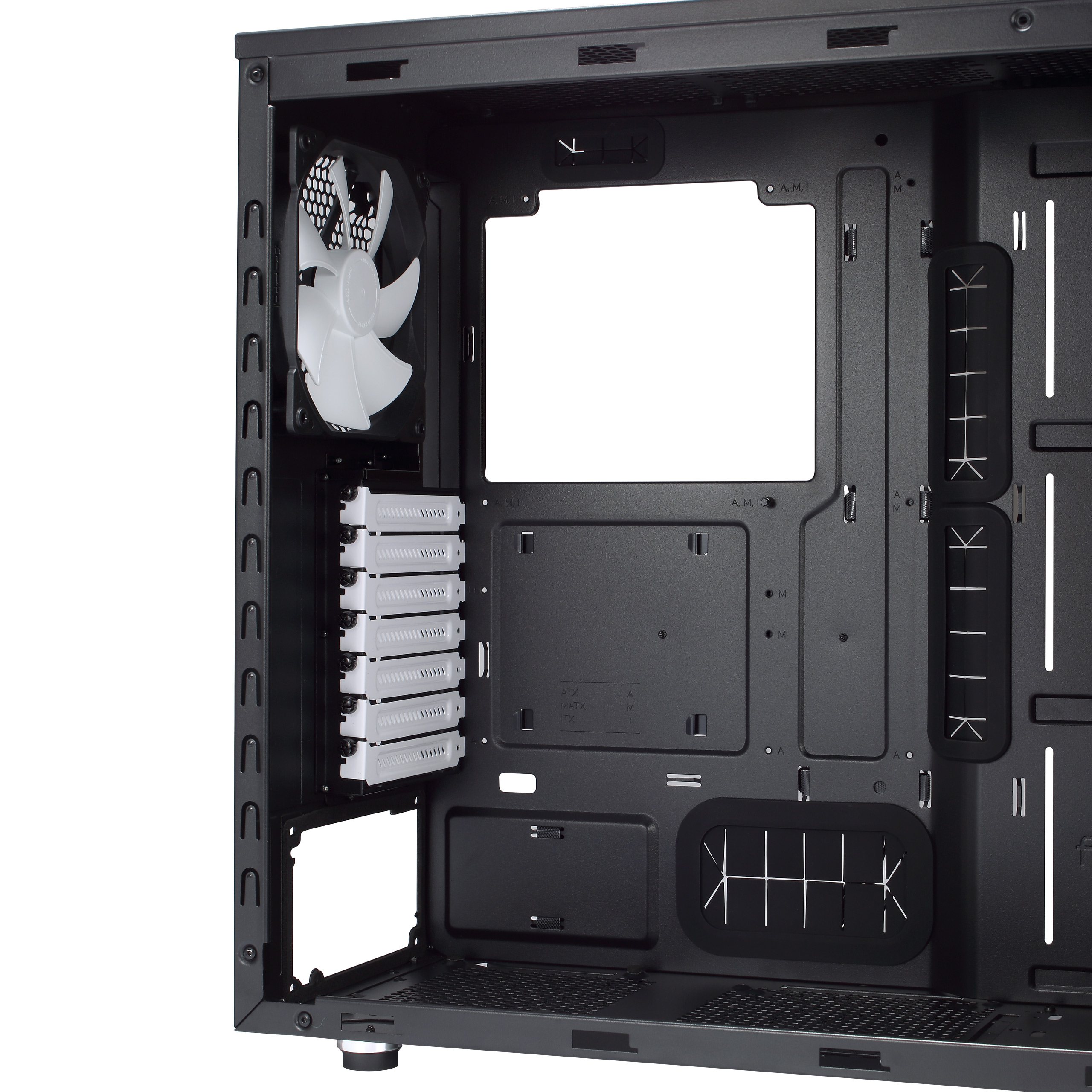

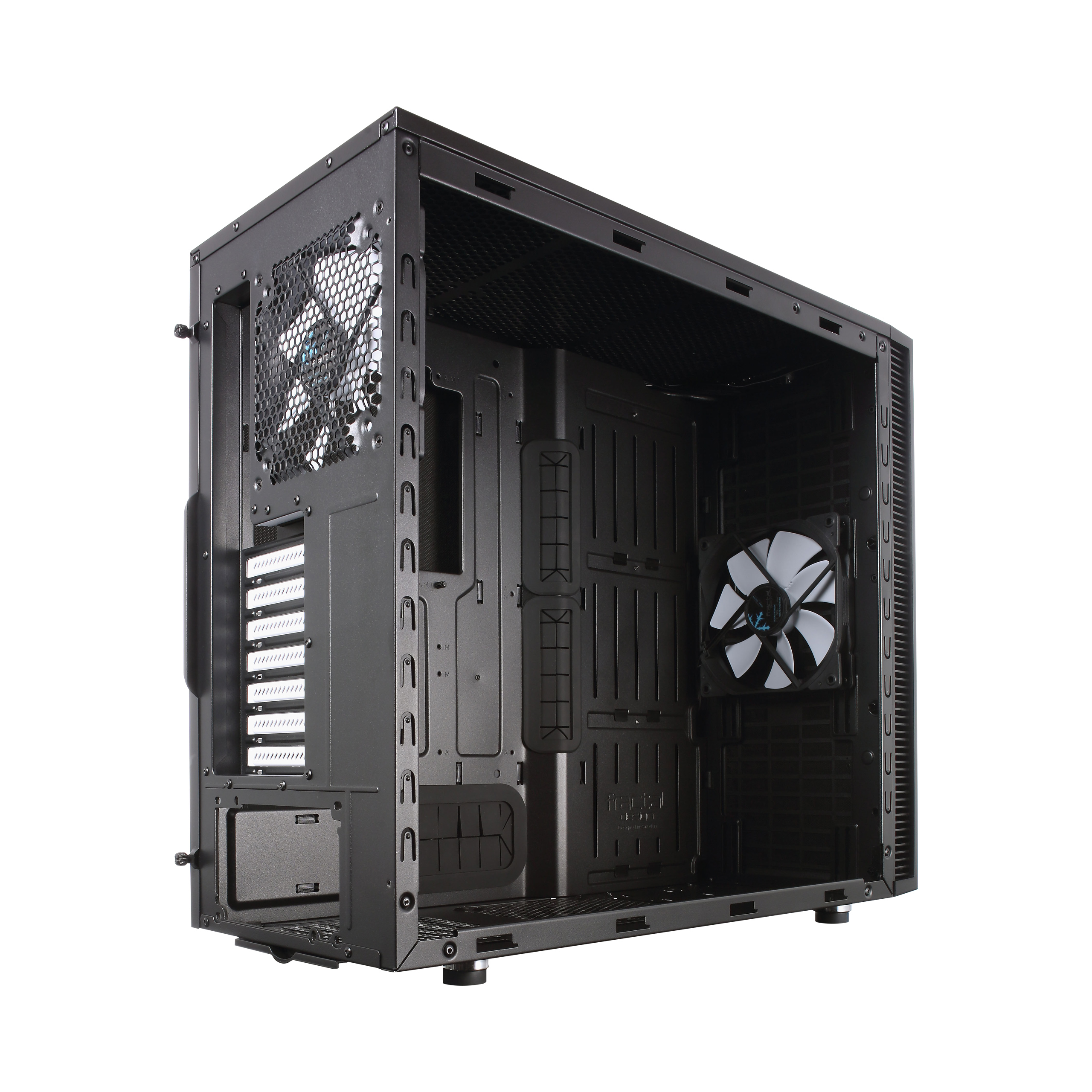

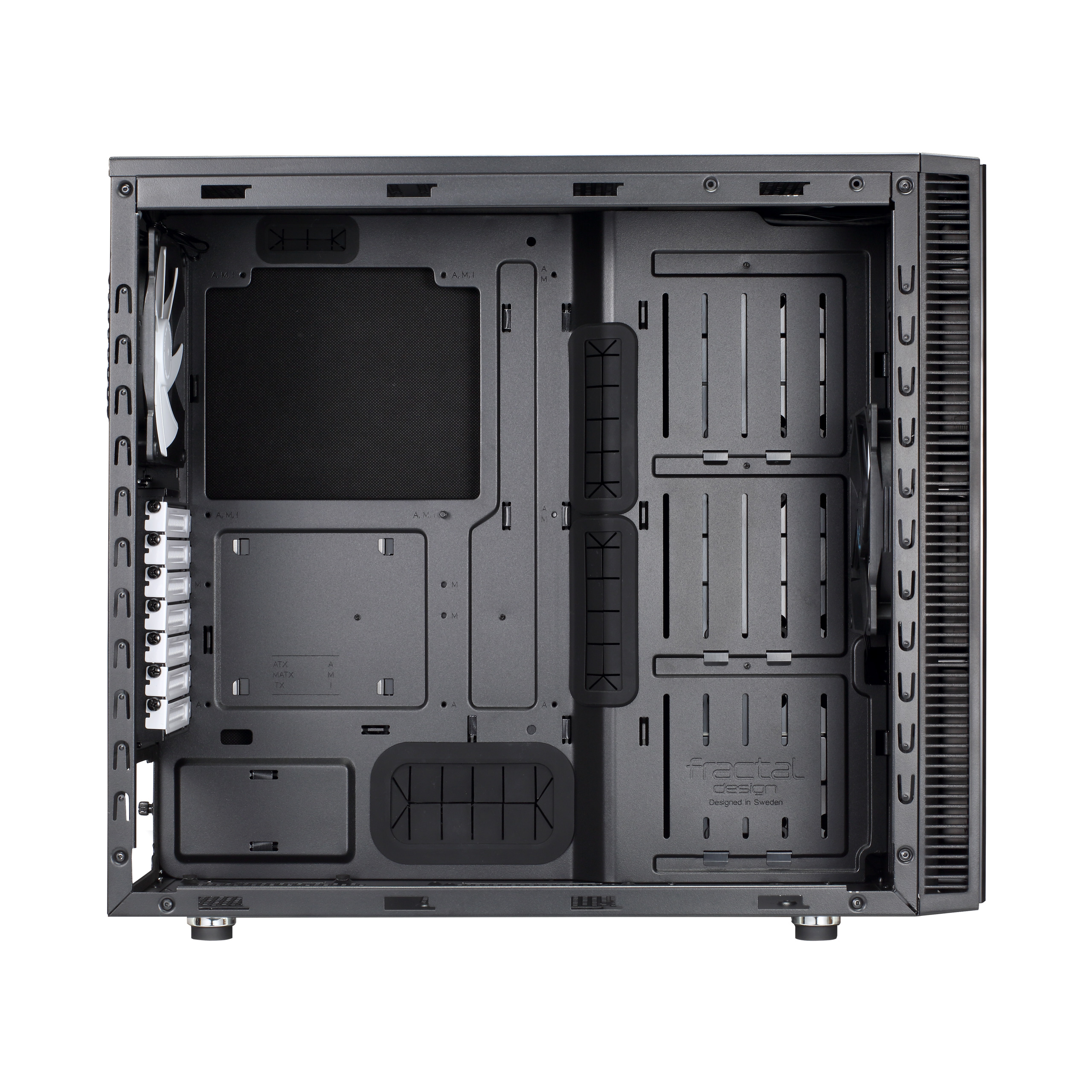

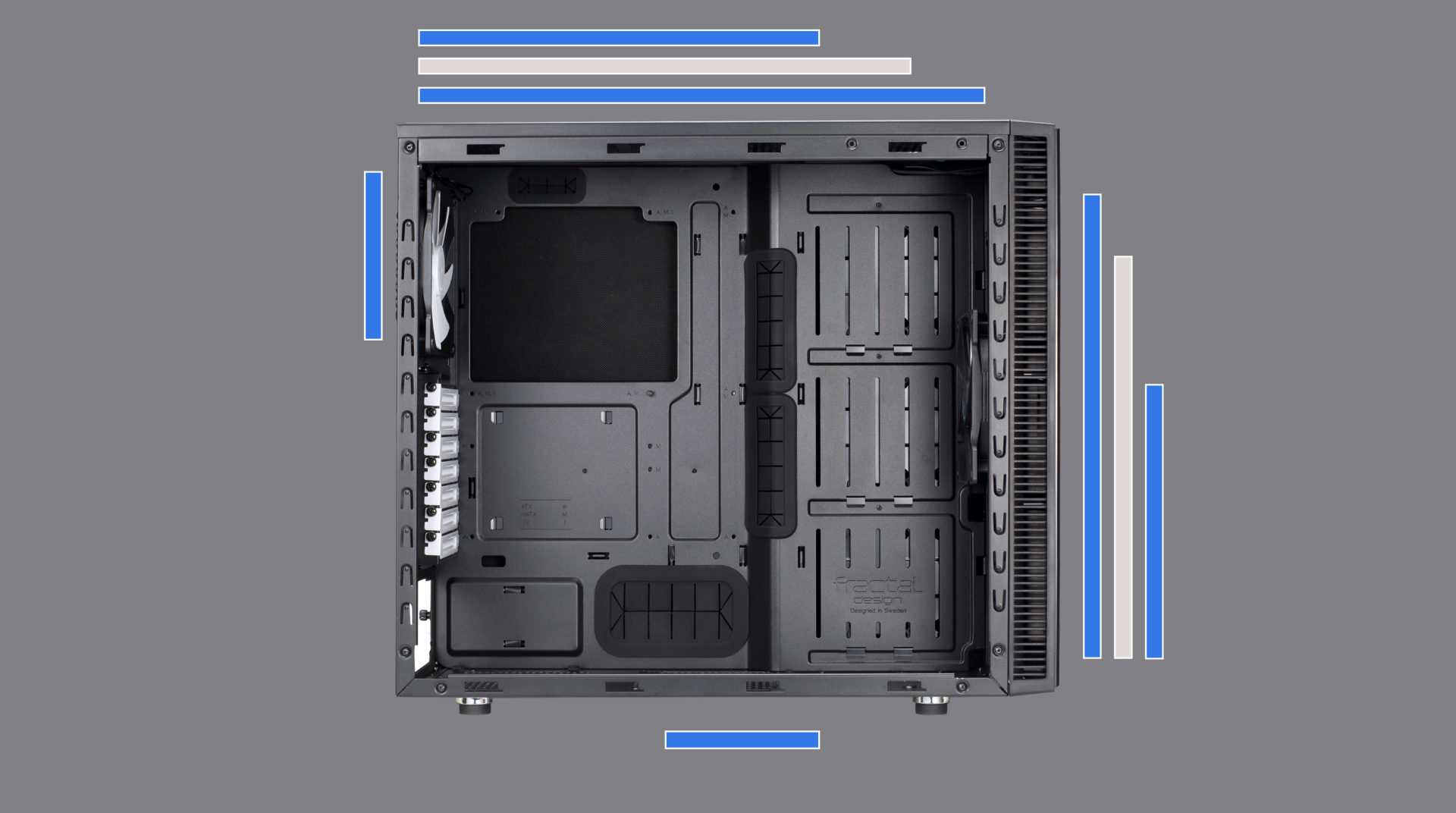

  • 创新型内部布局，让气流能完美顺畅得通过机箱，请更有利于安装空气散热装置或扩展安装水冷散热器

  • 这款机箱的尺寸支持扩展安装水冷散热装置；机箱顶部最大可支持安装420mm的散热排，前部最大可支持360mm的散热排

  • 内置小型的水箱固定支架；无需钻孔就可以将储液器安装在主板托盘的前面，同时底盘上已经有预先钻好的水泵安装孔

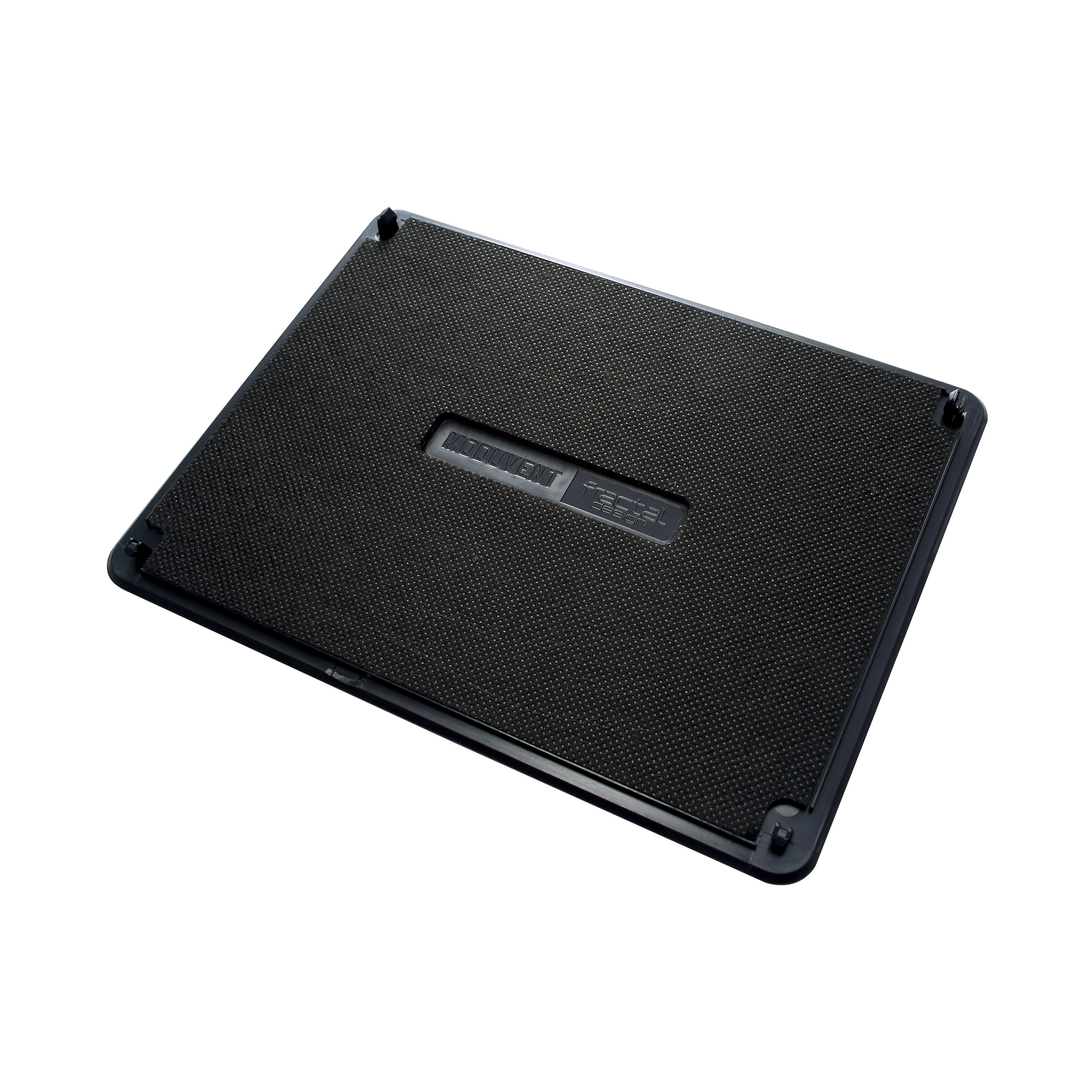

  • 配备有ModuVent™风扇安装槽口盖，不需工具可轻松安装风扇增加风流或是保持最佳的静音效能

主要特征

  • 内带有2把最新的Fractal Design DynamicGP14 140mm静音风扇，大风流有效带走热能，低噪音实现最强静音表现

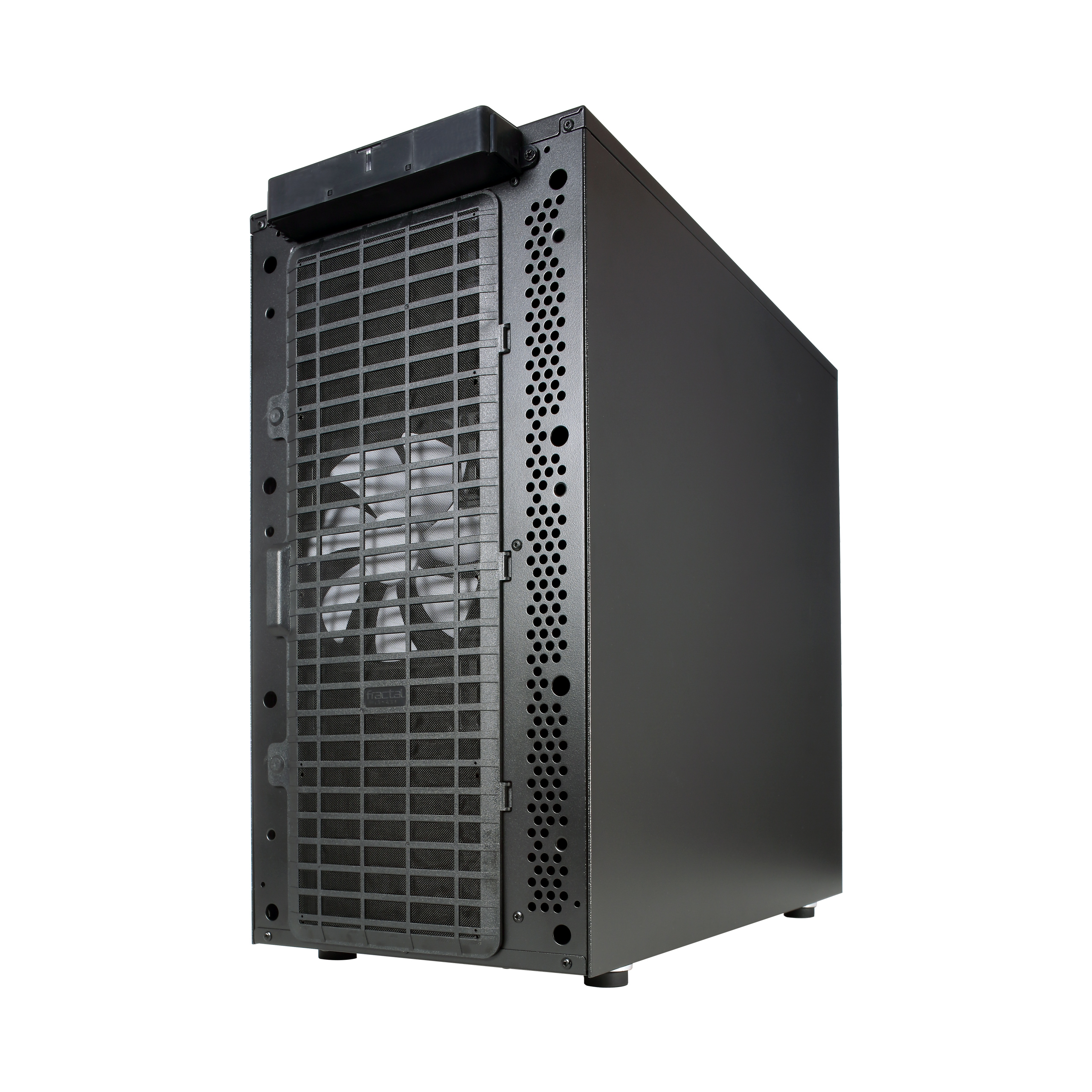

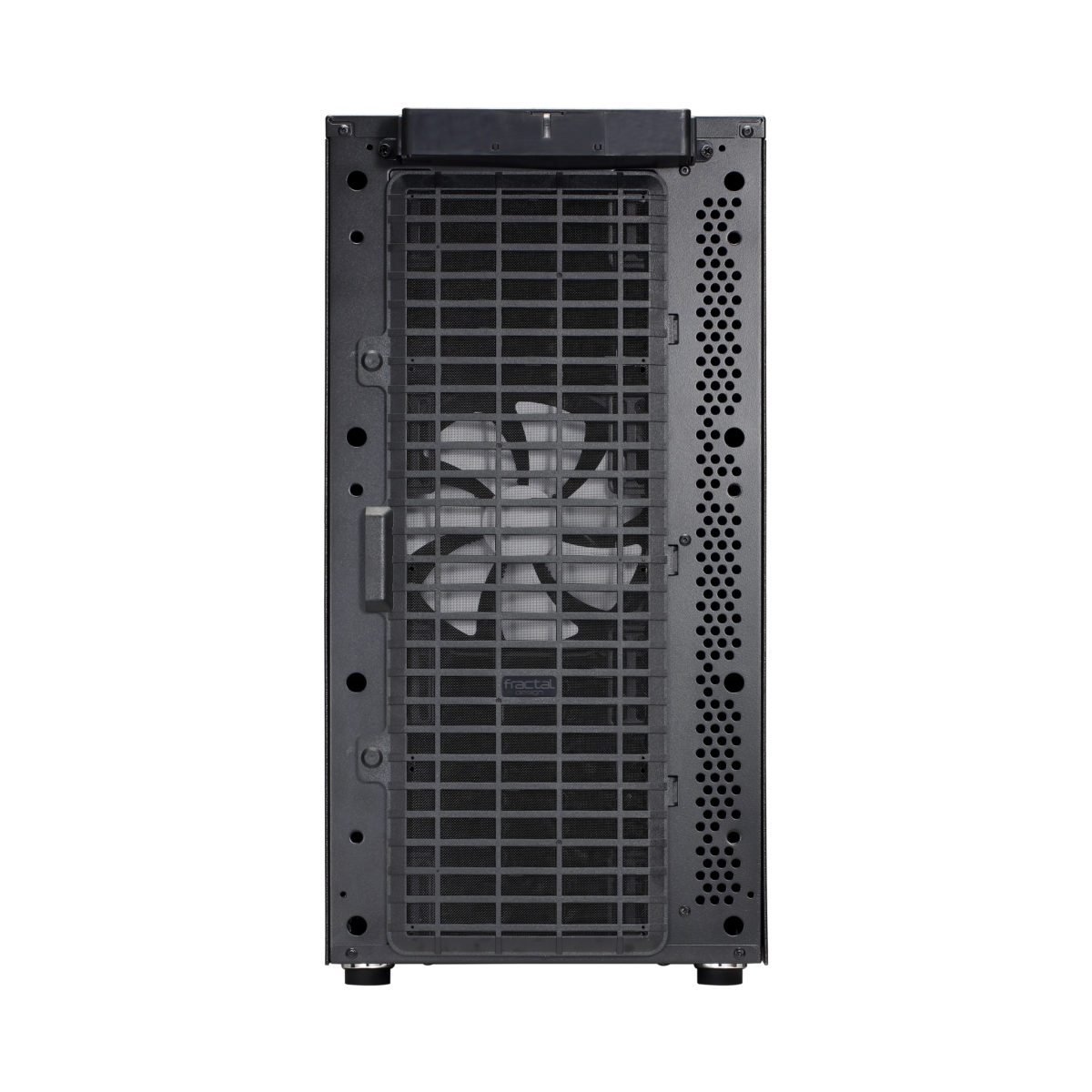

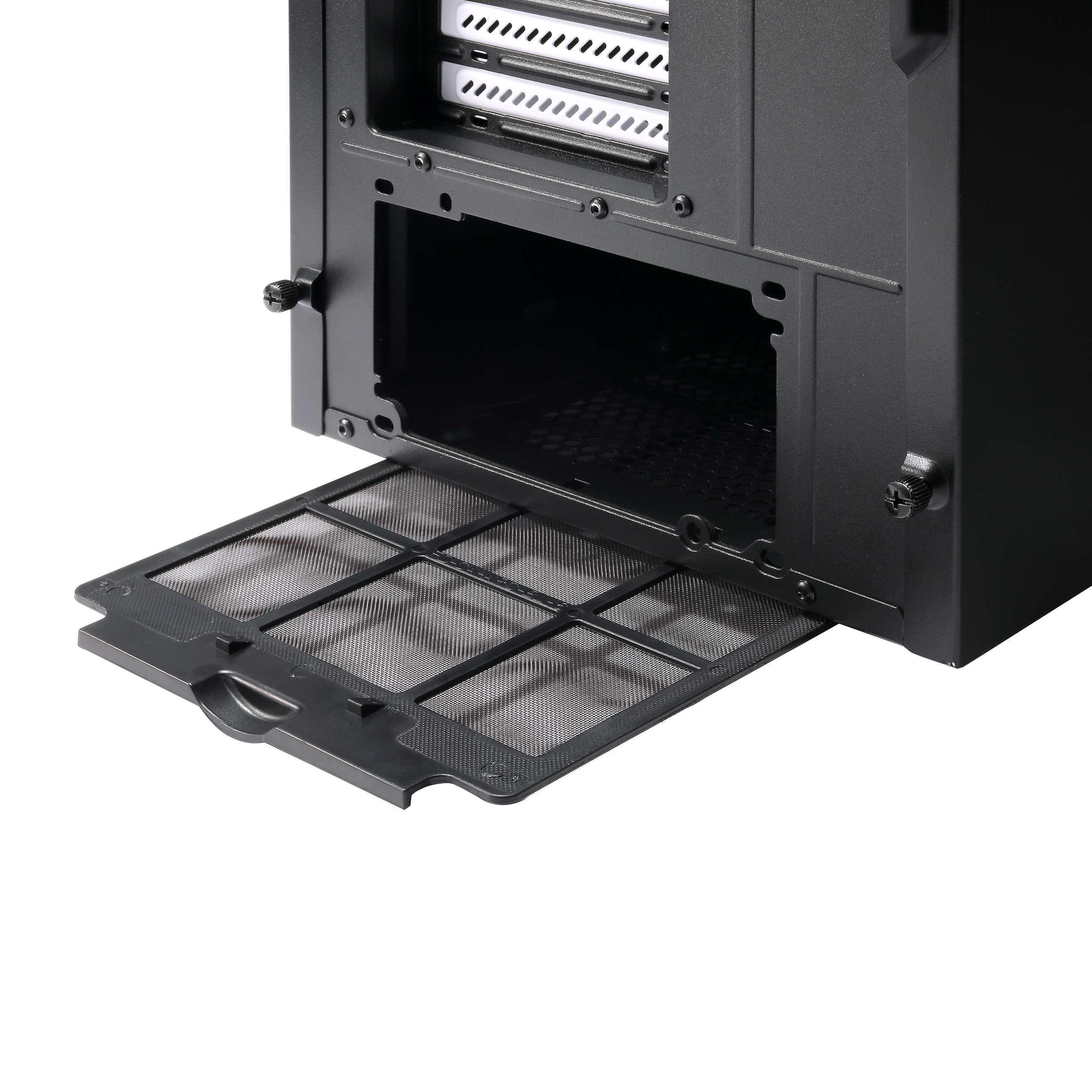

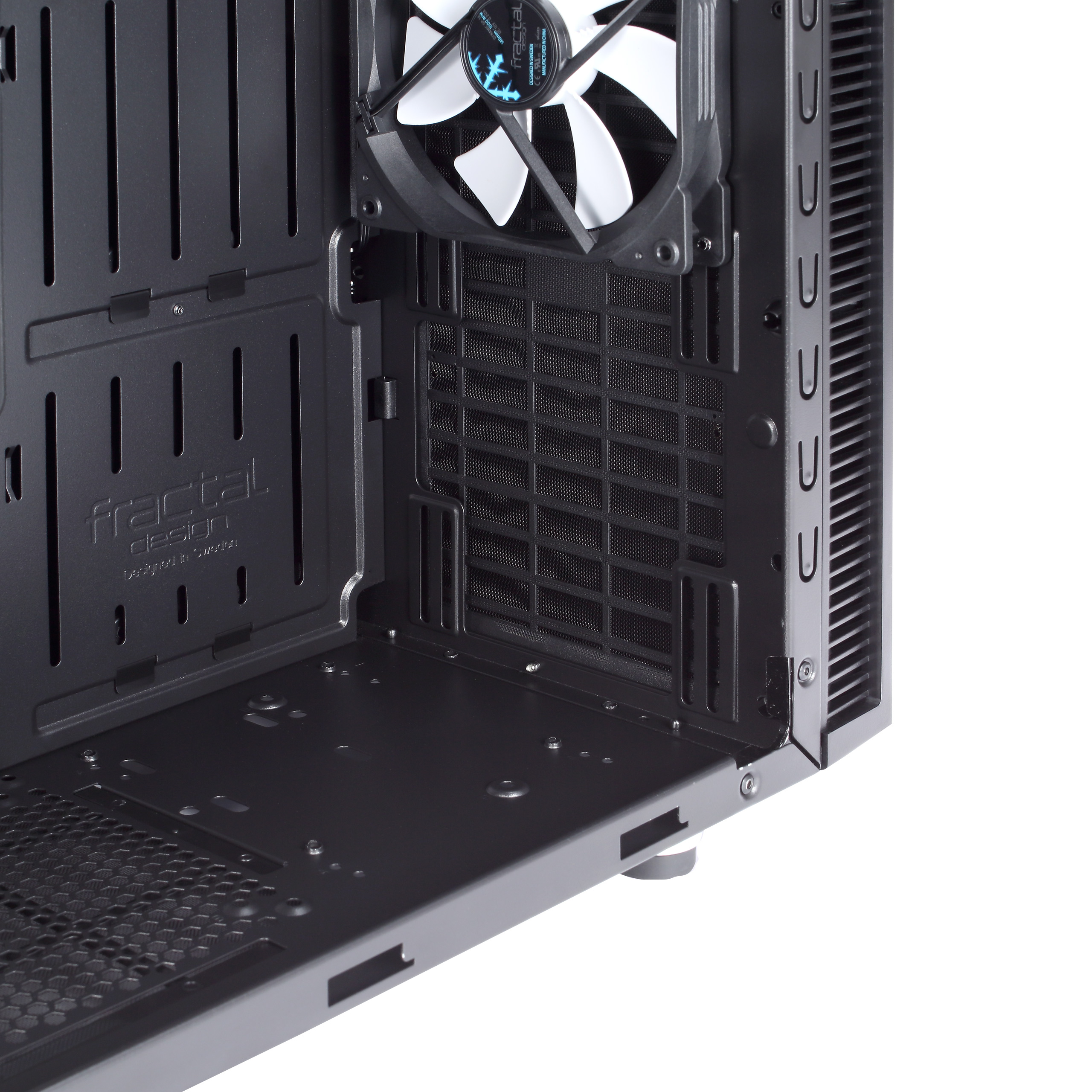

  • 机箱前方和底部附有可水洗的防尘过滤网，方便取出清洁，保持机箱内部无灰尘堆积，前侧防尘网特别设计搭配磁铁吸附机构，拆装更便利

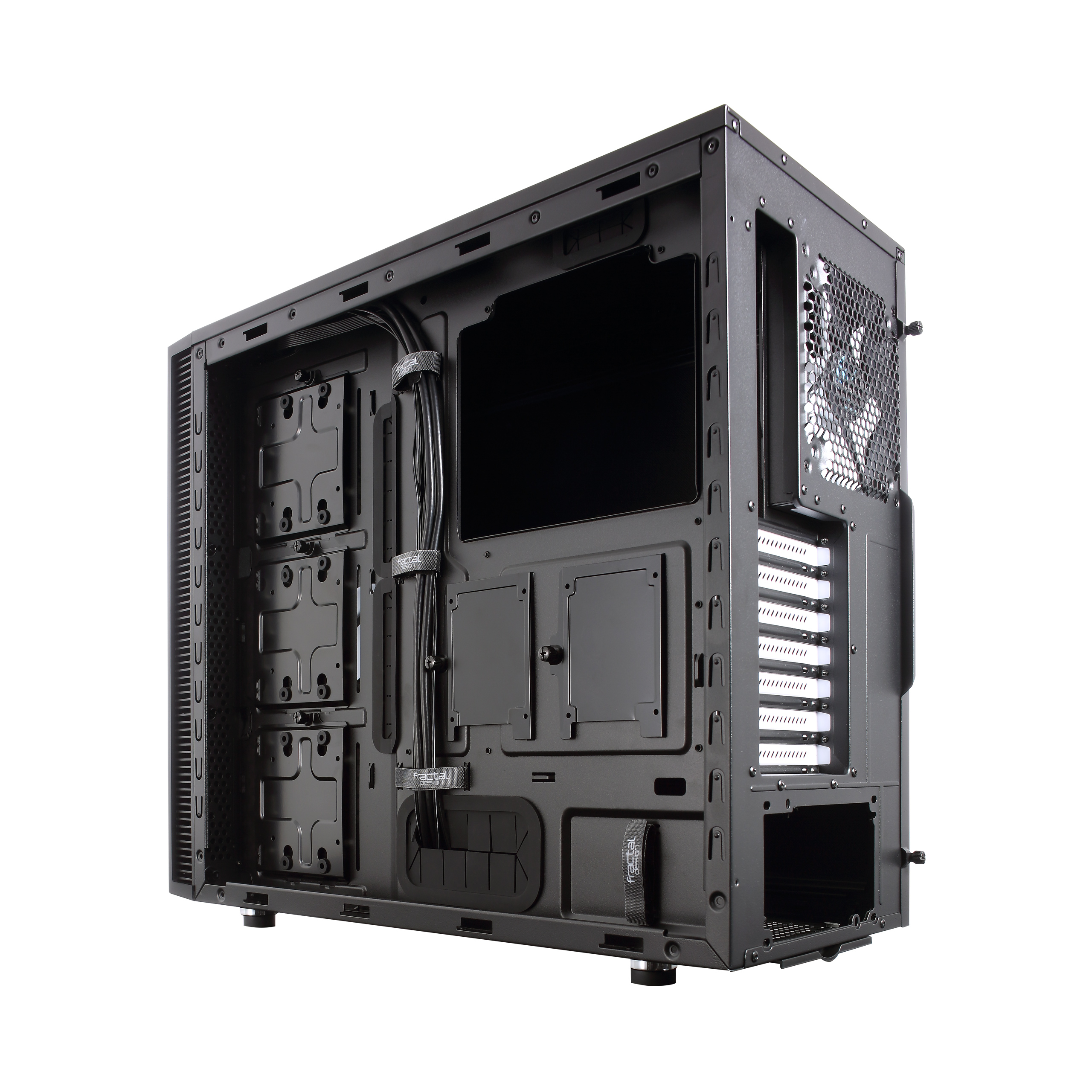

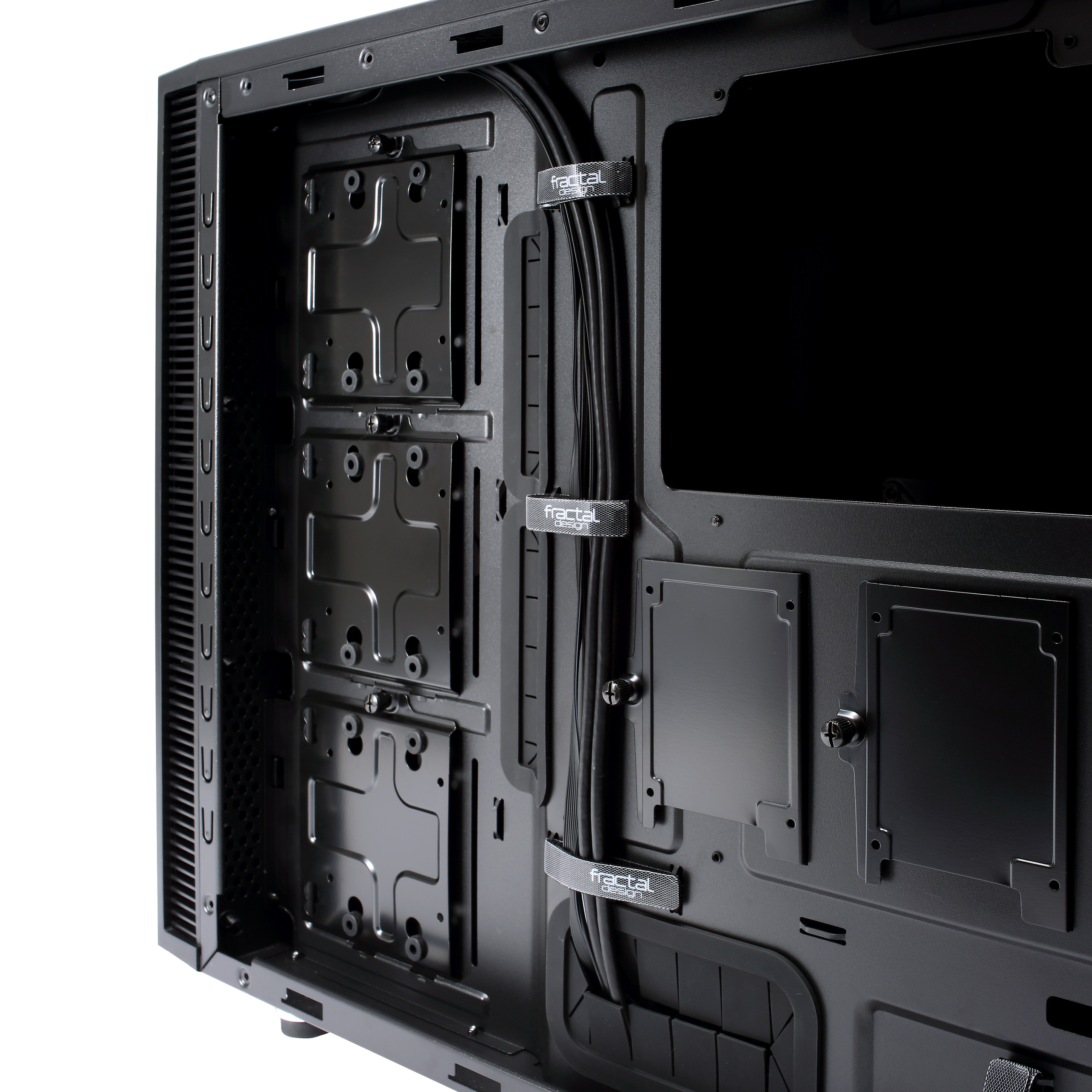

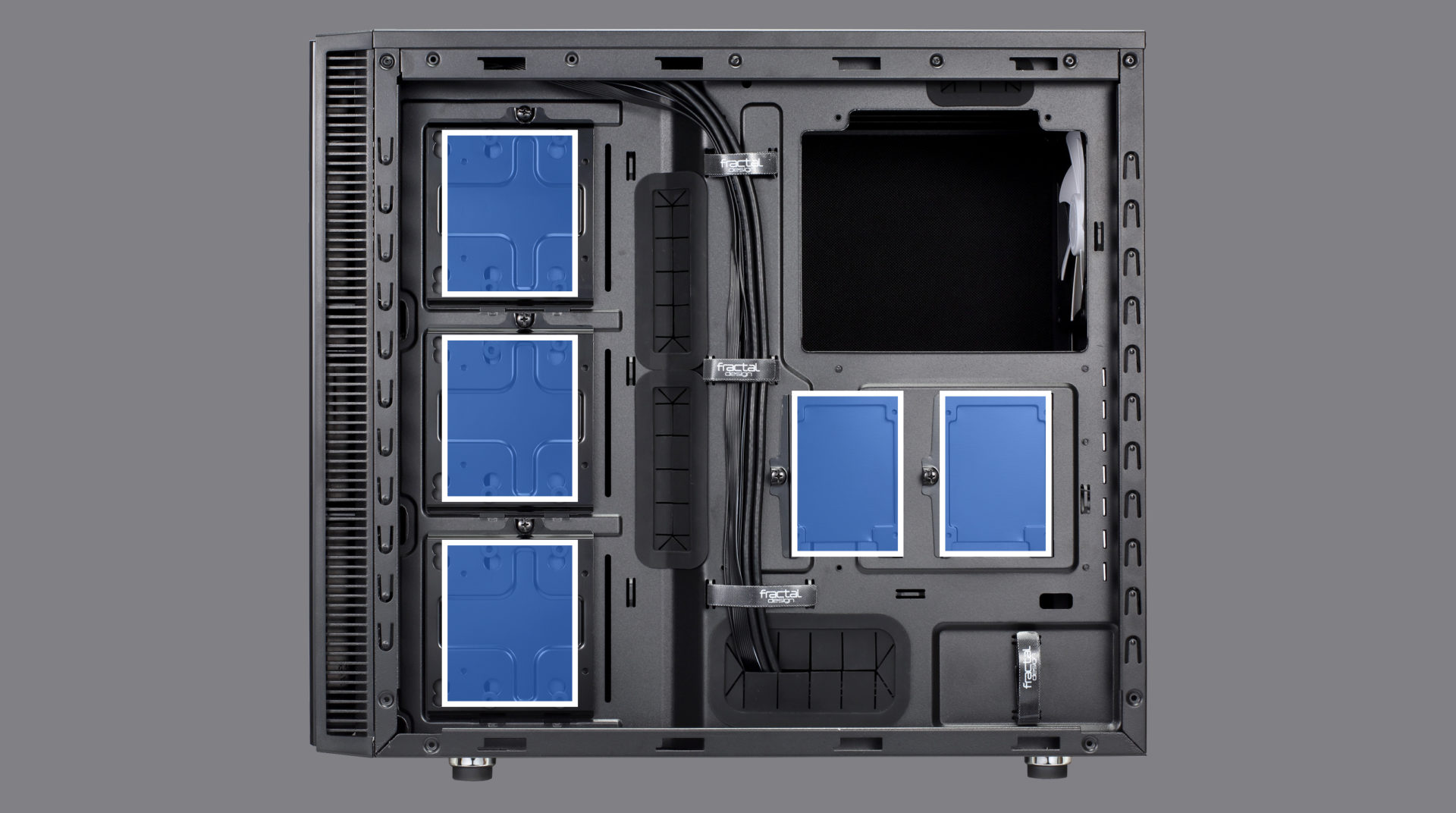

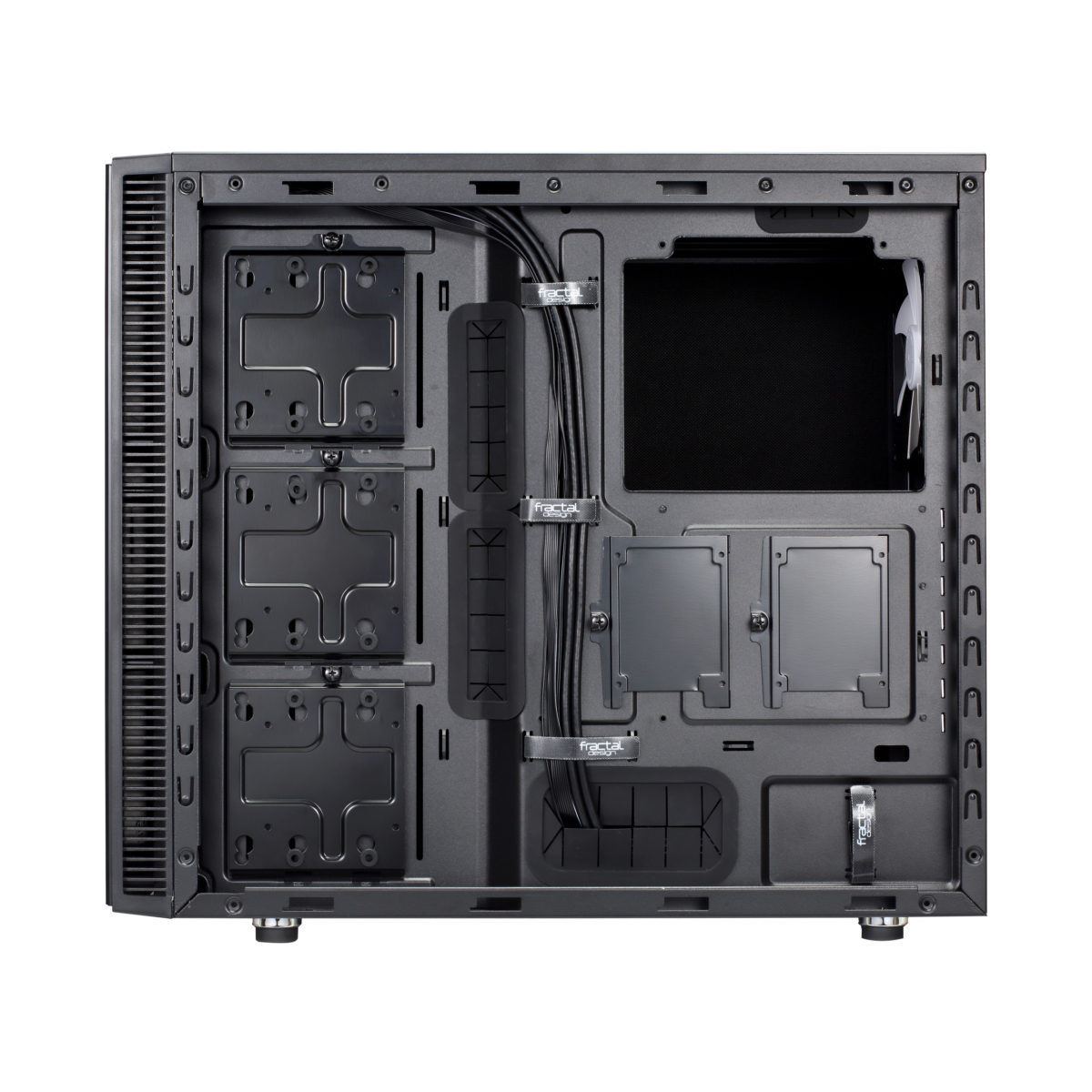

  • 采用最新设计的硬盘驱动器安装托盘，垂直放置于主板托盘前部隔板的后方；三个安装有减震垫圈的钢制托盘，结构稳固；在不阻碍气流流通或妨碍散热器安装的情况下，每一个托盘可支持安装一个 3.5" 或2.5"的驱动器

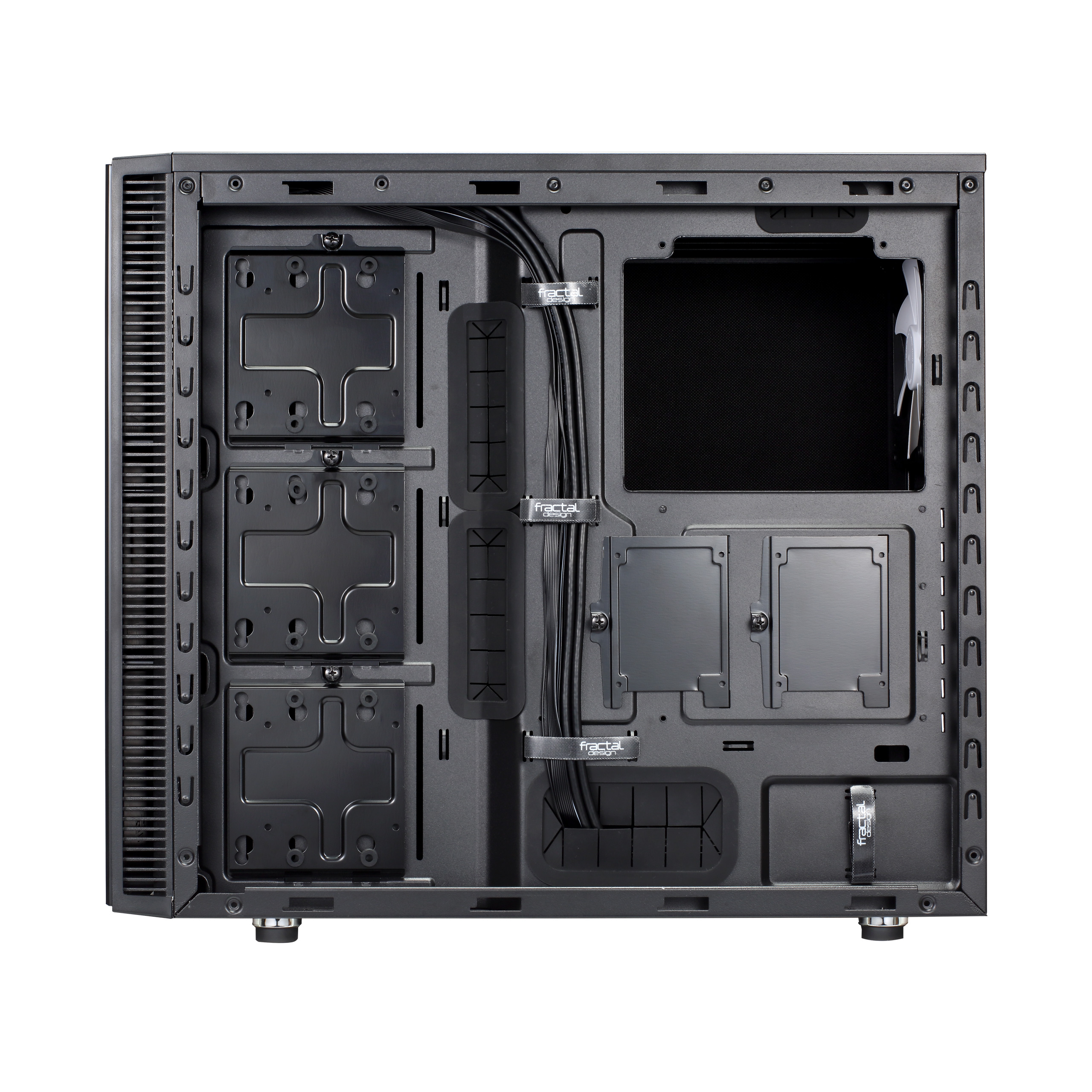

  • 主板后方设有2个SSD专用安装位置，无需使用工具便能安装拆卸SSD

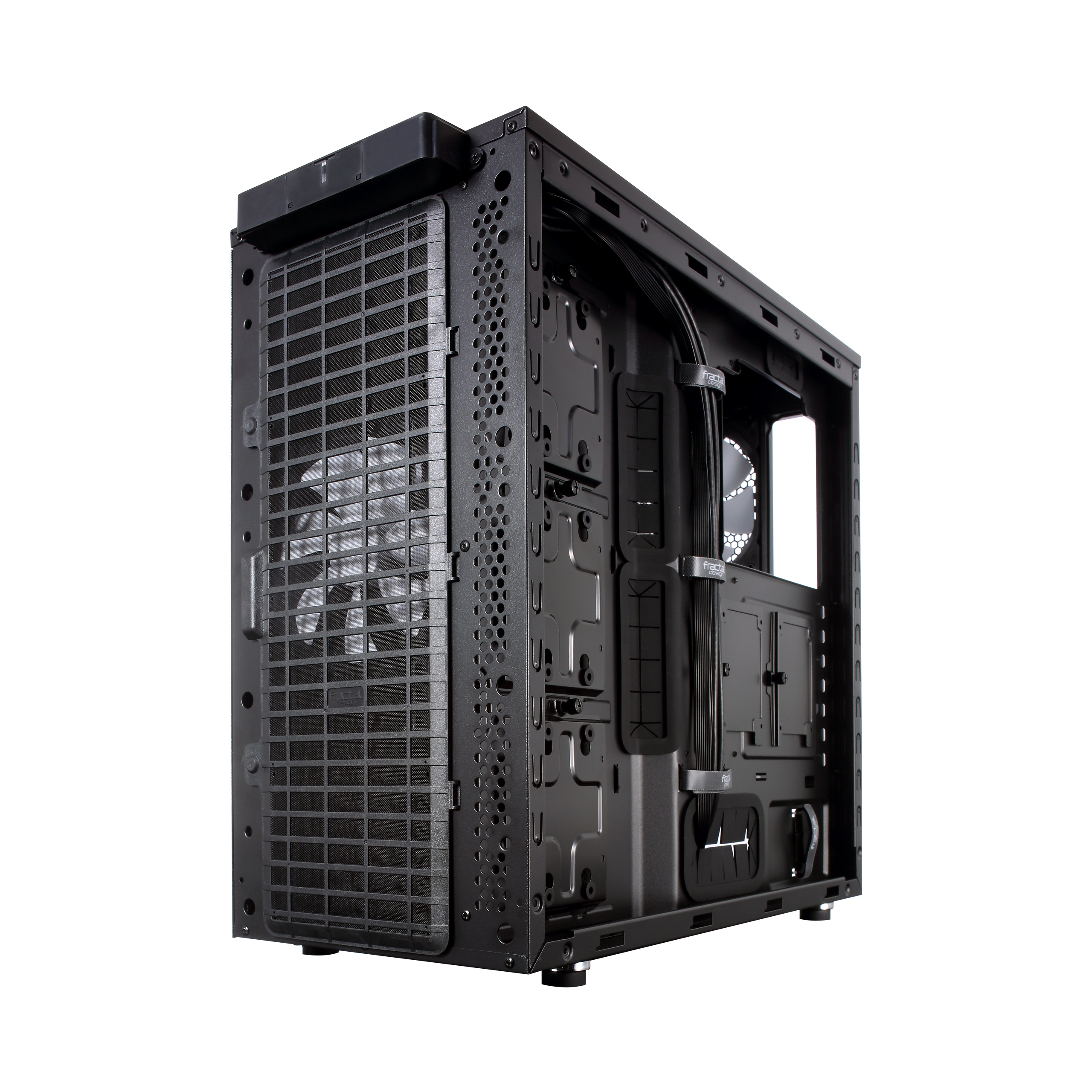

  • 创新的内部结构设计，将硬碟及缆线一并隐藏，让视觉效果更清爽辽阔
