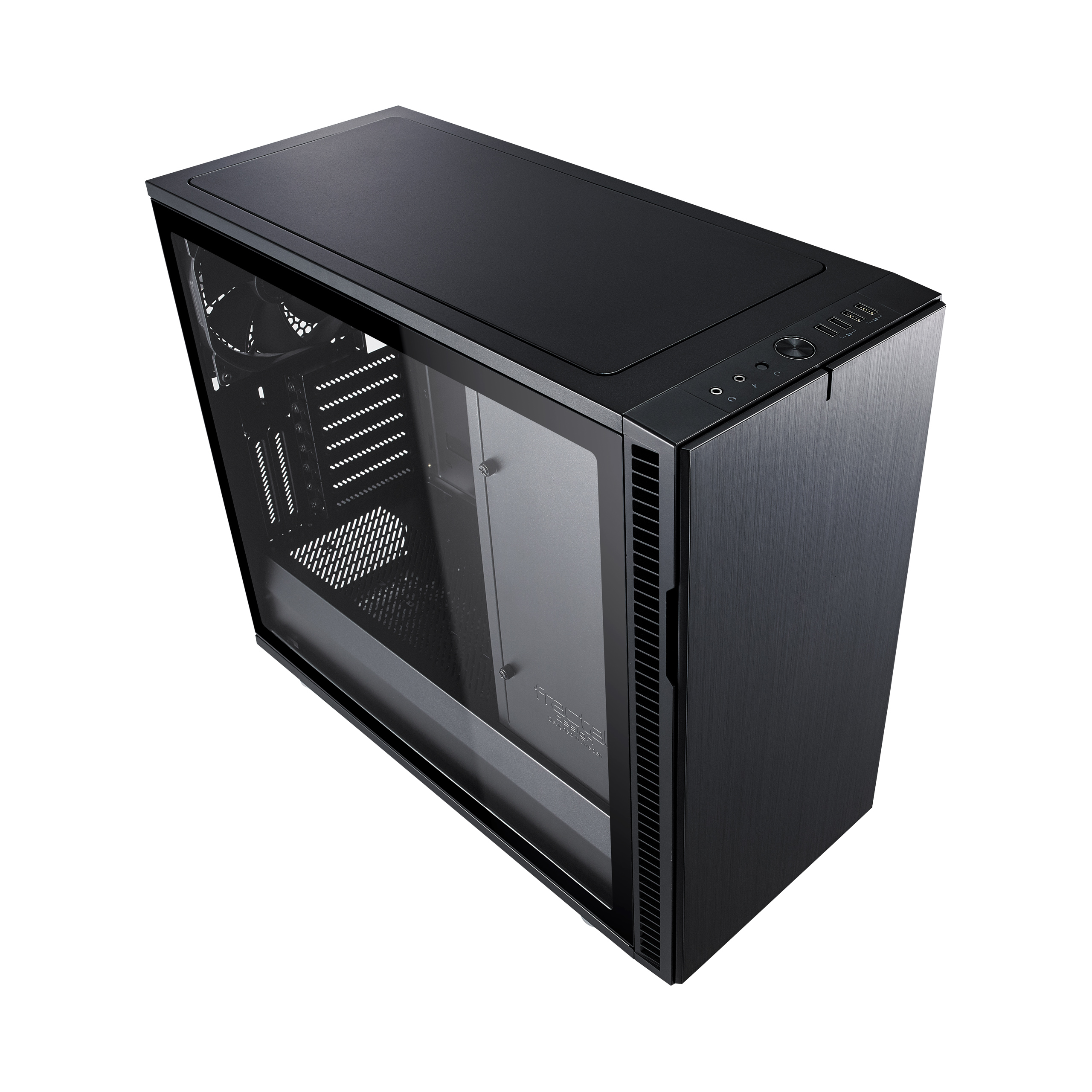

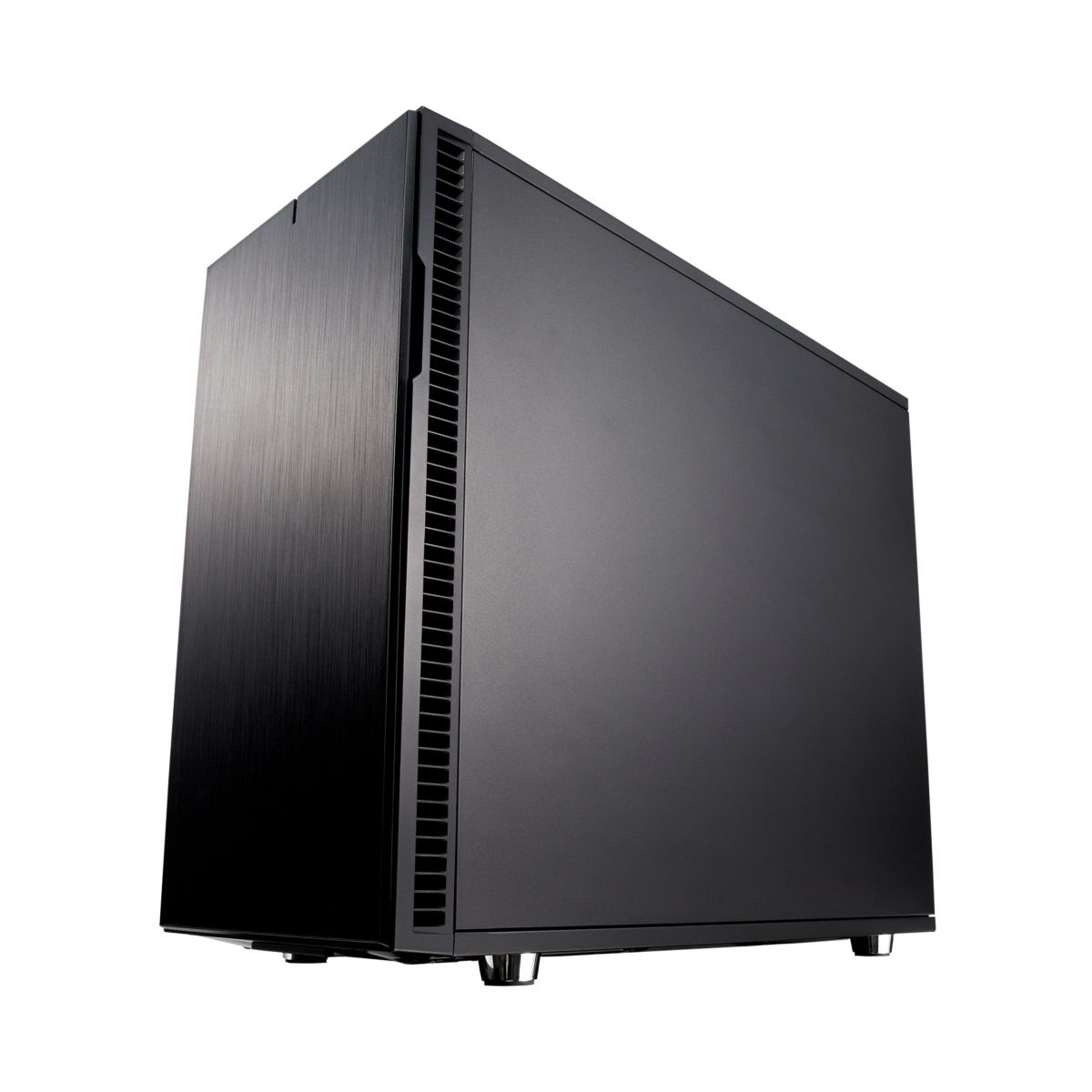

Define R6 Tempered Glass

迭代更新，突破创新—Define R6重新谱写Define系列崭新篇章。

  • 全尺寸无缝耐划钢化玻璃侧面板
  • 静音优化，侧面板、顶面板和前面板具備高密度工业消音材質
  • 備有九个风扇位置，大风流風到設計有效带走热能，具备极高冷却能力

Variation

类型

查看规格
寻找经销商

主要特点

  • 全尺寸无缝耐划钢化玻璃侧面板

  • 静音优化，侧面板、顶面板和前面板具備高密度工业消音材質

  • 铝前面板备有左右双开设计，提供机箱拥有弹性的摆放空间

  • 備有九个风扇位置，大风流風到設計有效带走热能，具备极高冷却能力

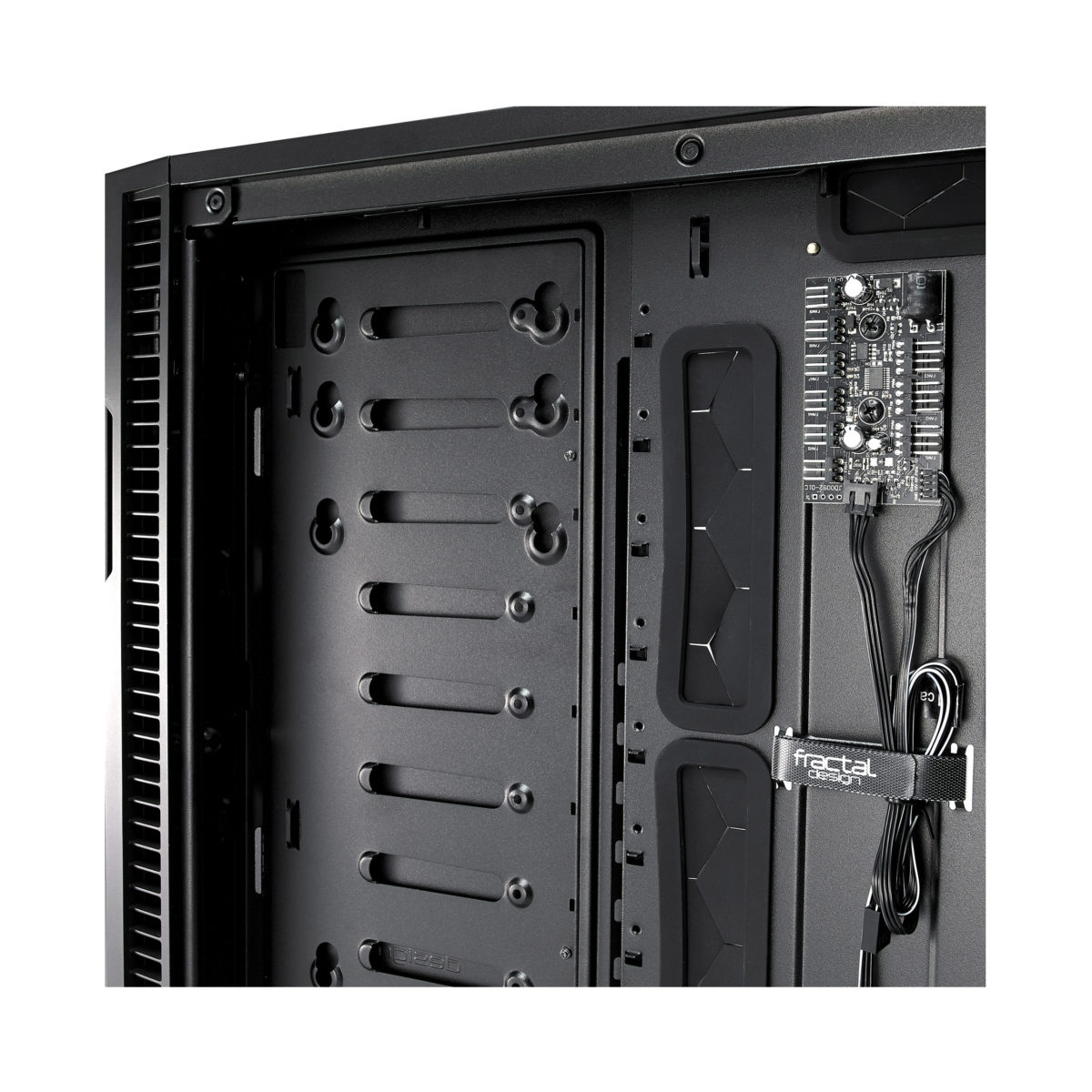

  • 装有Nexus +智能集线器，通过主板可控制六个附加的机箱风扇和三个额外的PWM设备

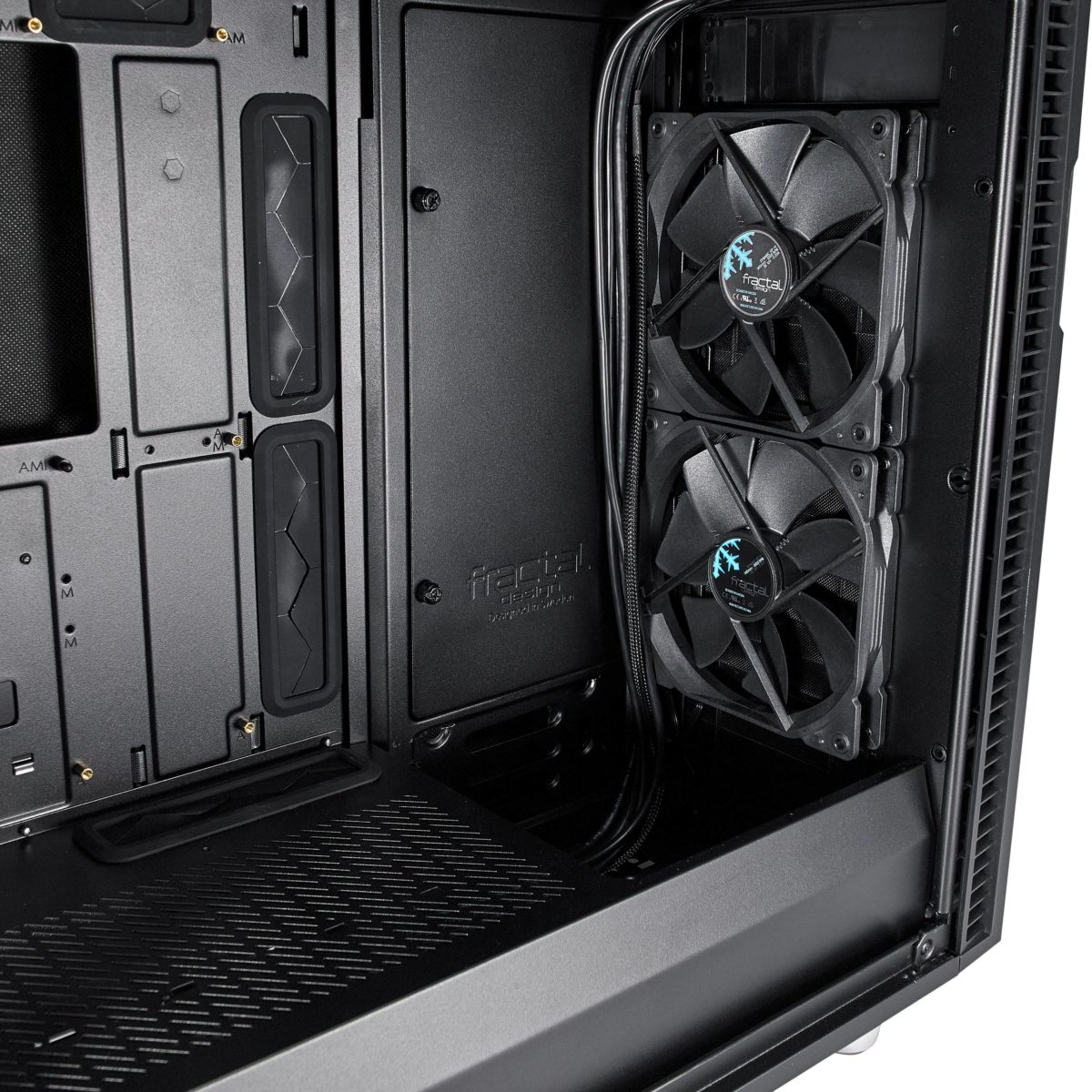

  • 预装三台Fractal Design Dynamic X2 GP-14风扇，通过两个进气风扇和一个排气風扇實現最佳气流

  • 提供广泛的水冷系統支持，顶部散热器达420 mm，前部达360 mm，底部可达280 mm

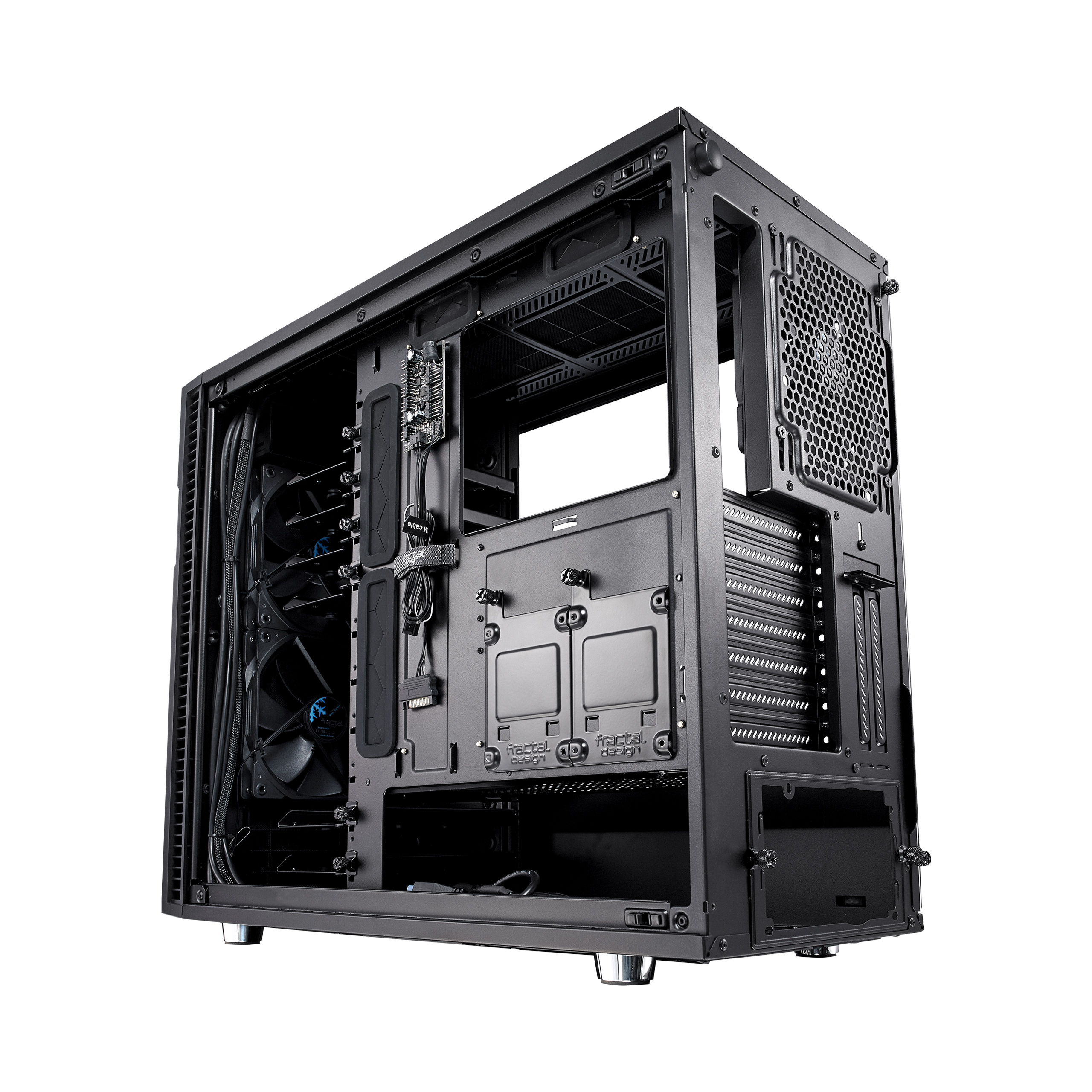

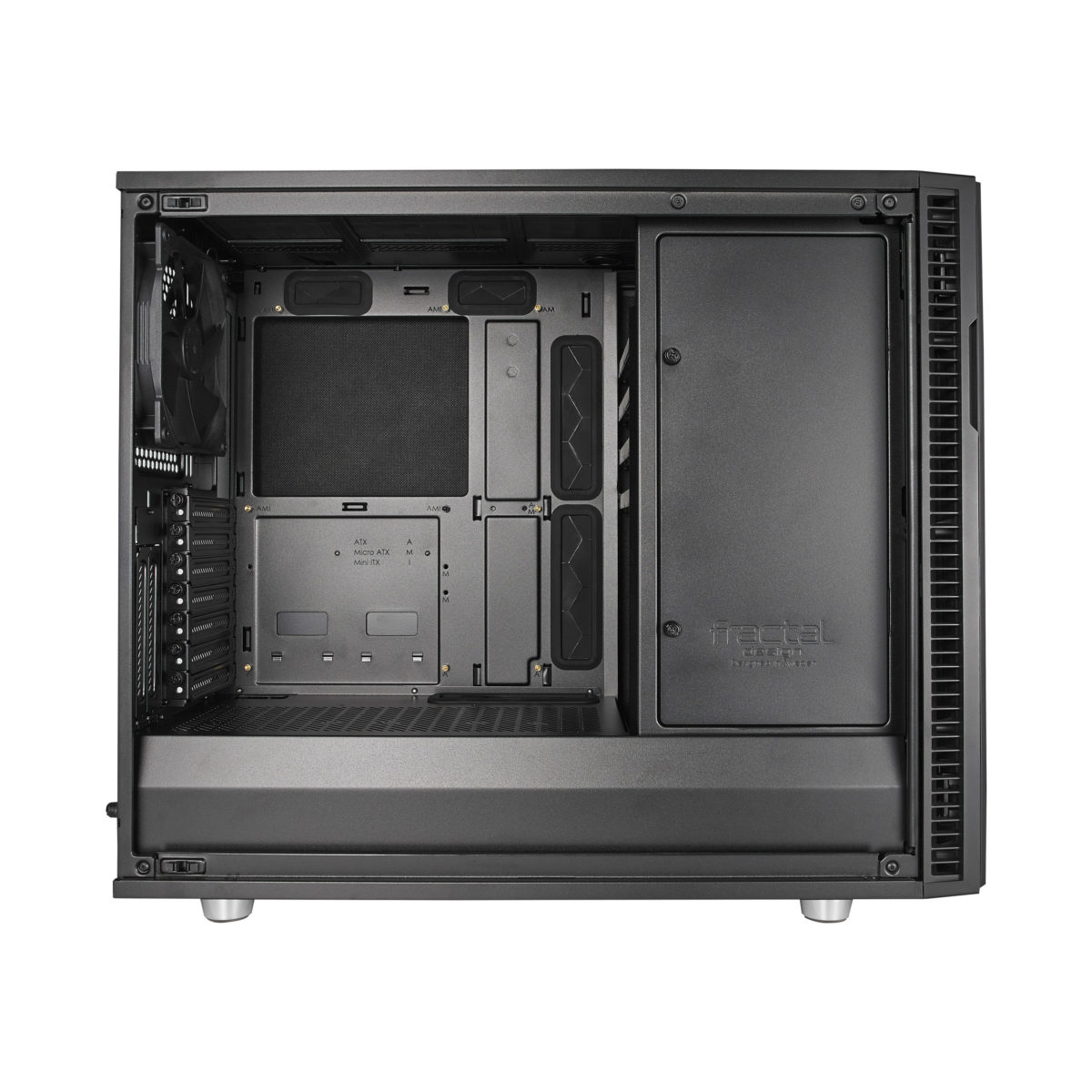

  • 利用电源罩和模块存储板隐藏硬盘托盘和多余线缆，打造簡潔的内部空间

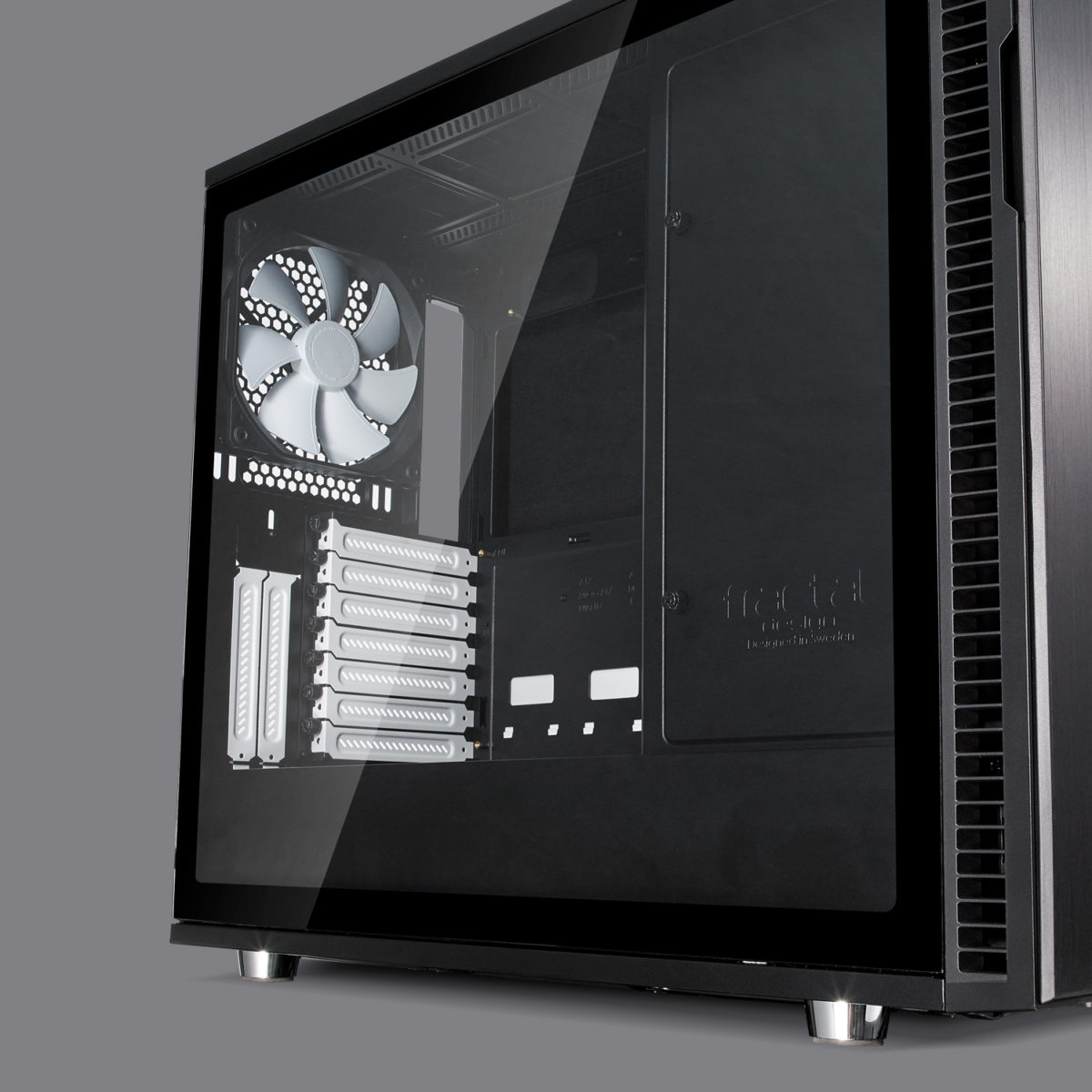

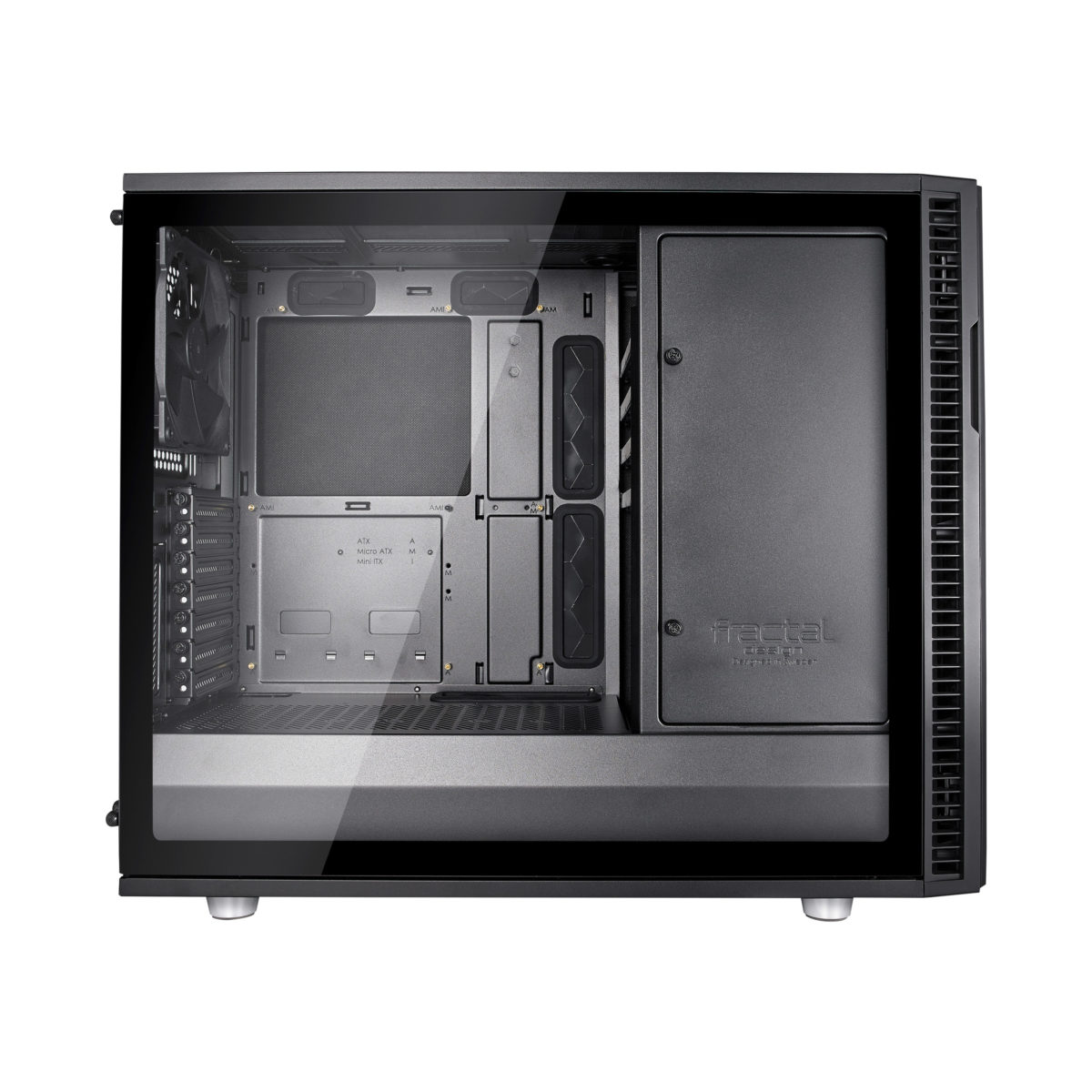

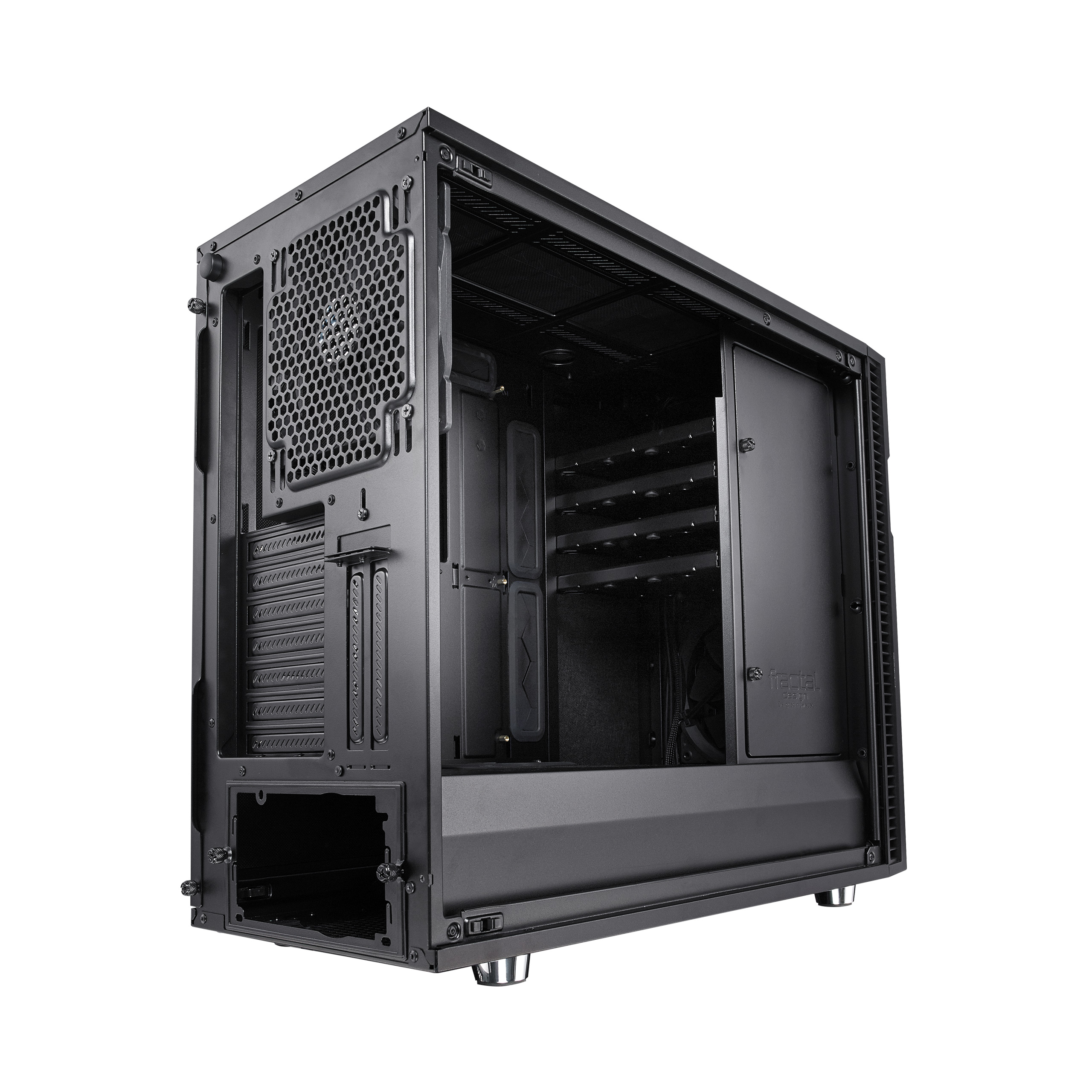

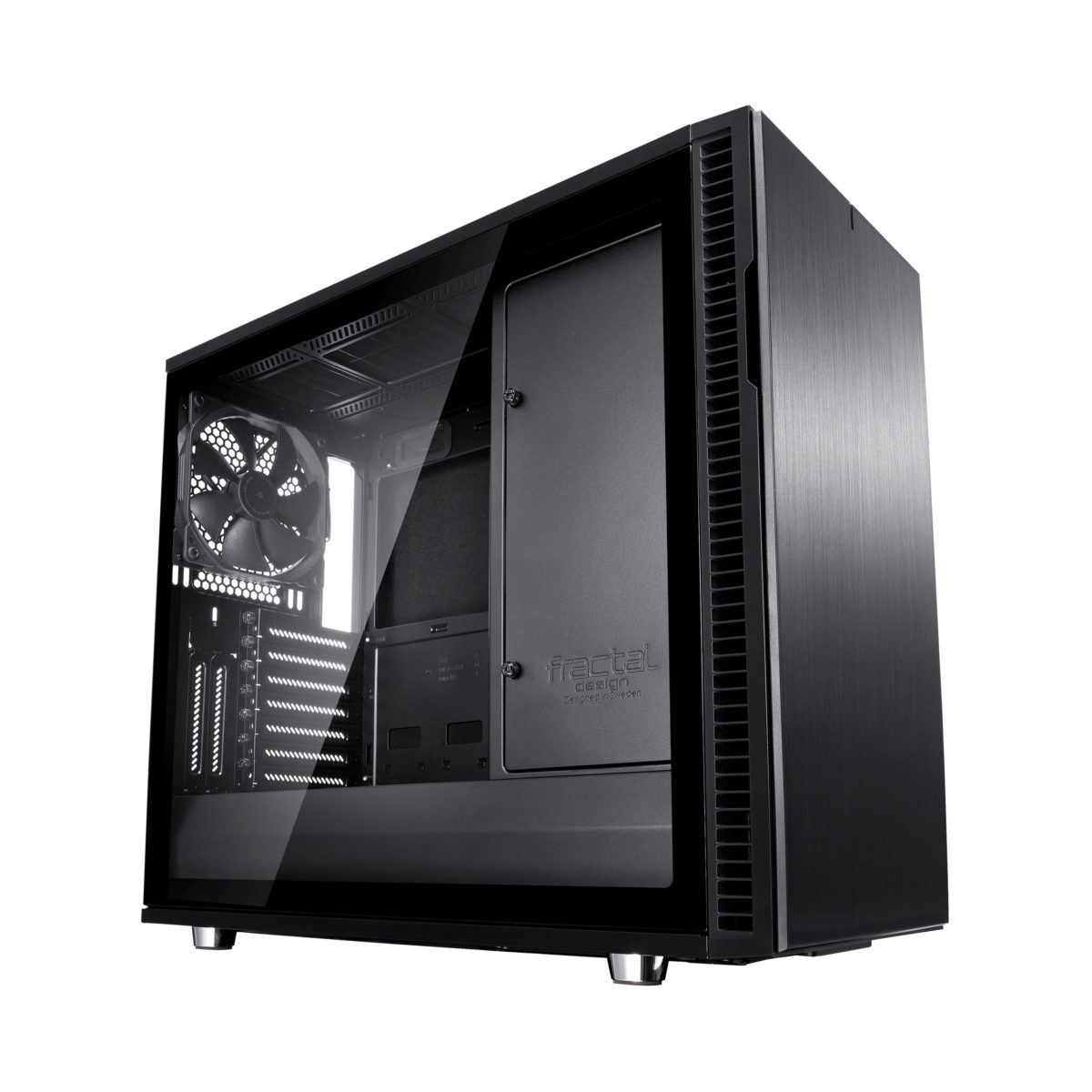

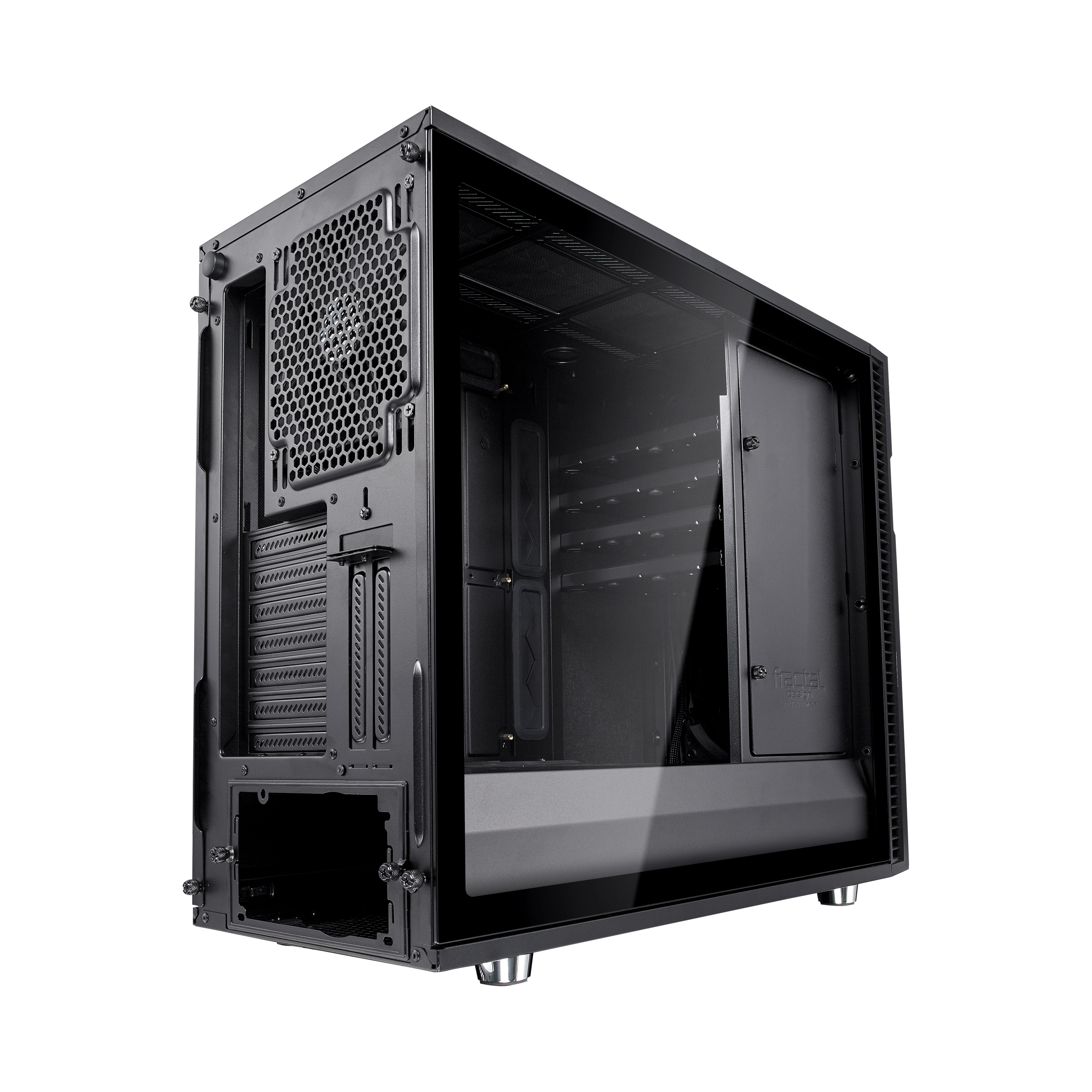

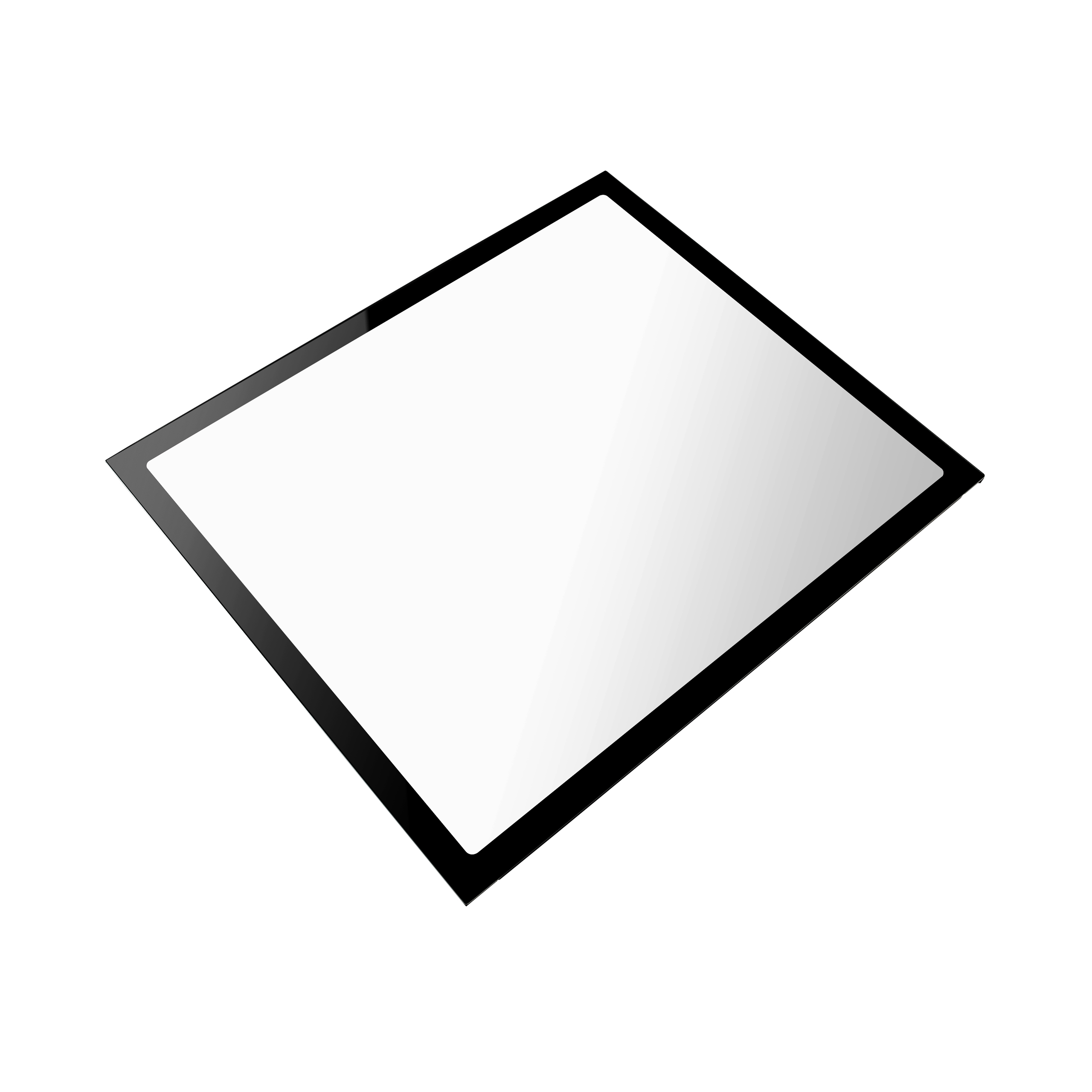

钢化玻璃

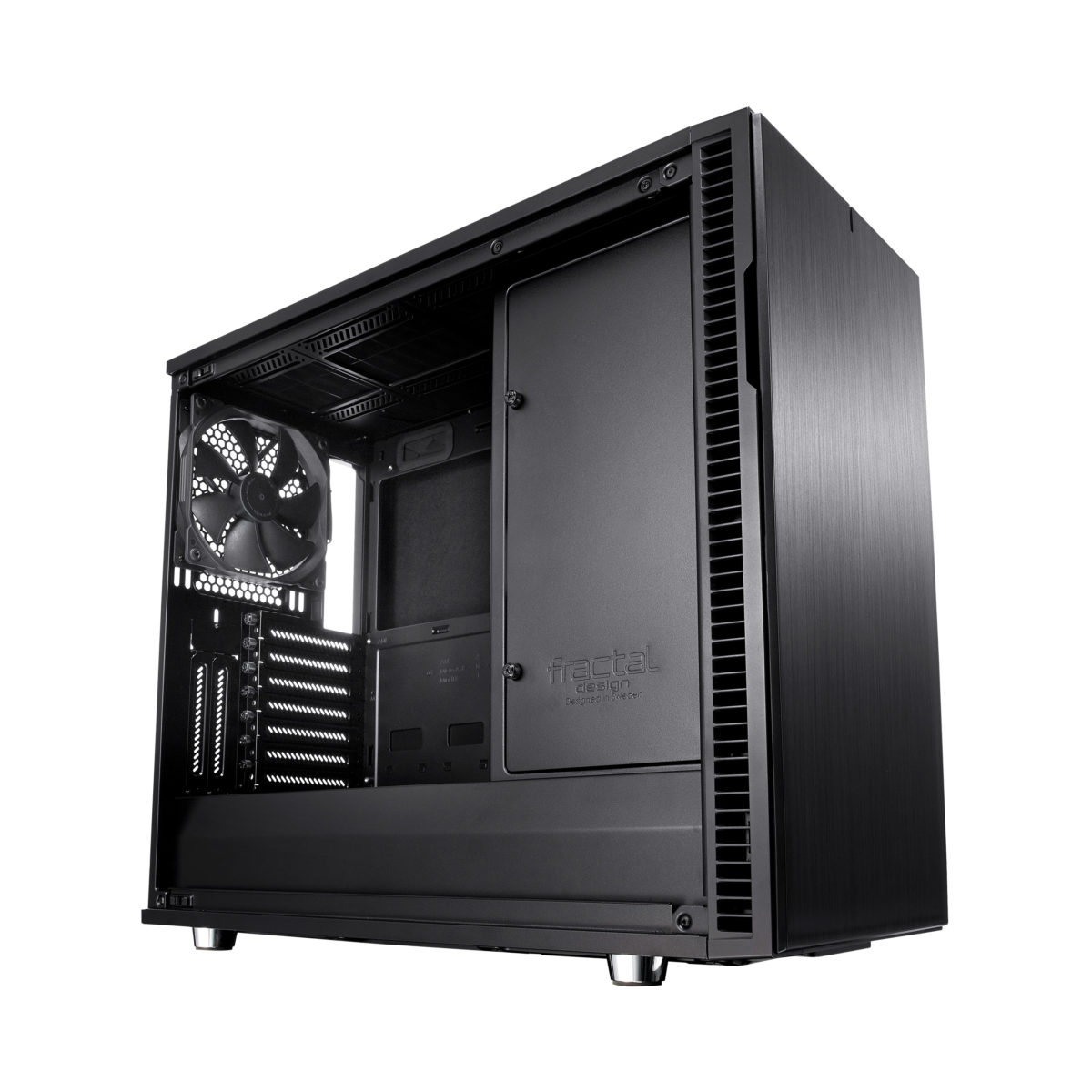

全尺寸无缝耐划钢化玻璃侧面板

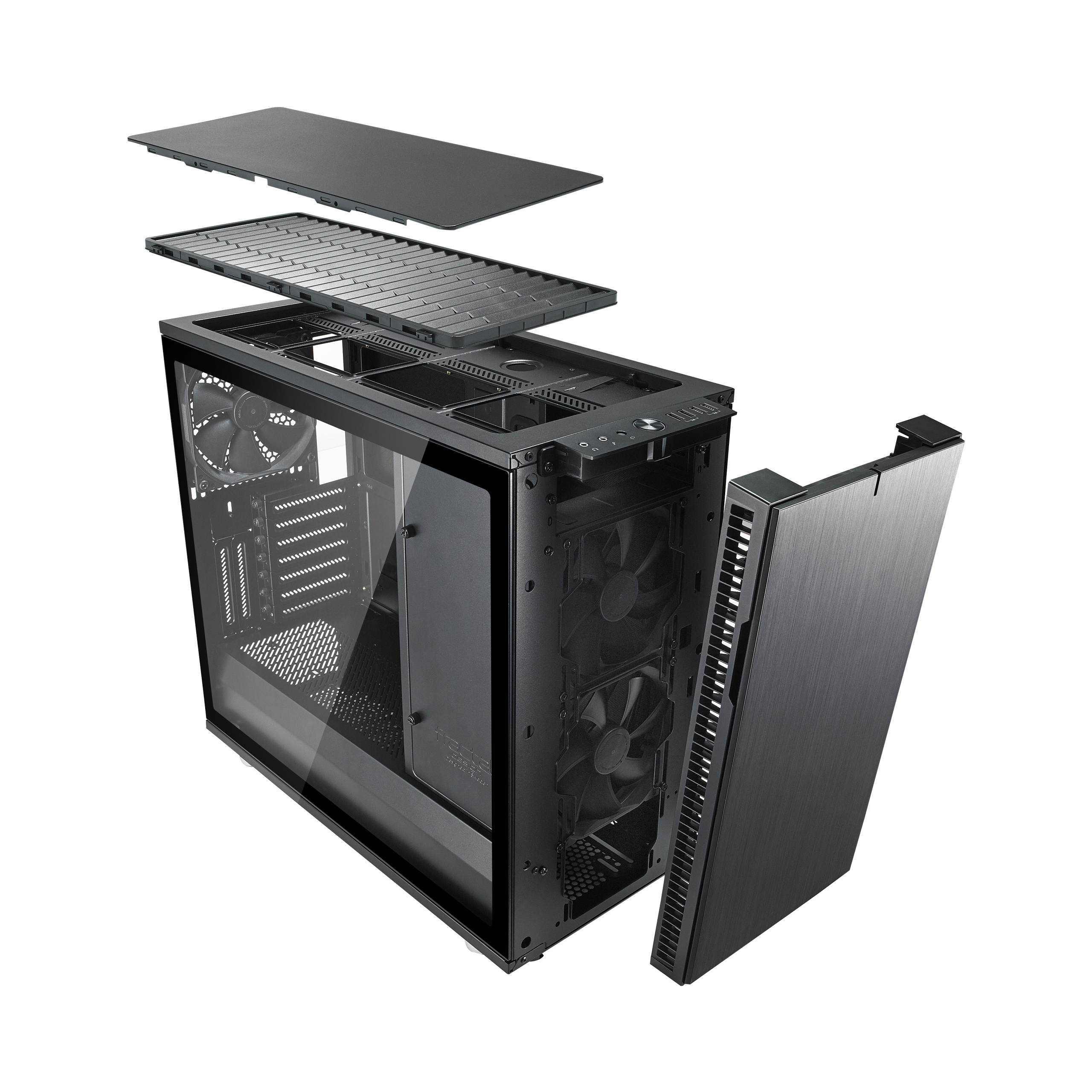

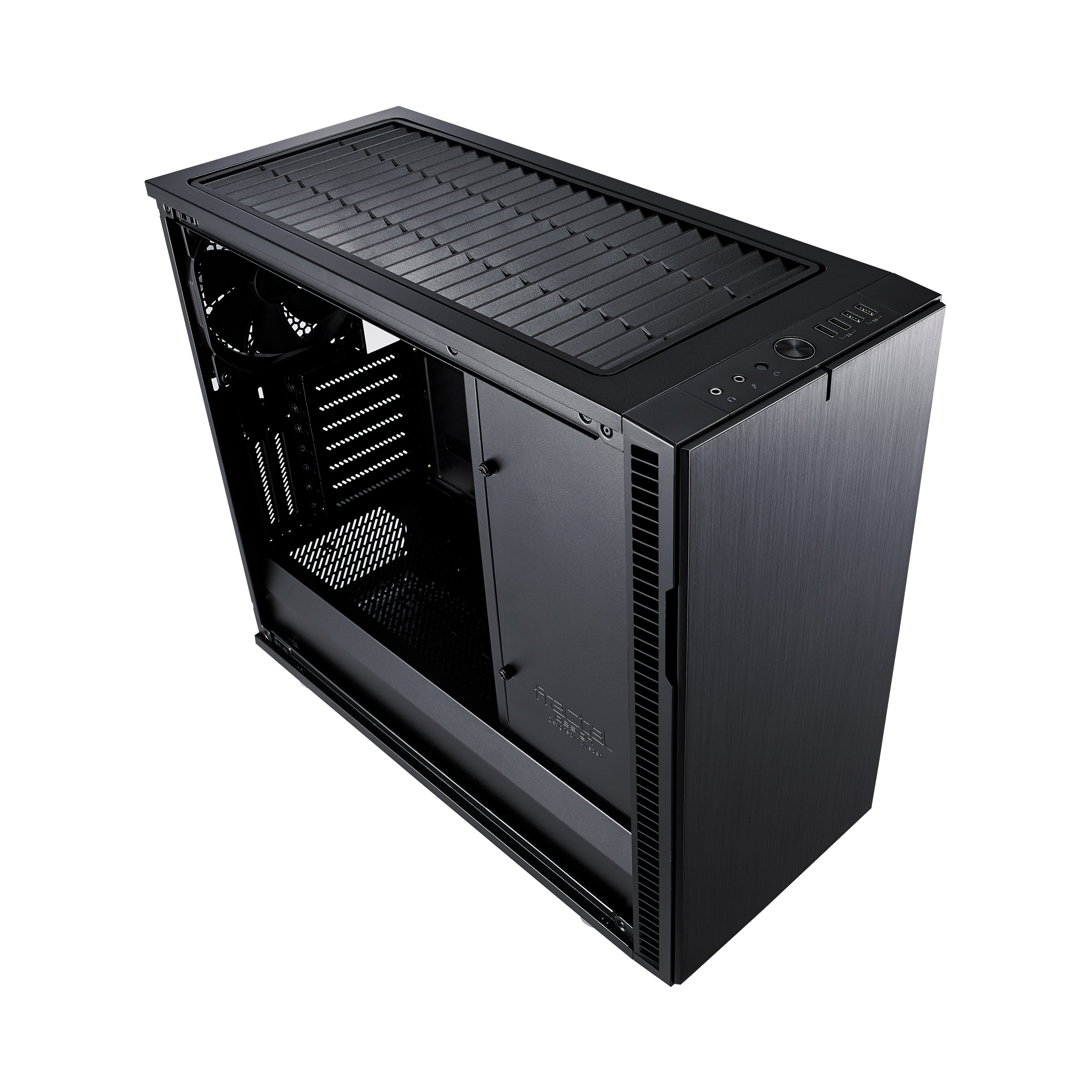

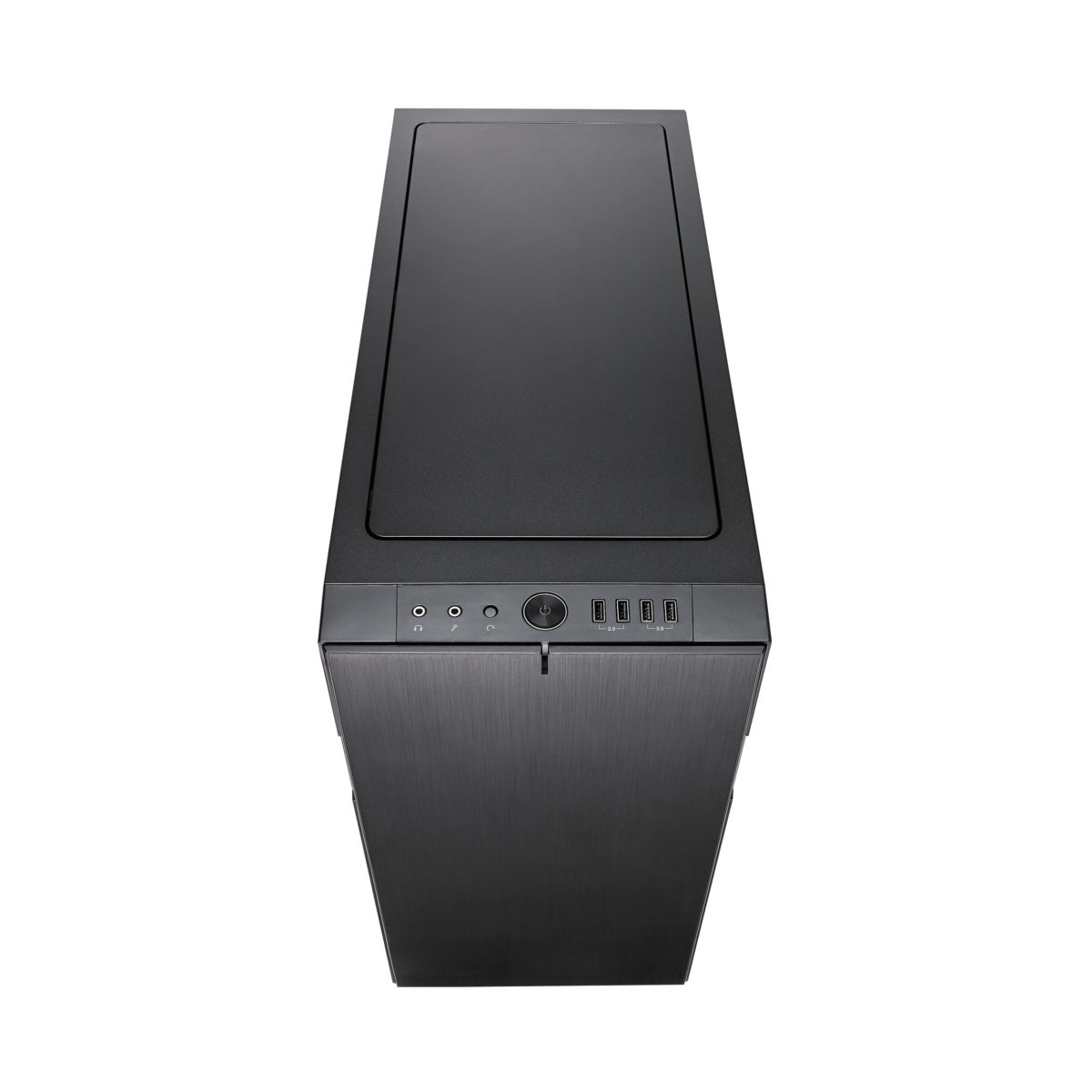

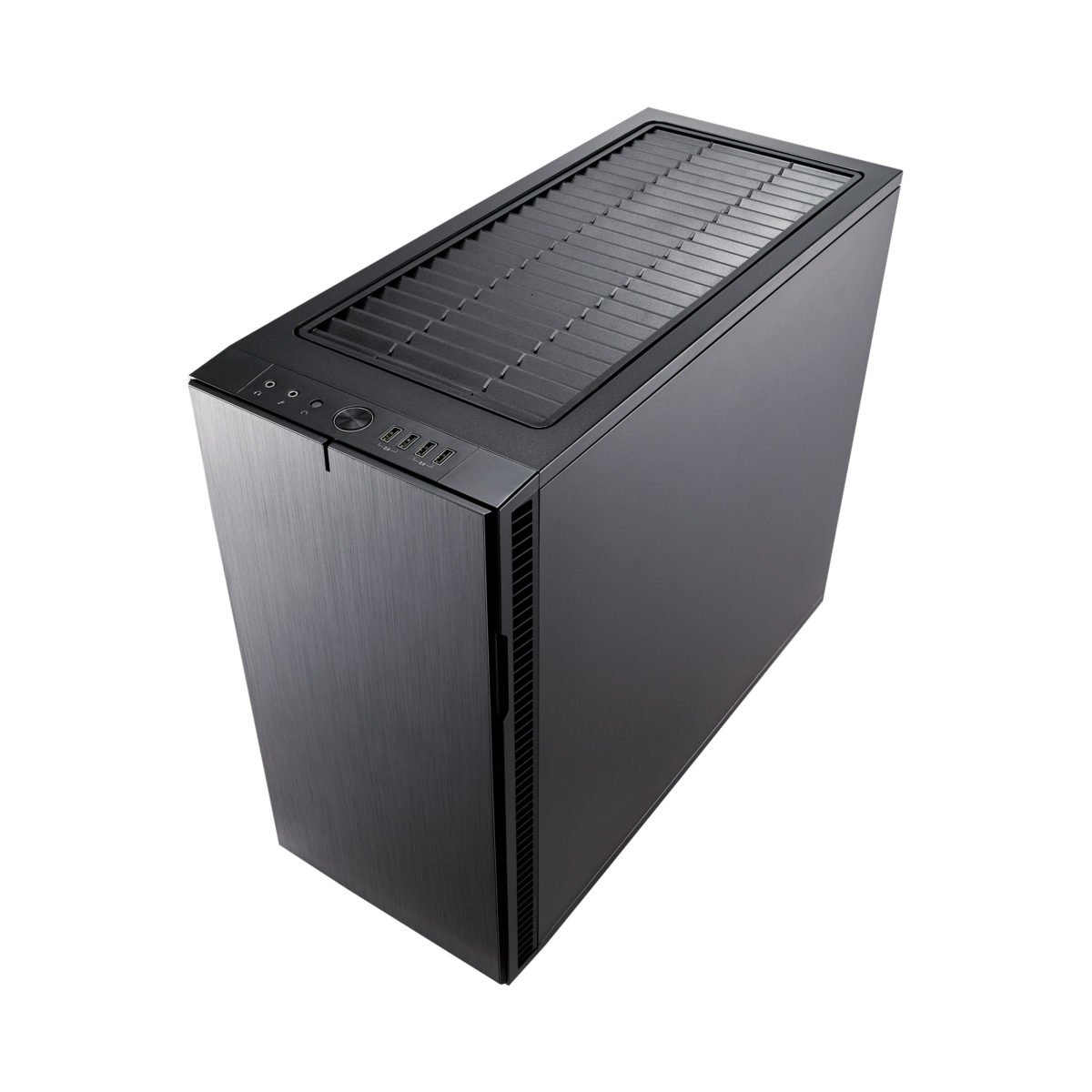

第三代ModuVent™技术

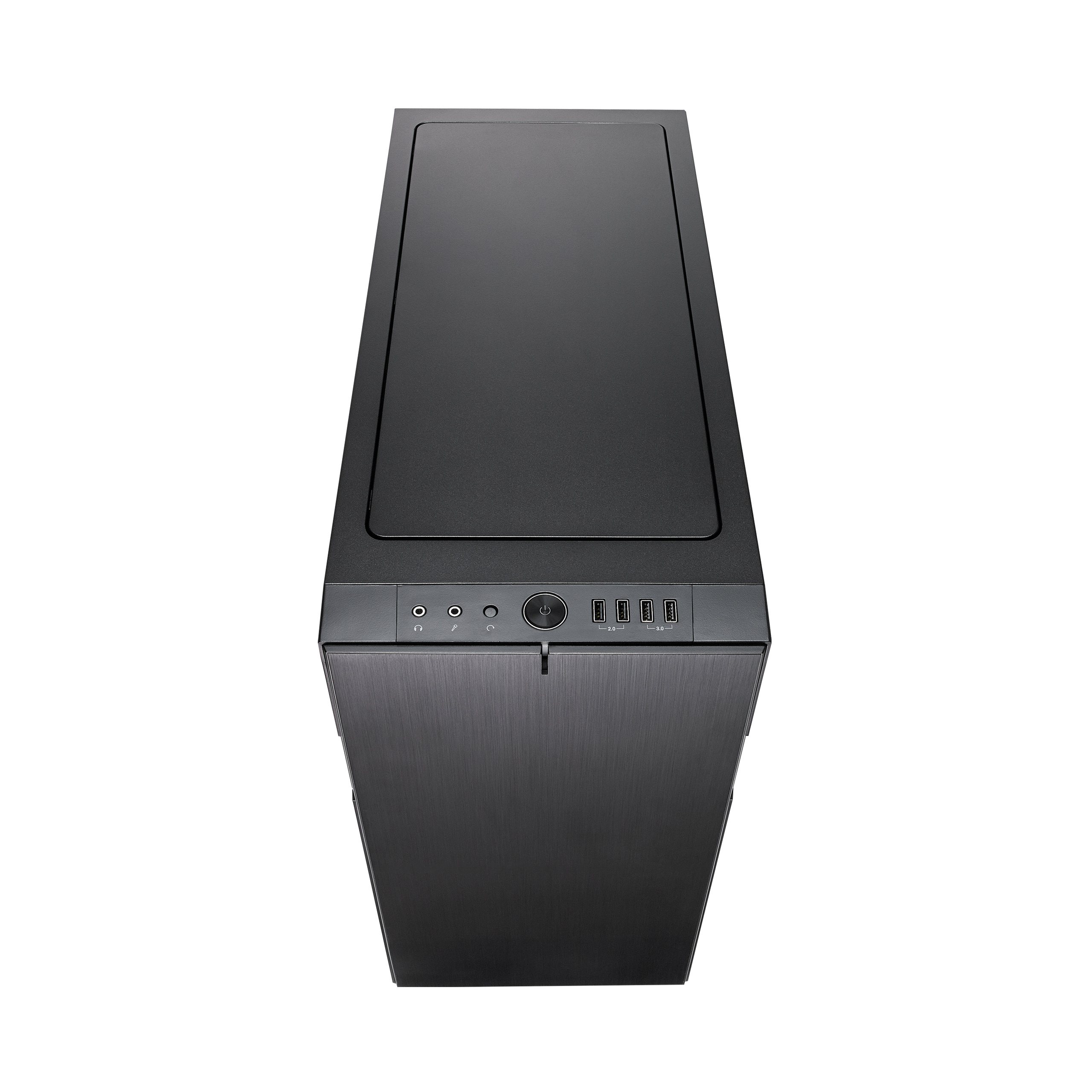

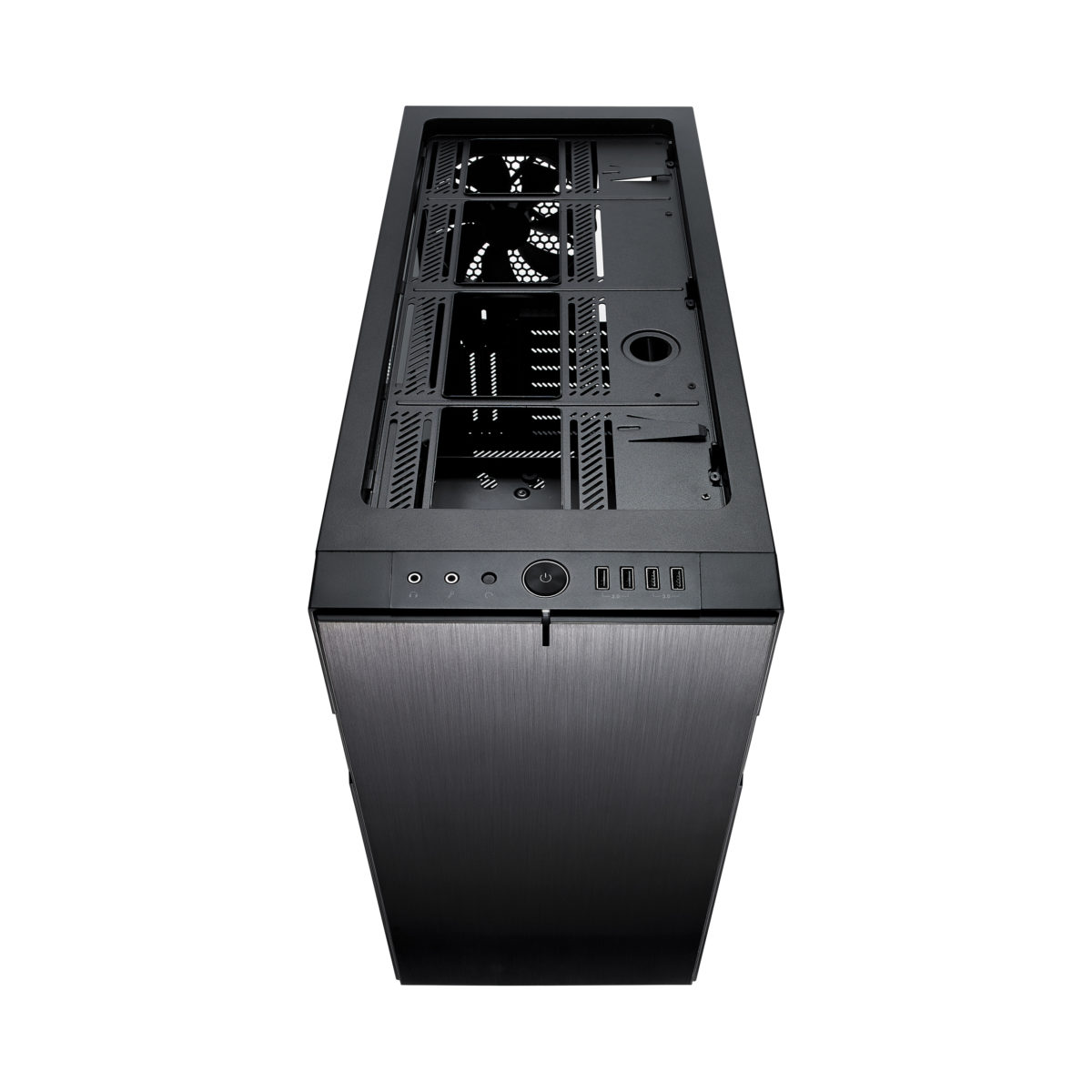

用户可自由选择在顶面板上安装钢化隔音盖或防尘过滤装置

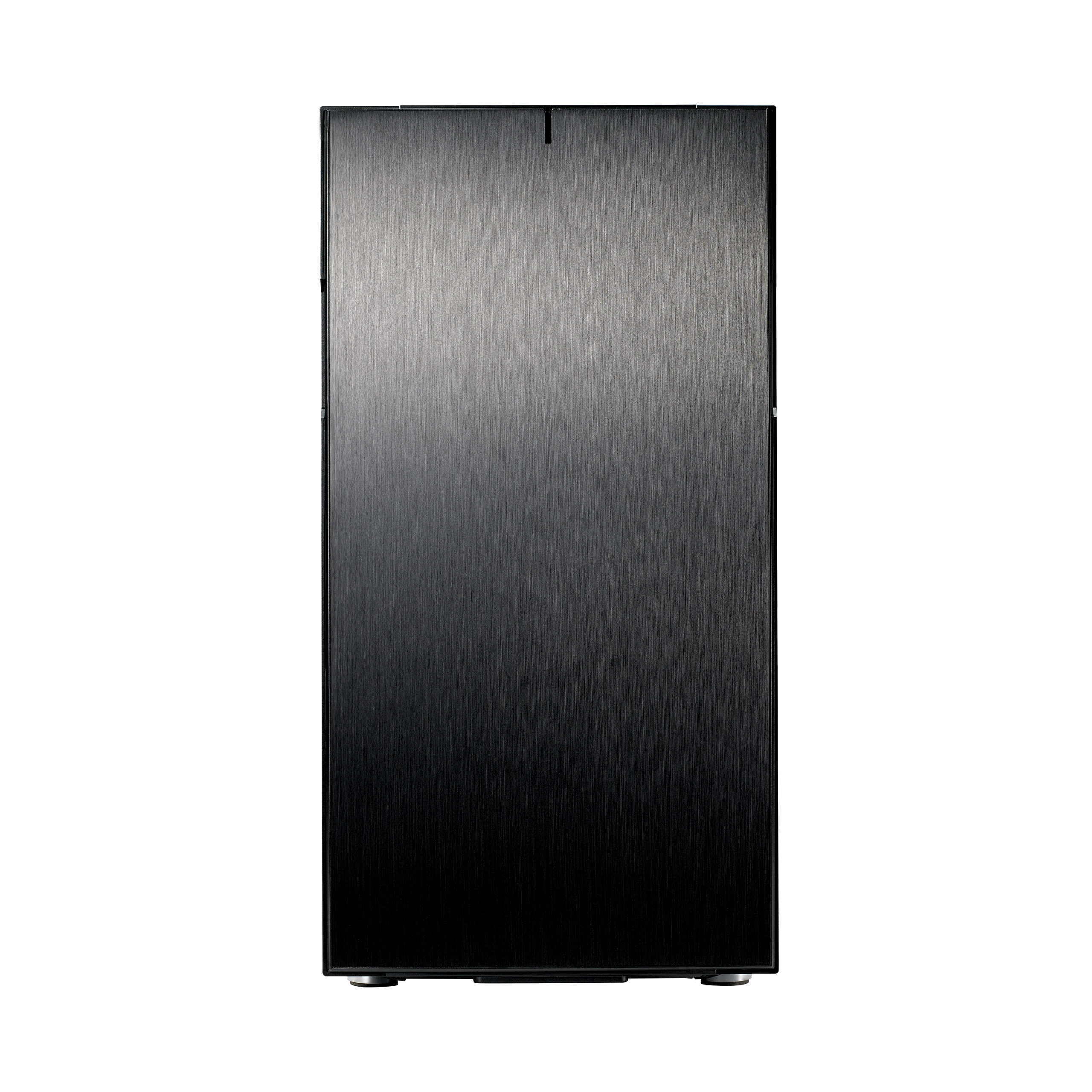

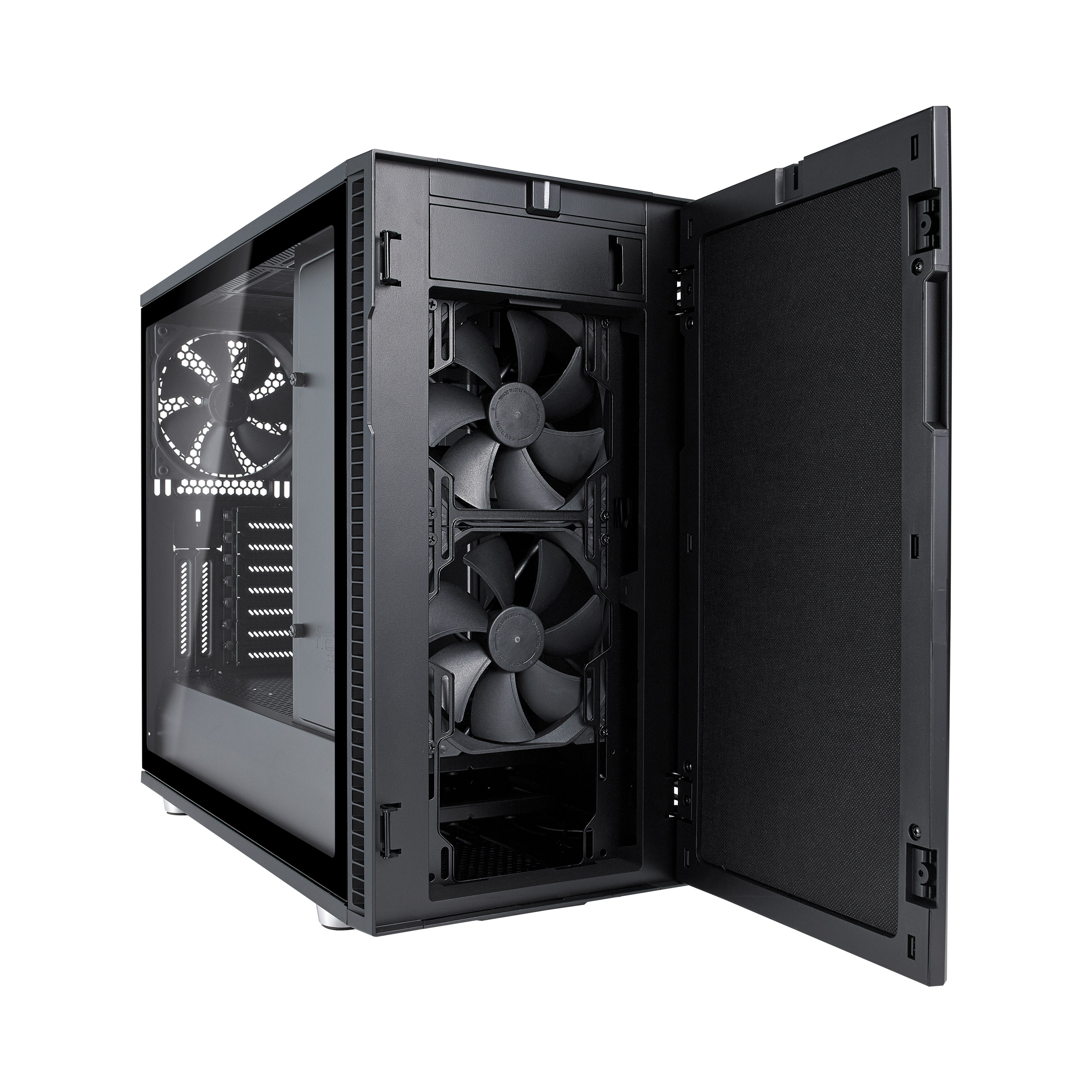

左右双开设计

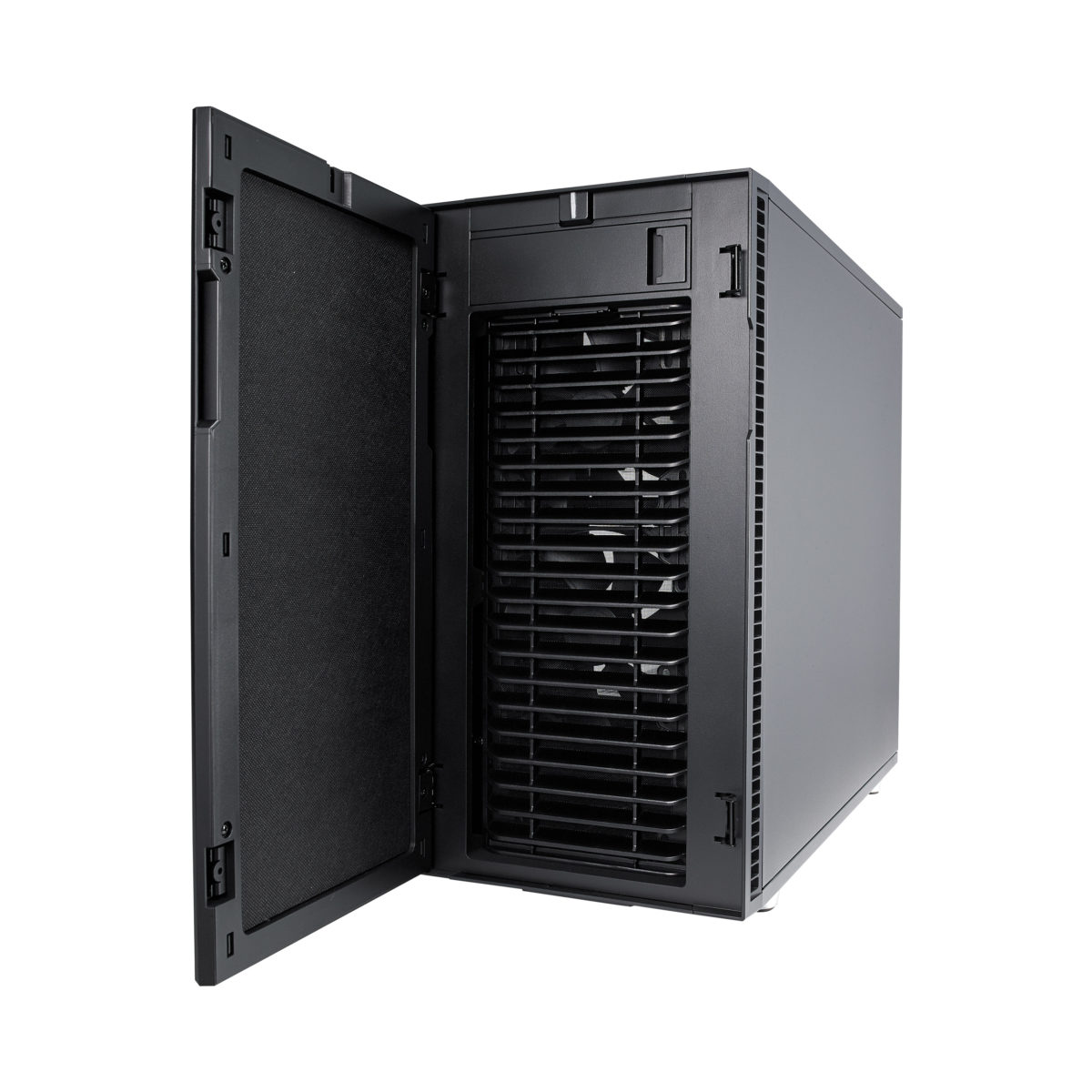

铝前面板备有左右双开设计，提供机箱拥有弹性的摆放空间

主要特点

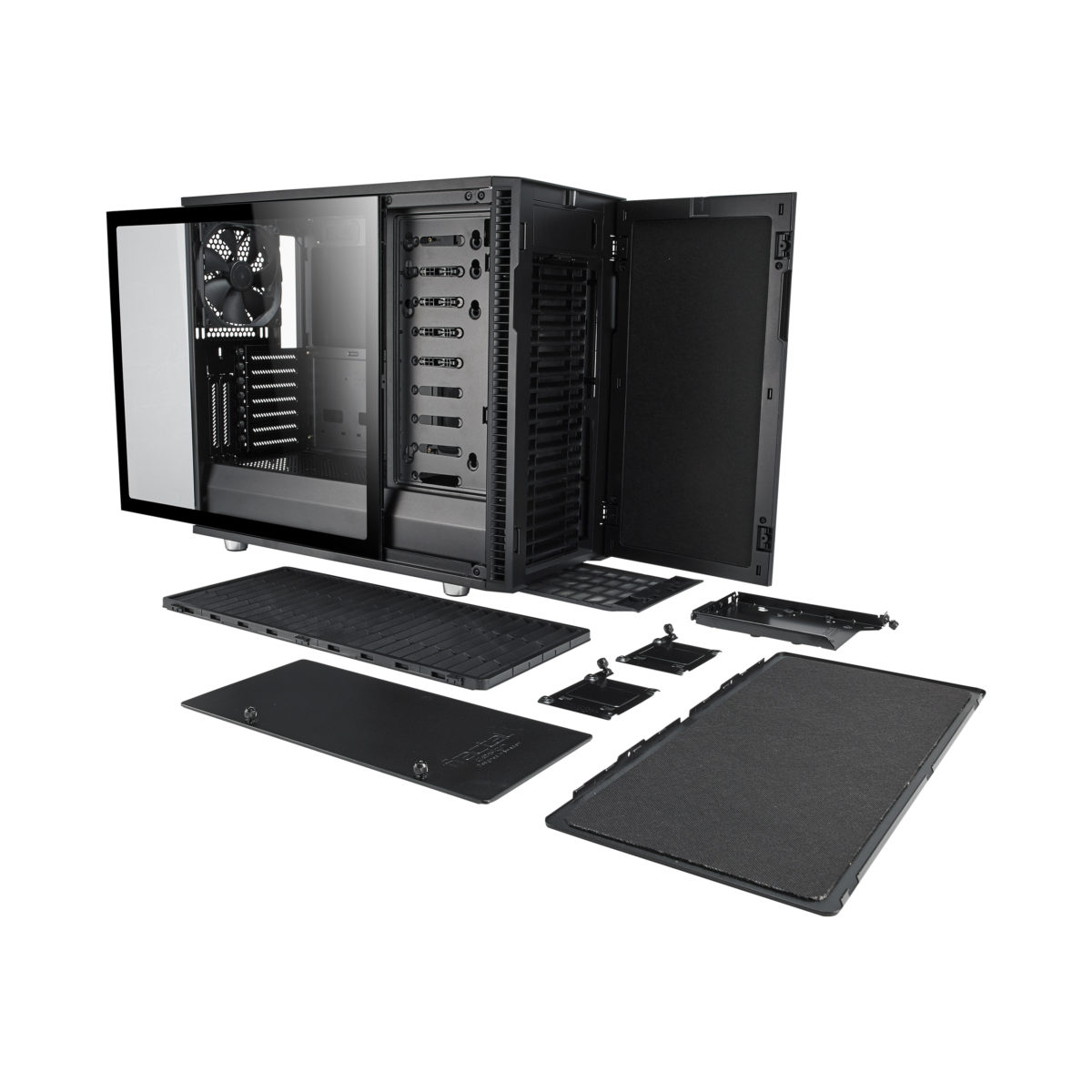

  • 第三代ModuVent™技术，用户可自由选择在顶面板上安装鋼化隔音盖或防塵过滤裝置

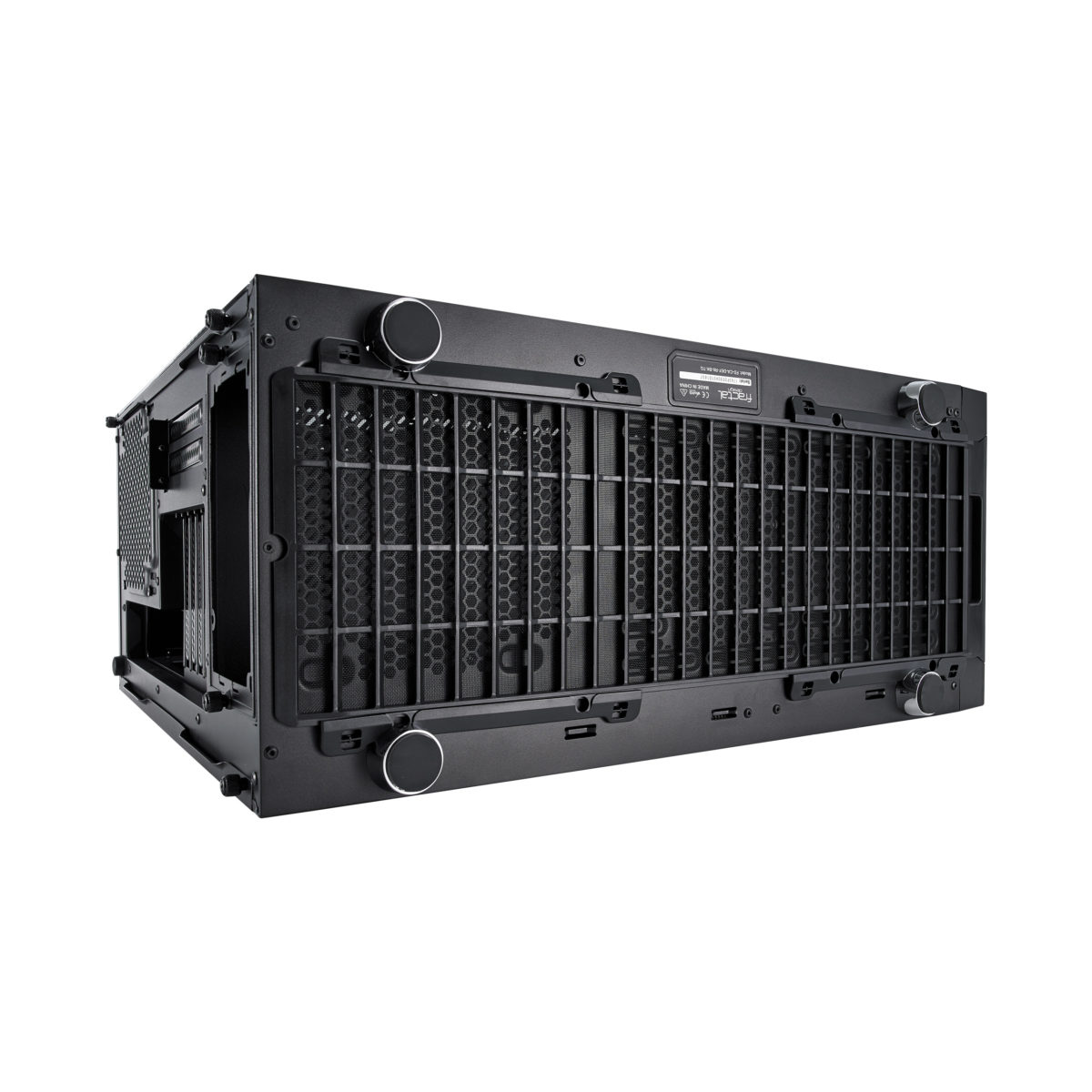

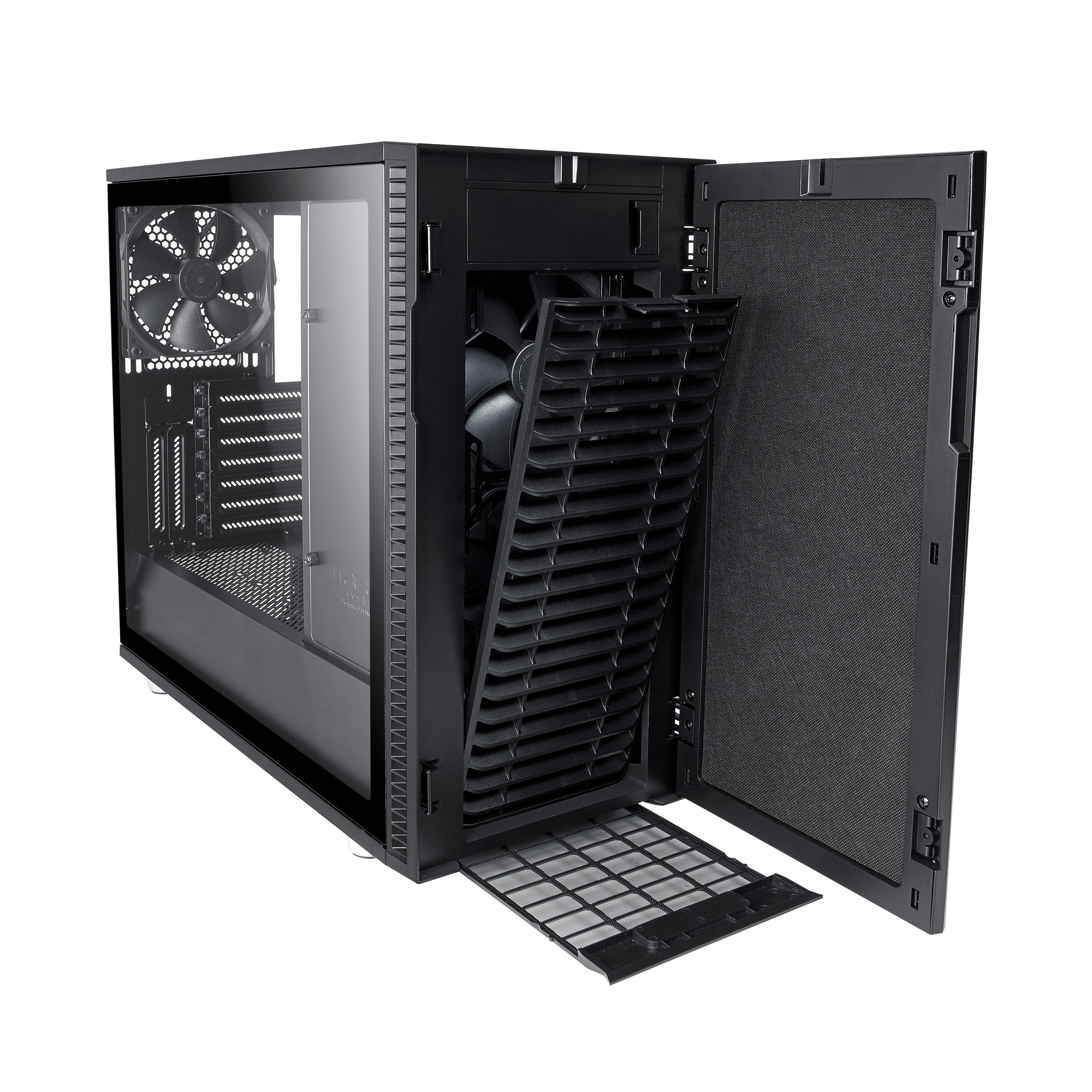

  • 前侧、顶部和底部都装有高气流防塵过滤網，抽取式設計簡易拆裝清理

  • 装有模块存储板，用户可在最大存储布局、多方水冷支持以及高散熱路径的功能定義之间轻松转换

  • 垂直式2.5插槽GPU 装置，全视野展现你的GPU硬件（不含PCIe 竖板）

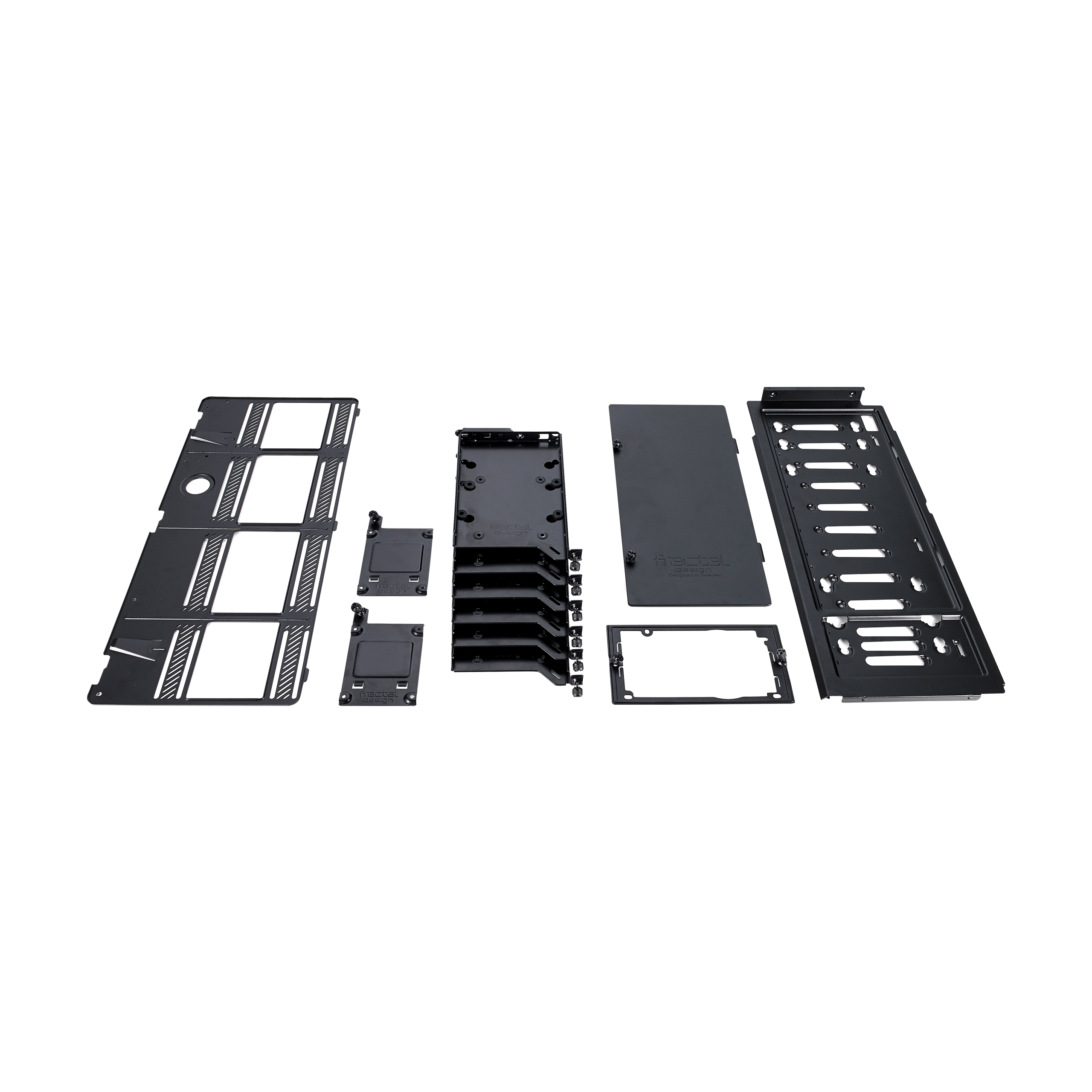

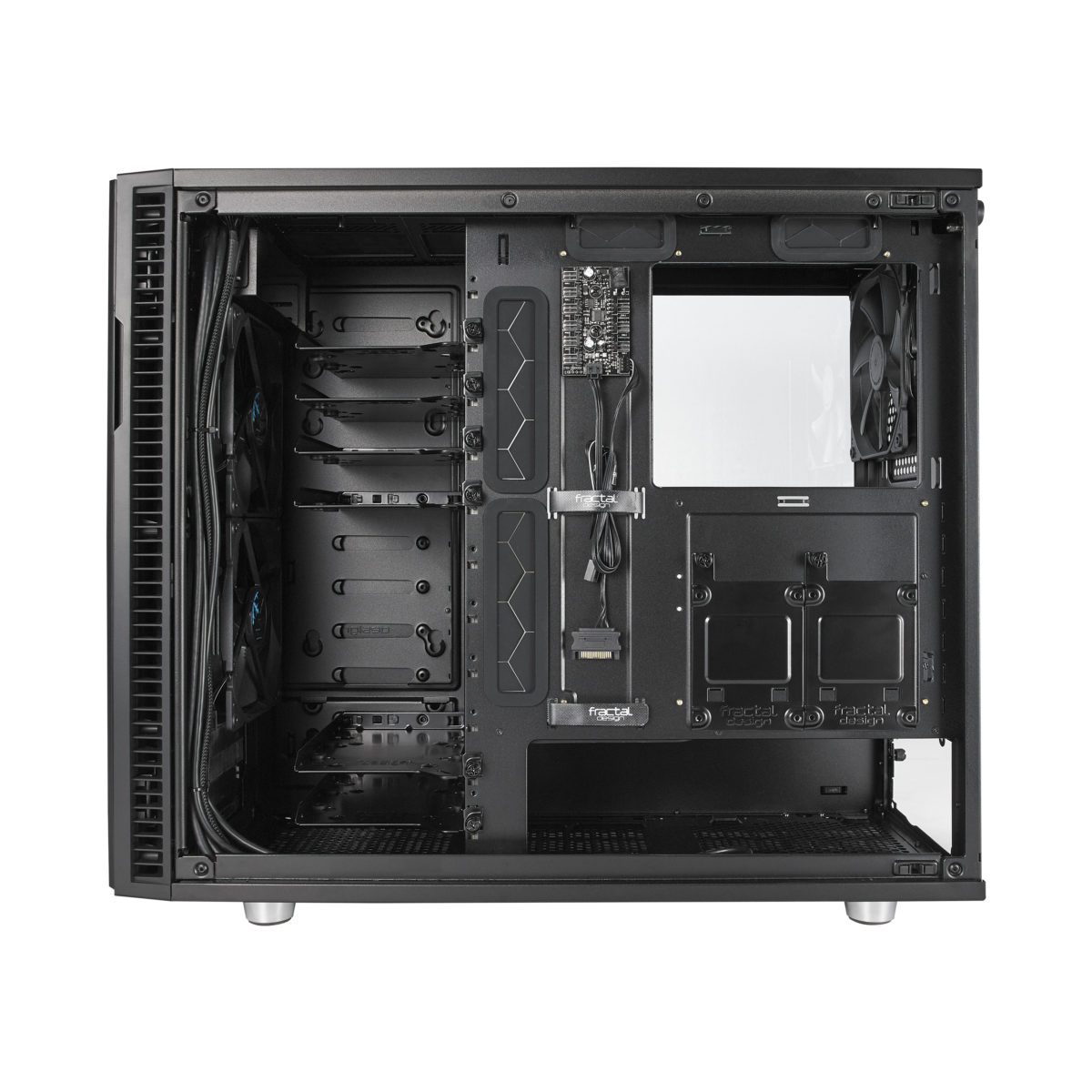

  • 高度模块化的内部结构，包含六个HDD/SSD硬盘托盘，可单独更换位置，以配合组件、冷却和电缆布线

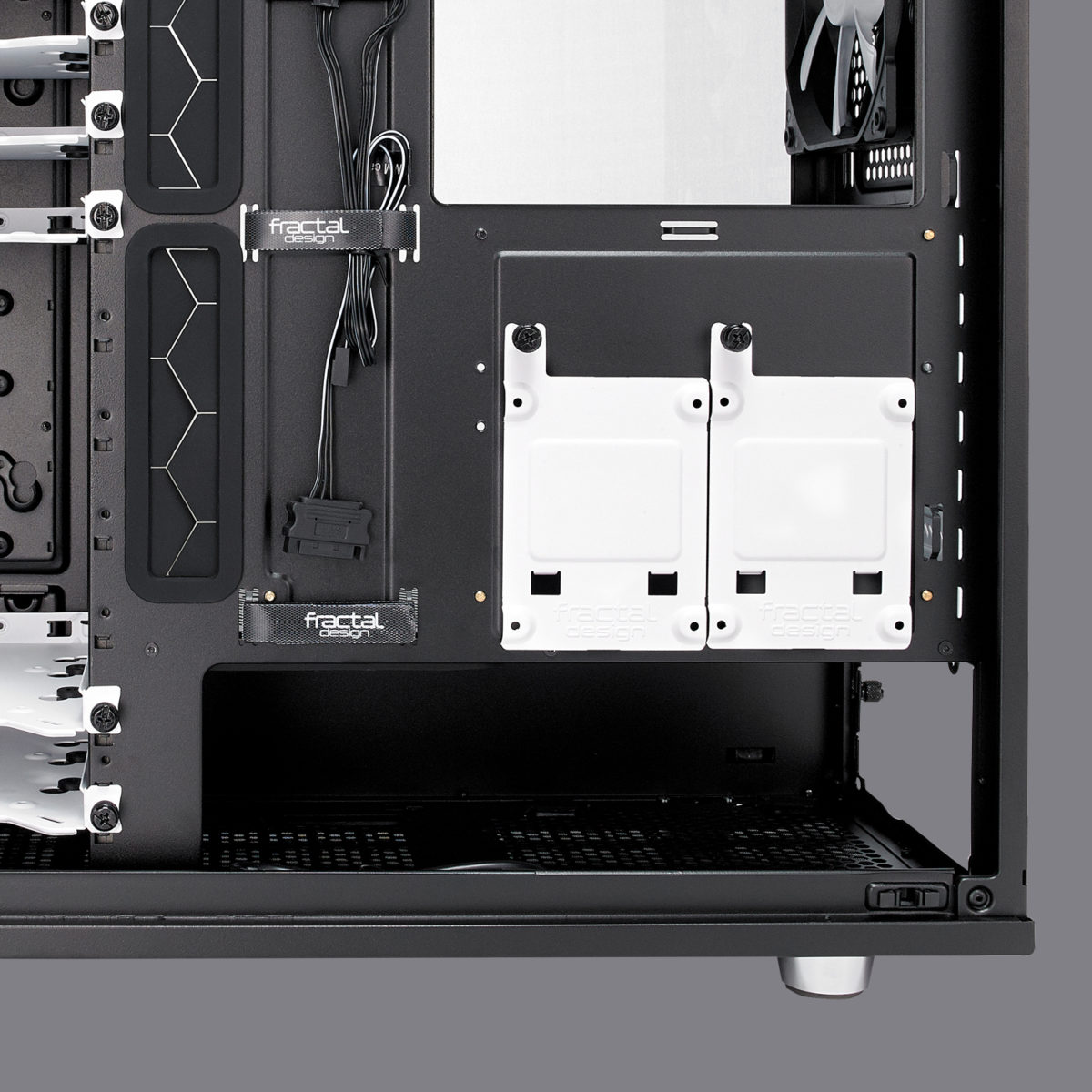

  • 定制化的2.5” 存储解决方案，包含两个支架和四个托盘位置，可使驱动器隐藏在主板托盘后面，或显示在PSU护罩顶部

  • 装有USB 3.1 Type C，通过 Define Pro I/O面板（单独出售）支持快速充电

垂直式2.5插槽GPU 装置

全视野展现你的GPU硬件（不含PCIe 竖板）

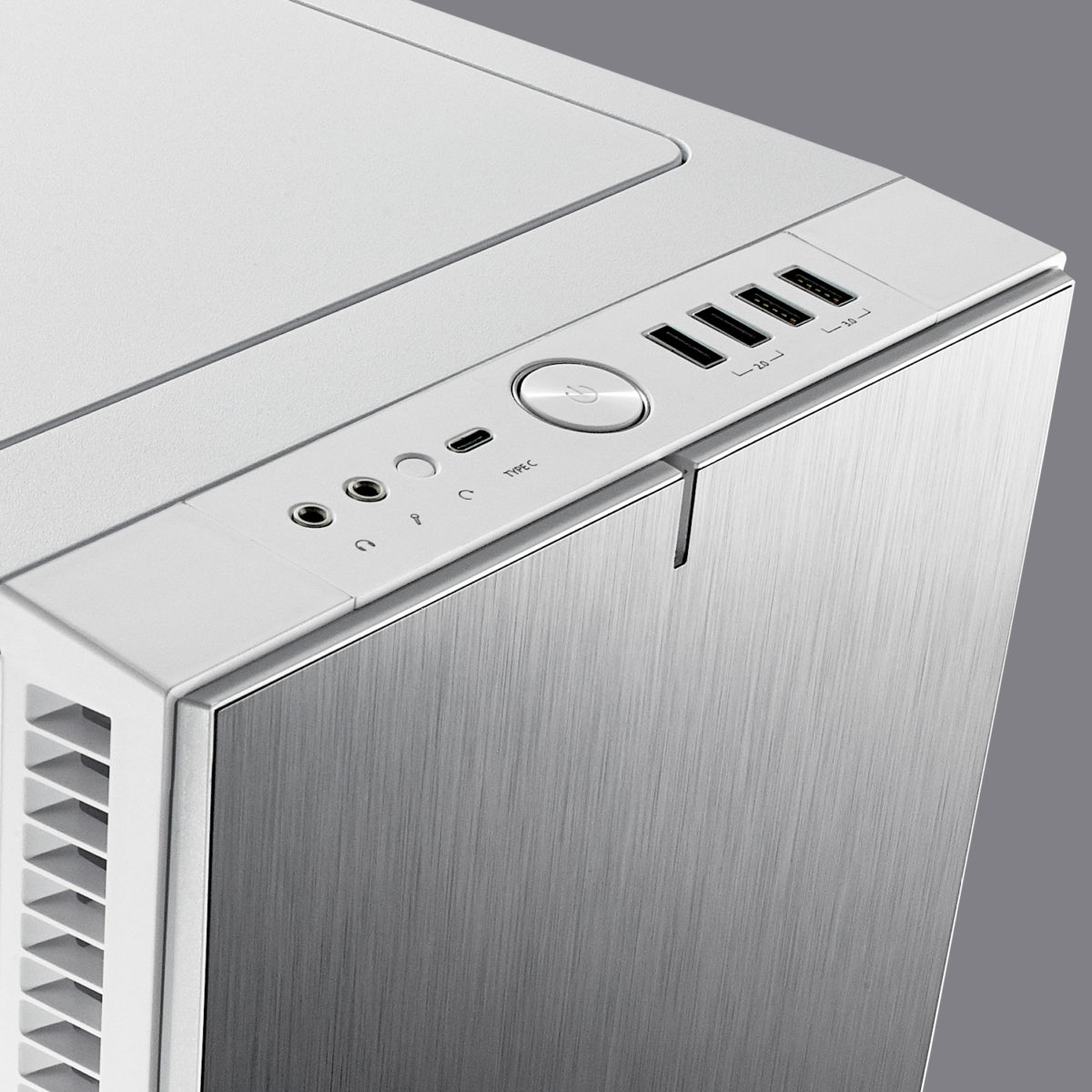

可升级 USB 3.1 Type C

通过 Connect D1 I/O面板（单独出售）支持快速充电

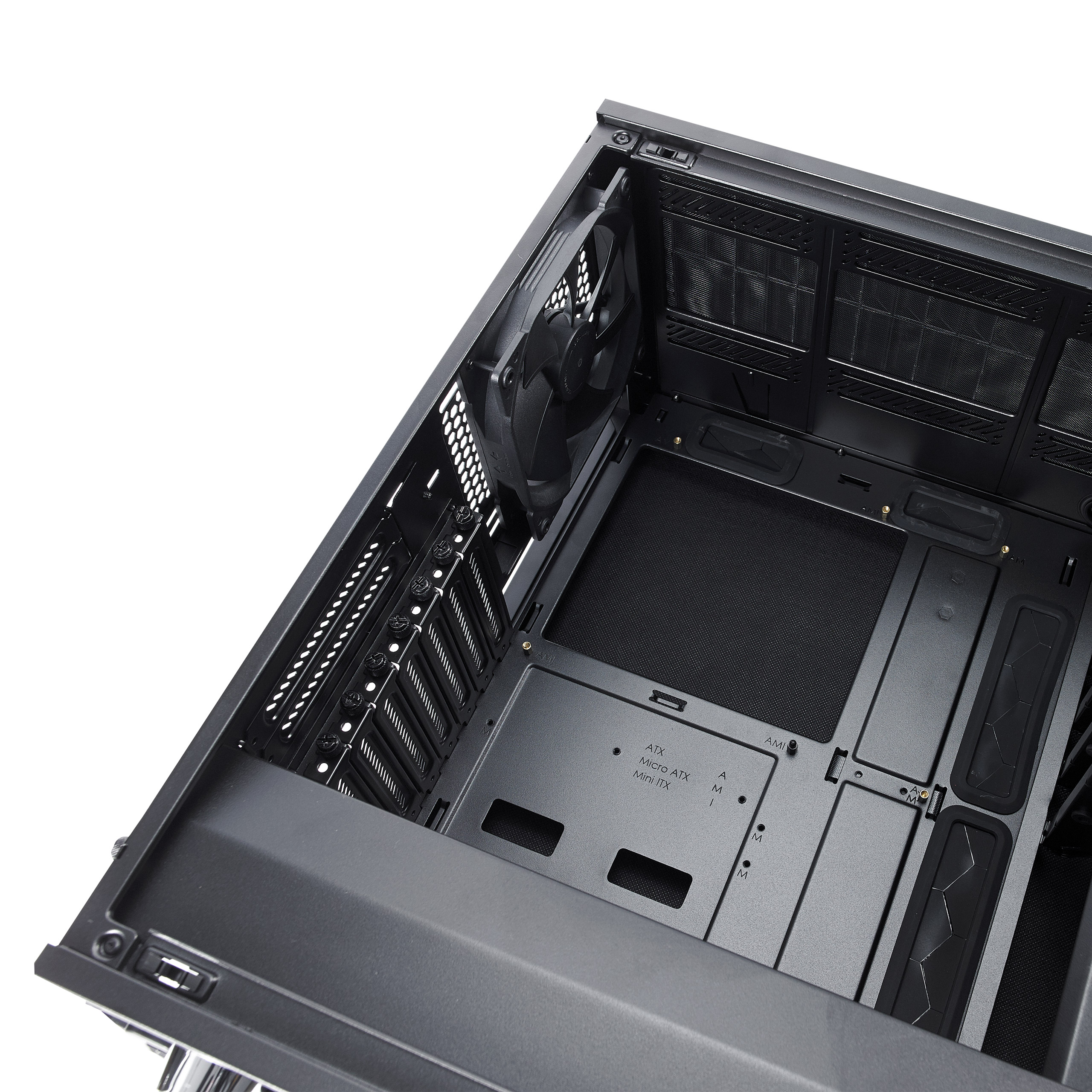

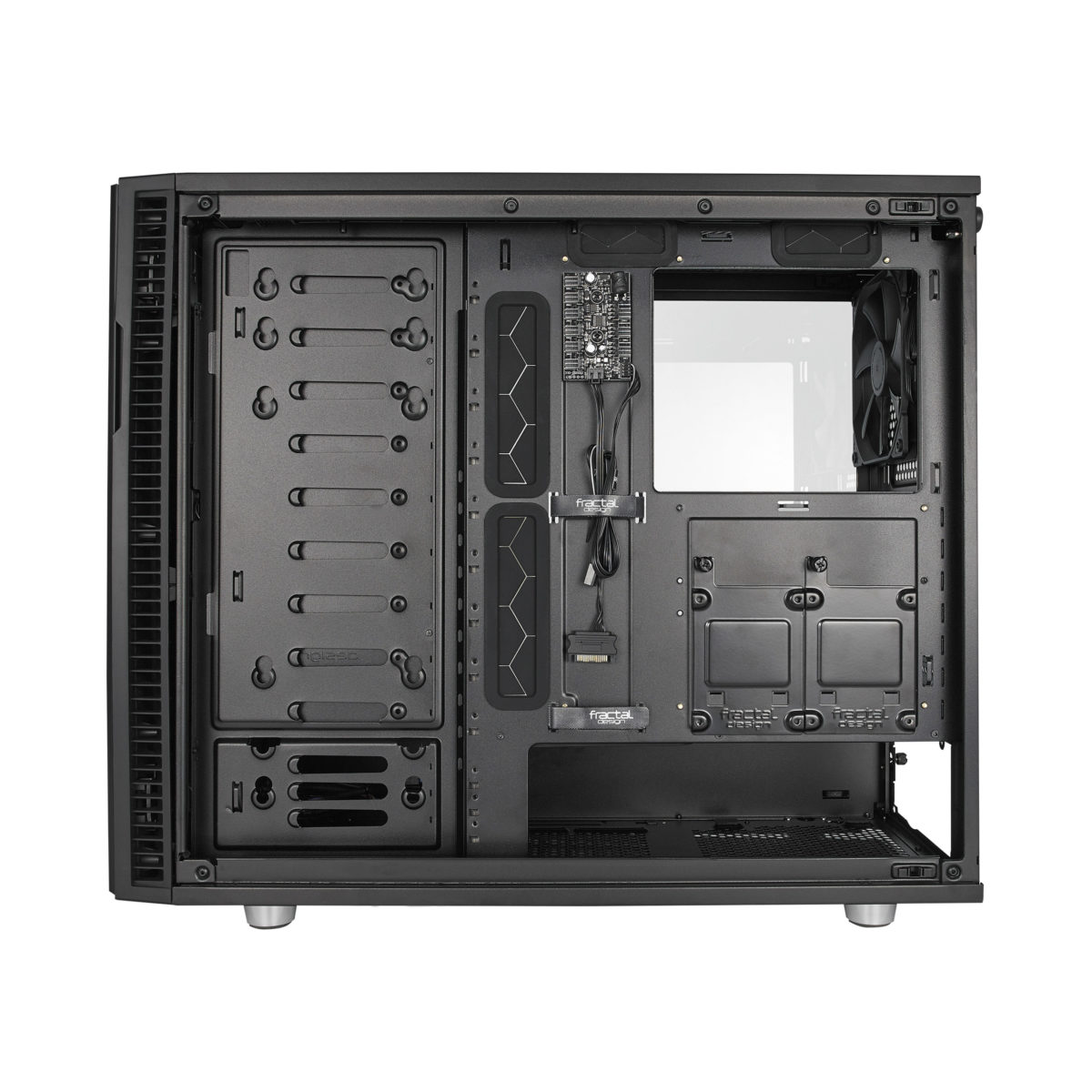

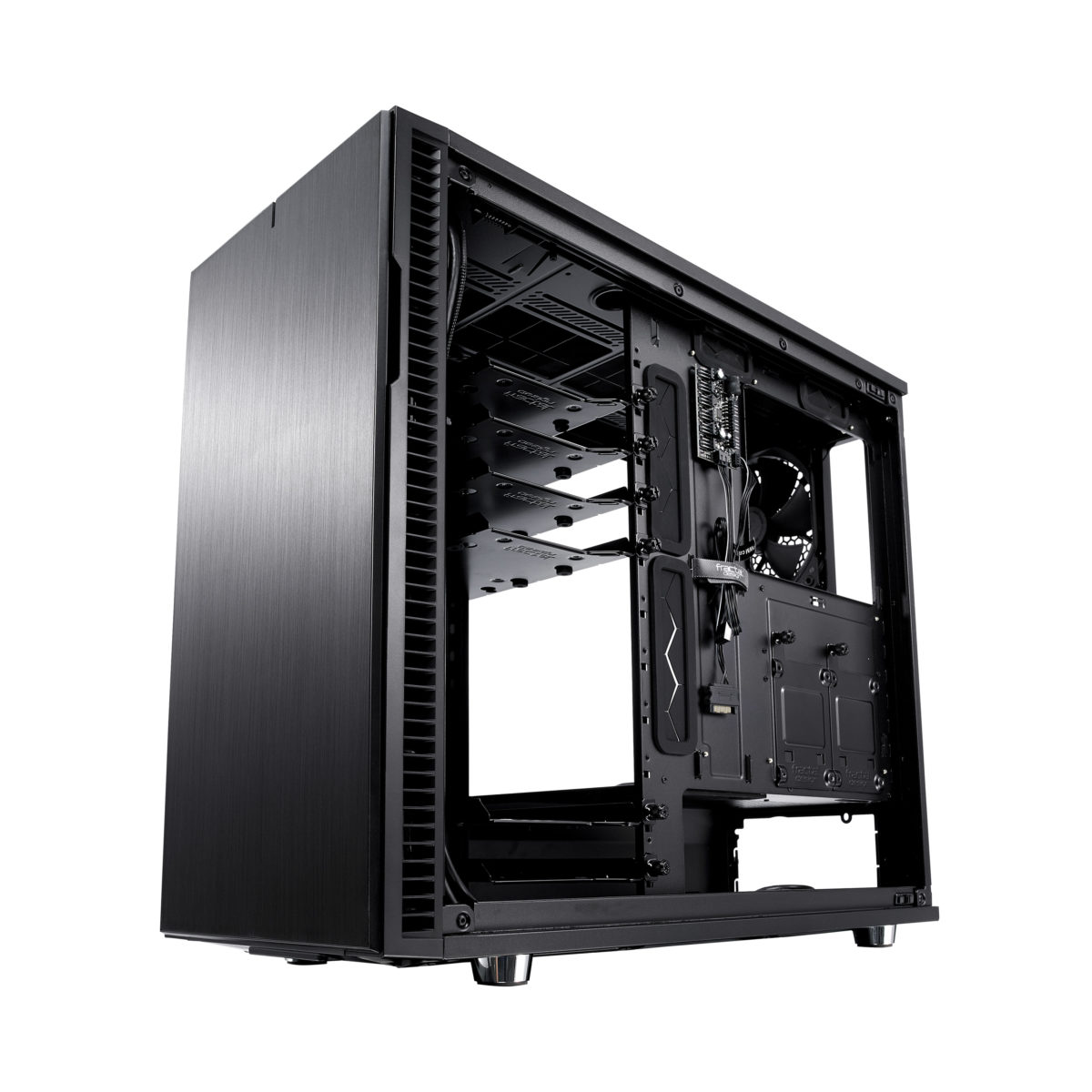

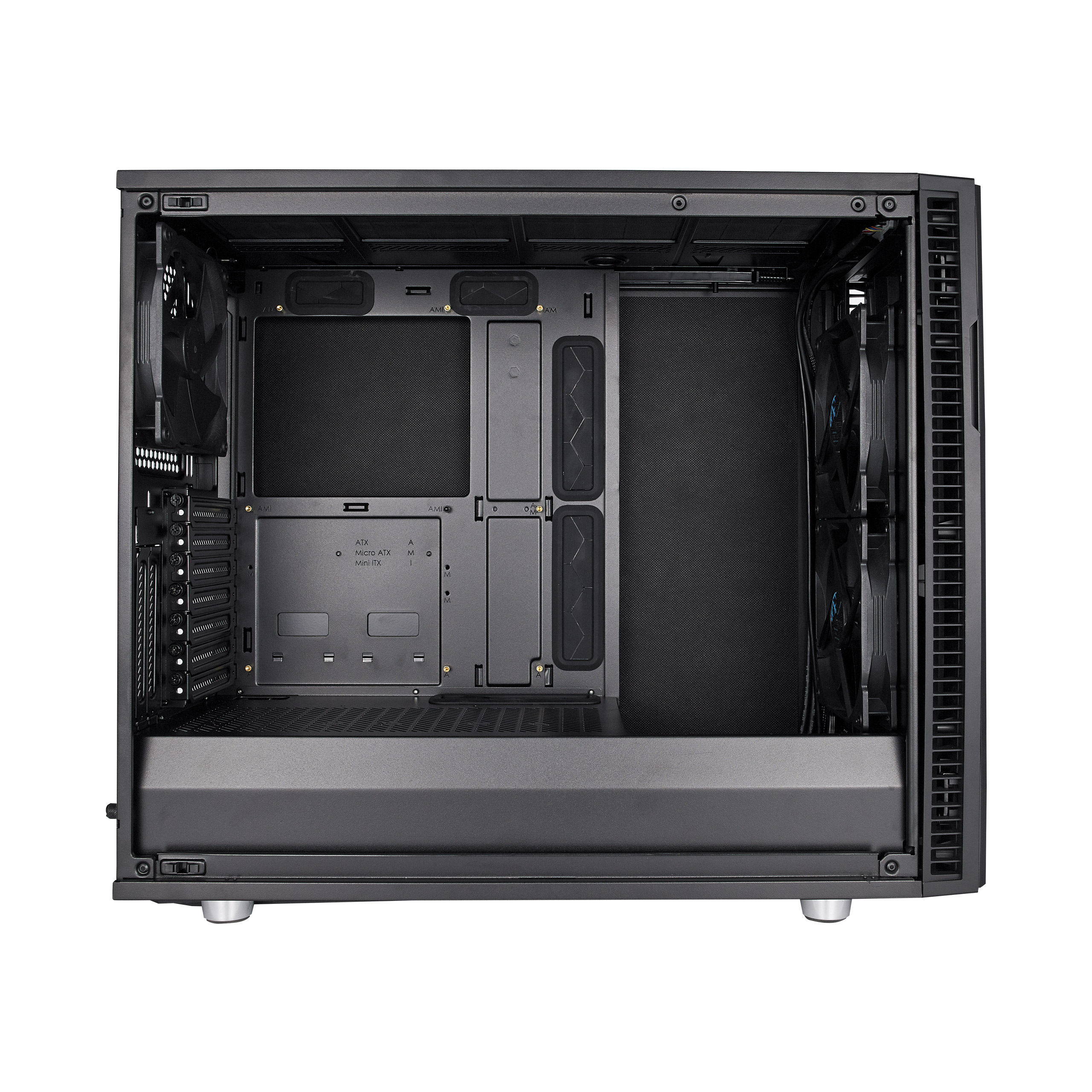

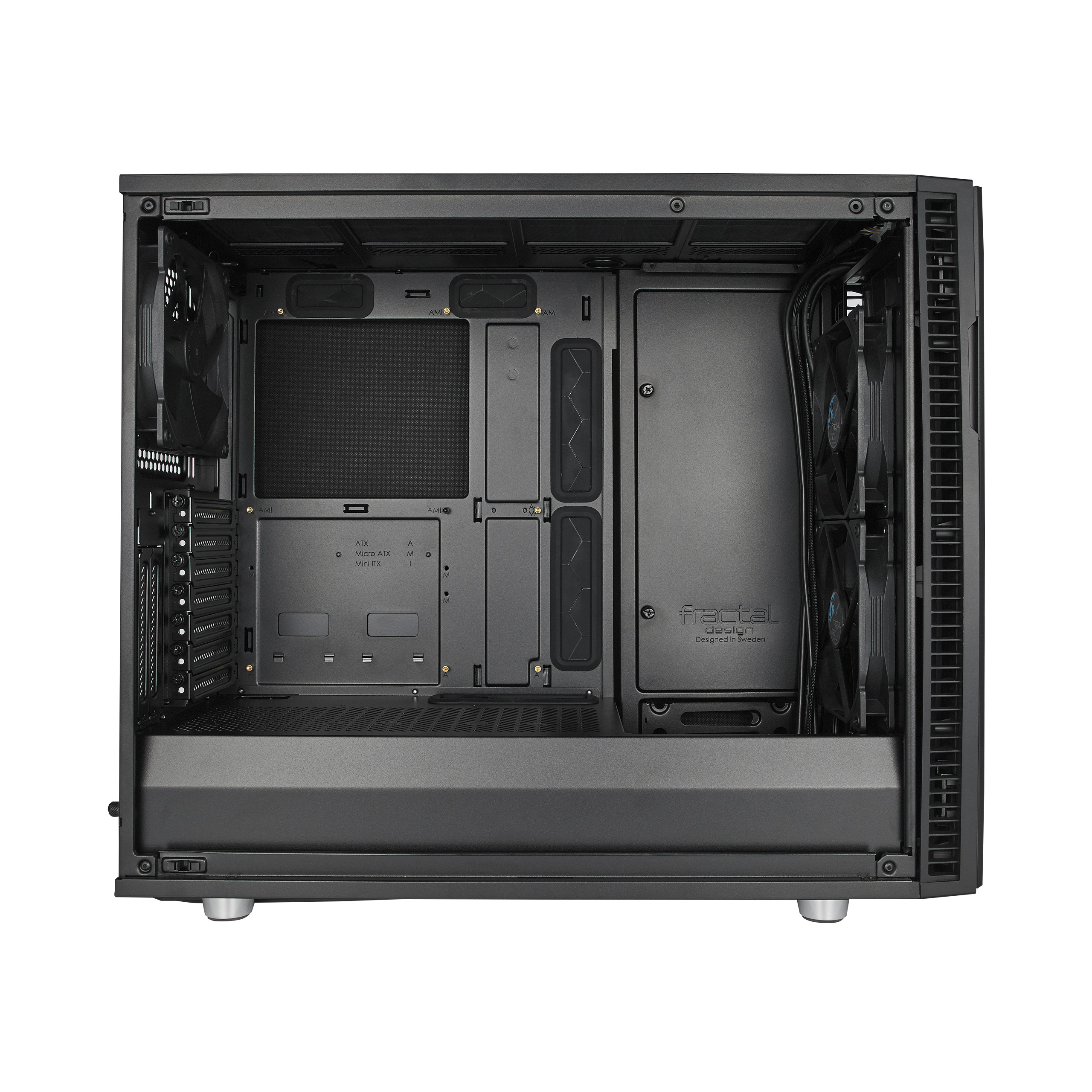

内部结构模块化

包含六个HDD/SSD硬盘托盘，可单独更换位置，以配合组件、散热和电缆布线

”The flexibility is a real boon, and is enhanced by Fractal's attention to detail. A hinged tempered-glass panel works really well, the top ModuVent is better than ever, the front door is reversible, the top, front and bottom are outfitted with easy access dust filters and there's sound-dampening material throughout.”
Hexus.net 阅读更多
”What we said in the begging of this review rings true, as the Define R6 is the best chassis Fractal Design has ever produced”
Tweaktown.com 阅读更多
”We’ve praised Fractal in the past for high build quality and logical layouts, and the R6 continues that trend”
GamersNexus.net 阅读更多

Specifications

  • 3.5"/2.5" Universal drive brackets
    6 included, 11 positions total
  • Dedicated 2.5" drive brackets
    2 trays included, 4 positions total
  • Dedicated 5.25" drive bracket
    1 (removable)

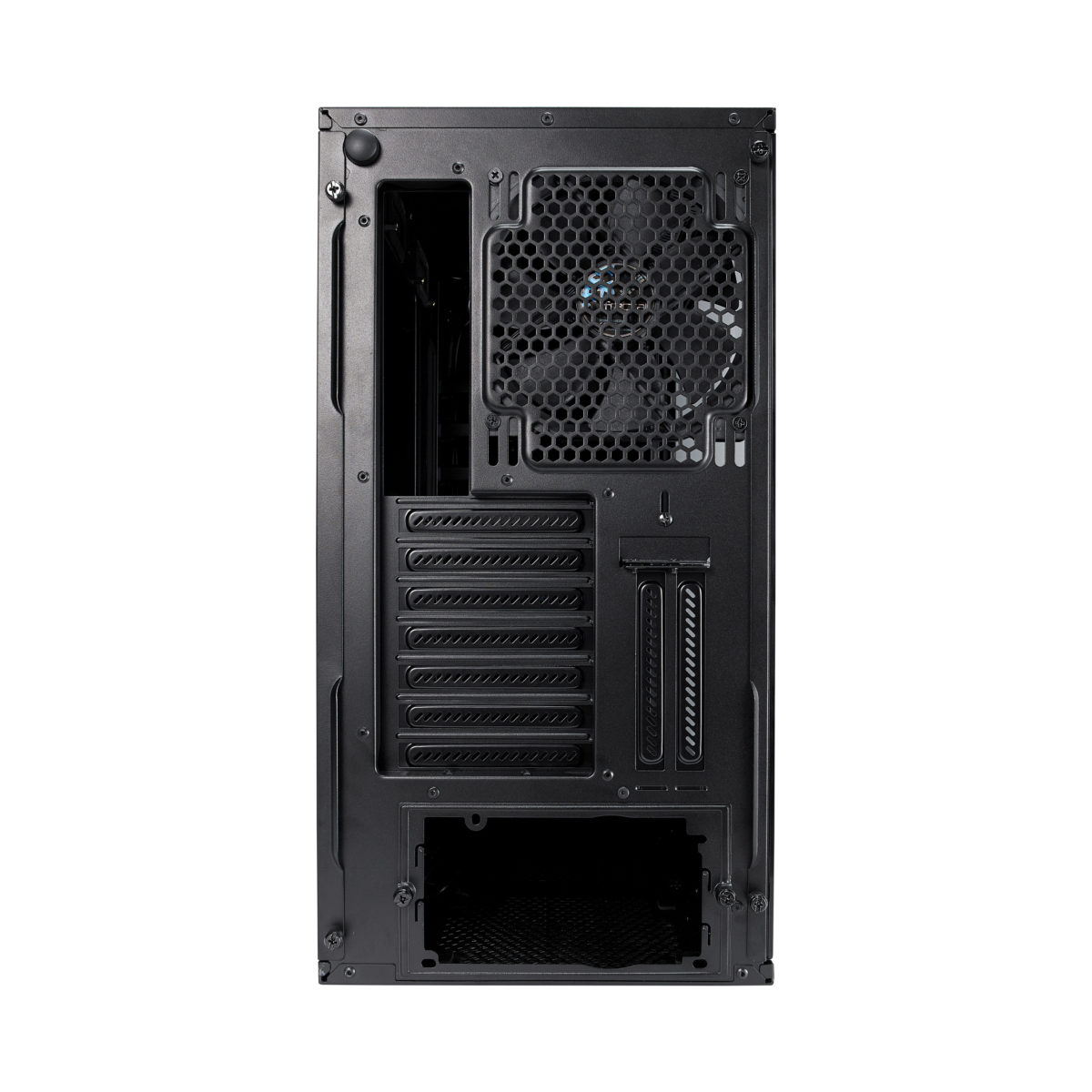

  • Expansion slots
    7 + 2 vertical
  • Front ports
    2 x USB 3.0, 2 x USB 2.0
  • Total fan mounts
    9
  • Front fan
    3 x 120 mm or 2x 140 mm (2x Dynamic X2 GP-14 included)
  • Top fan
    Standard layout: 3x 120 mm or 2x 140 mm; Open layout: 3x 120/140 mm
  • Rear fan
    1x 120/140 mm (1x Dynamic X2 GP-14 included)
  • Bottom fan
    2x 120/140 mm
  • Dust filters
    Bottom fan + PSU, Front fans, Top panel
  • Cable routing grommets
    Yes
  • Fixed velcro straps
    Yes
  • Tool-less push-to-lock
    Both side panels
  • Captive thumbscrews
    HDD brackets, SSD brackets
  • Left side panel
    Black/Blackout/Gunmetal versions: 33% tinted tempered glass; White version: clear transparent tempered glass
  • Right side panel

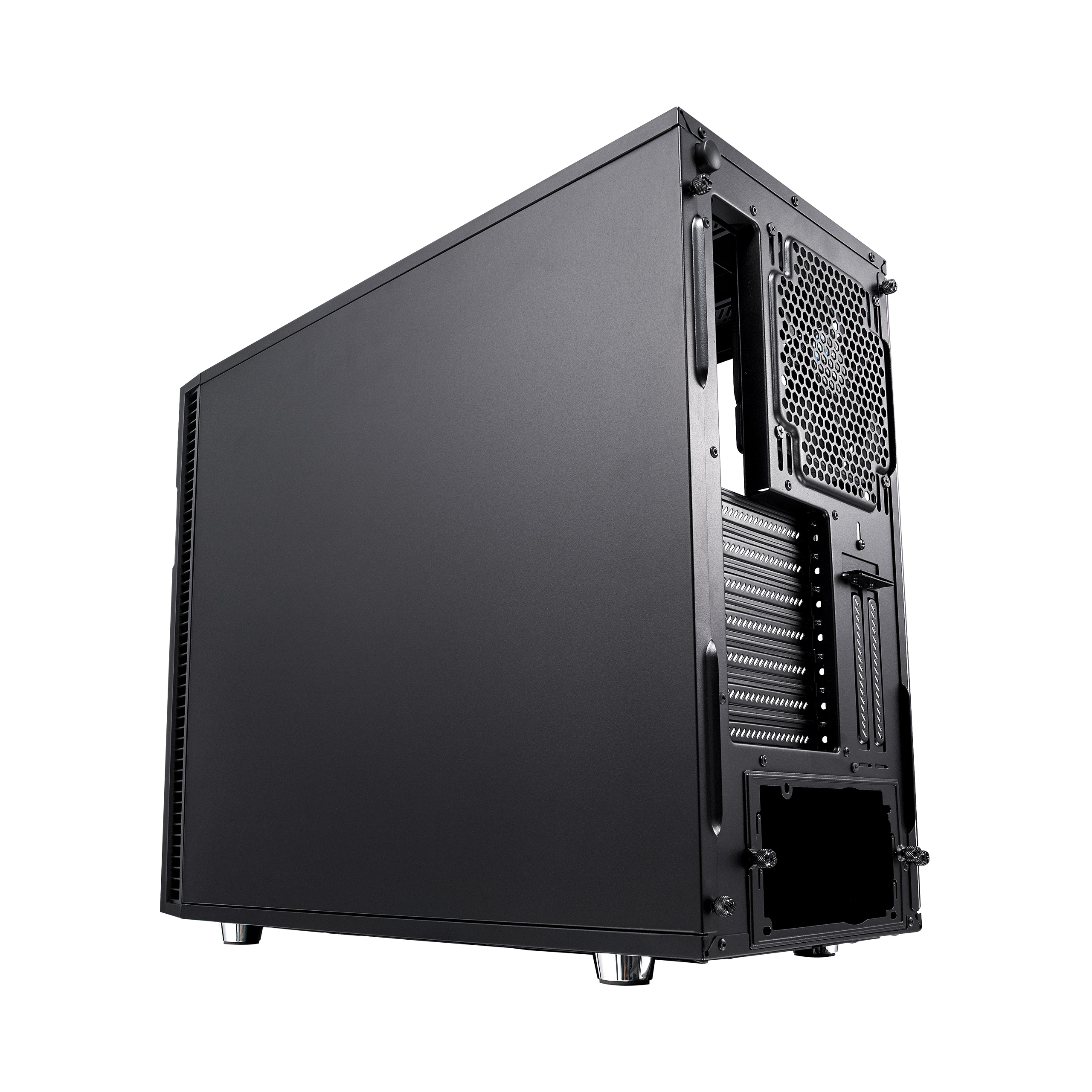

    Industrial sound-dampened steel

Compatibility

  • Power supply type
    ATX
  • Motherboard compatibility
    eATX (up to 285mm wide), ATX, mATX, ITX
  • Front radiator
    120/240/360 mm, 140/280 mm
  • Top radiator
    Standard layout: 120/240/360 mm (max 35 mm motherboard component height); Open layout: 120/240/360 mm, 140/280/420 mm (max 35 mm motherboard component height)
  • Rear radiator
    120 mm
  • Bottom radiator
    120/240 mm, 140/280 mm
  • PSU max length
    300 mm
  • GPU max length
    440 mm (with front fan mounted); Standard layout: Maximum width 155 mm (including power connectors) for graphics cards longer than 300 mm.
  • CPU cooler max height
    185 mm
  • Cable routing space
    23 mm

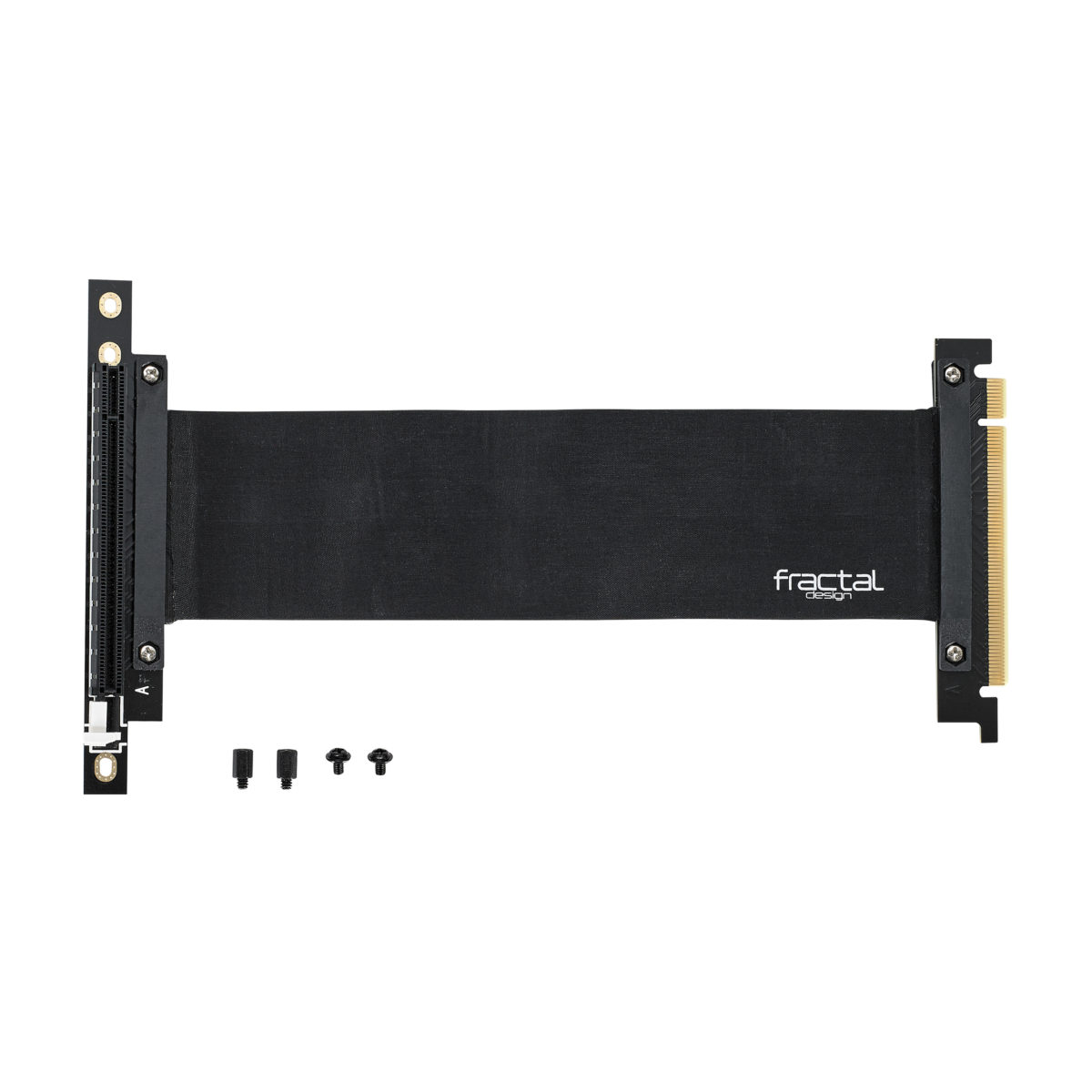

  • Vertical GPU Support (with Flex VRC-25)
    31mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling

Dimensions

  • Case dimensions (LxWxH)
    543 x 233 x 465 mm
  • Case dimensions w/o feet/protrusions/screws
    535 x 233 x 448 mm
  • Net weight
    12.4 kg
  • Package dimensions (LxWxH)
    560 x 347 x 650 mm
  • Package weight
    14.4 kg
  • Volume
    55.9 liters

Other

  • Package contents
    Define R6 computer case, User manual, Accessory box
  • EAN
    7350041085904
  • UPC
    817301015905
  • Product code (Blackout)
    FD-CA-DEF-R6-BKO-TG
  • Product code (Black)
    FD-CA-DEF-R6-BK-TG
  • Product code (Gunmetal)
    FD-CA-DEF-R6-GY-TG
  • Product code (White)
    FD-CA-DEF-R6-WT-TG
