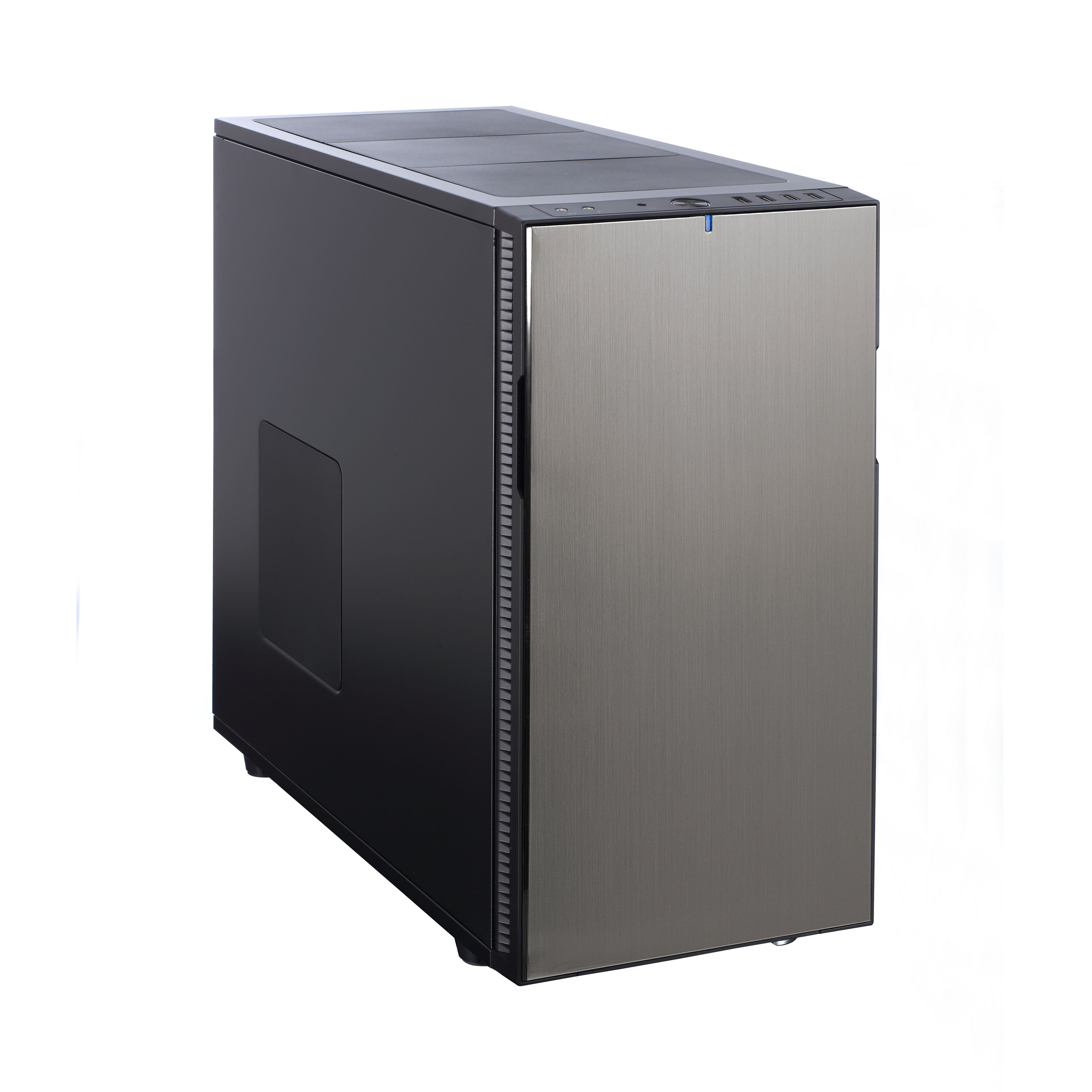

Define R5

Define R5机箱是经典的Define静音系列机箱中的新晋成员。Define R5承襲了Define系列简约大气的斯堪的纳维亚的极致简约风范并且从结构强度到空间扩展都进行了全面的升级。

  • 最佳静音机箱典范，机箱内部使用特殊的高密度抗噪材料，能大幅度吸收噪音，且保留良好的散热效能
  • 机箱内部结构设计精良支援顶极水冷系统，顶部可支持长420mm散热排，前侧可装360m散热排

Variation

类型

查看规格
寻找经销商

主要特点

  • 最佳静音机箱典范，机箱内部使用特殊的高密度抗噪材料，能大幅度吸收噪音，且保留良好的散热效能

  • 机箱内部结构设计精良支援顶极水冷系统，顶部可支持长420mm散热排，前侧可装360m散热排

  • 搭配新型的独家ModuVent™设计，不需工具可轻松安装风扇增加风流或是保持最佳的静音效能

  • 内带有2把最新的Fractal Design DynamicGP14 140mm静音风扇，大风流有效带走热能，低噪音实现最强静音表现

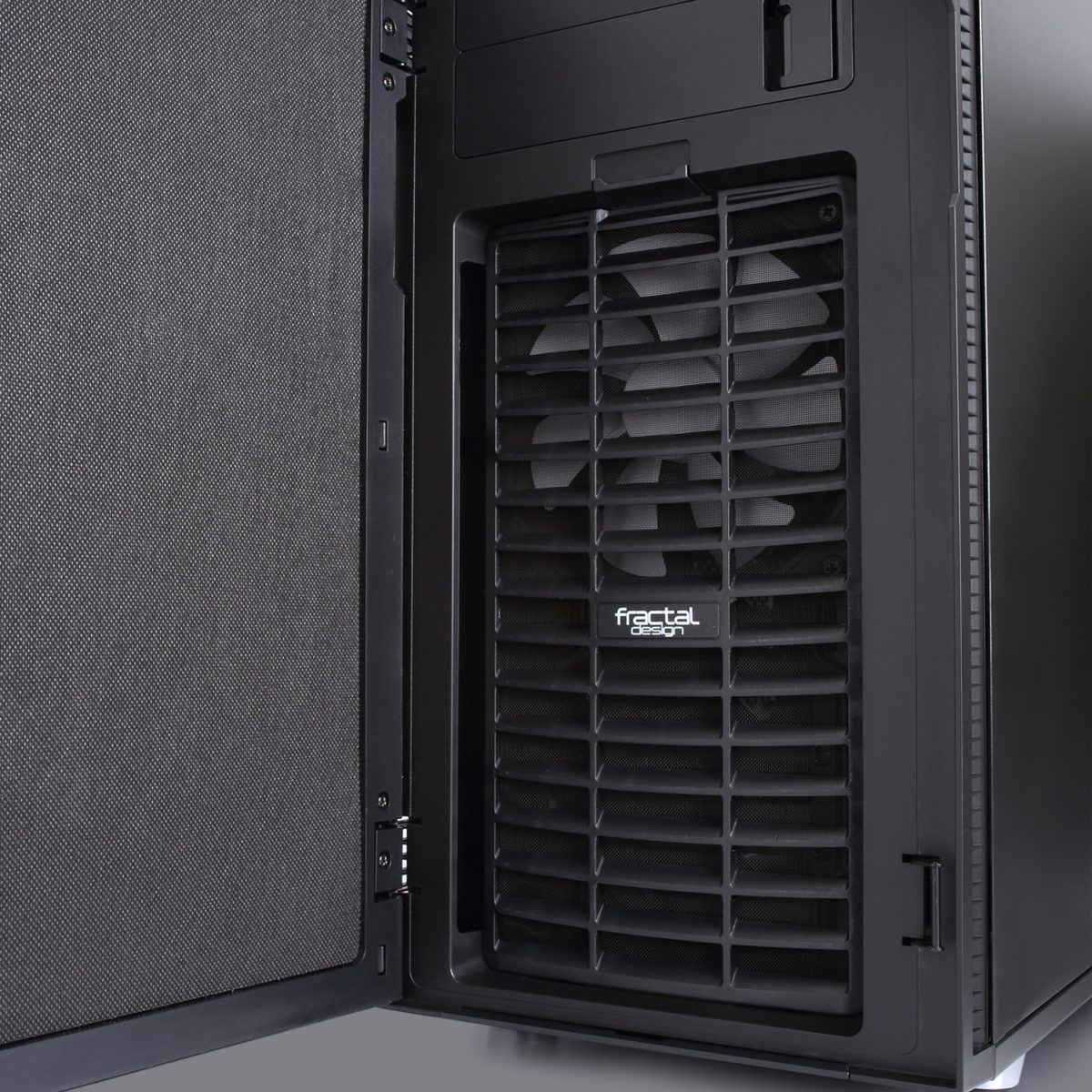

  • 机箱前方和底部附有可水洗的防尘过滤网，方便取出清洁，保持机箱内部无灰尘堆积

  • 机箱前门经特殊设计，可双向开门，更贴近每个使用者的使用习惯

主要特点

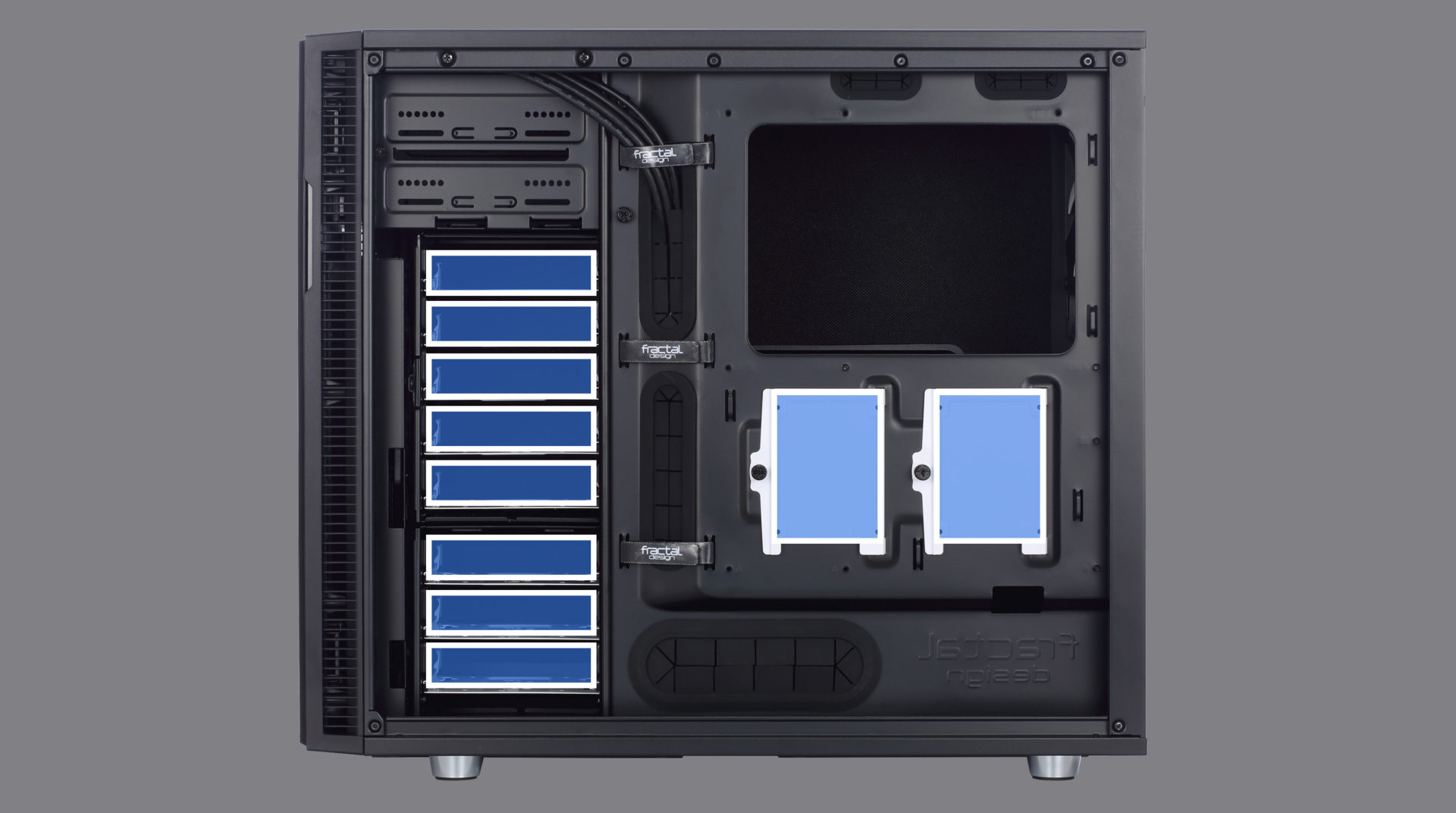

  • 主板后方设有2个SSD专用安装位置，无需使用工具便能安装拆卸SSD

  • 兩組可拆卸的硬盘架可支持多達8个3.5”或2.5”的硬碟盤，在內部配置上更灵活，更能依个人喜好配置机箱内部空间

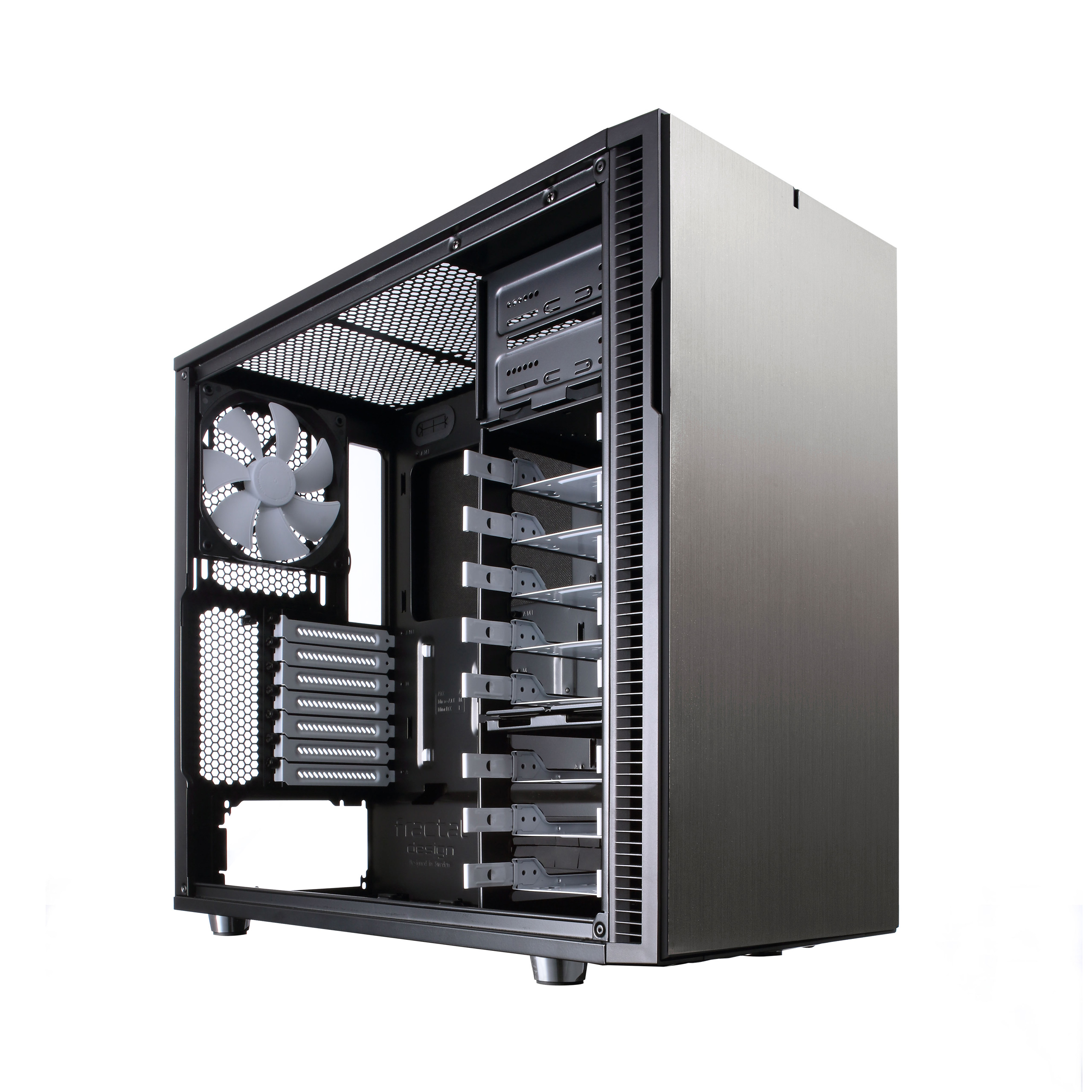

  • 内部结构全模组化的设计，让用户能依需求，移除ODD硬盘架位置以换取最大的内部机箱空间，提升水冷或者气冷散热效能

  • Define R5硬盘托架坚持采用金属材料，更防震也更坚固耐用。托架两侧特别降低高度以利气流流通

  • 机箱左侧特别安装新型快拆装置，可更快速便捷的安装或拆卸

  • 风扇控制器巧妙的隐藏于前面板后面、最多可支援三把风扇

  • Define R5同时有侧透版本可以选择

搭配新型的独家ModuVent™设计，不需工具可轻松安装风扇增加风流或是保持最佳的静音效能

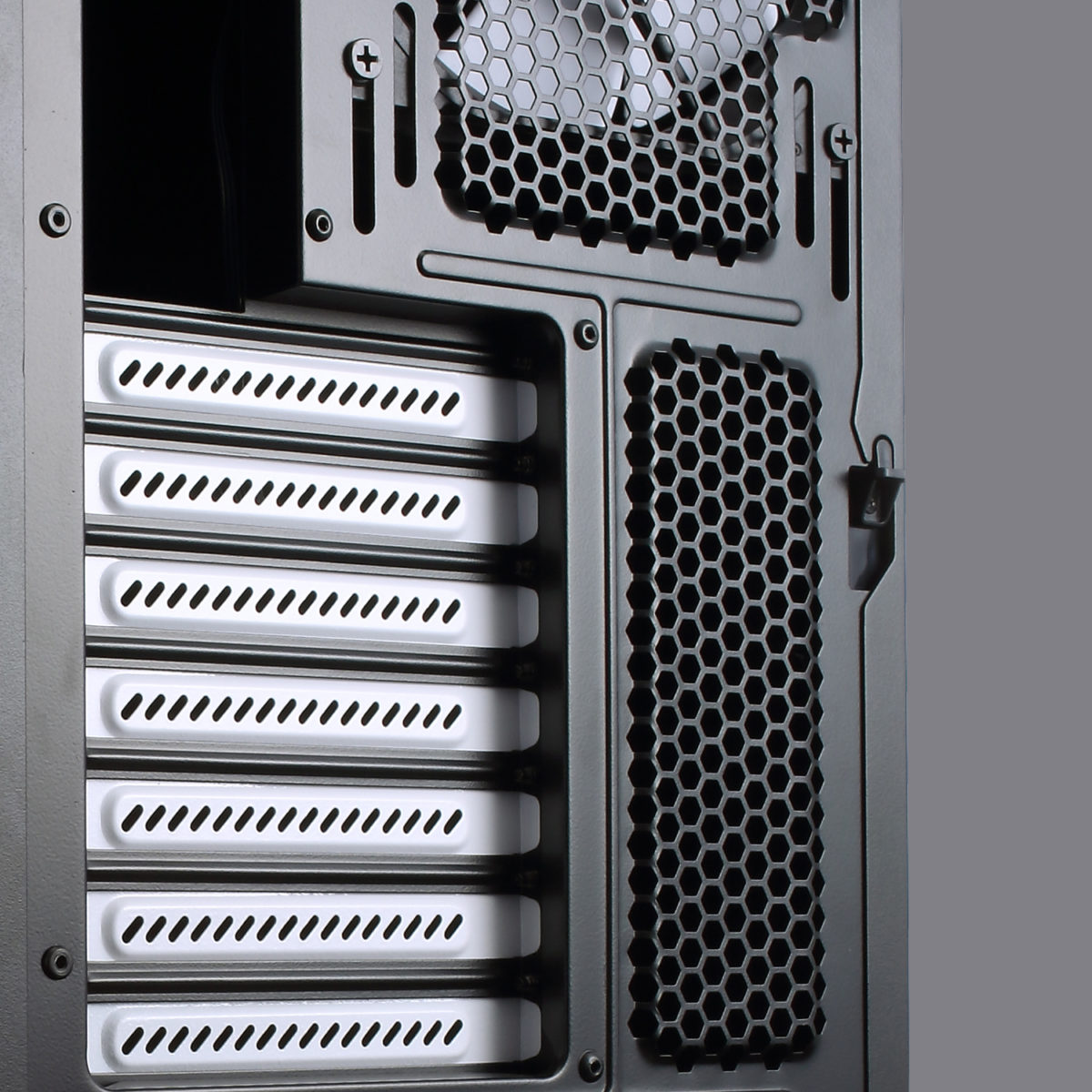

机箱左侧特别安装新型快拆装置，可更快速便捷的安装或拆卸

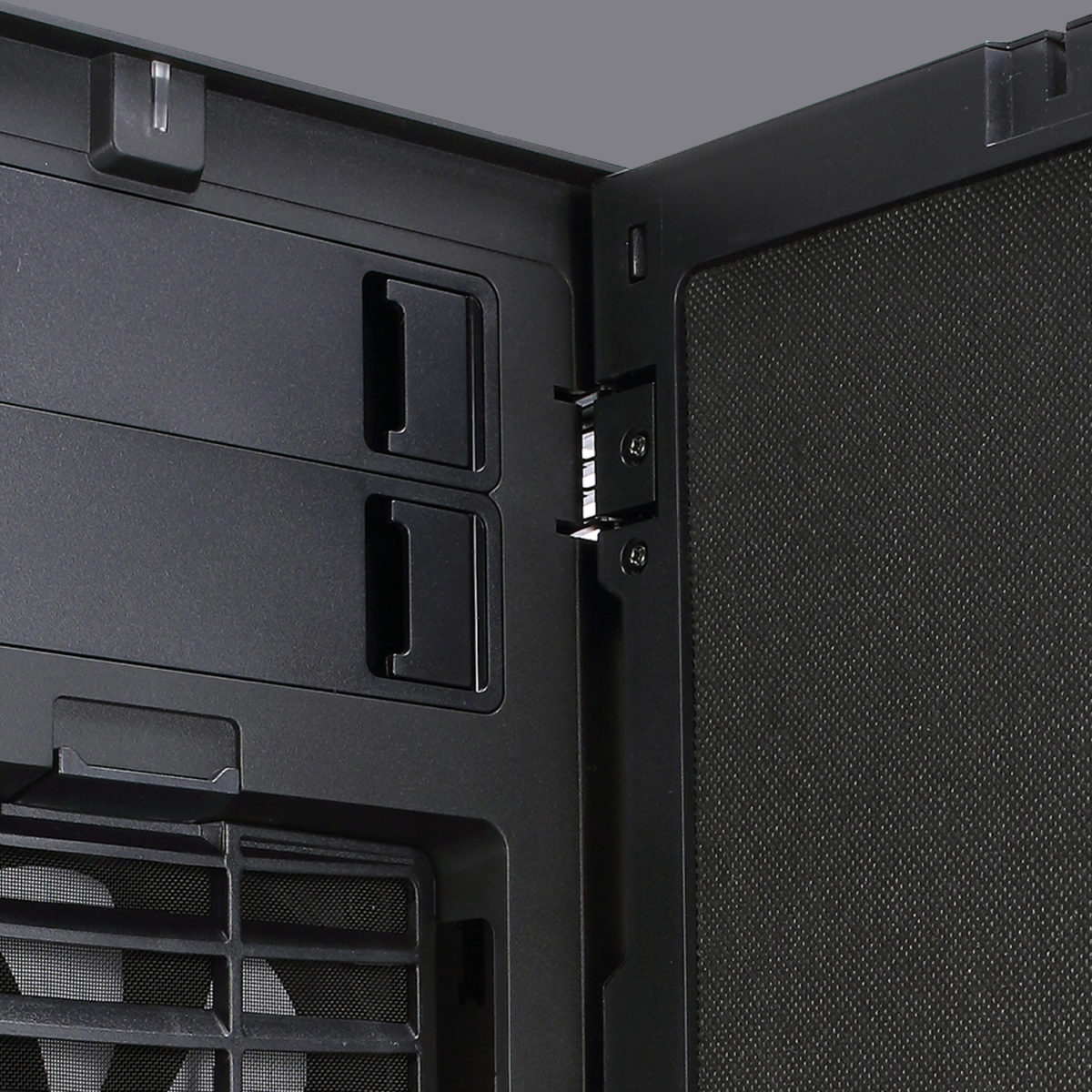

机箱前门经特殊设计，可双向开门，更贴近每个使用者的使用习惯

"The Fractal Design Define R5 is easily one of the best chassis’ on the market. It’s packed full of features that make it ideal for an ultra-high end, ultra-quiet build. If you need no compromise on features and performance, combined with sleek and professional looking aesthetics – look no further than the Define R5."
eTeknix 阅读更多
"How do you build on the solid foundations of the Define R4? That's the question that Fractal was faced with, and we're pleased to see that the company has taken the logical step: rather than attempting to build a revolutionary successor from the ground-up, it has taken a tried-and-trusted solution and improved it in numerous meaningful ways. A good number of upgrades are small and seemingly trivial, but put them together and you have an overall package that's a noticeable step-up from the 2012 model"
Hexus 阅读更多
"Fractal have really hit the ball out of the pack with the R5 although in all honesty we personally think this is what the R4 should have been [...] Mix in all of the watercooling options, HDD, fan covers and all of the options the case delivers we feel it thoroughly deserves the OC3D Gold award. In addition to this as a very rare bonus I (TTL) have also decided to bestow the Fractal R5 Window version with my own TTL white gold award, the main reason for this is this is a case I would happily pay the £89.99 for with my own money. "
Overclock3D 阅读更多

Specifications

  • 3.5" HDD/2.5" SSD positions
    8
  • 2.5" dedicated SSD unit positions
    2 (fits SSDs up to 12 mm thick)
  • 5.25" bays
    2 (removable)
  • Expansion slots
    7
  • Front ports
    2x USB 3.0, 2x USB 2.0, Audio in/out, Power button with LED (blue), HDD activity LED (blue), Reset button
  • Total fan mounts
    9
  • Front fan
    2x 120/140 mm (1x Fractal Design Dynamic GP-14 fan, 1,000 RPM speed included)
  • Top fan
    3x 120/140 mm
  • Rear fan
    1x 120/140 mm (1x Fractal Design Dynamic GP-14 fan, 1,000 RPM speed included)
  • Bottom fan
    2x 120/140 mm
  • Side fan
    1x 120/140 mm
  • Dust filters
    Front fans, Bottom fans (ejects from the front of the case)
  • Cable routing grommets
    Yes
  • Fixed velcro straps
    Yes
  • Captive thumbscrews
    Right side panel
  • Left side panel
    Industrial sound-dampened steel
  • Right side panel
    Industrial sound-dampened steel

Compatibility

  • Power supply type
    ATX
  • Motherboard compatibility
    ATX, Micro ATX, Mini ITX
  • Front radiator
    360, 280, 240, 140 or 120 mm (without drive bays)
  • Top radiator
    420, 360, 280, 240, 140 or 120 mm (a thickness limitation of 55 mm for both radiator + fan applies on 420, 280 and 140 mm radiators; 420 and 360 mm radiators require removal of the ODD bay)
  • Rear radiator
    120 or 140mm
  • Bottom radiator
    120 or 240 mm (Use of radiators in the bottom position limits the PSU length to 165 mm)
  • PSU max length
    190/170 mm with a bottom 120/140 mm fan installed or 300 mm when not using any bottom fan location
  • GPU max length
    310 mm with the top HDD cage installed or 440 mm with the top cage removed
  • CPU cooler max height
    180 mm
  • Cable routing space
    20 - 35 mm

Dimensions

  • Case dimensions (WxHxD)
    232 x 451 x 521 mm
  • Case dimensions - with feet/screws/protrusions
    232 x 462 x 531 mm
  • Net weight
    10.7 kg
  • Package dimensions (WxHxD)
    327 x 615 x 540 mm
  • Package weight
    12.5 kg
  • Volume
    54.5 liters

Other

  • Package contents
    Define R5 computer case, User manual, Accessory box
  • EAN
    7350041082583
  • UPC
    817301012584
  • Additional information
    Available for System Integrators
  • Product code (Black)
    FD-CA-DEF-R5-BK
  • Product code (Blackout)
    FD-CA-DEF-R5-BKO
  • Product code (Titanium)
    FD-CA-DEF-R5-TI
  • Product code (White)
    FD-CA-DEF-R5-WT
