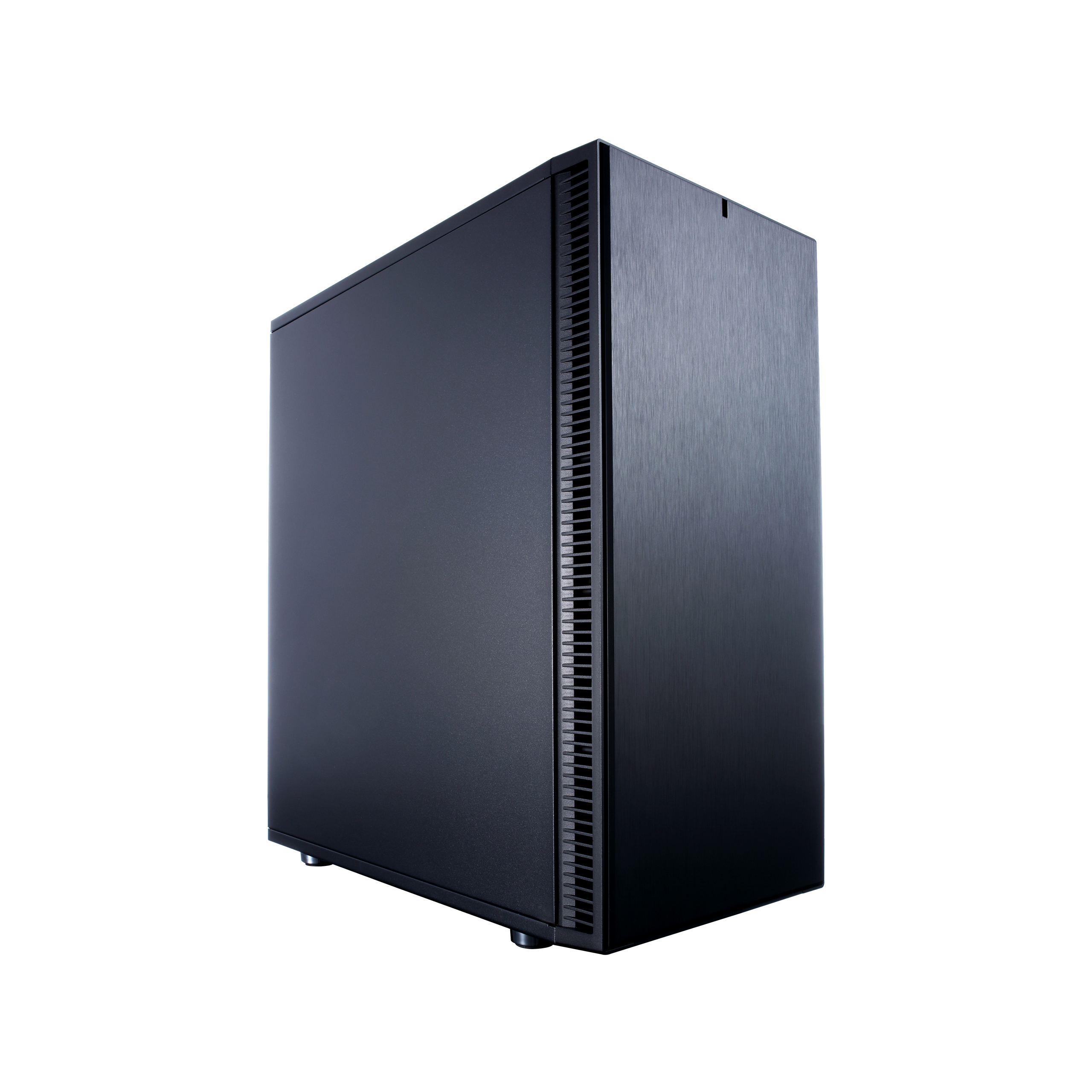

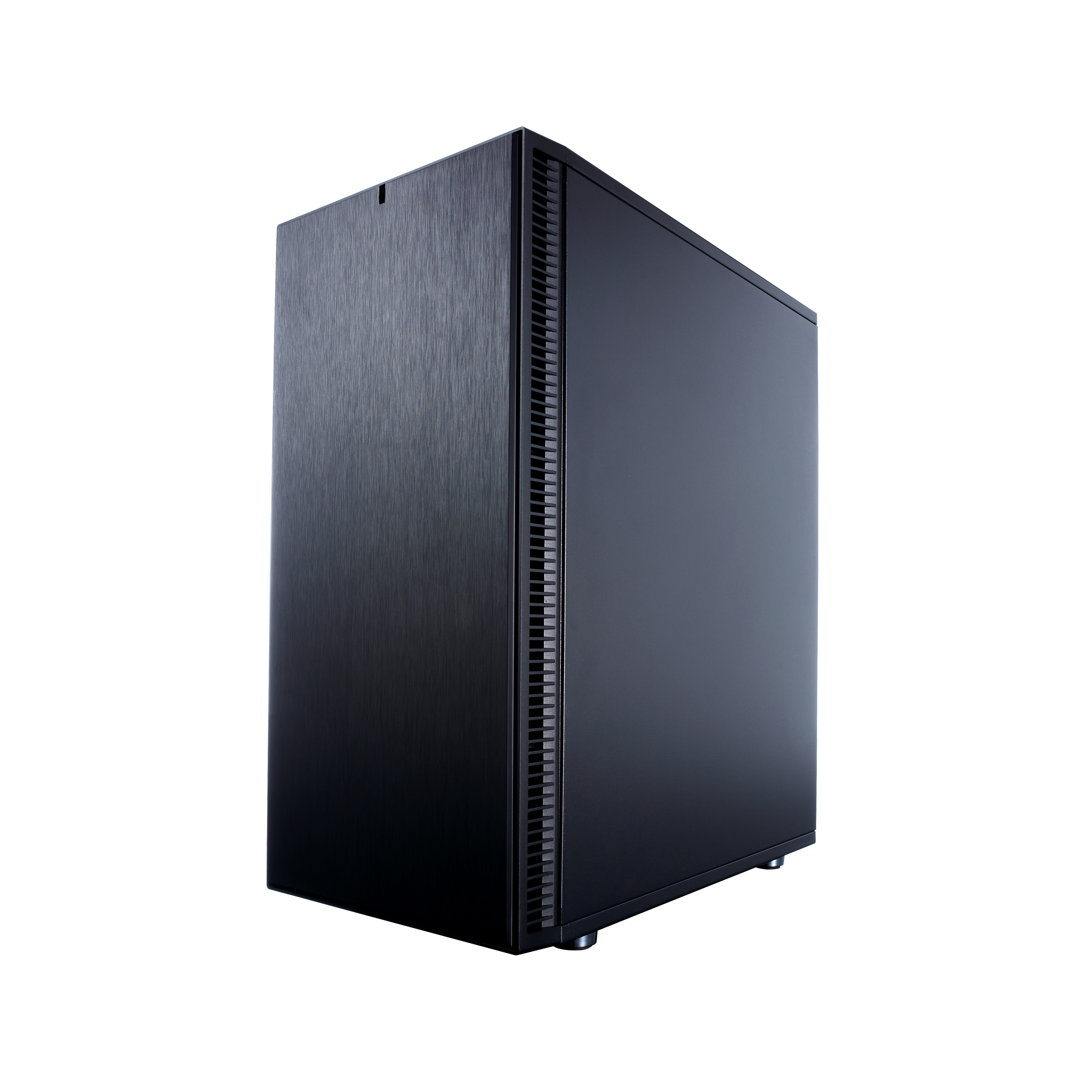

Define C

目前市场上的许多机箱产品都试图满足大多数人的需求，然而这会造成了机箱空间的浪费或是过大的体积。多数的玩家都希望能够拥有一个不会浪费任何空间的灵活平台，而Define C恰恰成就了性能和效率之间平衡性的最佳选择。

  • Define系统隔音材料，采用ModuVent™技术，工作静音，适合小尺寸Micro ATX主板
  • 针对大风量和静音工作进行优化

Variation

查看规格
寻找经销商

主要性能

  • 针对大风量和静音工作进行优化

  • 侧面板和前面板使用了工业级的隔音材料

  • 灵活的存储空间选择，可支持最多5个驱动器

  • 预装两台 Fractal Design Dynamic X2 GP-12 120 mm风扇，在保持低噪音水平的情况下提供最大风量

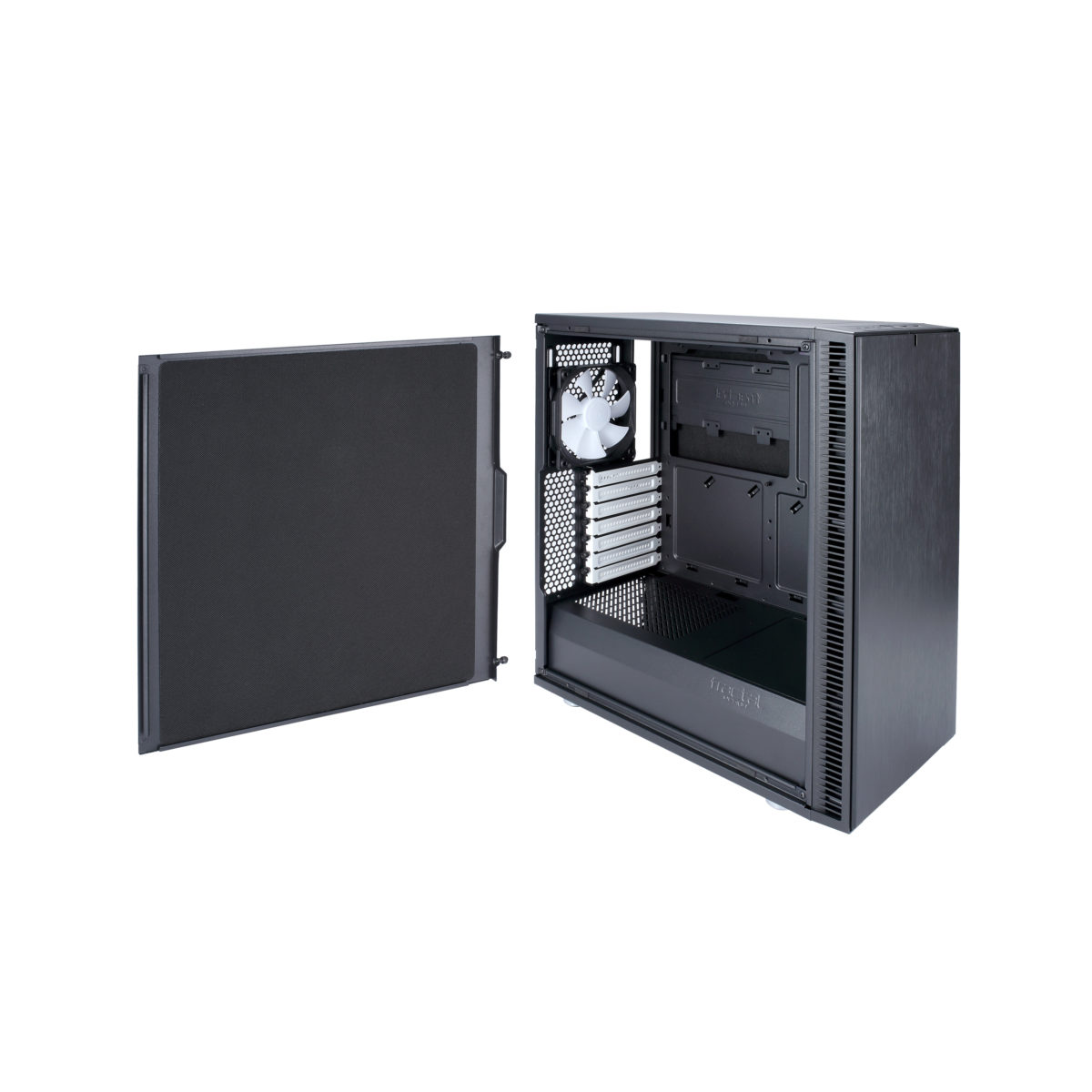

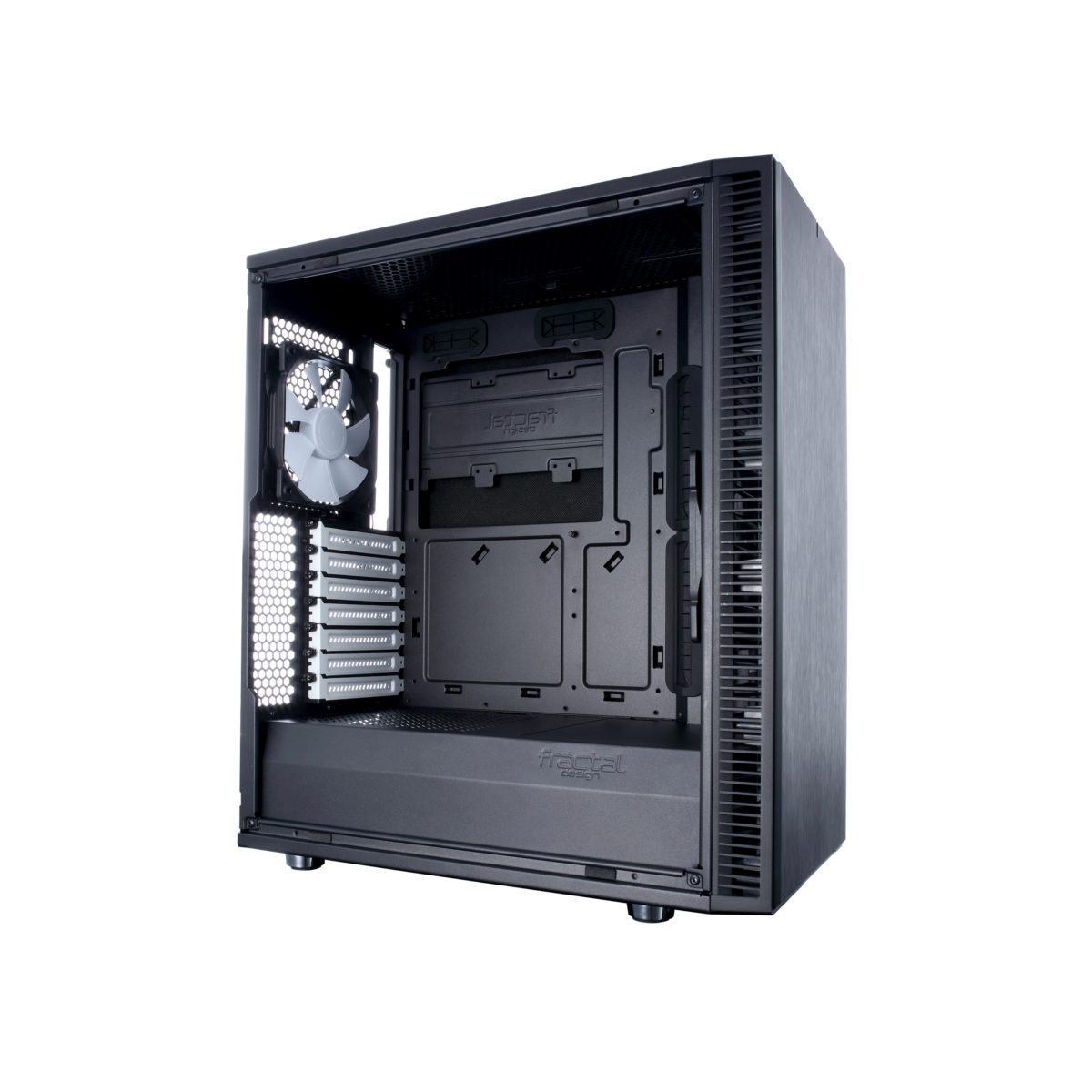

  • 内部采用开放式设计，使气流从前到后畅通无阻

  • 清洁简单的大风量尼龙过滤器，全PSU覆盖，可以从前方取出，简单方便

  • 可选顶部过滤器，防止为安装更多风扇而取下ModuVent后造成的灰尘堆积

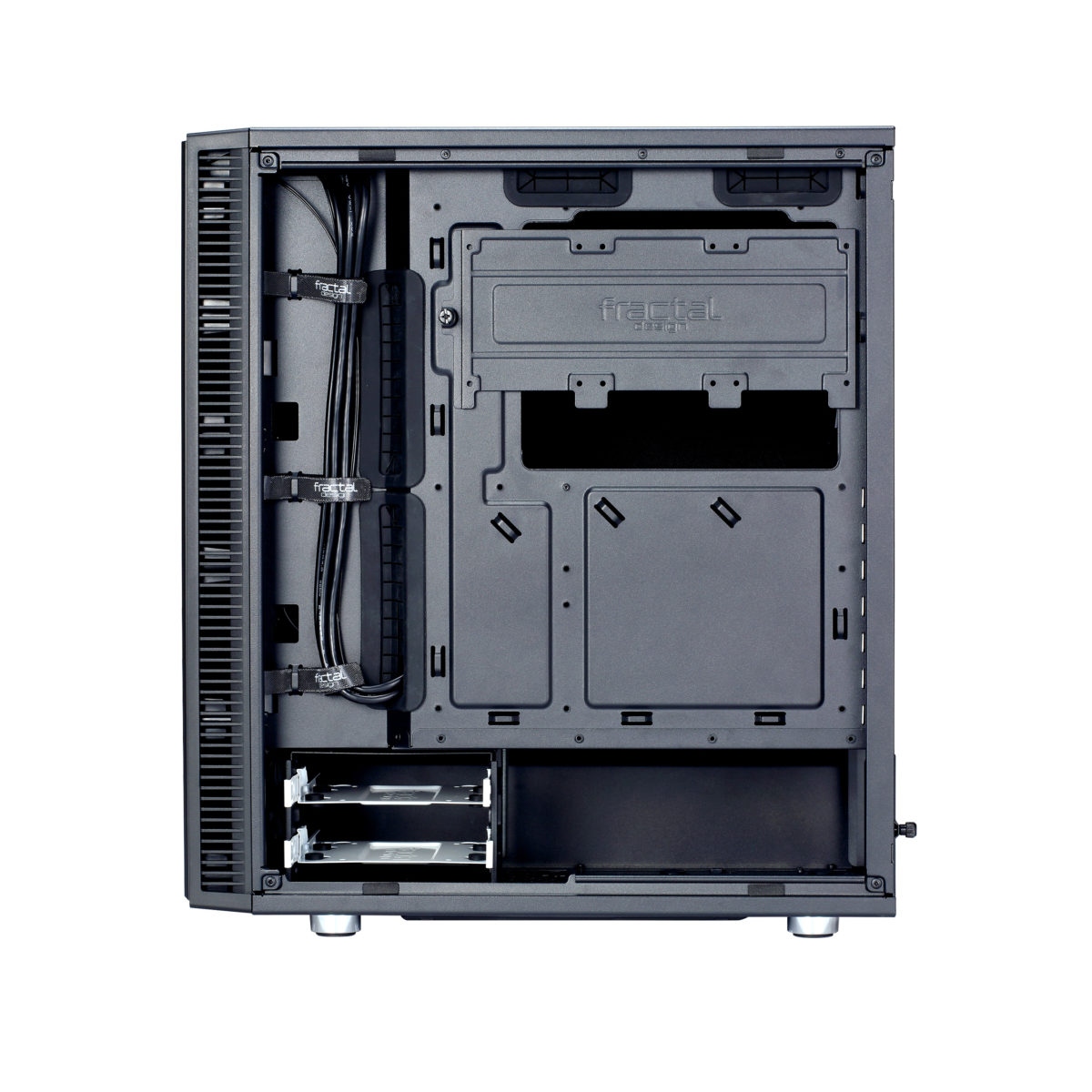

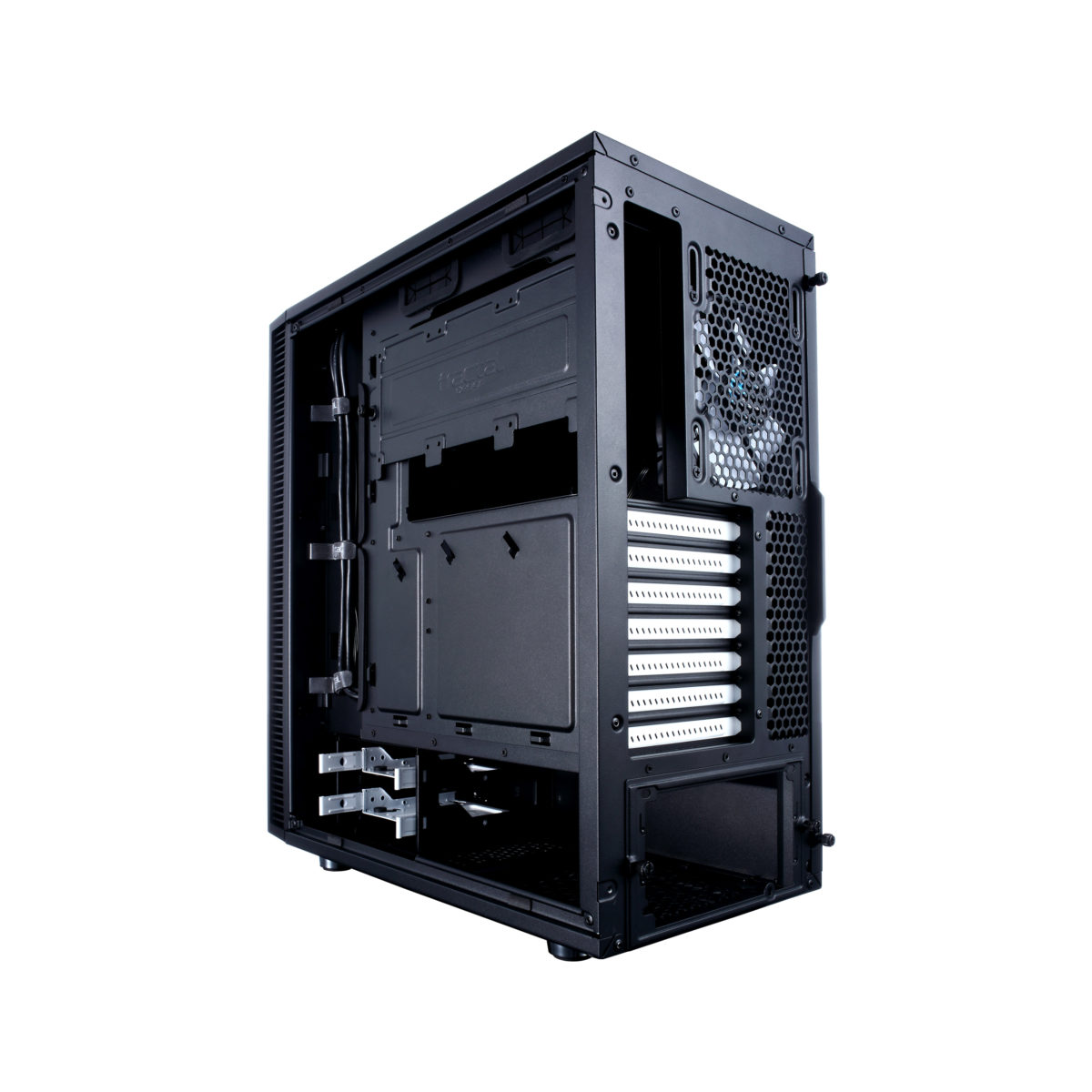

  • 提供线罩可隐藏多余的走线，使机箱内部看起更加整洁美观，同时有利于散热

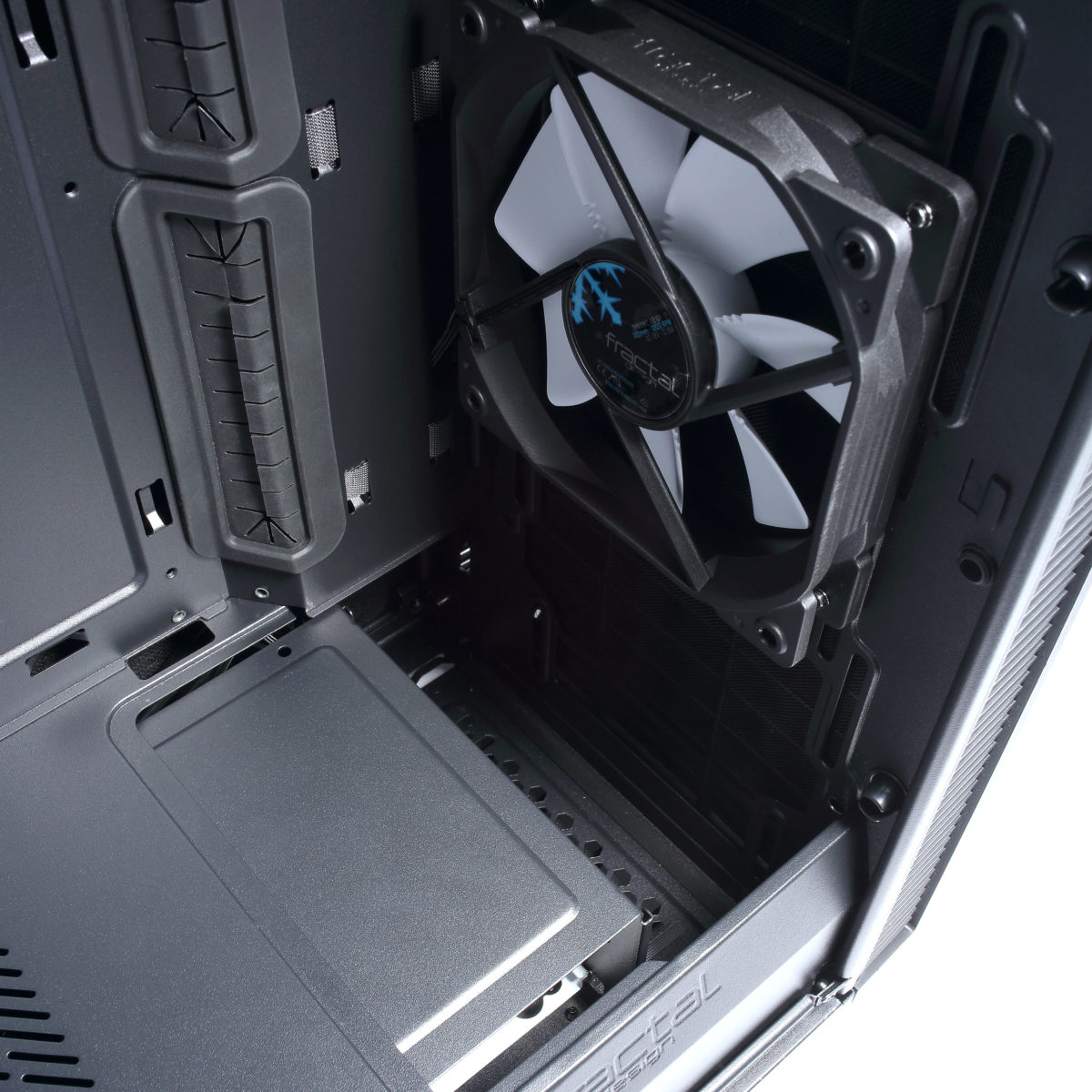

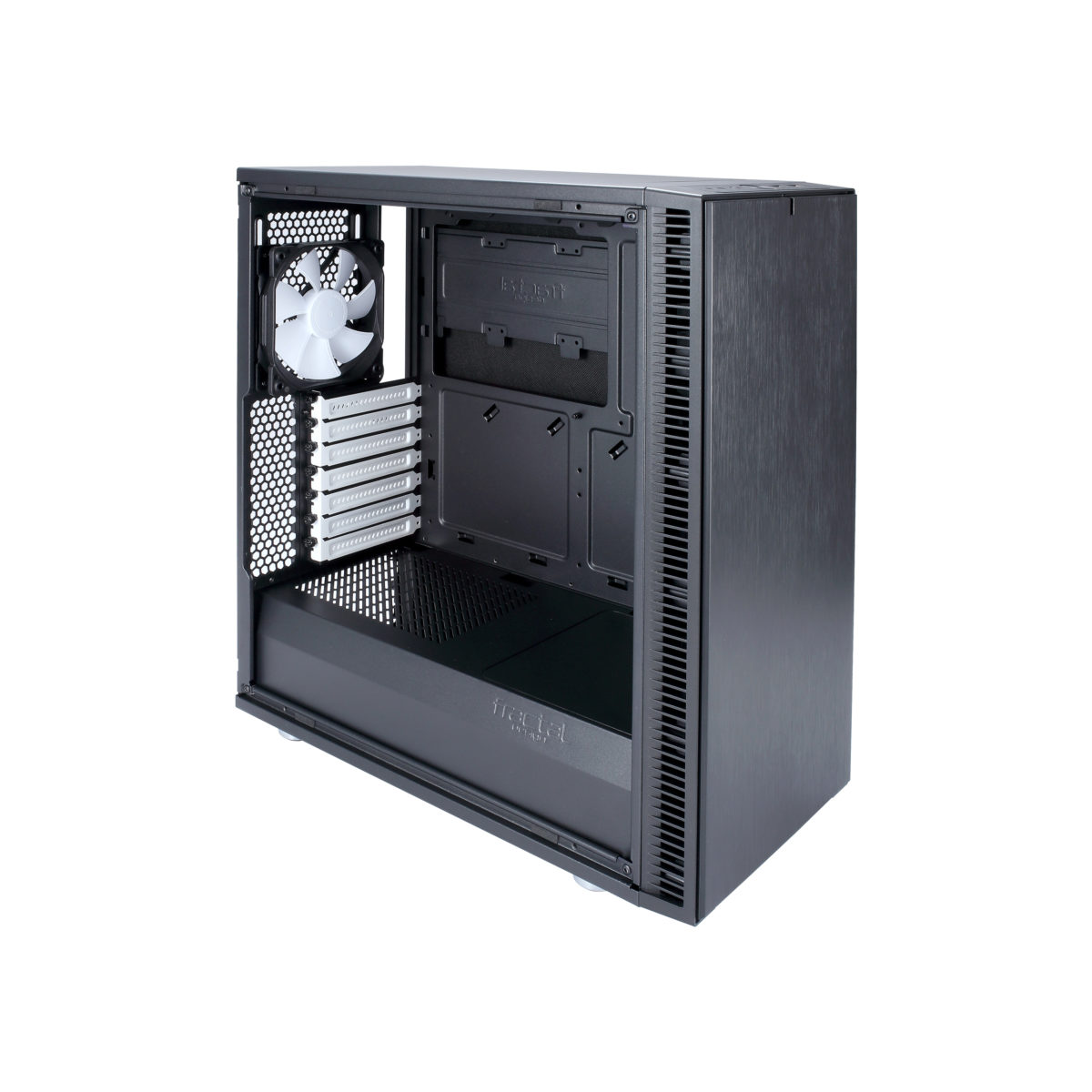

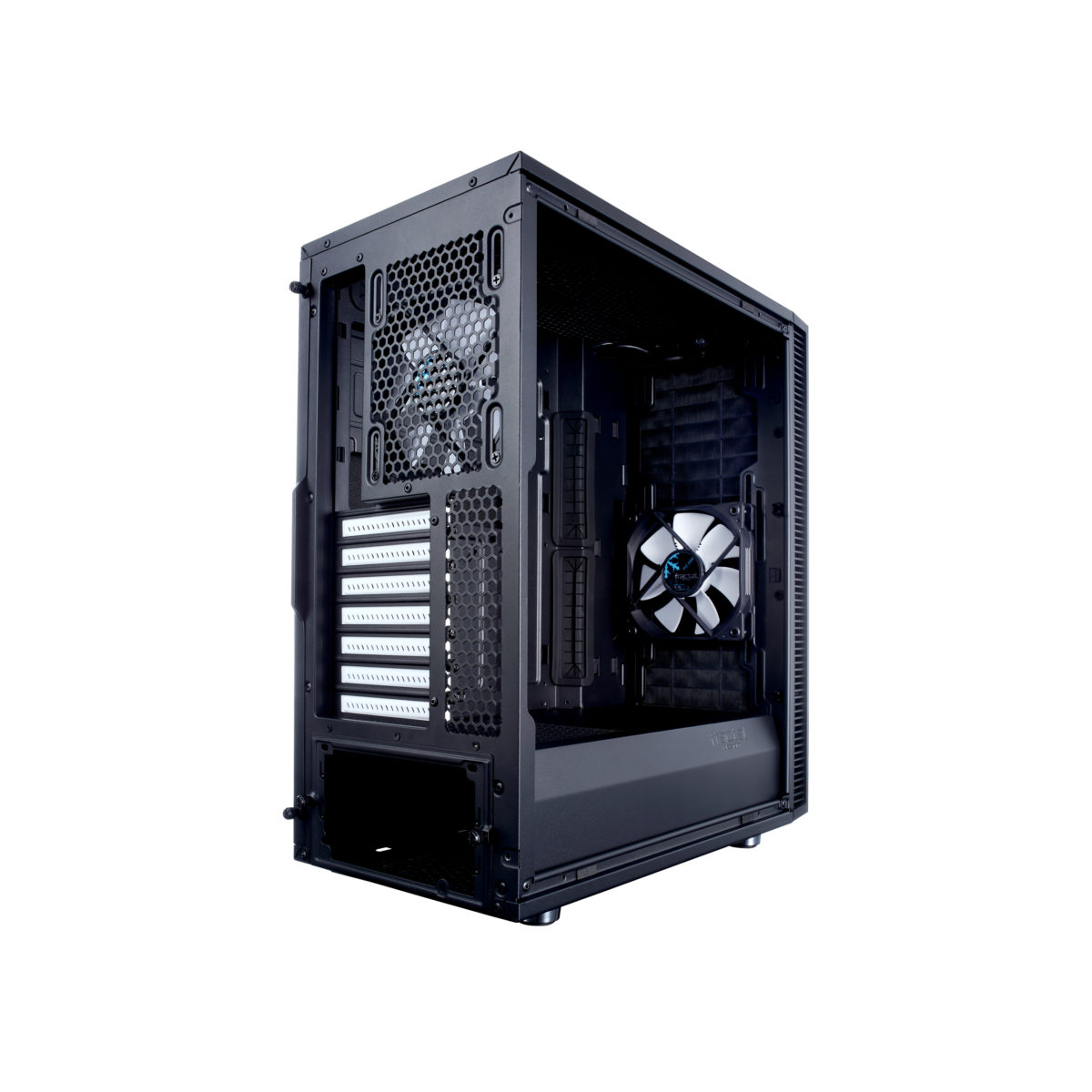

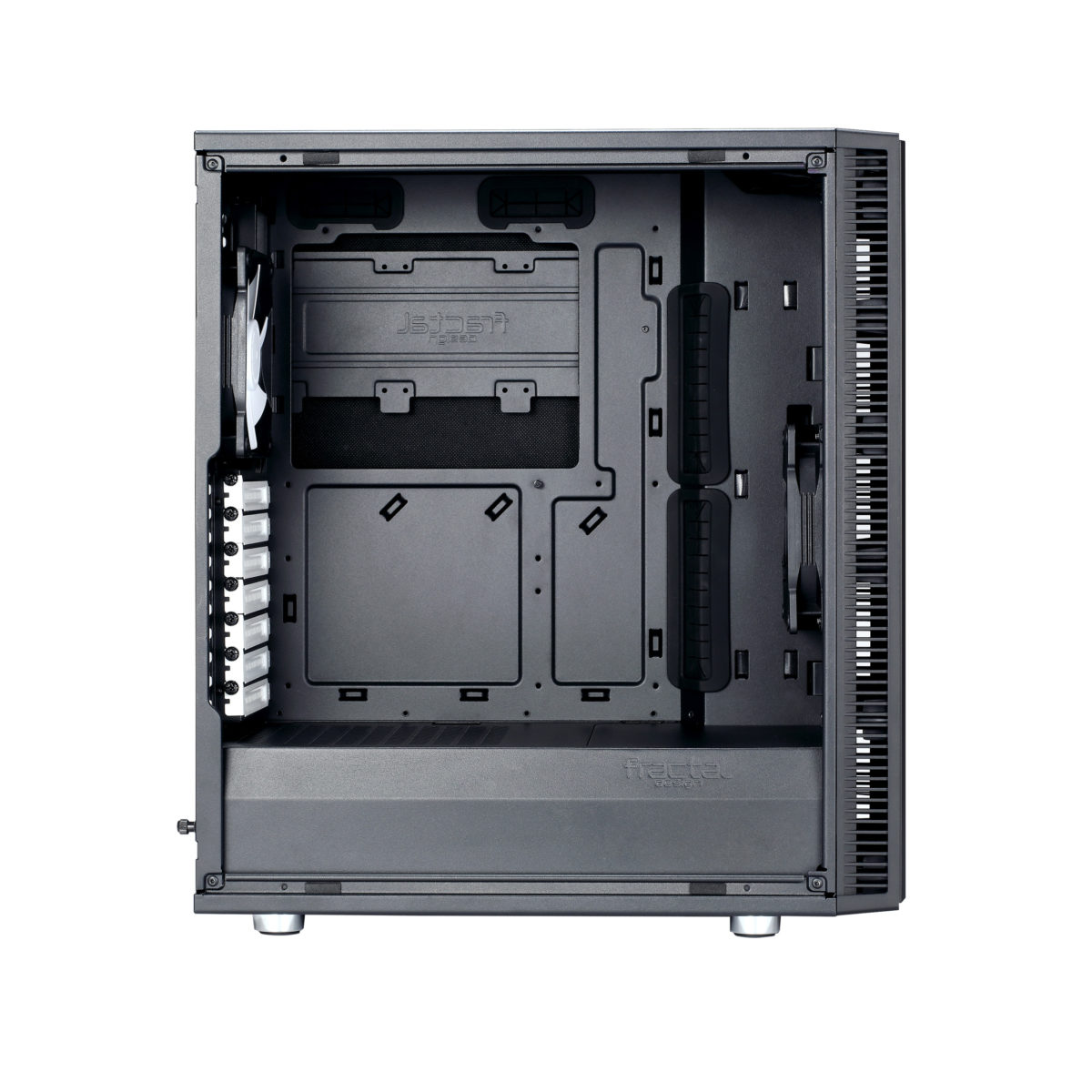

散热畅通无阻

内部采用开放式设计，使气流从前到后畅通无阻

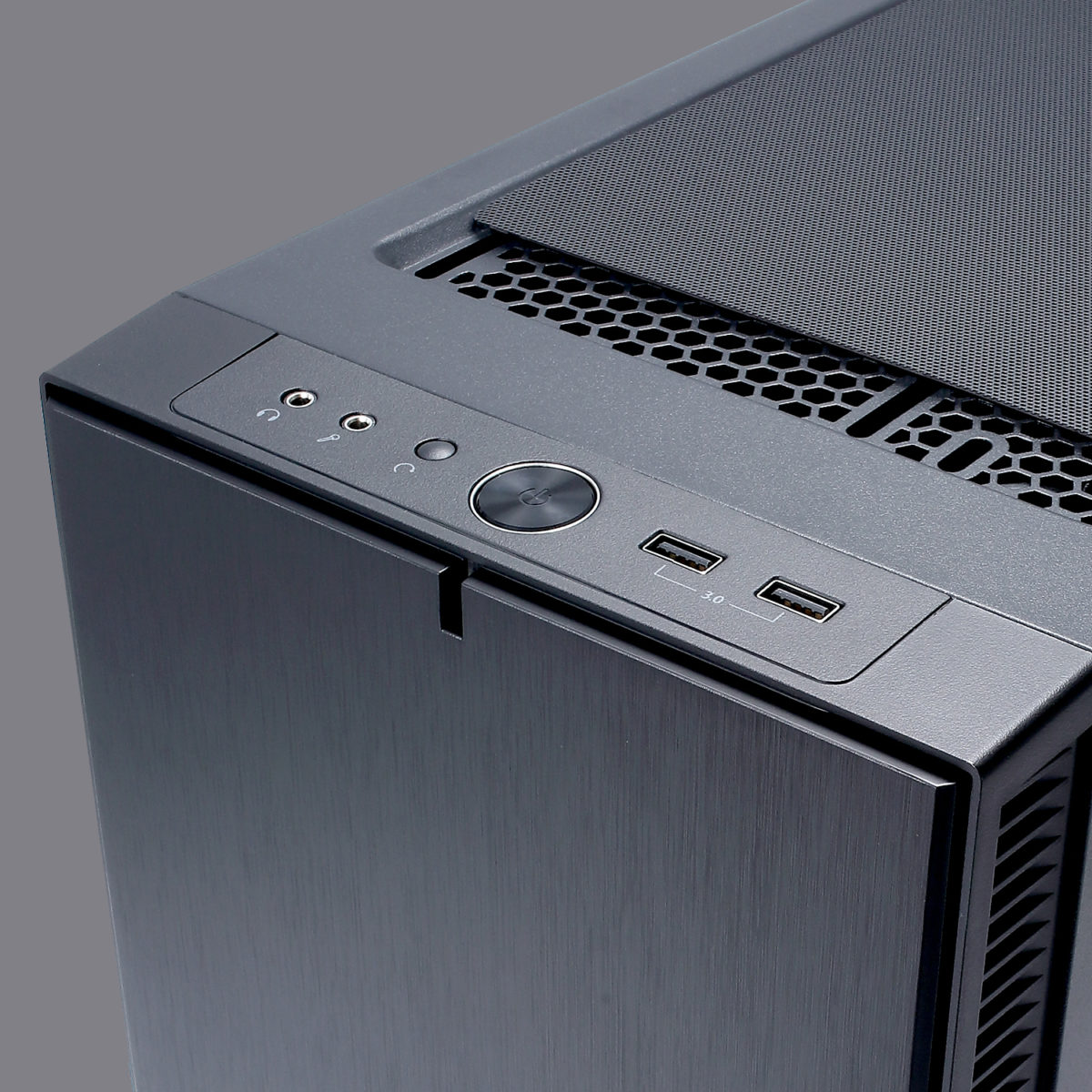

顶部磁吸式防尘网

防止为安装更多风扇而取下ModuVent上盖后造成的灰尘堆积

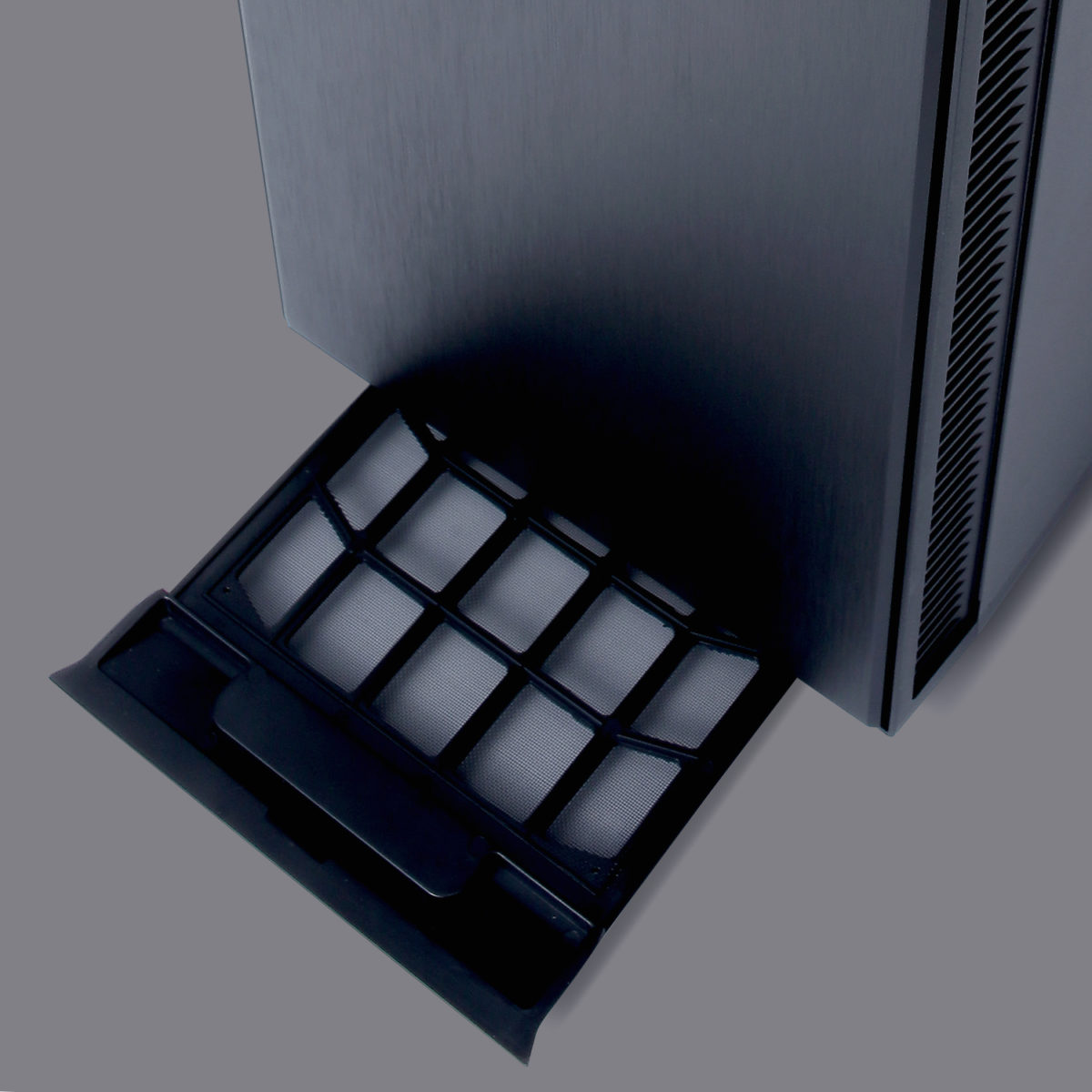

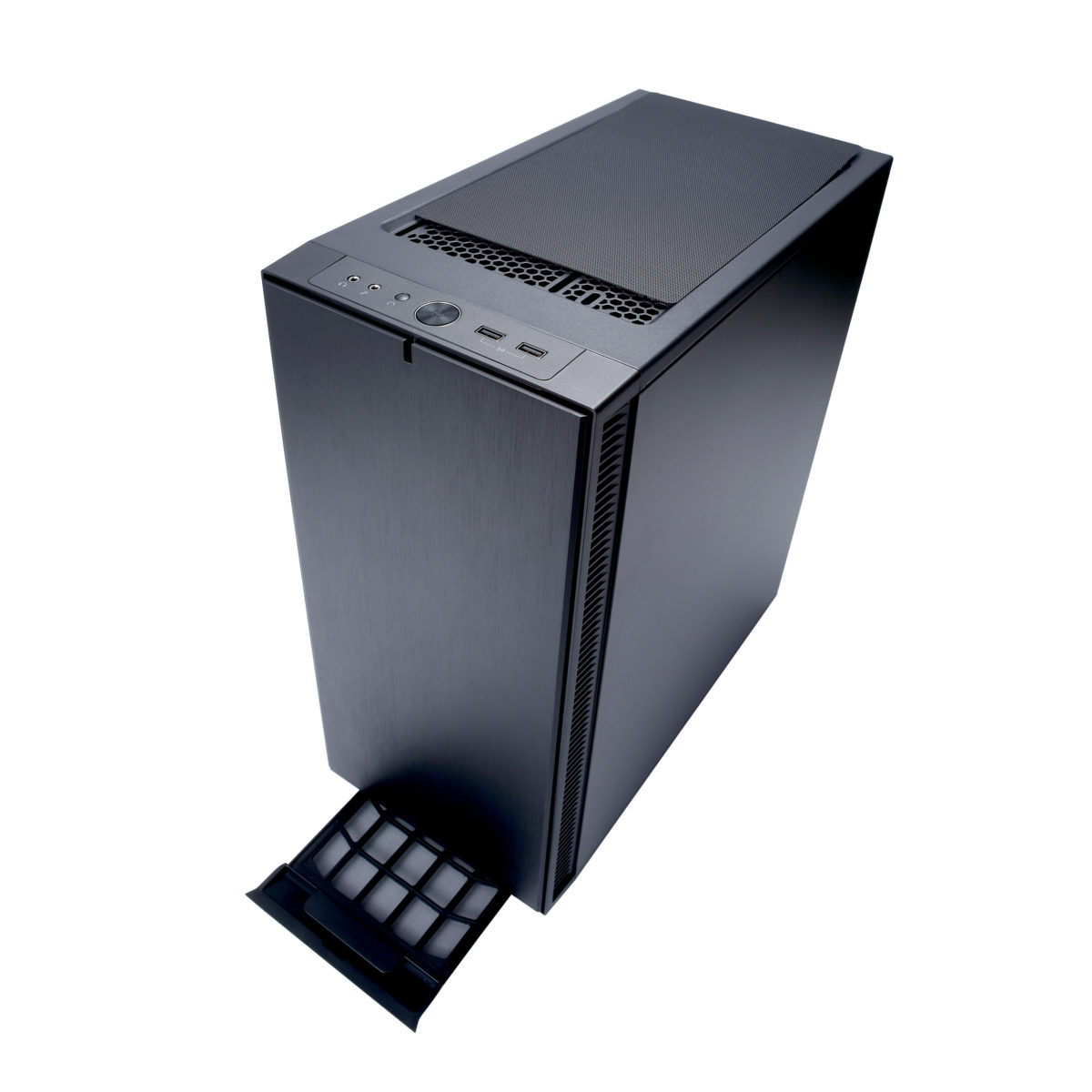

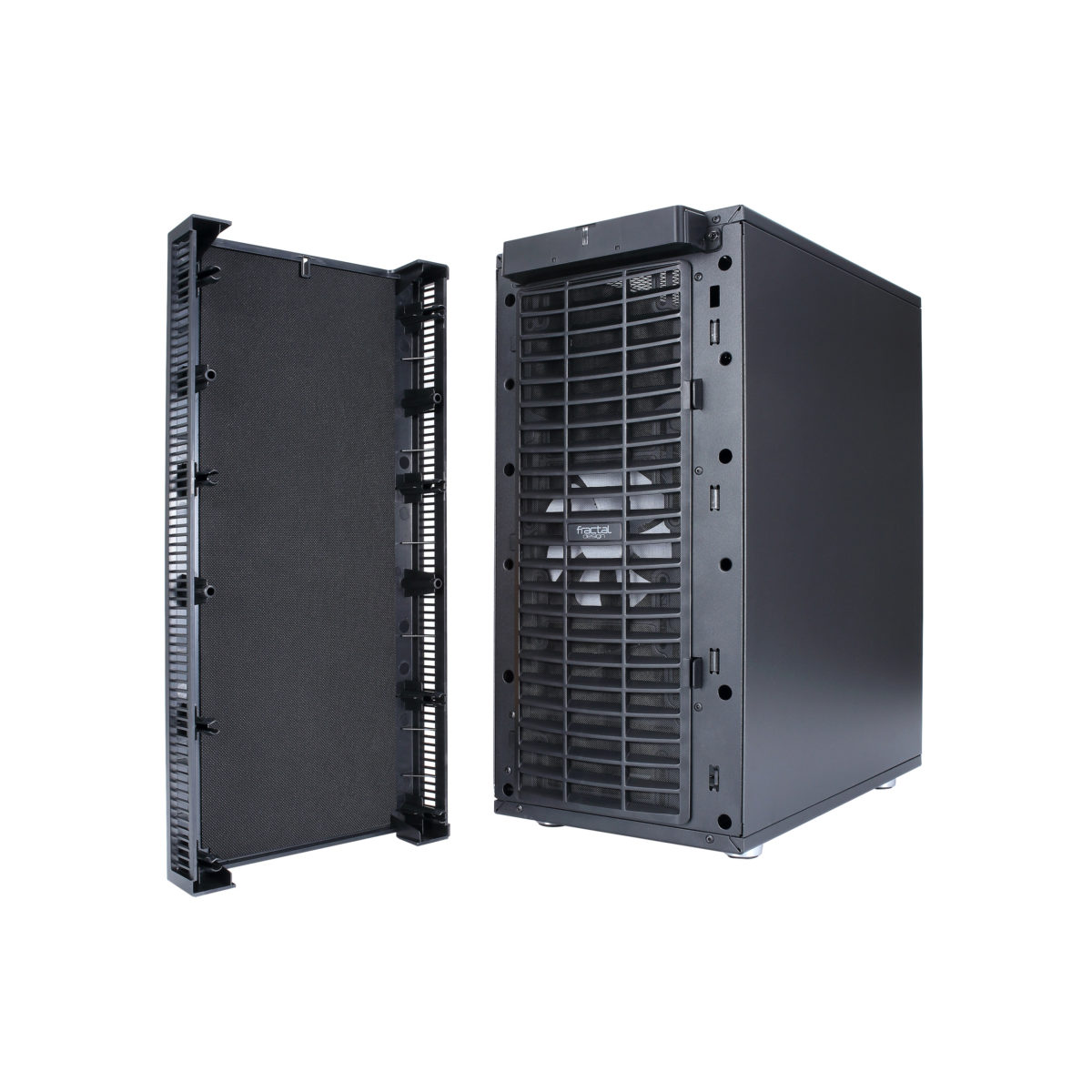

易清洁防尘网

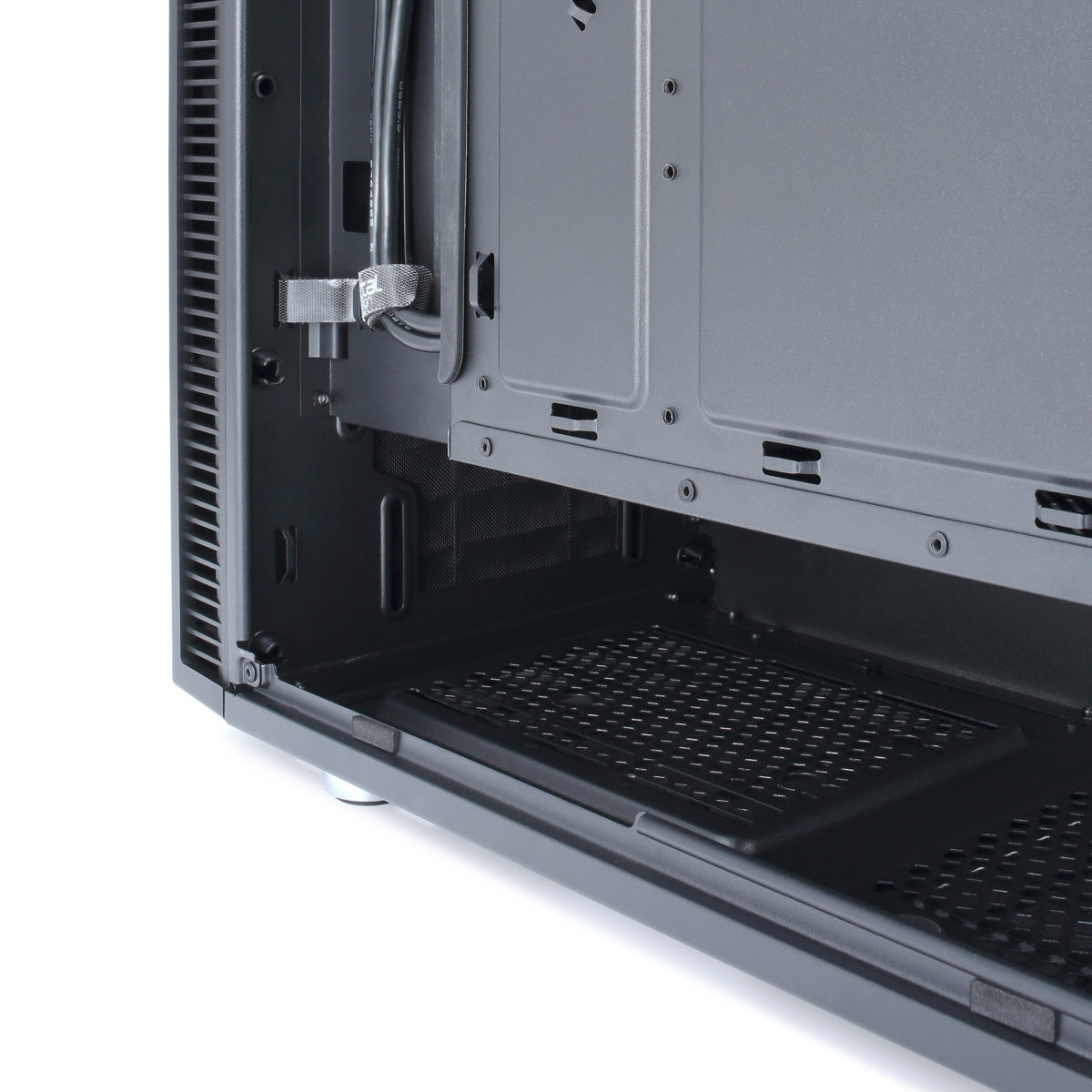

全PSU覆盖，可以从前方取出，简单方便

“The new design is tidy and, as our results show, efficient from an air-cooling perspective. It's a good choice for a new micro-ATX build”
Bit-tech 阅读更多
“Sound-dampening materials, a top ModuVent, versatile radiator compatibility, a hidden PSU compartment and a design free of unnecessary frills. Define C ticks all those boxes and serves as a smaller, more affordable alternative to the trendsetting Define R5.”
Hexus 阅读更多
“All told, Fractal's latest delivers every bit of the clean styling, quiet manners, modular touches, and solid performance we've come to expect from the company's other cases”
The Tech Report 阅读更多

Specifications

  • 3.5" or 2.5" drive capacity
    2
  • Dedicated 2.5" drive capacity
    3 (maximum 2.5" drive thickness is 10 mm)
  • Expansion slots
    7

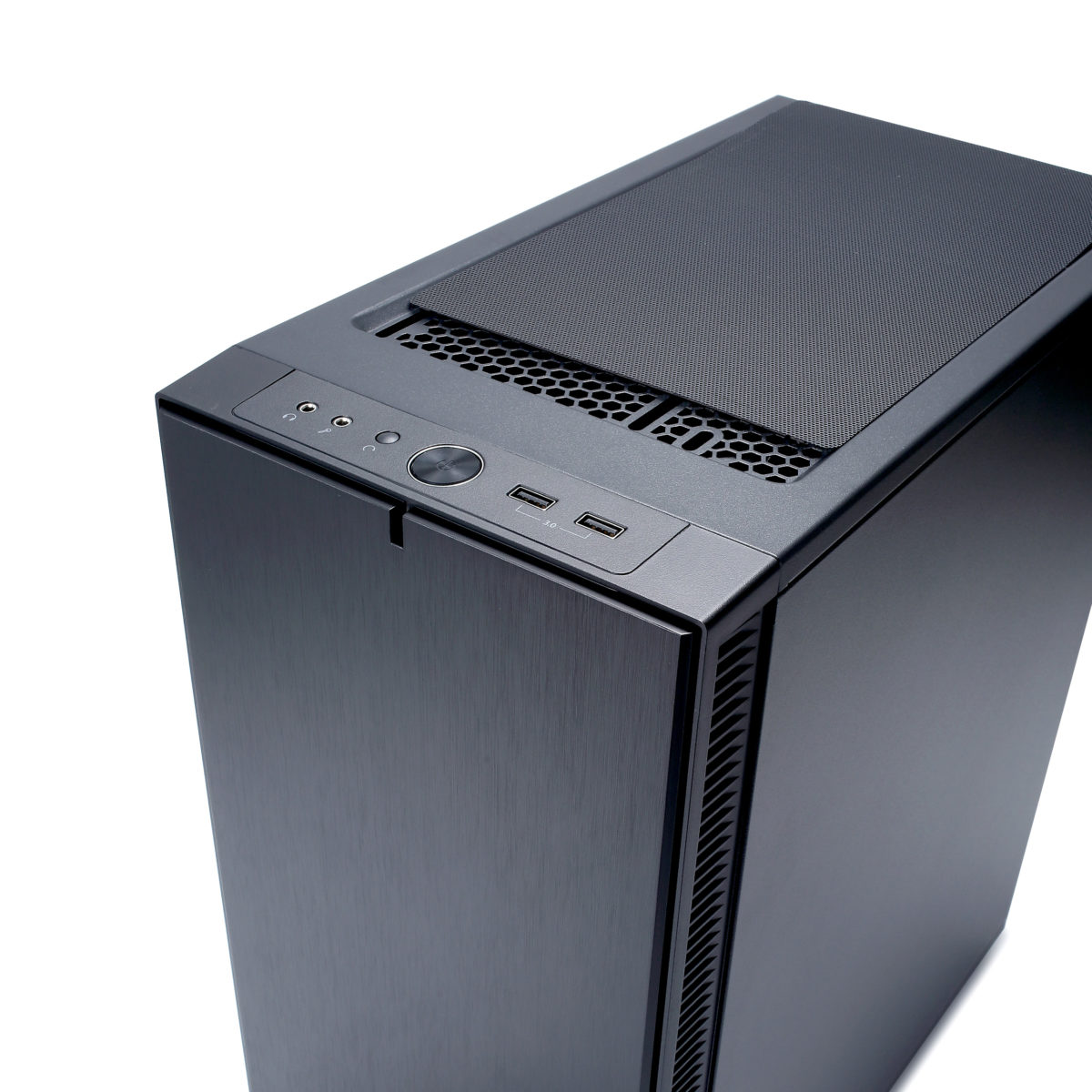

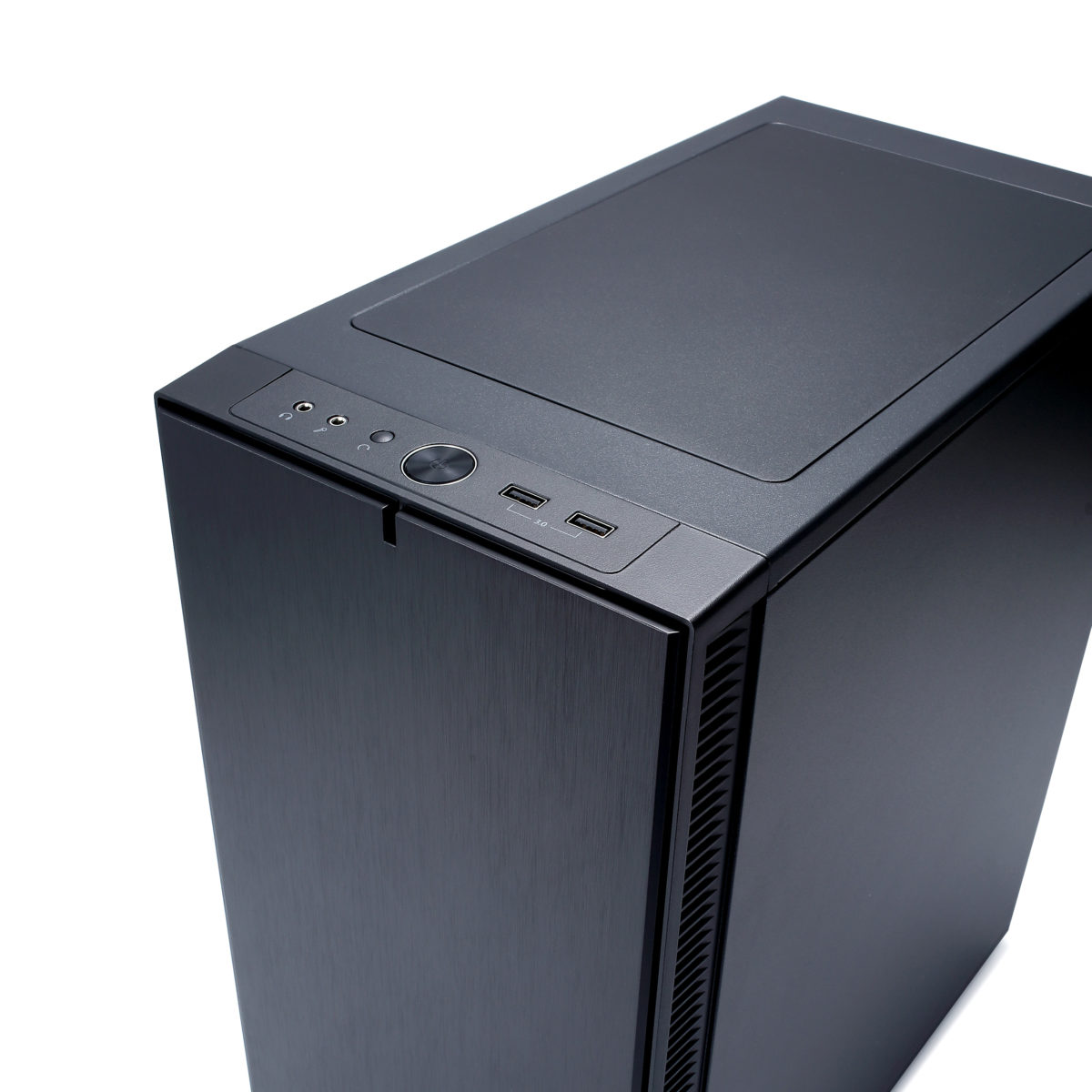

  • Front ports
    2x USB 3.0, Audio in/out, Power button with LED, HDD activity LED, Reset button
  • Total fan mounts
    7
  • Front fan
    3 x 120 or 2 x 140 mm (1 x Dynamic X2 GP-12 included)
  • Top fan
    2 x 120/140 mm

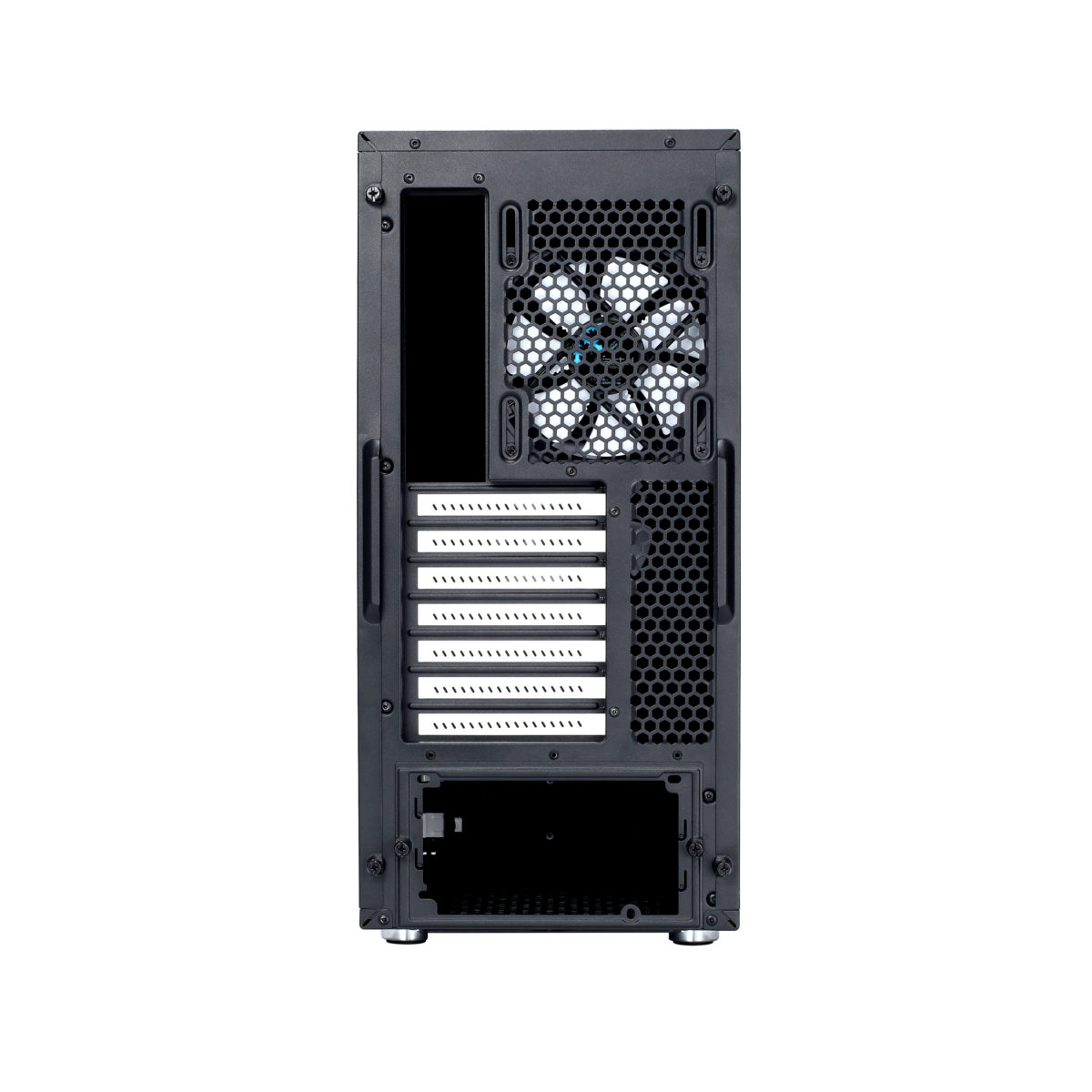

  • Rear fan
    1 x 120 mm (1 x Dynamic X2 GP-12 included)
  • Bottom fan
    1 x 120 mm
  • Dust filters
    Bottom fan + PSU, Front fans, Top fans (optional)
  • Cable routing grommets
    Yes
  • Fixed Velcro straps
    Yes
  • Captive thumbscrews
    Right side panel, SSD brackets
  • Left side panel
    Industrial sound-dampened steel
  • Right side panel
    Industrial sound-dampened steel

Compatibility

  • Power supply type
    ATX
  • Motherboard compatibility
    ATX, mATX, ITX
  • Front radiator
    120/240/360 mm or 140/280 mm (max 144 mm width)
  • Top radiator
    120/240 mm (max 40 mm motherboard component height)
  • Rear radiator
    120 mm (max 125 mm width)
  • PSU max length
    175 mm
  • GPU max length
    Max 315 mm with front fan mounted
  • CPU cooler max height
    172 mm
  • Cable routing space
    15-35 mm

Dimensions

  • Case dimensions (LxWxH)
    399 x 210 x 440 mm
  • Case dimensions - with feet/protrusions/screws
    413 x 210 x 453 mm
  • Net weight
    7.4 kg
  • Package dimensions (LxWxH)
    542 x 305 x 493 mm
  • Package weight
    7.81 kg
  • Volume
    36.9 liters

Other

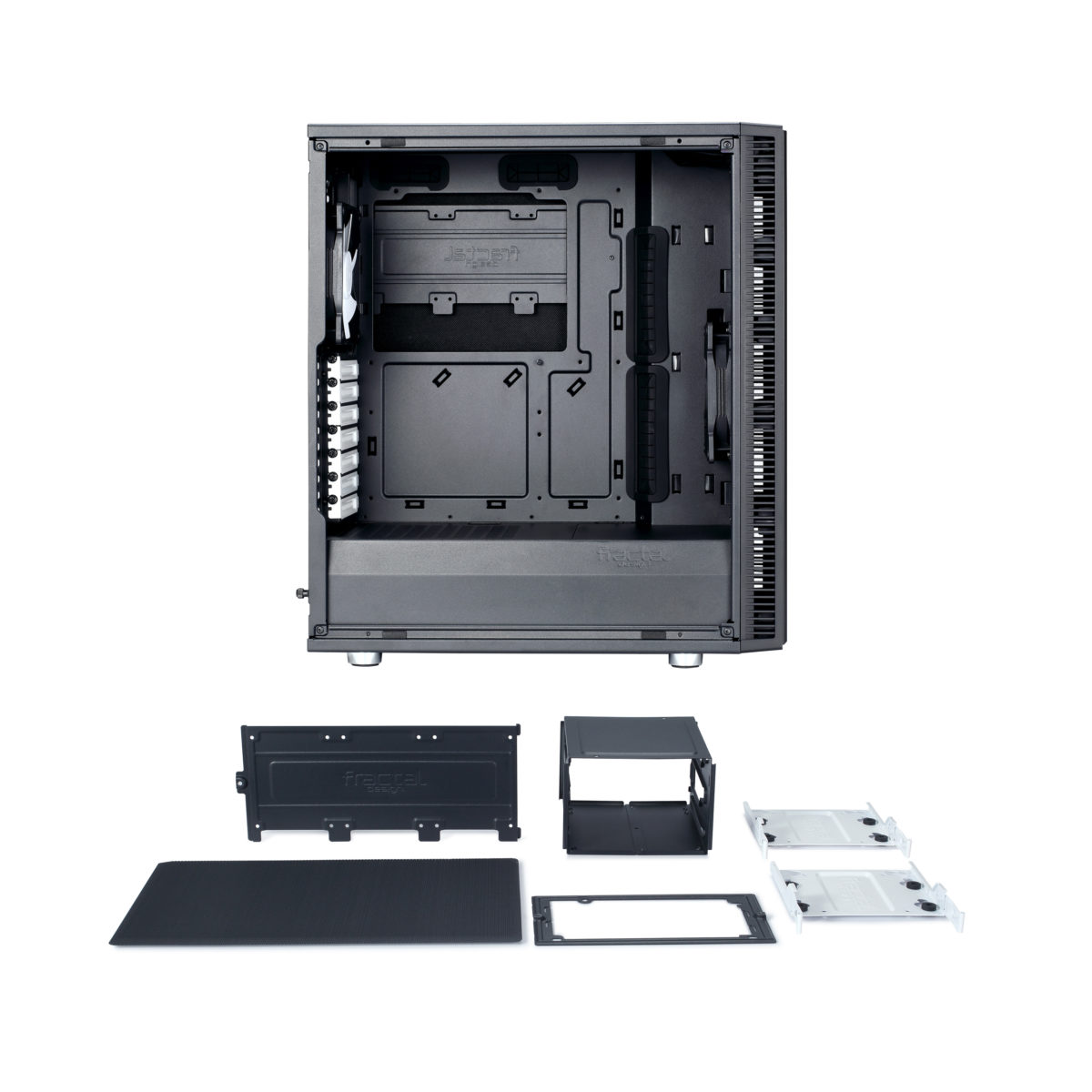

  • Package contents
    Define C computer case; User manual; Accessory box; Optional top filter
  • EAN
    7350041084303
  • UPC
    817301014304
  • Product code
    FD-CA-DEF-C-BK
