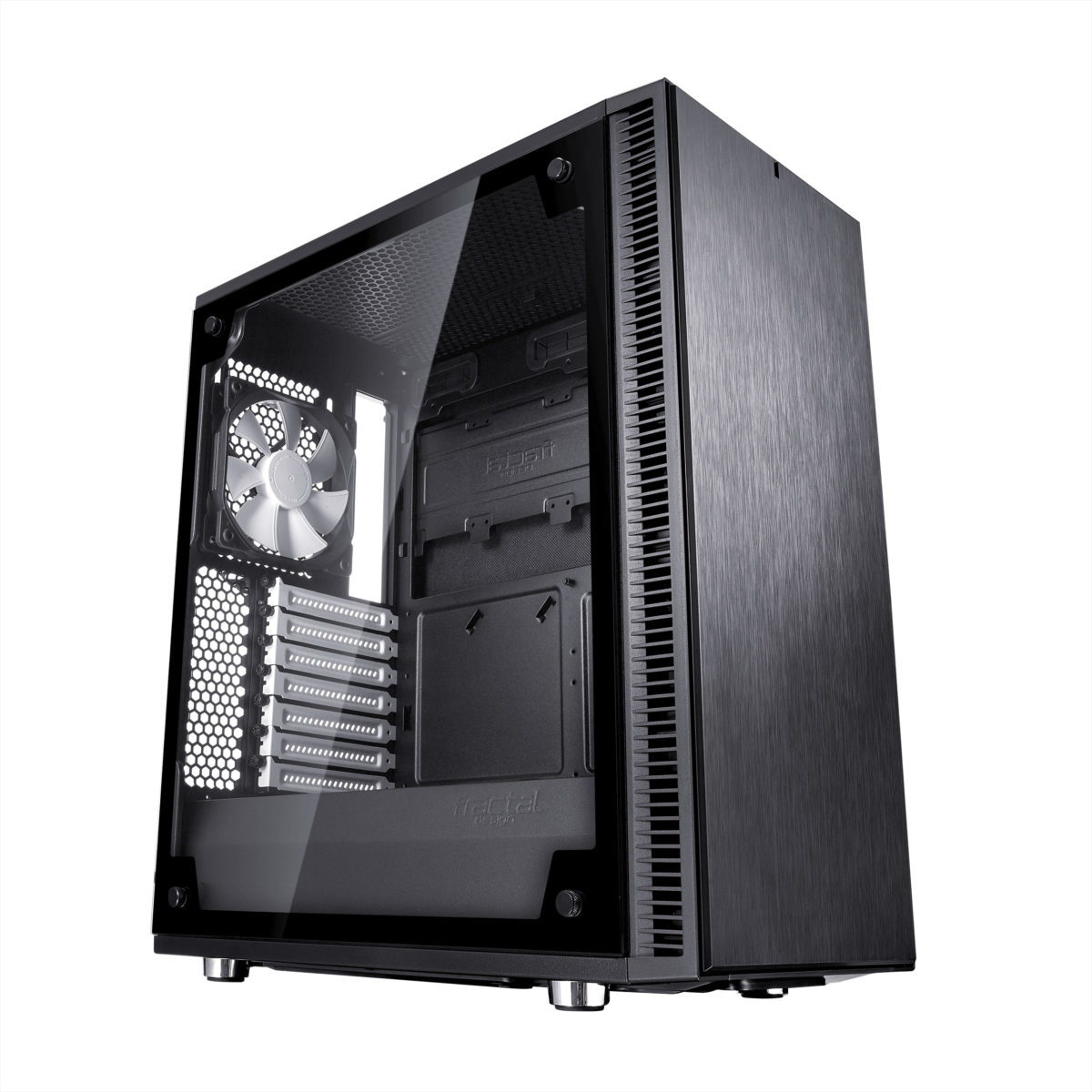

Define C Tempered Glass

万众期待下，Fractal Design 给您钢化玻璃版本的Define C TG。Define C TG 兼具了Define C所有的优点，让使用者可以拥有一个部会浪费任何空间的灵活平台的同时钢化玻璃让性能、效率与美观达到平衡。

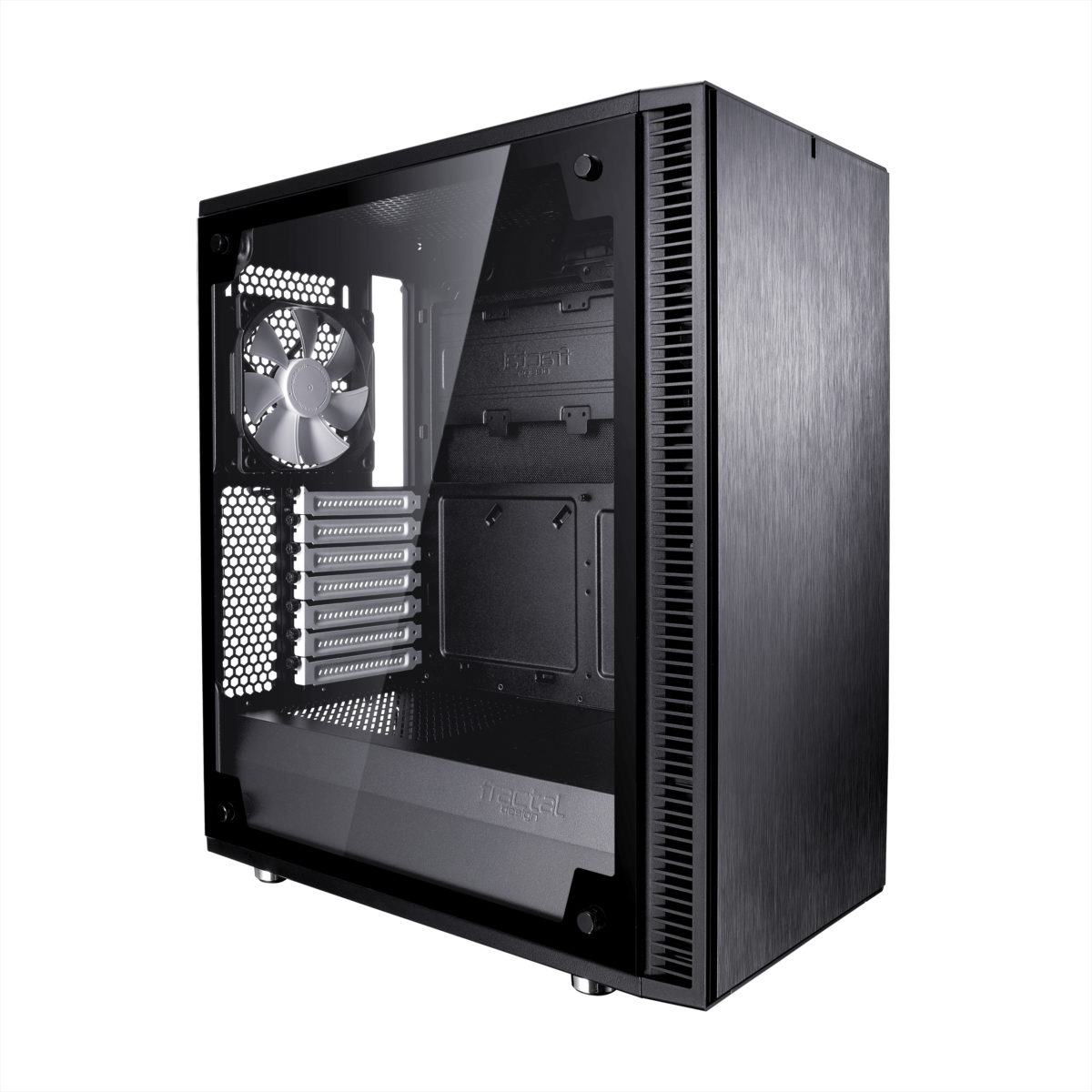

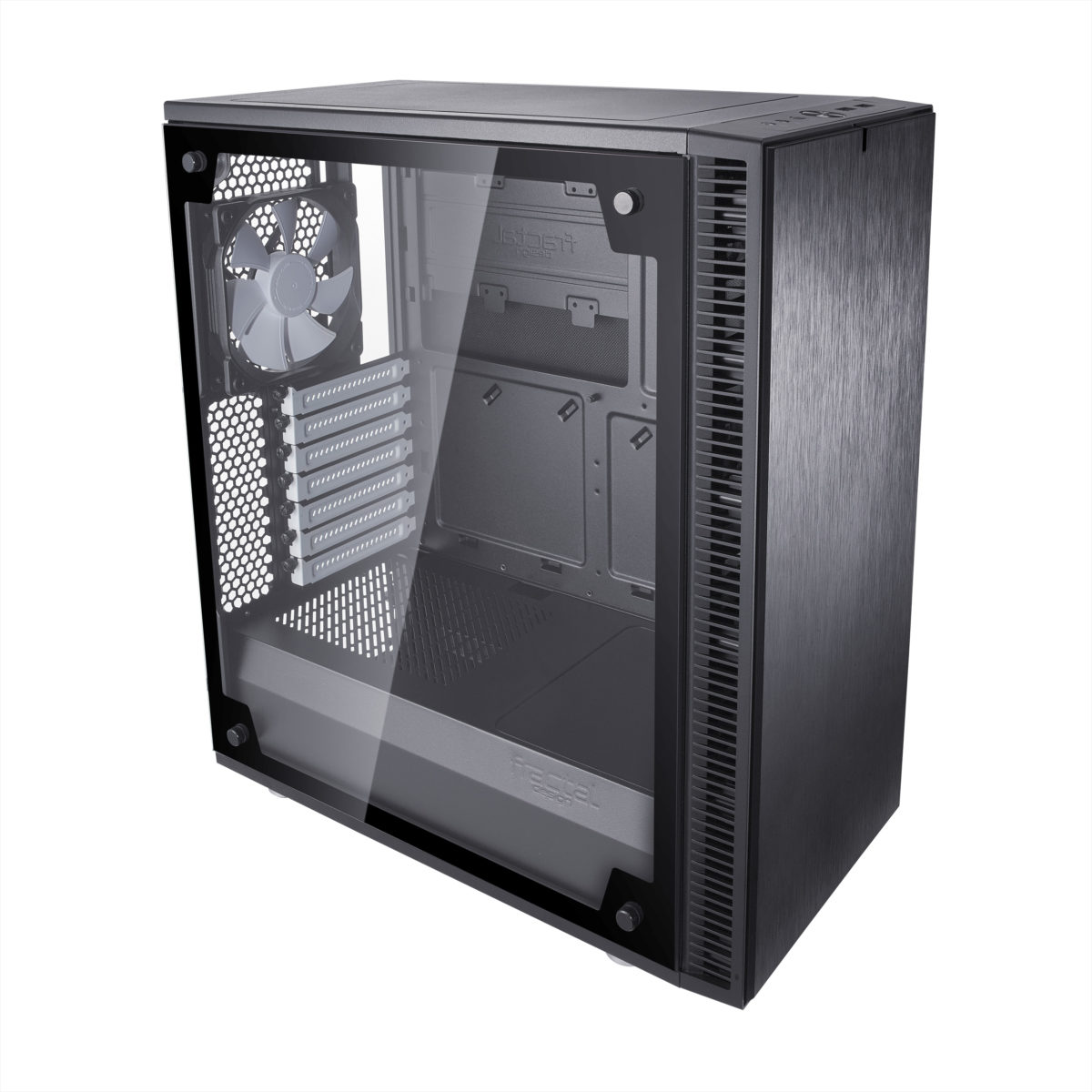

  • 钢化玻璃侧板，具有简洁的外观可完整展示内部的高端硬件
  • 比普通 ATX主板更小，Define C TG 拥有最优化的内部结构，可以为用户提供完美的机箱空间。

Variation

查看规格
寻找经销商

主要特点

  • 针对大风量和静音工作进行优化

  • Define系列隔音材料，采用ModuVent™技术，工作静音

  • 前面板使用了工业级的隔音材料

  • 钢化玻璃侧板，具有简洁的外观可完整展示内部的高端硬件

  • 灵活的存储空间选择，可支持最多5个HHD硬盘

  • 预装两台 Fractal Design Dynamic X2 GP-12 120 mm风扇，在保持低噪音水平的情况下提供最大风量

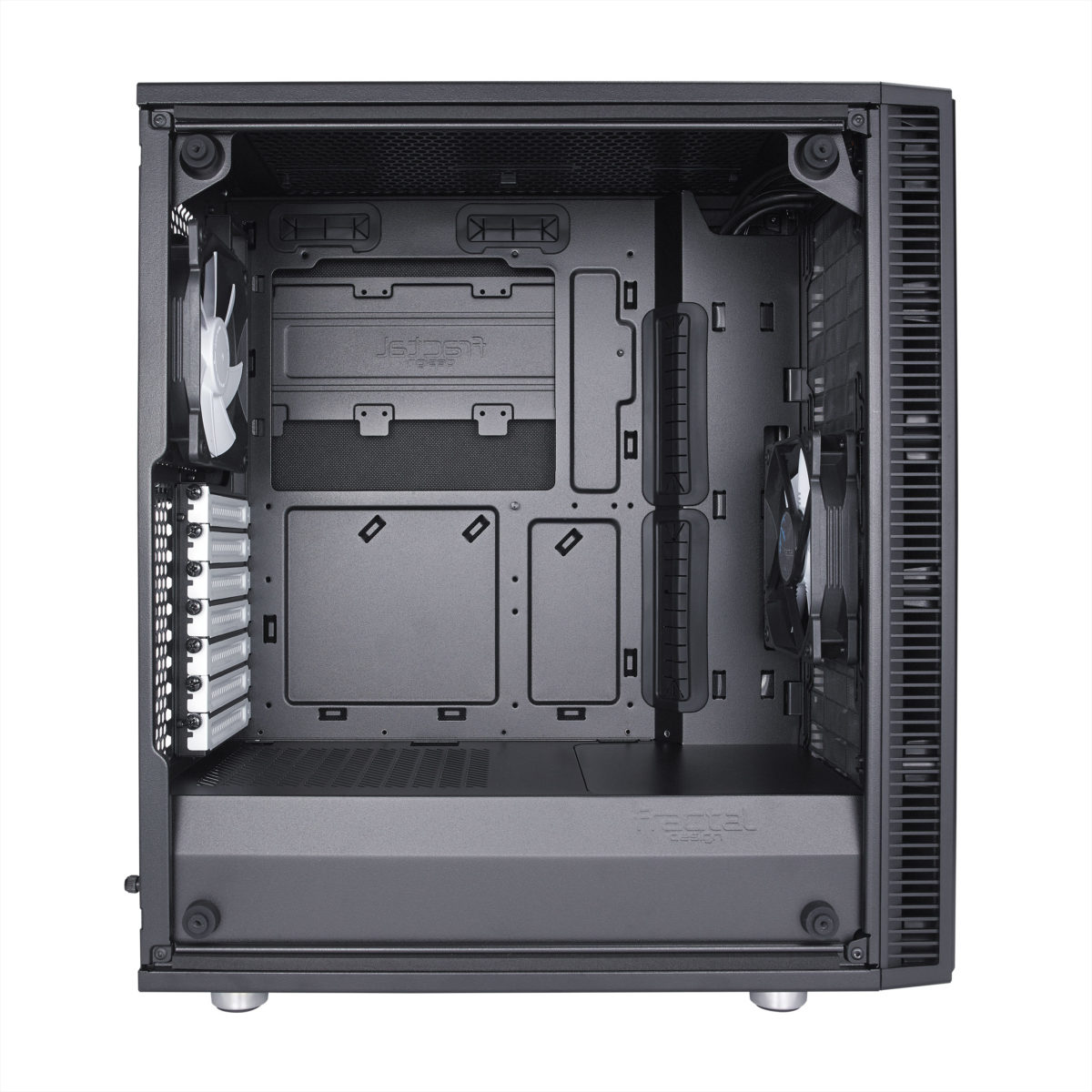

  • 内部采用开放式设计，使气流从前到后畅通无阻

  • 前面板及底部皆设有方便清洁的大风量滤网

  • 另外提供顶部滤网，防止为安装更多风扇而取下ModuVent™后造成的灰尘堆积

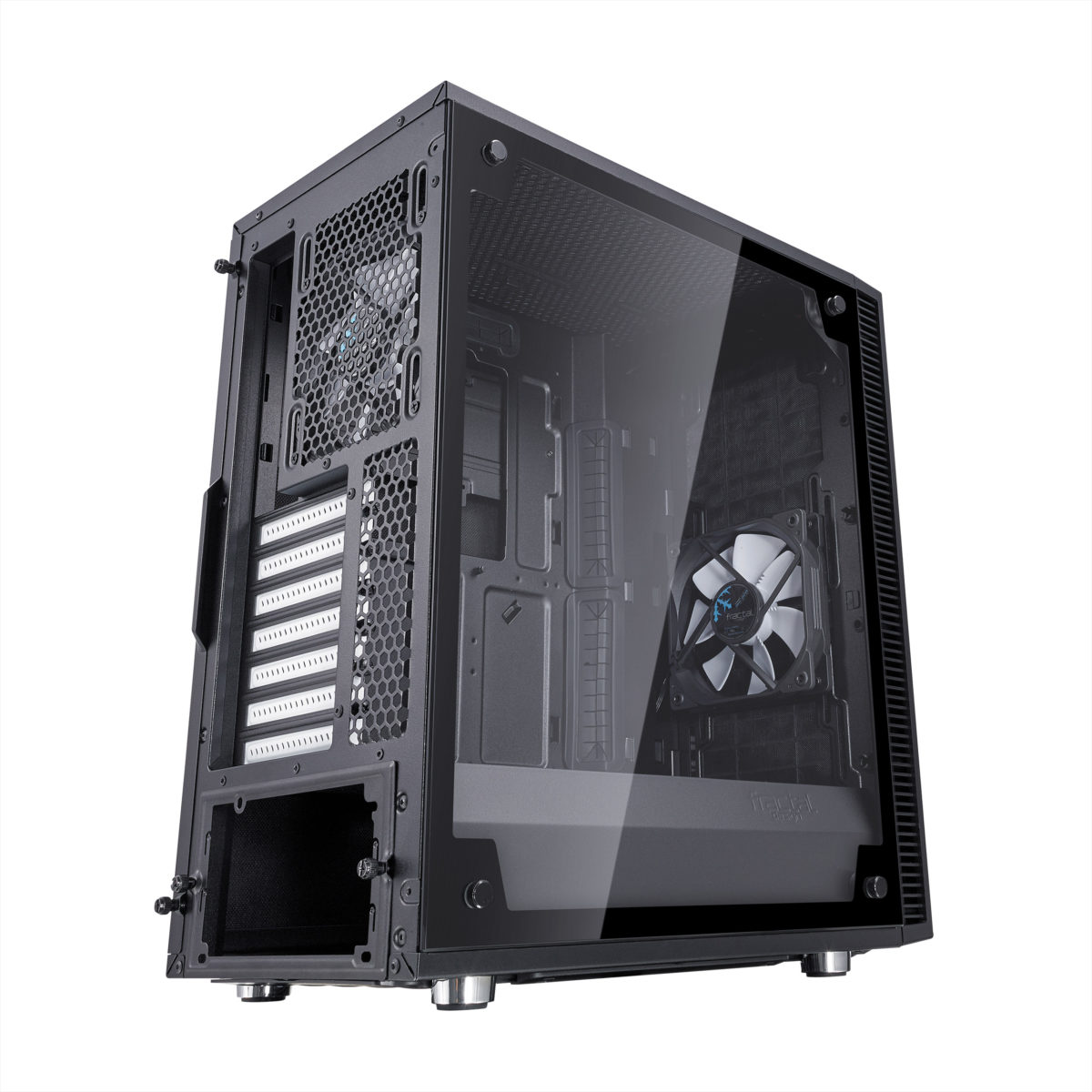

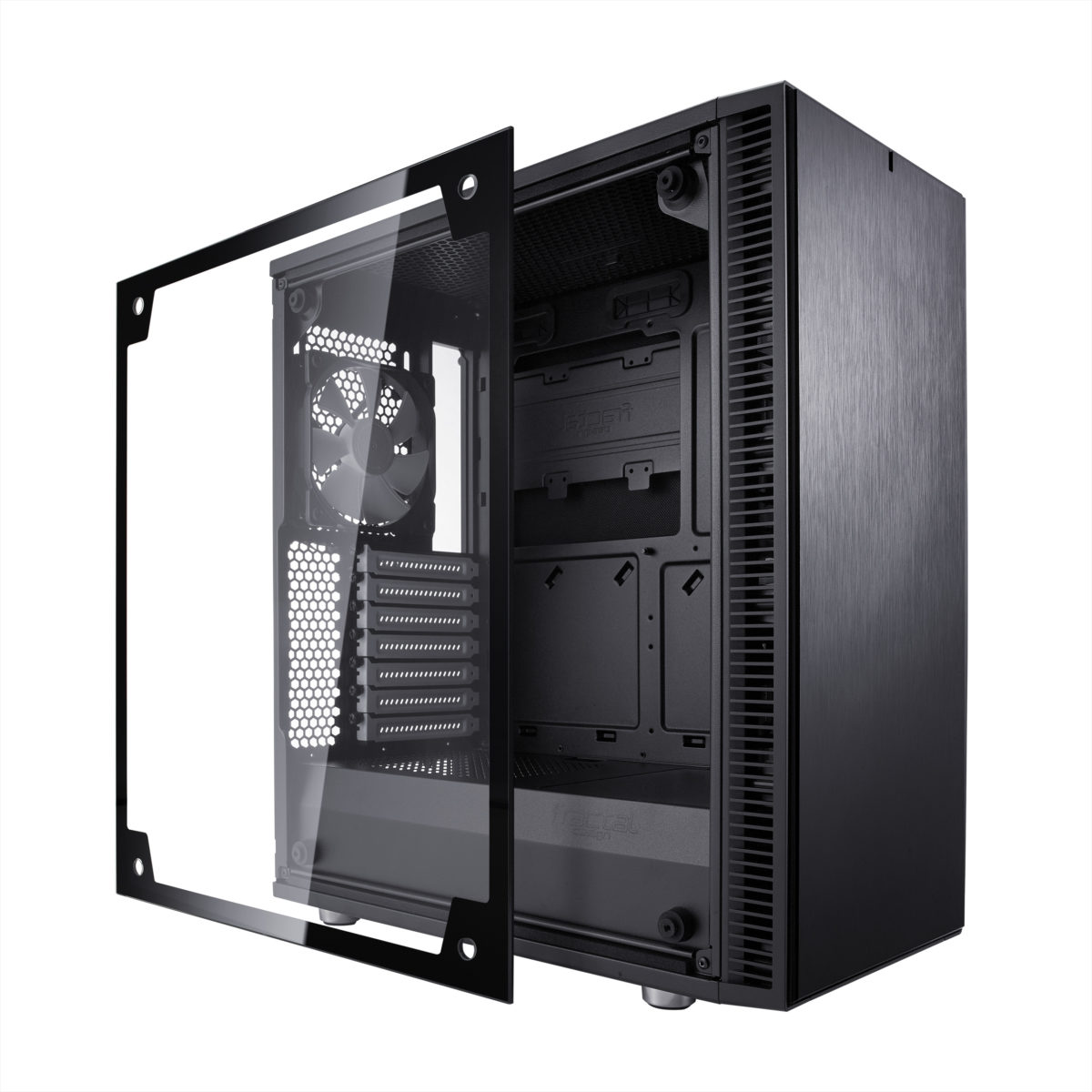

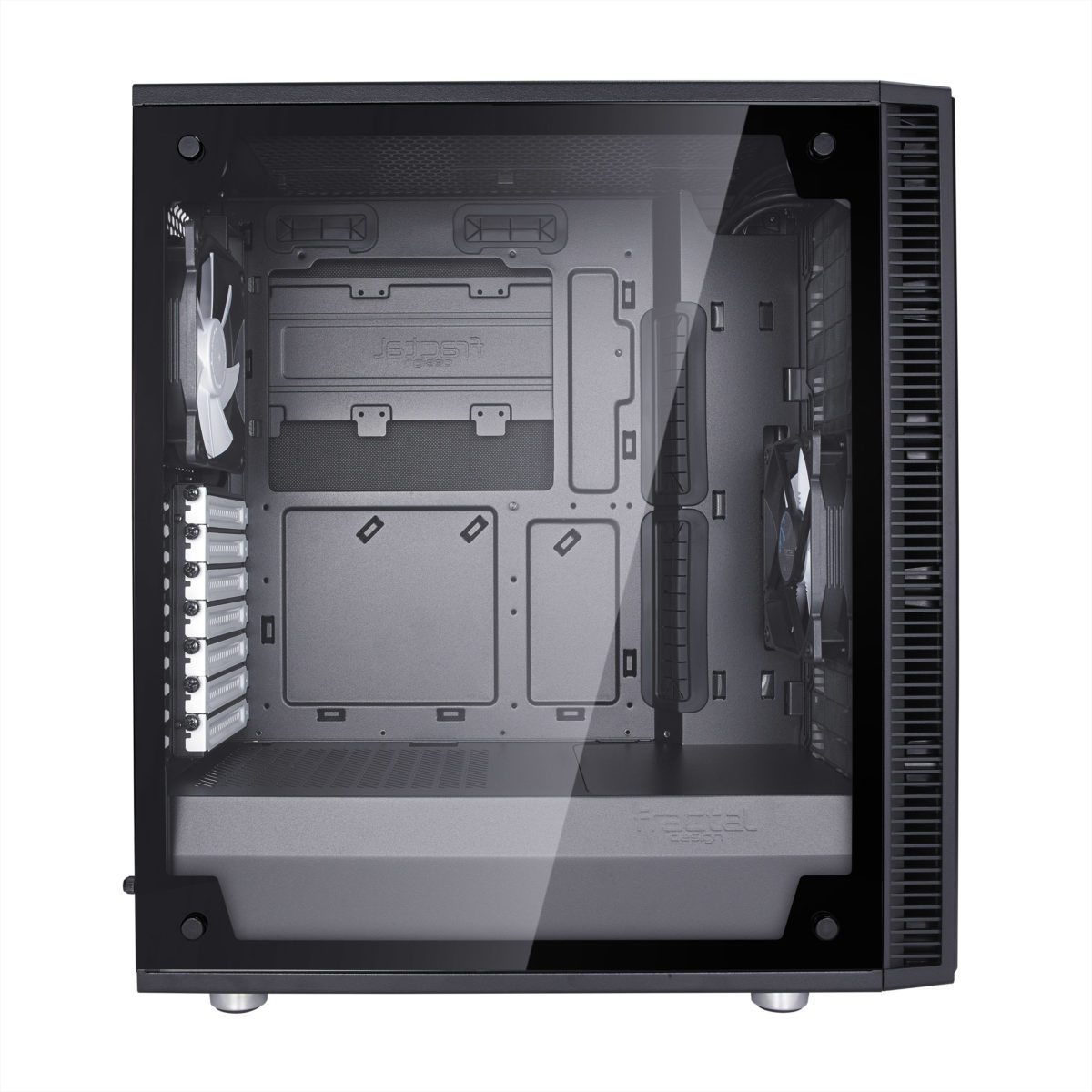

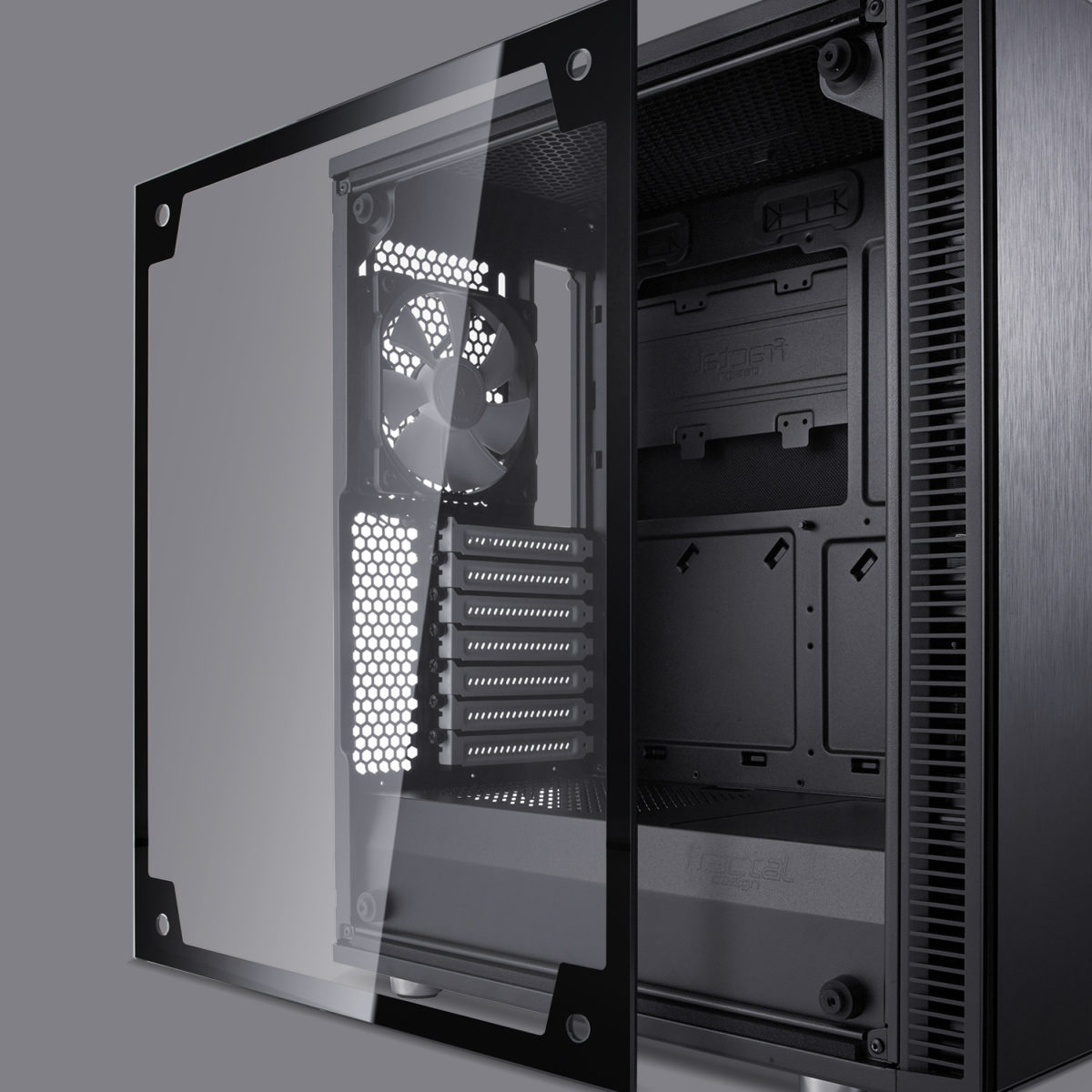

钢化玻璃侧板，具有简洁的外观可完整展示内部的高端硬件

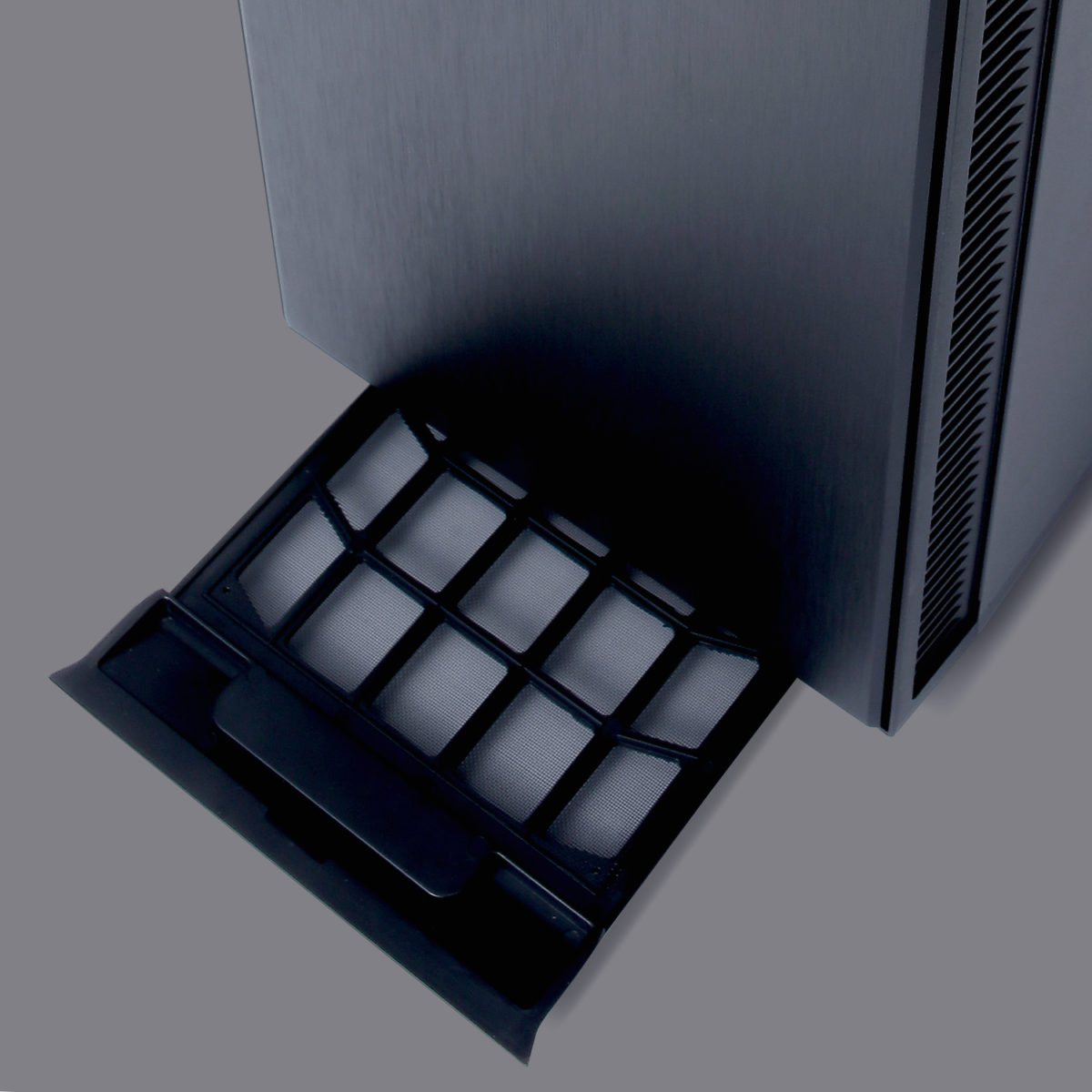

前面板及底部皆设有方便清洁的大风量滤网

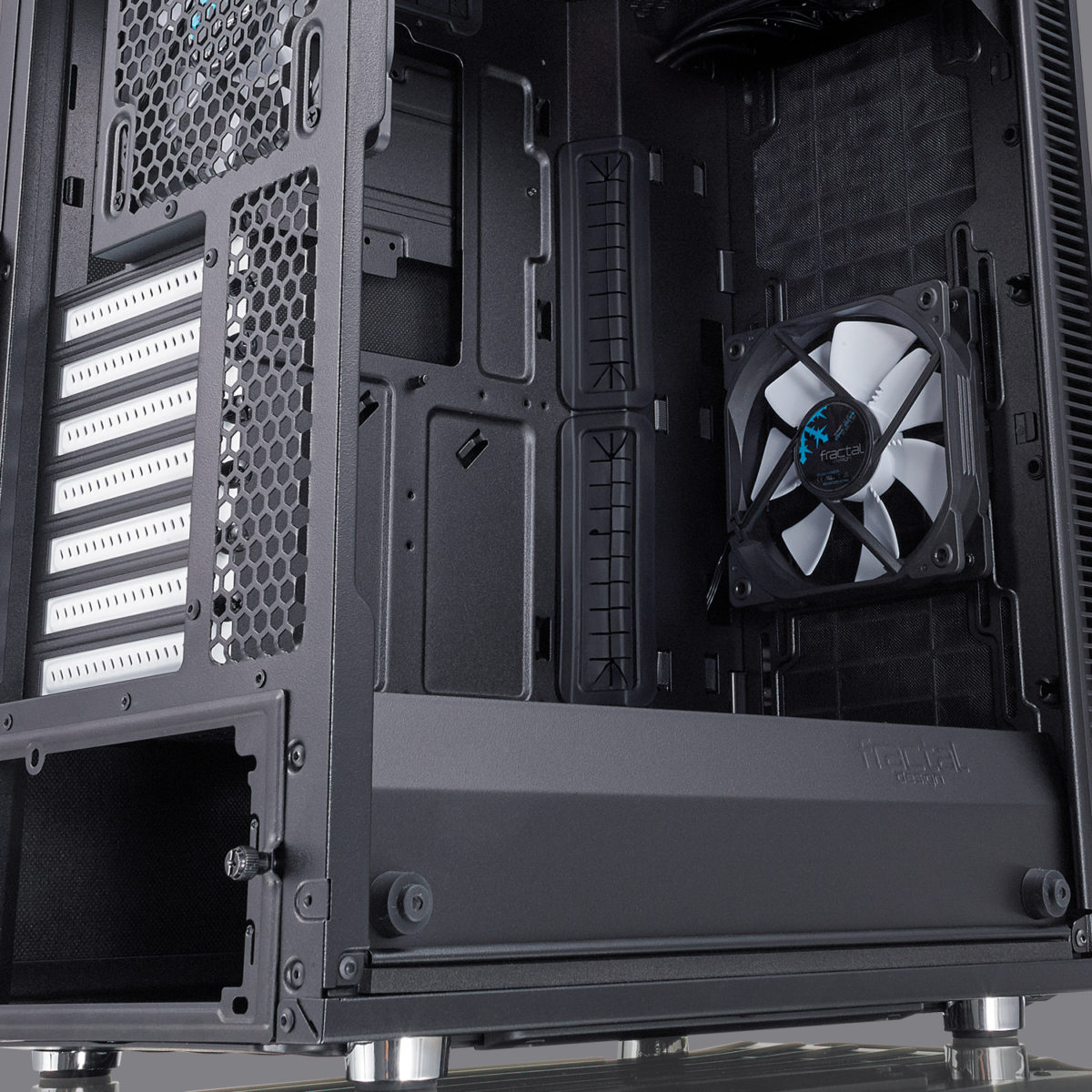

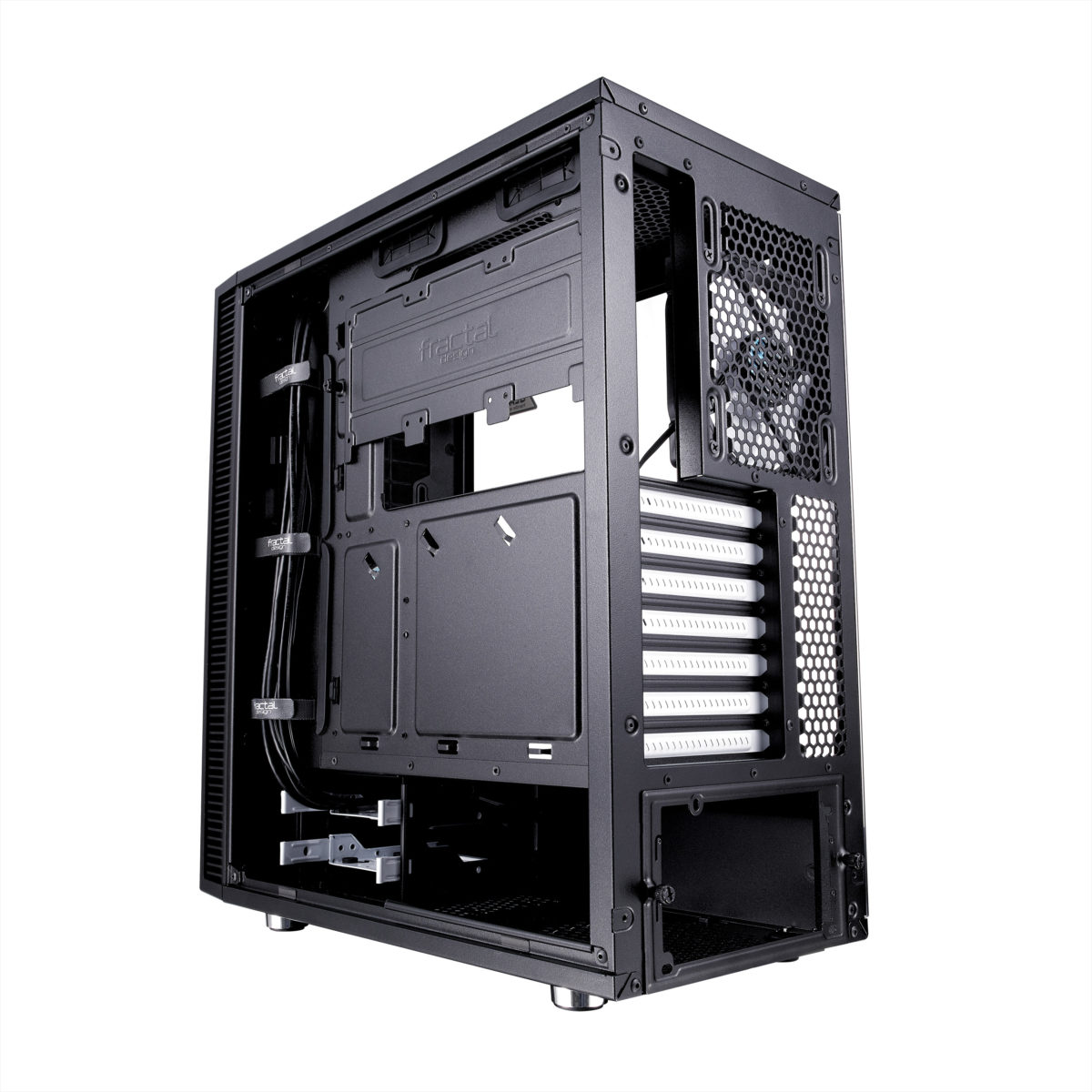

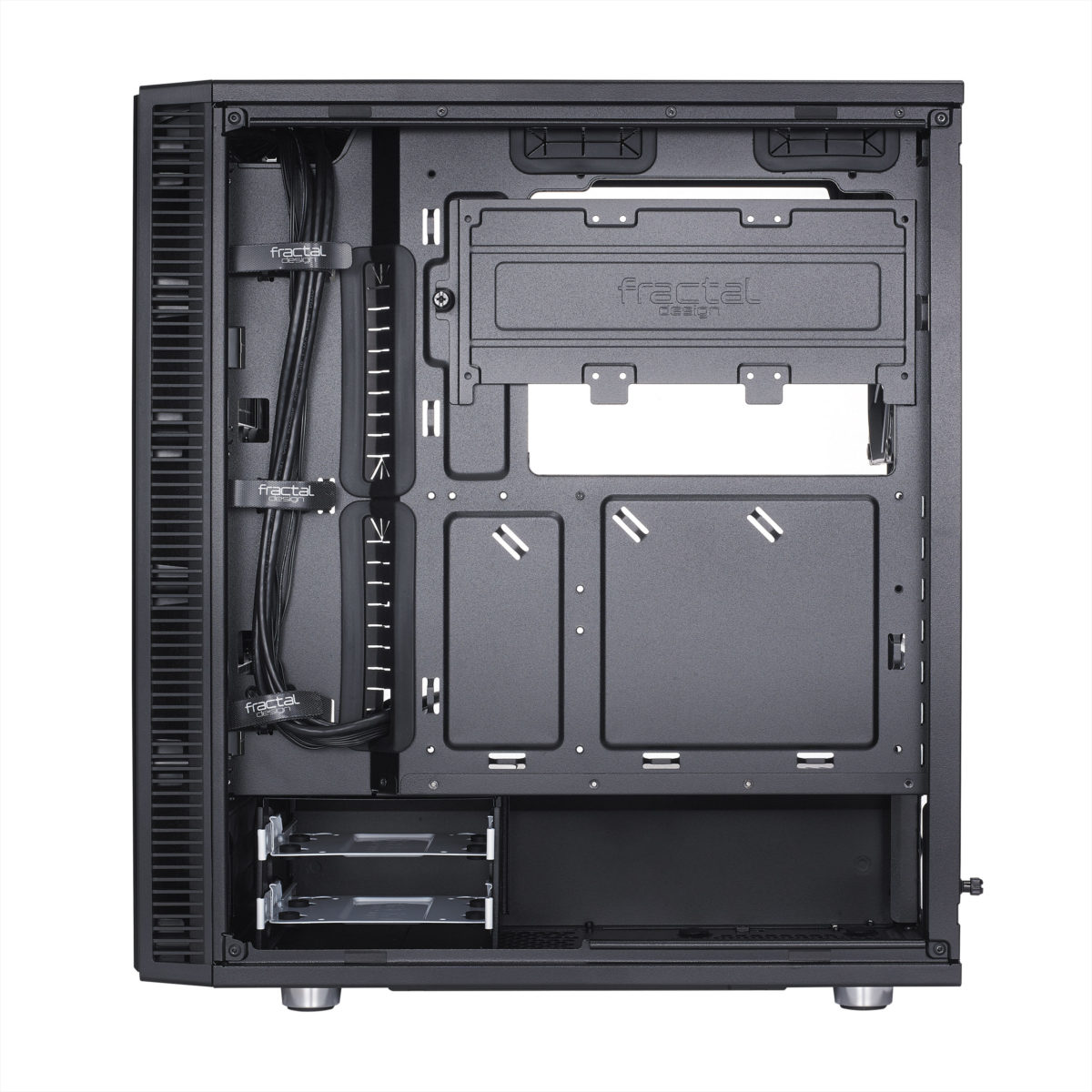

提供线罩可隐藏多余的走线，使机箱内部看起更加整洁美观，同时有利于散热

"The Define C makes it seem strange that there are cases that aren’t designed like it is: everything fits, everything works, it’s quiet, and it’s tiny."
GamersNexus.net 阅读更多
"Fractal Design has done a fantastic job designing the Define C, it is by far one of the highest quality cases we have reviewed thus far."
Relaxedtech.com 阅读更多
"For such a tiny case, too, it sure packs a punch as there are plenty of features to get excited about – Moduvent, extensive dust filtration and the removable PSU shroud cut-out being just three of the excellent inclusions."
Kitguru.net 阅读更多

Specifications

  • 3.5" or 2.5" Drive capacity
    2
  • Dedicated 2.5" drive capacity
    3 (Maximum 2.5" drive thickness is 10 mm)
  • Expansion slots
    7

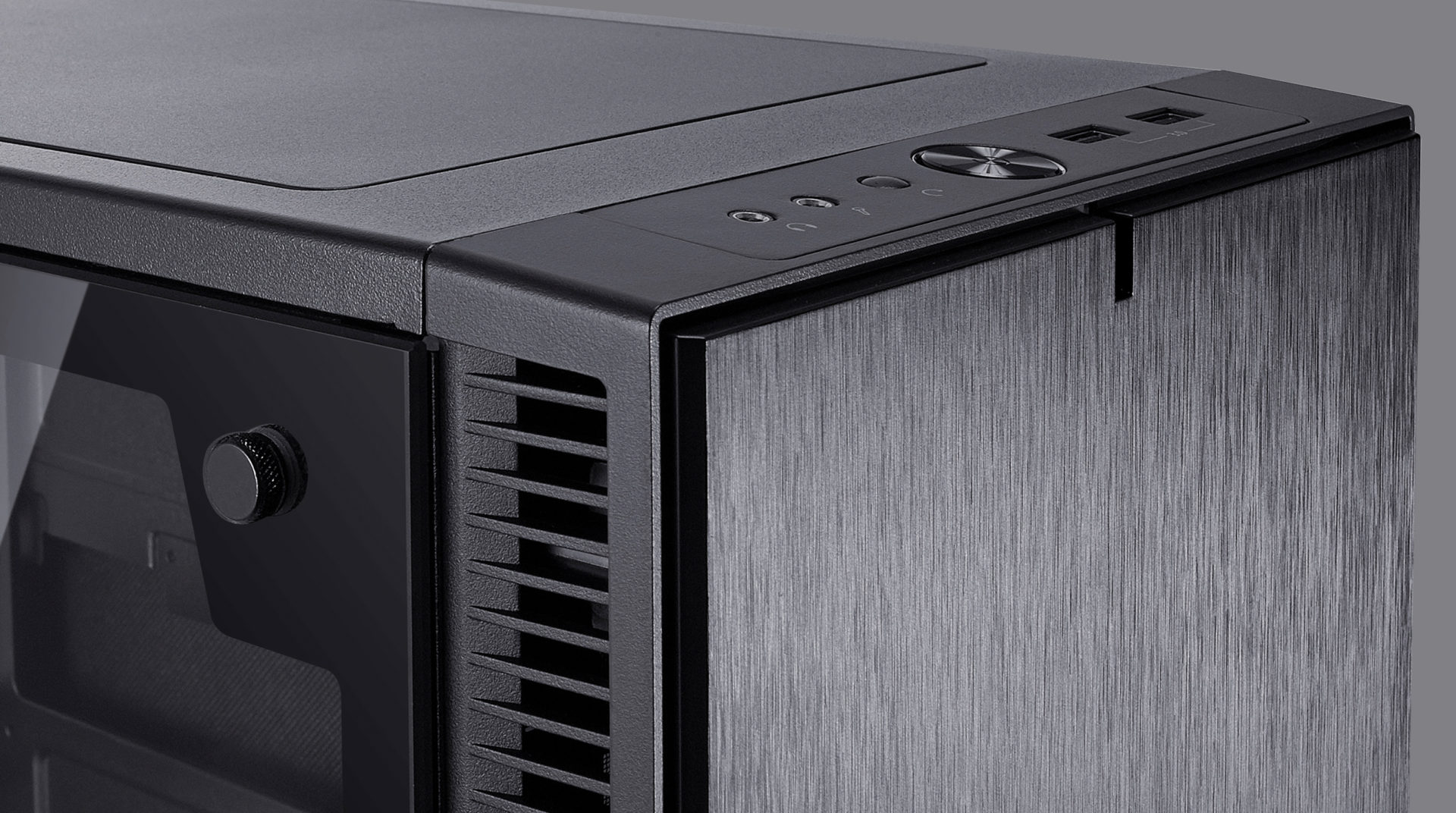

  • Front ports
    2x USB 3.0, Audio in/out, Power button with LED, HDD activity LED, Reset button
  • Total fan mounts
    7
  • Front fan
    3x 120 or 2x 140 (1x Dynamic X2 GP-12 included)
  • Top fan
    2x 120/140

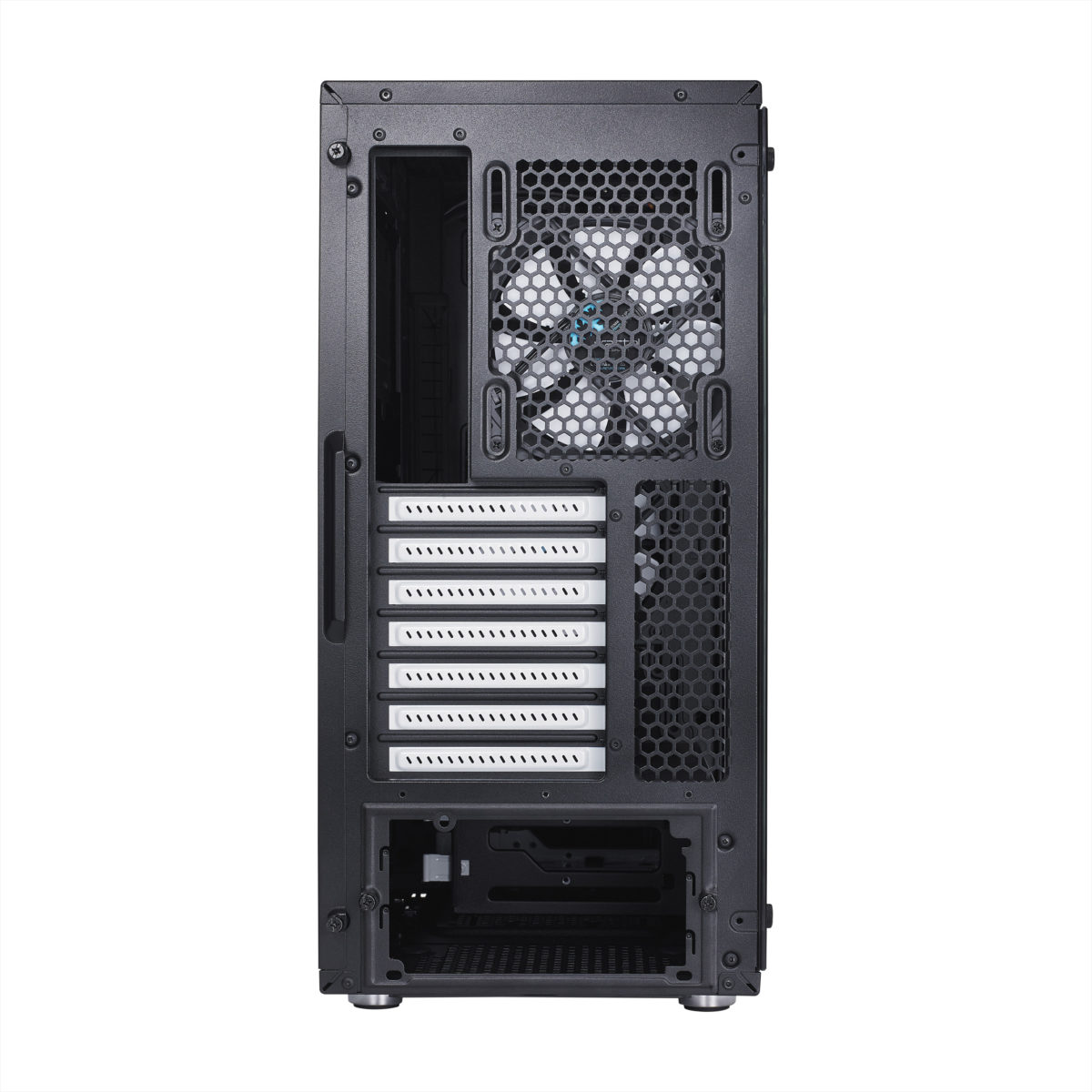

  • Rear fan
    1x 120 (1x Dynamic X2 GP-12 included)
  • Bottom fan
    1x 120
  • Dust filters
    Bottom fan + PSU, Front fans, Top panel (optional)
  • Cable routing grommets
    Yes
  • Fixed Velcro straps
    Yes
  • Captive thumbscrews
    Both side panels, SSD brackets
  • Left side panel
    Tempered Glass
  • Right side panel

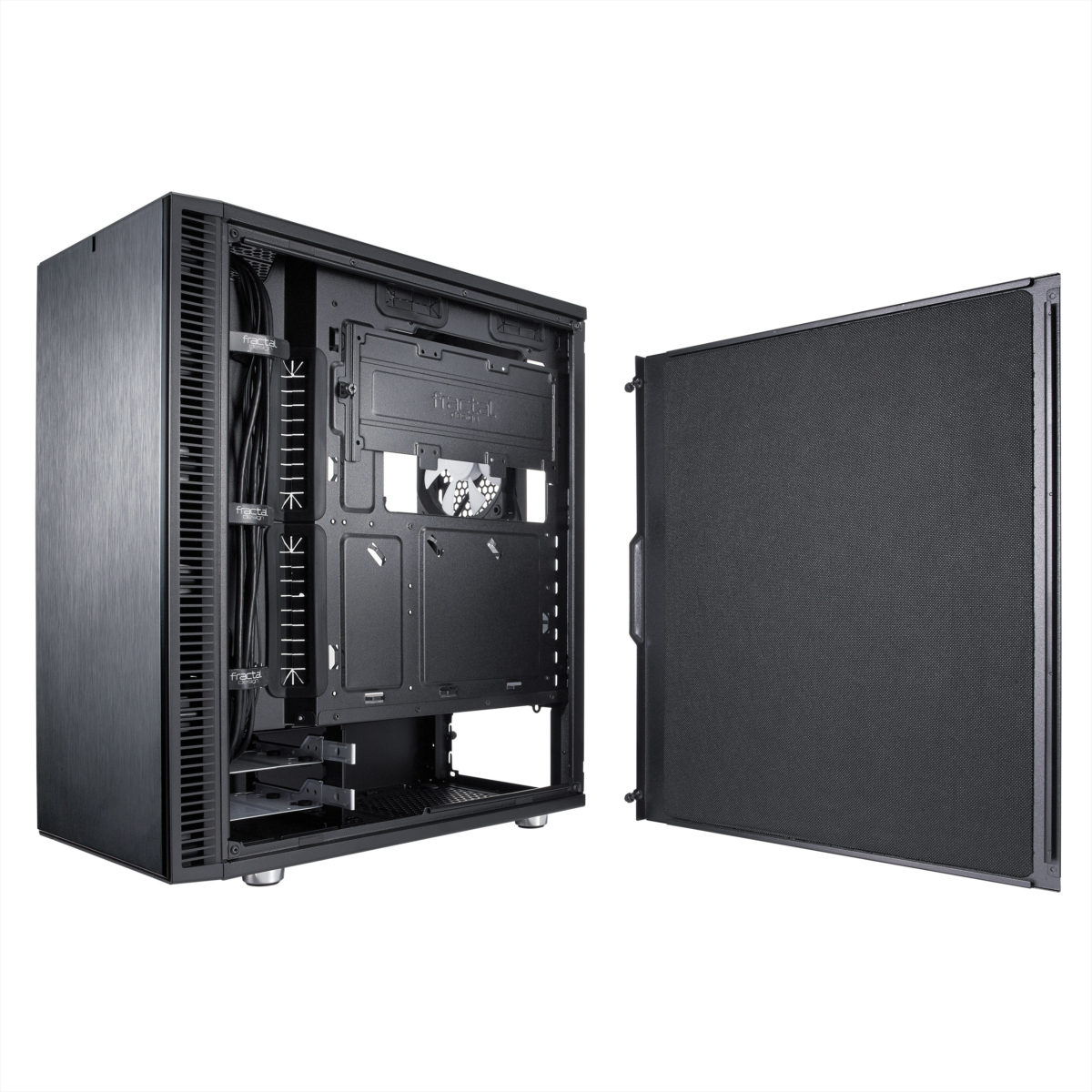

    Industrial sound-dampened steel

Compatibility

  • Power supply type
    ATX
  • Motherboard compatibility
    ATX, mATX, ITX
  • Front radiator
    120/240/360 mm or 140/280 mm
  • Top radiator
    120/240 mm (max component height on motherboard 40 mm)
  • Rear radiator
    120 mm (max width 125 mm)
  • PSU max length
    Maximum 175 mm recommended
  • GPU max length
    Max 315 mm with front fan mounted
  • CPU cooler max height
    172 mm
  • Cable routing space
    15-35 mm space

Dimensions

  • Case dimensions (LxWxH)
    399 x 212 x 440 mm
  • Case dimensions - with feet/protrusions/screws
    413 x 217 x 453 mm
  • Net weight
    7.2 kg
  • Package dimensions (LxWxH)
    543 x 295 x 484 mm
  • Package weight
    8.7 kg
  • Volume
    36.9 liters

Other

  • Package contents
    Define C TG computer case; User manual; Accessory box; Optional top filter
  • EAN
    7350041085683
  • UPC
    817301015684
  • Product code
    FD-CA-DEF-C-BK-TG
