Core 1100

Core 1100属于Core系列中的Mini-ITX机箱，尺寸迷你但功能齐全。整体黑化喷漆处理与斯堪的纳维亚时尚的外观设计交相呼应

  • 极其紧凑的Mini-ITXMicro-ATX机箱，强大的空气流通性以及散热冷却性能；

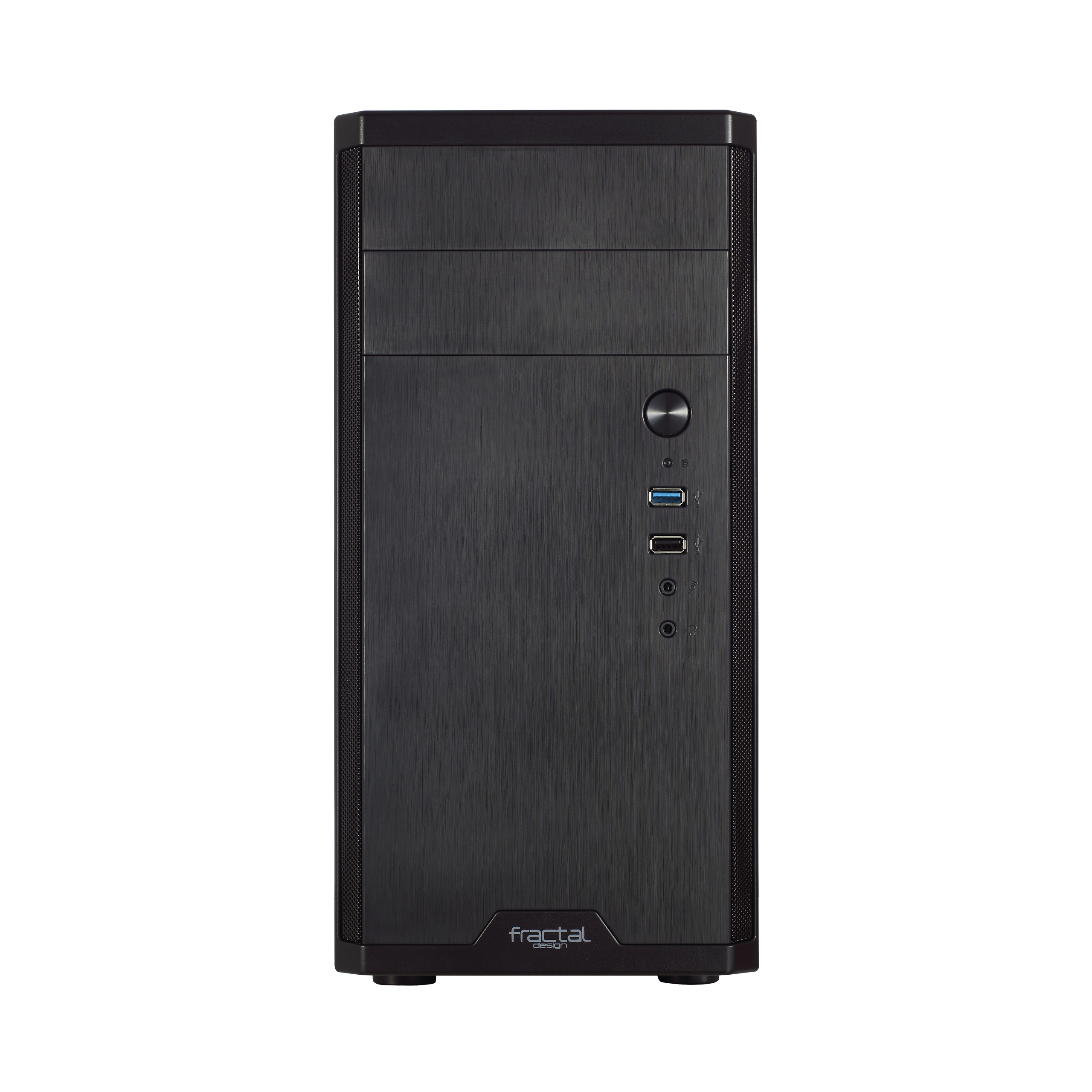

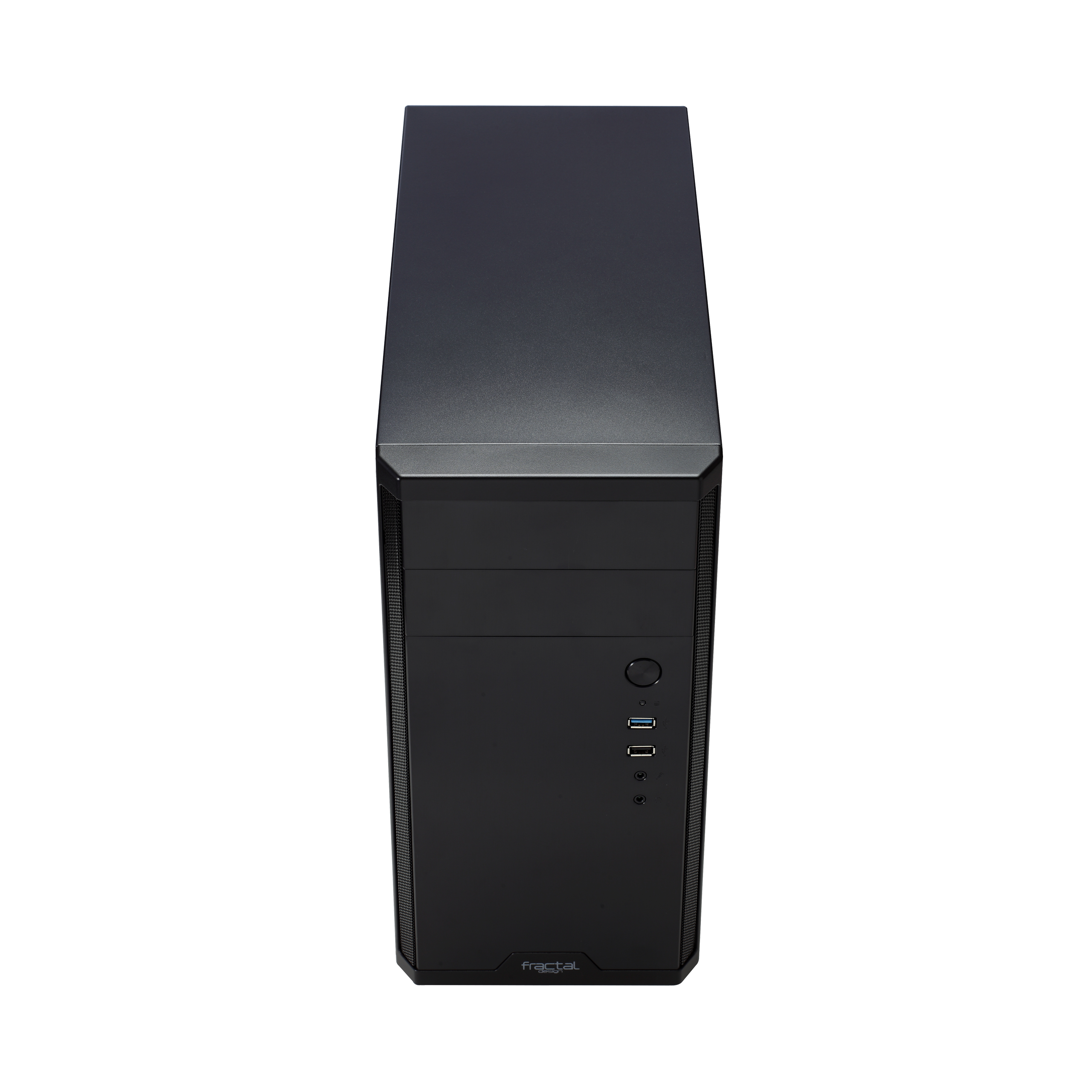

  • 机箱前面板使用了光滑的立体斑纹漆，外观上可以达到一种拉丝铝效果

Variation

查看规格
寻找经销商

Core 1100

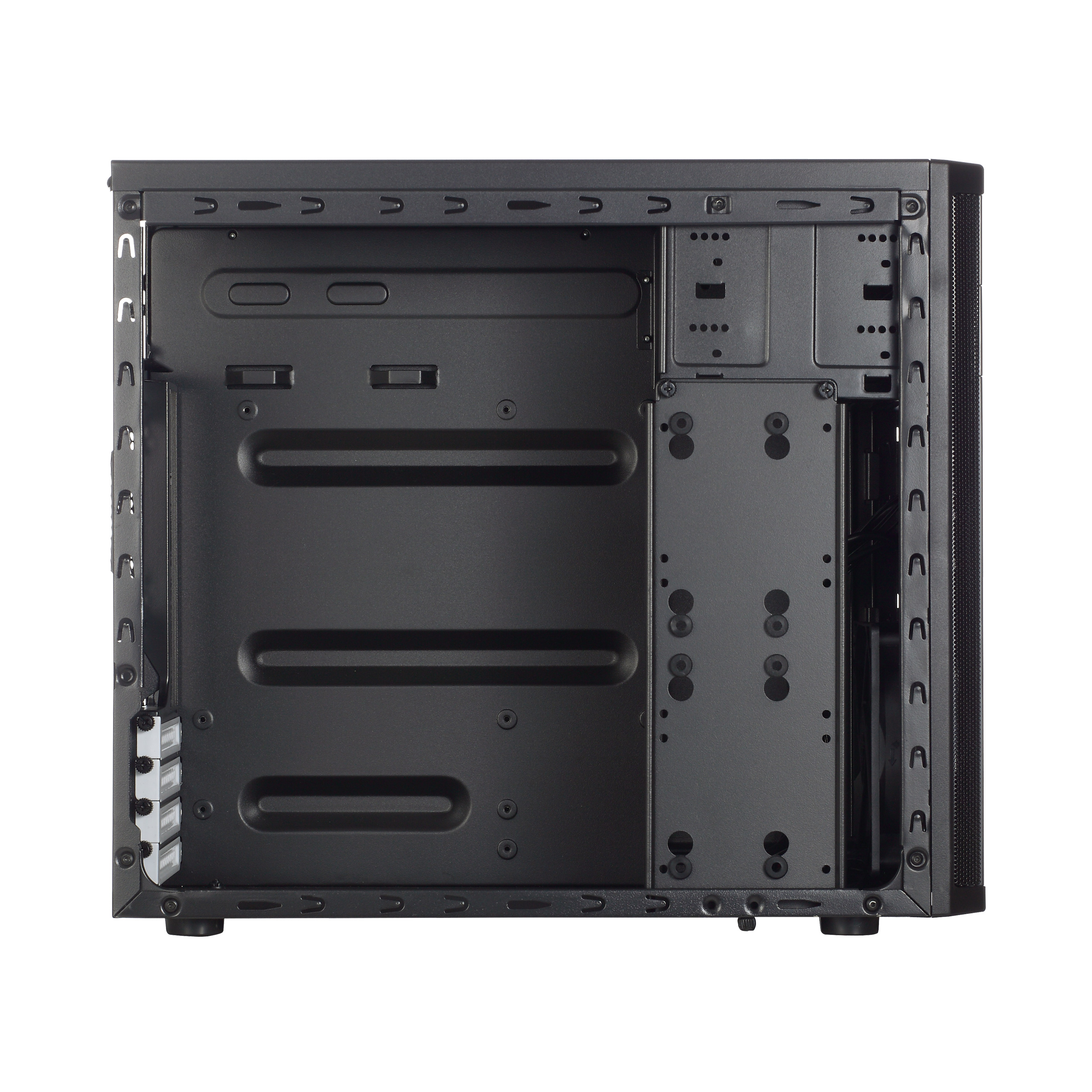

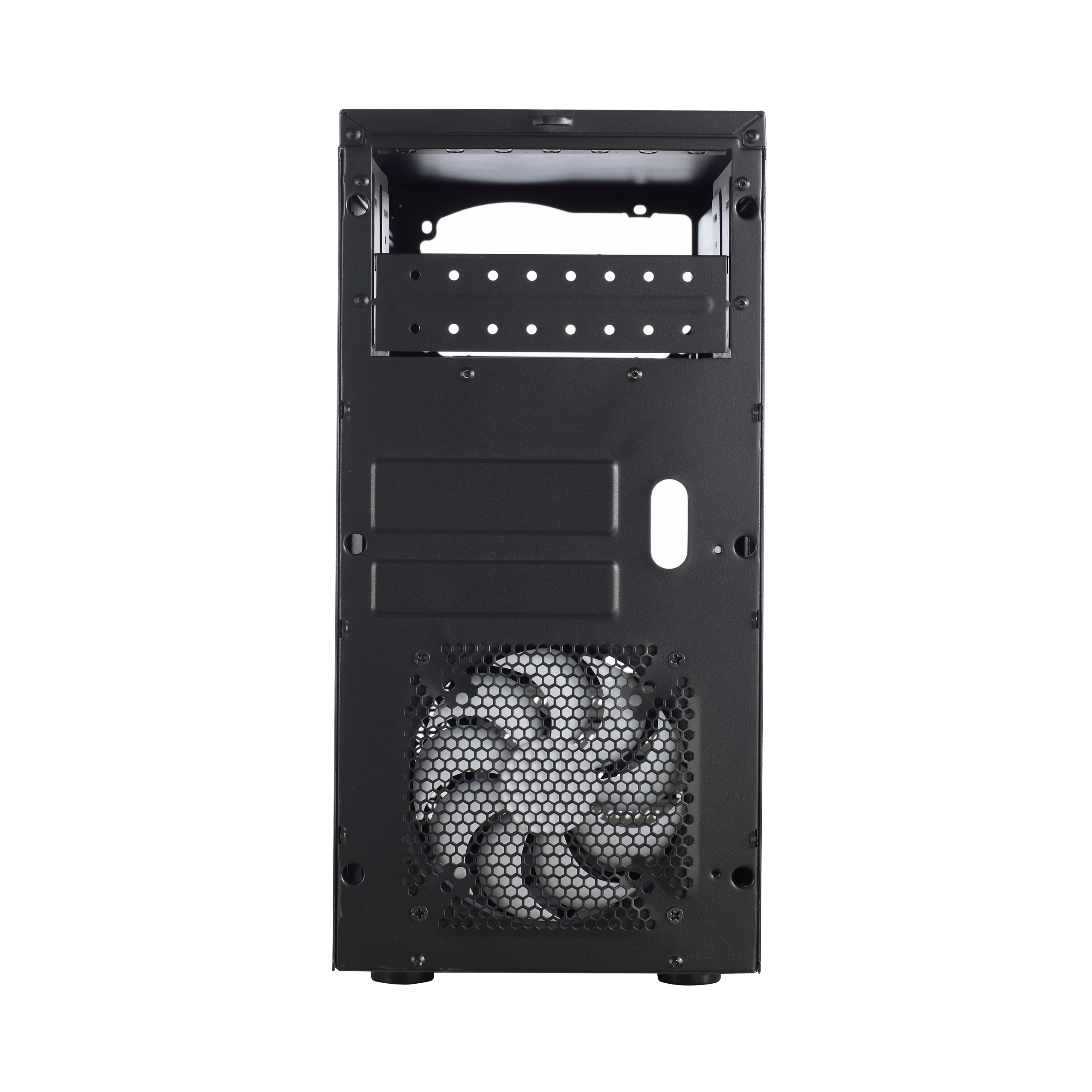

该机箱径直的冷却散热线路优化了其空气流通性，同时还包括一台预装的120mm风扇。机箱前面板安装有灰尘过滤器。创新设计的垂直硬盘支架可支持安装两张3.5″硬盘或者三张2.5″硬盘，或者每个尺寸的硬盘各安装一张；所有的3.5″硬盘安装槽皆安装有硅胶减震垫圈。

主要特点

  • 极其紧凑的Mini-ITXMicro-ATX机箱，强大的空气流通性以及散热冷却性能；

  • 机箱前面板使用了光滑的立体斑纹漆，外观上可以达到一种拉丝铝效果

  • 自带一台120mm的佛瑞克托设计风扇；

  • 机箱前面板 I/O开关易于操作，自带音频端口以及 USB 3.0和USB 2.0端口；

  • 机箱前面板安装有灰尘过滤器，且顶端和底端面板皆处于封闭状态，可帮助保持机箱内部清洁无尘；

  • 创新设计的垂直硬盘支架可支持安装两张3.5"硬盘和三张2.5"硬盘，或者每个尺寸的硬盘各安装一张；

  • 所有的3.5"硬盘安装槽皆支持减震安装；

  • 机箱内部全部喷漆，内附 Fractal Design白色签名防伪标识。

"This little Core 1100 mATX case is a real budget friendly case; that it is not an out of the box cooling monster or that it doesn't offer easy cable management can be easily forgiven if we just look at the price tag. Nevertheless the build quality remains at Fractal level, even for a street price of a whopping low 35 dollars. The aluminum looking front panel makes this Core 1100 stand out from many OEM cases. Fractal has got a nice budget case on offer here. If you don't expect miracles at a tight budget than this core 1100 might be tailor-made for you!"
Madshrimps 阅读更多

Specifications

  • Drive bay capacity
    2x 3.5" HDD or 3x 2.5" HDD/SSD or 1x 2.5" HDD/SSD or 1x 3.5" HDD
  • ODD slots
    2x 5.25"
  • Expansion slots
    4
  • Front ports
    1x USB 3.0, 1x USB 2.0, Audio in/out, Power button with LED (white), HDD activity LED (white)
  • Total fan mounts
    3
  • Front fan
    1x 120 mm (1x Fractal Design Silent Series 120 mm fan included)

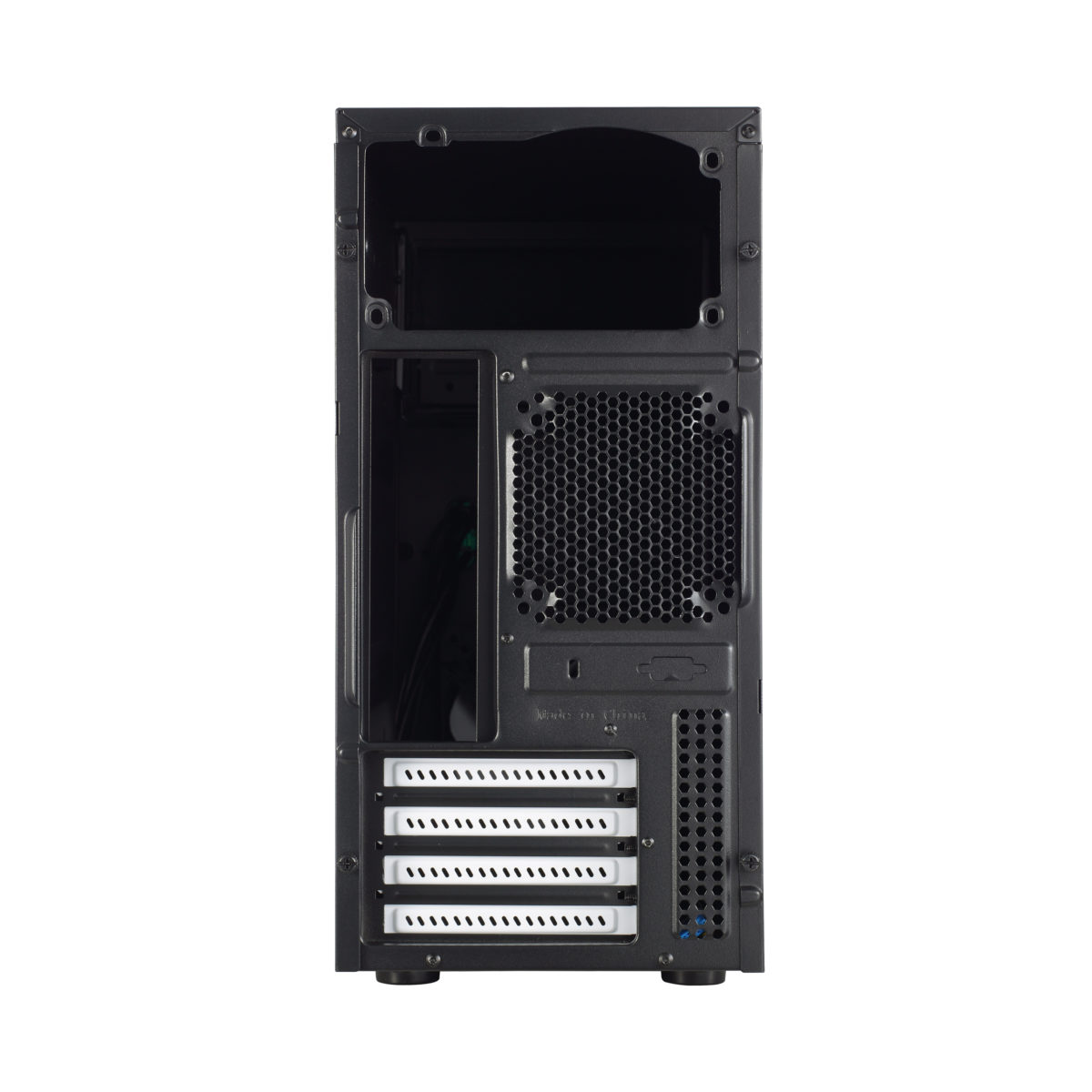

  • Rear fan
    1x 92 mm

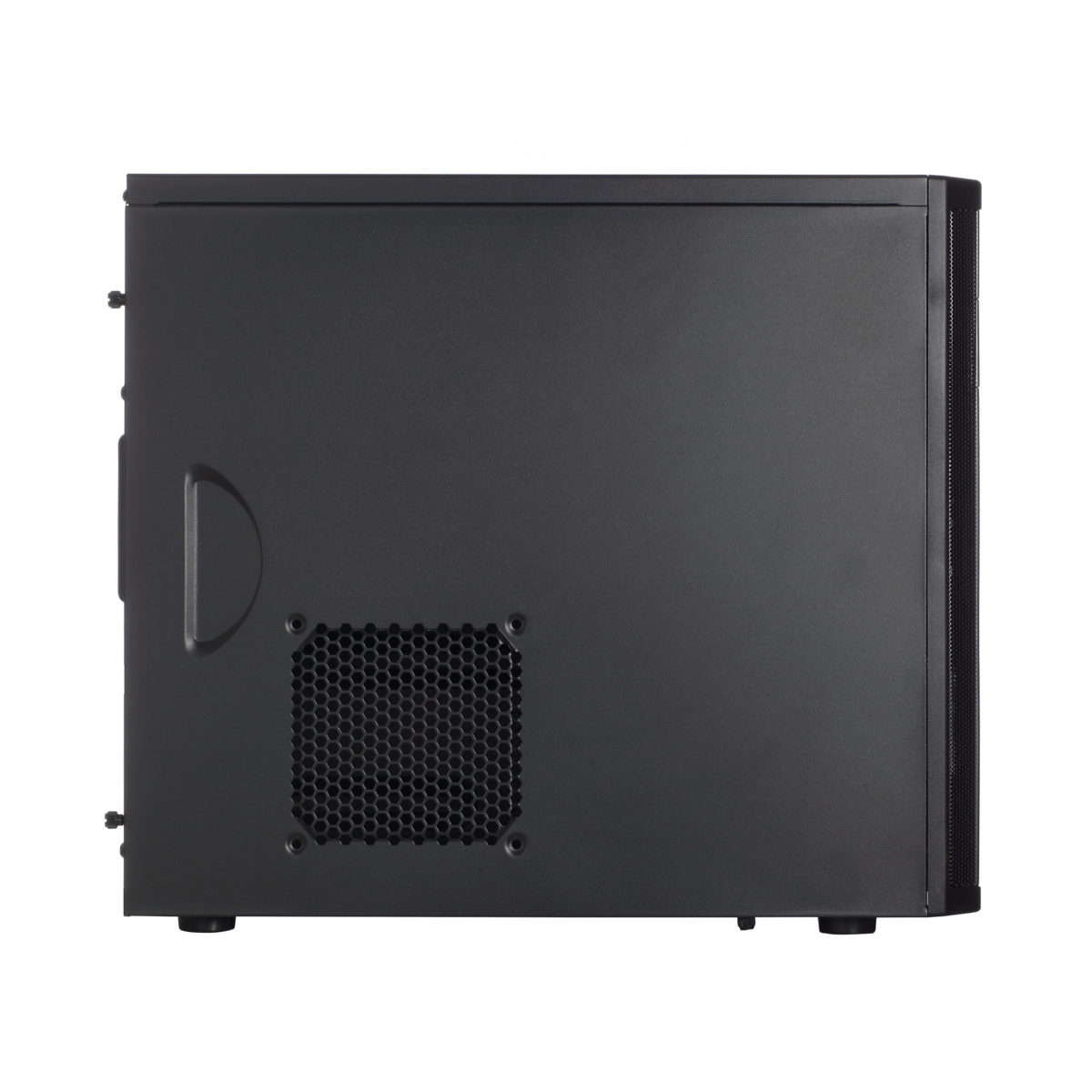

  • Side fan
    1x 120 mm
  • Dust filters
    Front fans

Compatibility

  • Power supply type
    ATX
  • Motherboard compatibility
    Mini ITX, Micro ATX
  • PSU max length
    185 mm if a typical-length optical drive is mounted
  • GPU max length
    350 mm in length; One or more 3.5" hard drives may interfere with side-mounted power connectors on graphics cards longer than 170 mm
  • CPU cooler max height
    148 mm

Dimensions

  • Case dimensions (WxHxD)
    175 x 358 x 410 mm
  • Net weight
    3.8 kg
  • Package dimensions (WxHxD)
    235 x 485 x 420 mm
  • Package weight
    4.6 kg
  • Volume
    26.3 litres

Other

  • Package contents
    Core 1100 computer case, Accessory box, User manual
  • EAN
    7350041081913
  • UPC
    817301011914
  • Product code
    FD-CA-CORE-1100-BL
